Model: EW-IS3814M

14-Port Gigabit Managed Industrial Ethernet Switch

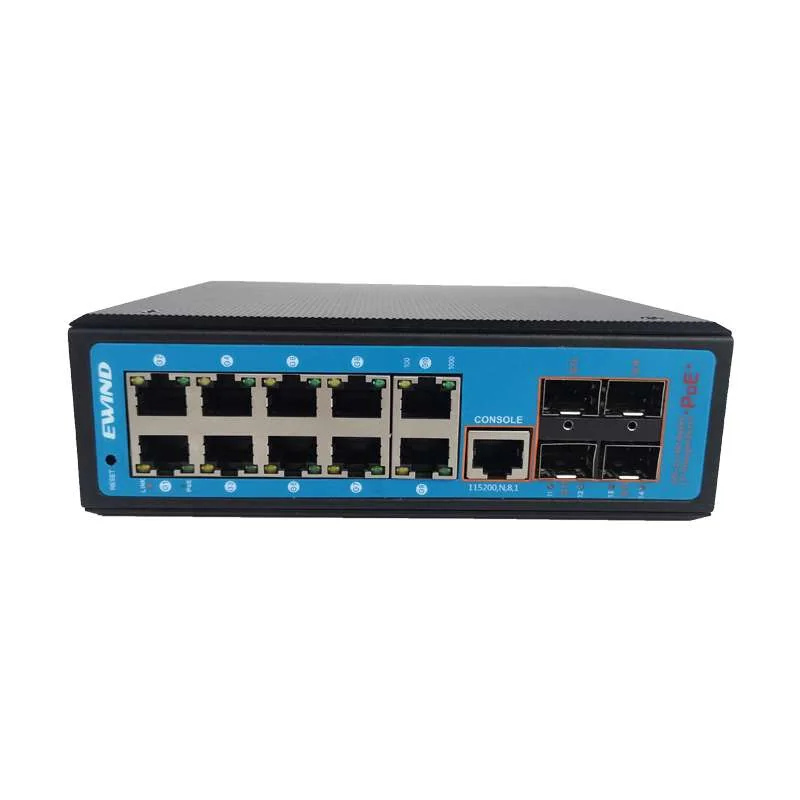

10 × Gigabit RJ45 data ports
4 × 100/1000Mbps SFP uplinks
L2+ management with VLAN, QoS and ERPS
Redundant 12–48V DC; IP40; DIN rail

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-IS3814M provides ten Gigabit RJ45 data ports and four 100/1000Mbps SFP uplinks for industrial networks. L2+ management supports VLANs, software static routing, QoS and ERPS, while redundant 12–48V DC inputs and DIN-rail mounting suit cabinet installations.

Four fiber uplinks

Ten Gigabit copper ports and four SFP slots connect industrial Ethernet devices.

Managed network control

VLANs, ACLs, QoS and ring redundancy support network segmentation and availability.

Low-power industrial design

Fanless enclosure, redundant DC terminals and less than 12W full-load consumption.

Product technical specifications
Specification	Details
RJ45 ports	10 × 10/100/1000Mbps; data only
SFP uplinks	4 × 100/1000Mbps
Management / console	L2+ / RS232, 115200 baud, 8N1
Forwarding rate	20.83Mpps at 64 bytes
MAC / buffer / jumbo frame	4K entries / 1M / 10K

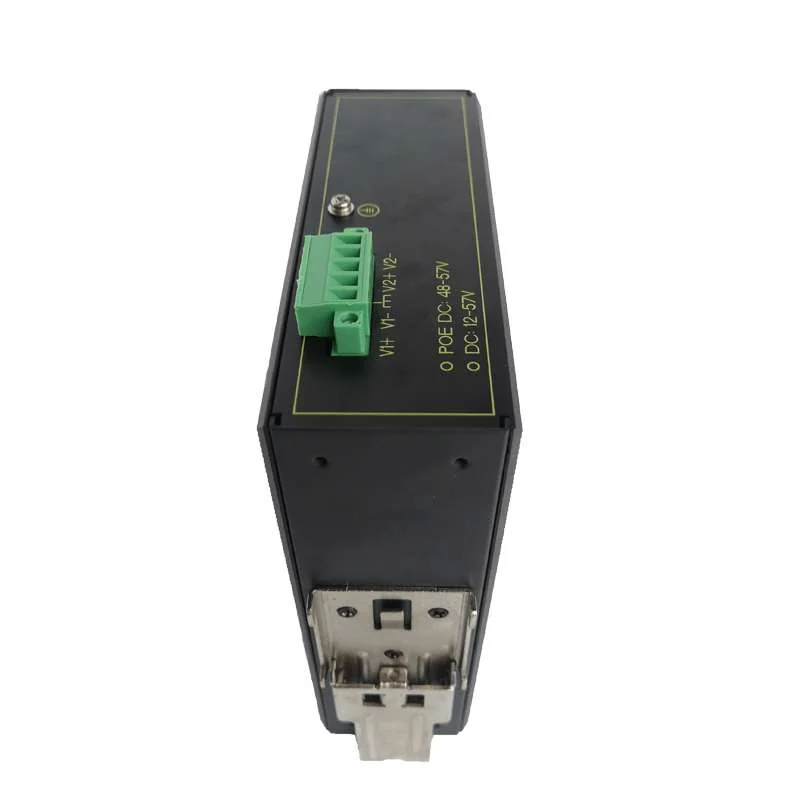

Power input	12–48V DC; redundant 5-pin terminal; reverse-polarity protection
Power consumption	Standby <2.5W; full load <12W
Power supply	Not included; optional 24V 24W supply
Dimensions	165 × 148 × 52mm
Operating temperature	−40 to +80°C

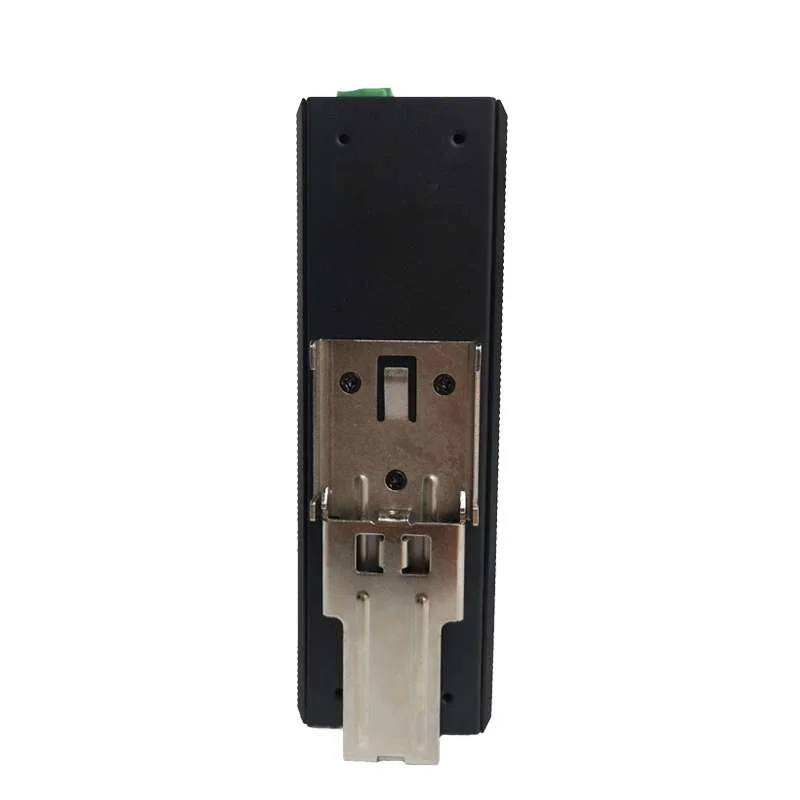

Enclosure / installation	IP40; DIN rail
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLAN and software routing

IPv4/IPv6 management; software static/default routing and ARP forwarding. Port-, protocol- and MAC-based VLANs, Voice VLAN, QinQ and Access/Trunk/Hybrid modes.

Link redundancy and multicast

STP/RSTP/MSTP, G.8032 ERPS, LACP and static aggregation. IGMP snooping v1/v2, MLD snooping v1/v2, multicast VLAN and bidirectional port mirroring.

QoS and security

Eight queues per port with 802.1p/DSCP mapping and SP/WRR scheduling. L2–L4 ACLs, 802.1X, AAA/RADIUS, port isolation and IP/MAC/VLAN/port binding.

Management and diagnostics

HTTPS Web, SSH CLI, SNMP v1/v2c/v3, DHCP client/server/relay/snooping, NTP, logs and LLDP. Cable and CPU monitoring; hold reset for 10 seconds to restore factory settings. SFP modules are purchased separately.

Environment and protection

Operating humidity: 5–90% RH. Storage: −40 to +125°C and 5–95% RH, non-condensing. ESD ±8kV contact / ±15kV air; power surge ±4kV common mode / ±2kV differential mode, ports ±4kV. Net/gross weight <1.2kg / <1.5kg.
