Model: EW-IS3810M

8-Port Gigabit Managed Industrial Switch with 2 SFP Uplinks

8 × 10/100/1000BASE-T data ports + 2 × 100/1000M SFP
L2+ management · VLAN, ACL, STP/RSTP and SNMP
Redundant 12–48VDC input · IP40 · −40 to +80°C

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

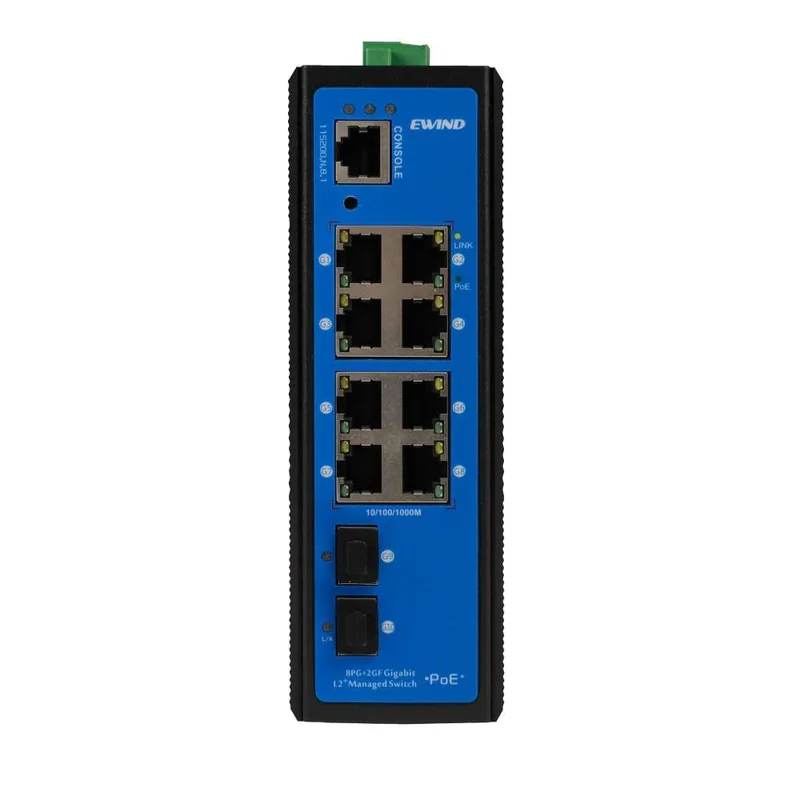

EW-IS3810M combines eight Gigabit copper ports with two 100/1000M SFP fiber uplinks, a console port and L2+ management in a rugged IP40 enclosure. Redundant 12–48VDC input, ring-capable switching features and wide-temperature operation support industrial network cabinets.

Copper and fiber backbone

Eight Gigabit RJ45 data ports pair with two SFP slots for mixed-media industrial links.

L2+ control

VLAN, port isolation, IGMP snooping, DHCP snooping, LLDP, ACL and IP source guard support managed segmentation.

Industrial resilience

Dual Phoenix-terminal power, aluminum housing, 6kV surge protection and rail mounting support field deployments.

Product technical specifications
Specification	Details
Model	EW-IS3810M
Copper ports	8 × 10/100/1000BASE-T data ports
Fiber uplinks	2 × 100/1000M SFP data ports
Management port	1 × RS232 console, 115200/N/8/1
Switching / forwarding	20Gbps non-blocking (source PDF lists 192bps) / 14.88Mpps
MAC / buffer / jumbo frame	2K / 1M / 10K
Management features	L2+ VLAN, mirroring, port isolation, IGMP/DHCP snooping, LLDP, ACL, STP/RSTP and SNMP
Fiber reach	Multimode 850nm up to 500m; single-mode 1310nm up to 40km or 1550nm up to 120km, module dependent
Power input	Redundant 12–48VDC via dual 5-pin Phoenix terminals; reverse-polarity protection
Power consumption	<2.5W standby; <10W full load

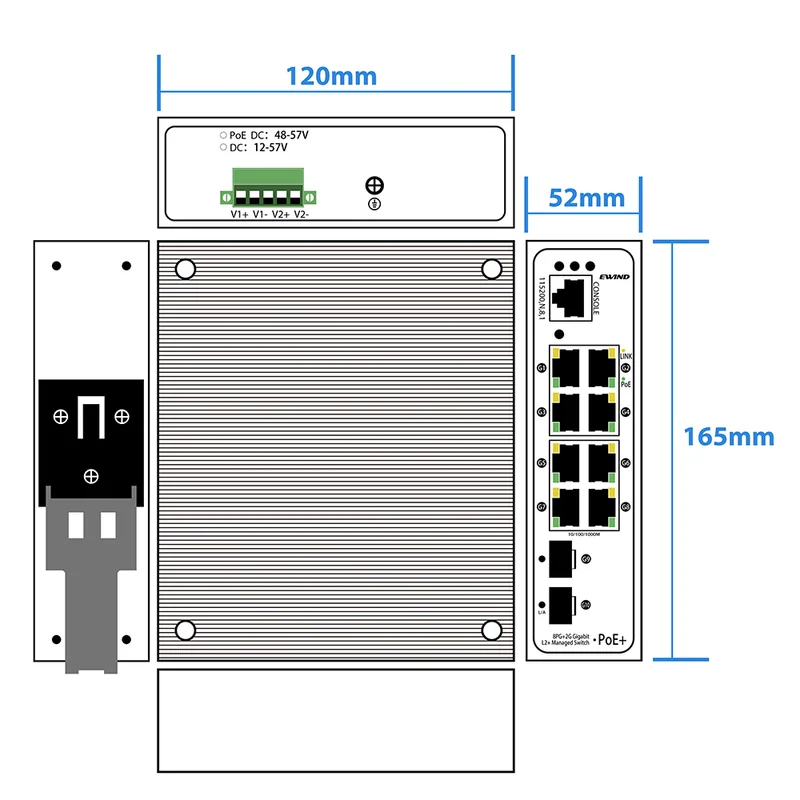

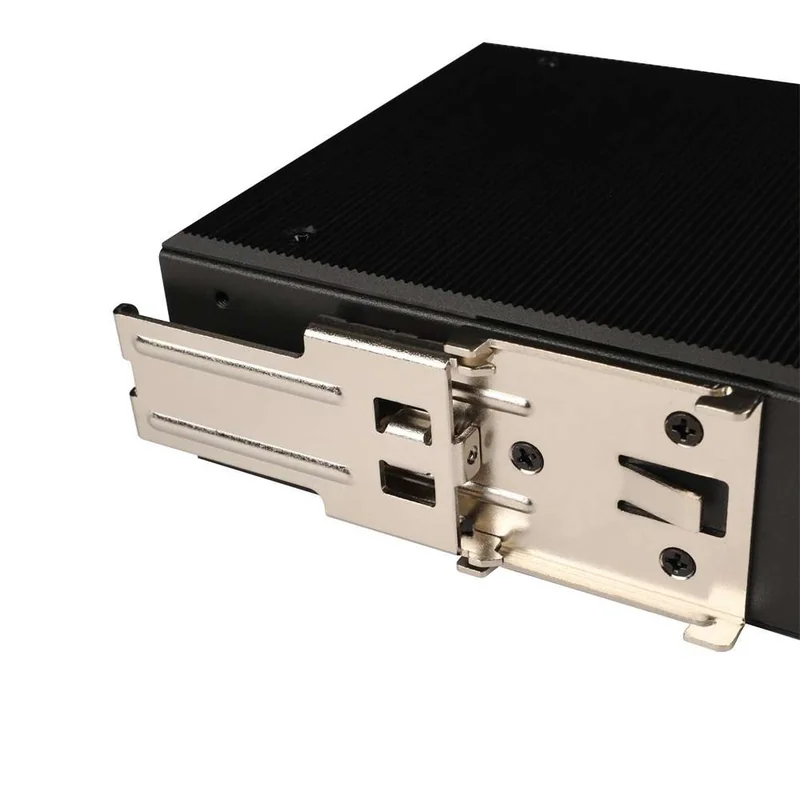

Dimensions / installation	165 × 120 × 52 mm; industrial rail-type mounting
Protection / environment	IP40; 6kV surge; −40 to +80°C operating
Warranty	5 years; lifetime maintenance
