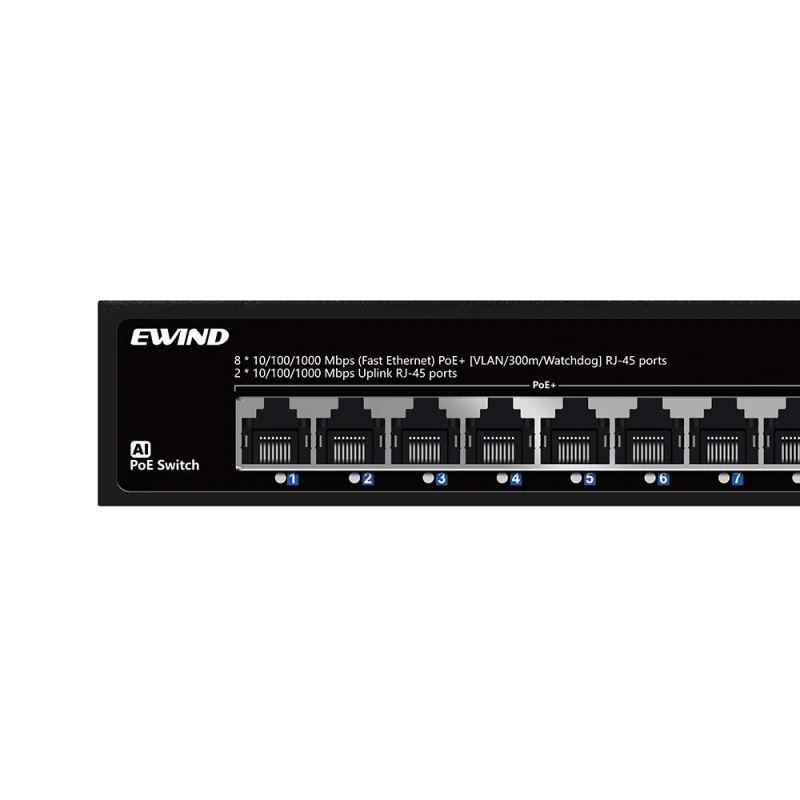

Eight Gigabit PoE outputs
Ports 1–8 support IEEE 802.3af/at with 15.4W standard power and up to 30W per port.
Model: EW-S1710CG-AP

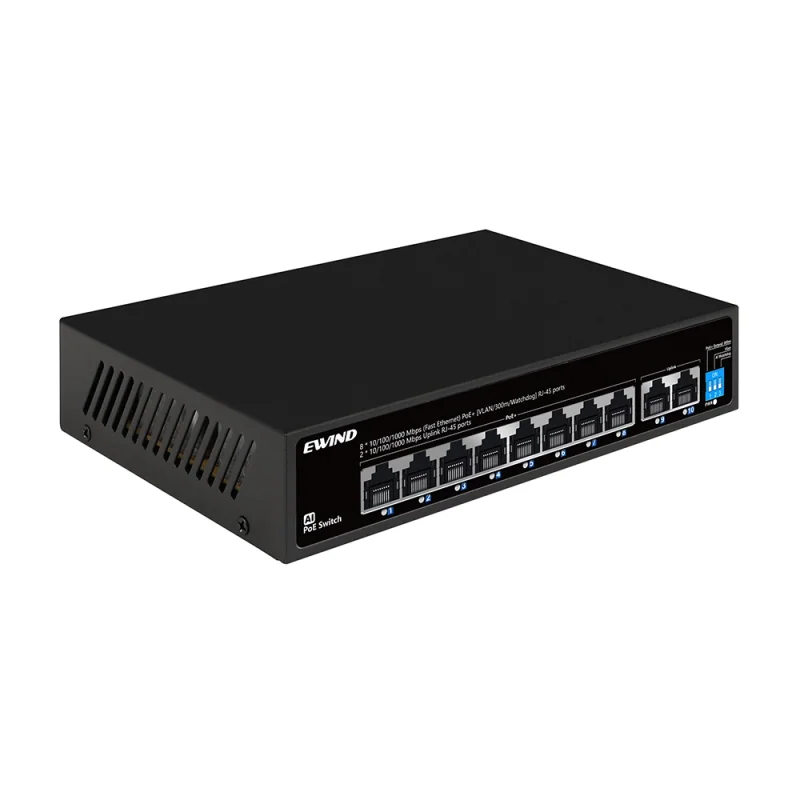

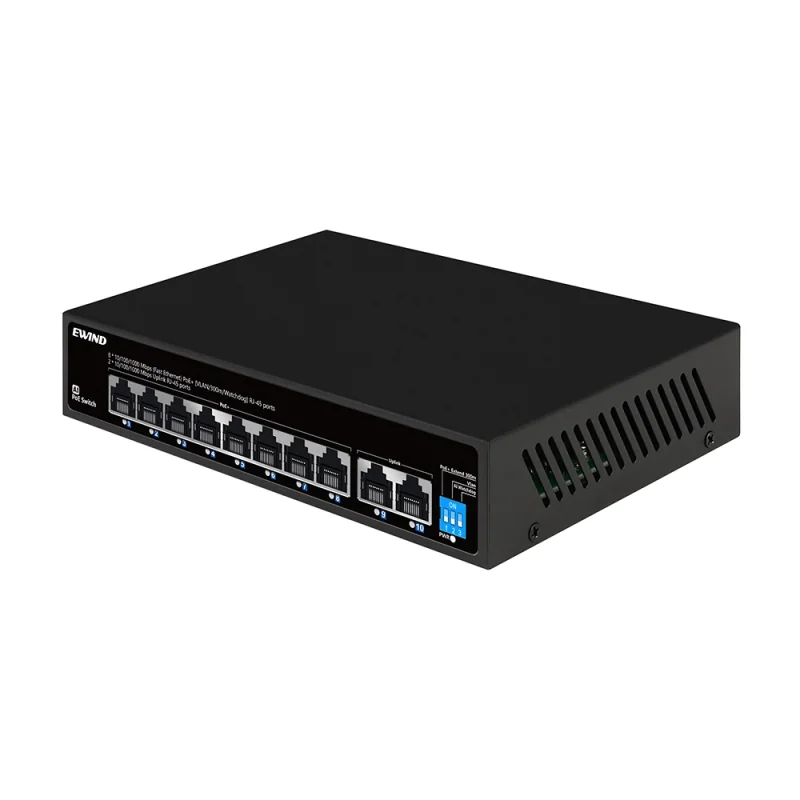

8-Port Gigabit Unmanaged PoE Switch with 2 Gigabit RJ45 Uplinks
- 8 × 10/100/1000Mbps PoE ports · up to 30W per port
- 2 × 10/100/1000Mbps Gigabit RJ45 uplinks
- 120W built-in AC supply · 20Gbps switching · AI DIP modes
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

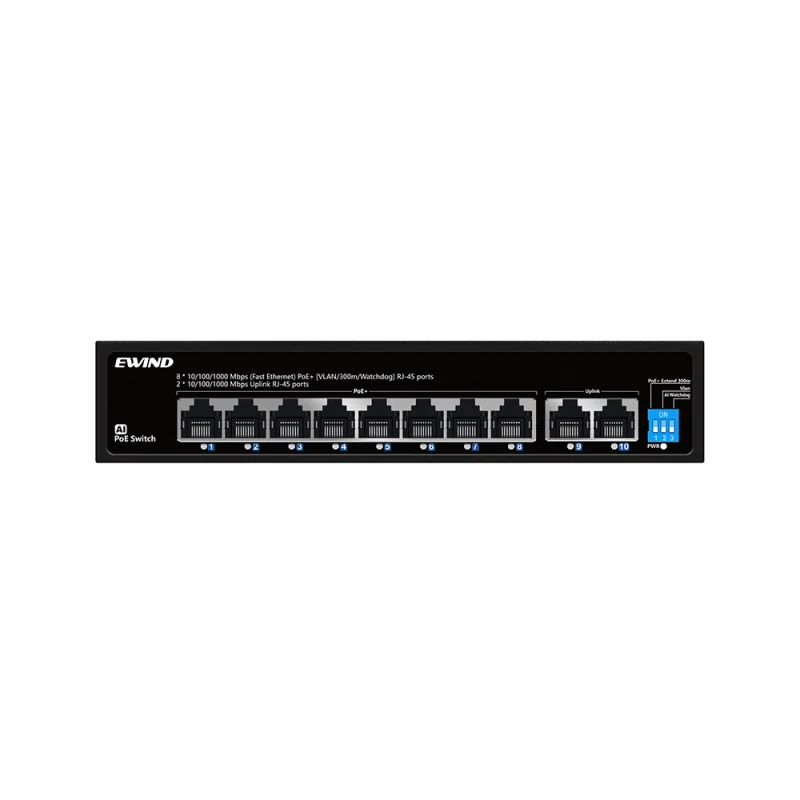

EW-S1710CG-AP provides eight Gigabit PoE ports and two dedicated Gigabit RJ45 uplinks in a compact desktop enclosure. Its 120W built-in AC supply, 300m extend mode, VLAN isolation and AI PoE watchdog suit small surveillance and access networks.
Two Gigabit uplinks
Two data-only RJ45 uplinks connect the PoE segment to an upstream network or recorder.

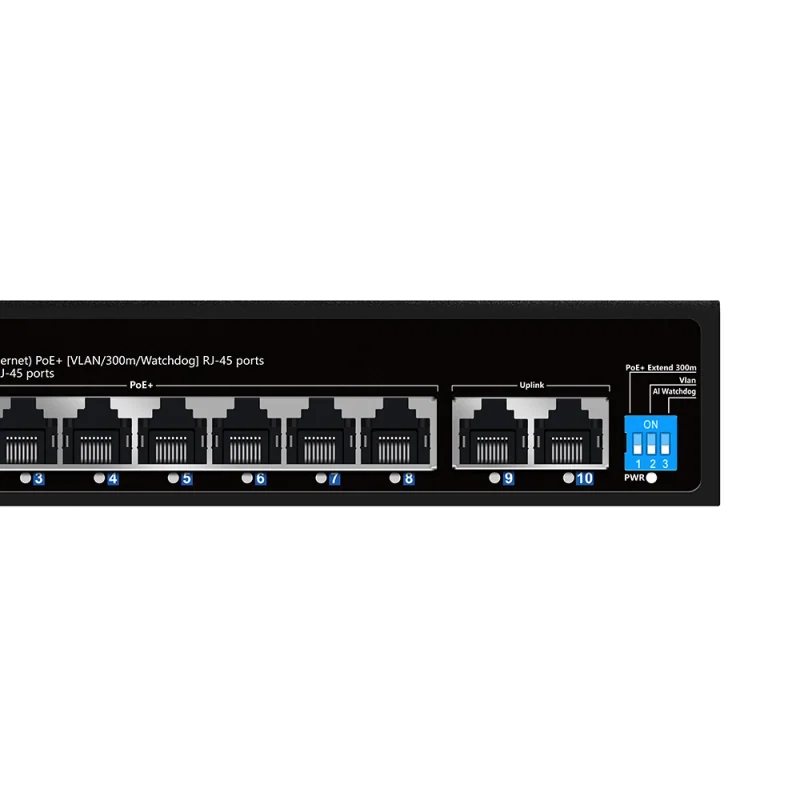

Hardware recovery modes
DIP switches provide 300m extended reach, VLAN isolation and AI PoE watchdog recovery.
| Specification | Details |
|---|---|
| Model | EW-S1710CG-AP |
| PoE ports | 8 × 10/100/1000BASE-T PoE; ports 1–8 |
| Uplinks | 2 × 10/100/1000BASE-T RJ45 data ports |
| PoE standard / port limit | IEEE 802.3af/at; 15.4W standard, up to 30W per port |
| Total power / supply | 120W; built-in AC 100–240V, 50/60Hz |
| Management | Unmanaged; DIP-switch controls |
| Switching / forwarding | 20Gbps / 14.88Mpps |
| MAC / buffer | 2K / 1M |
| Dimensions / installation | 195 × 130 × 40 mm; desktop or wall mount |
| Protection / environment | IP30; −20 to +55°C; 5–90% RH |
| Warranty | 1 year; lifetime maintenance |

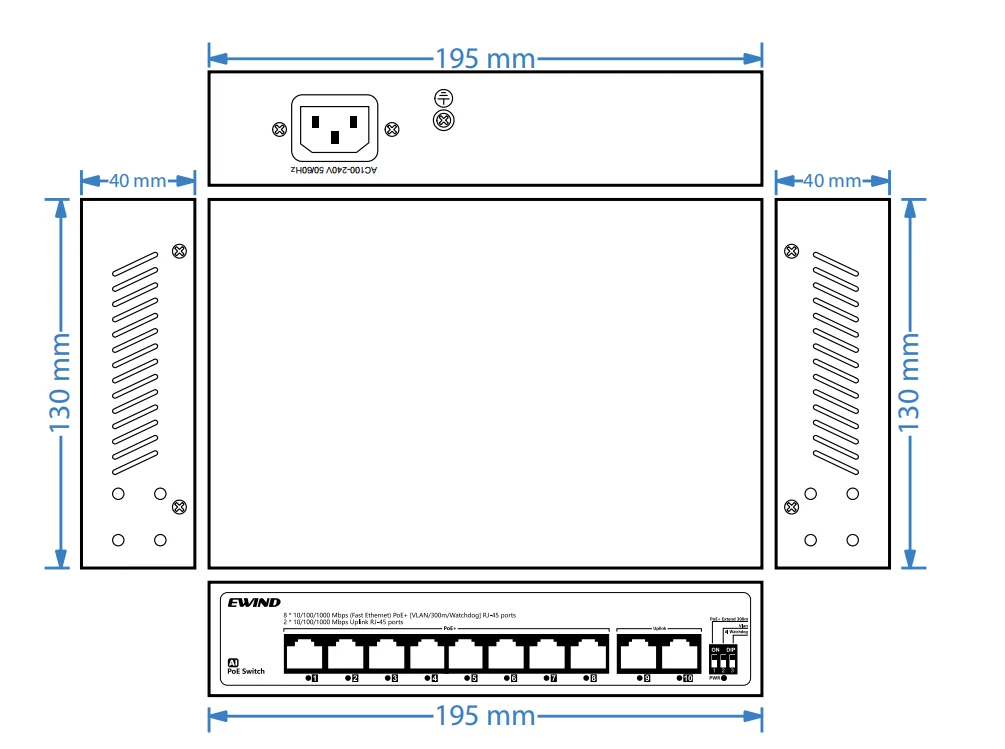

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1710CG-AP full Gigabit AI Watchdog PoE switch | 1 | SET |
| User guide and warranty card | 1 | PC |
