Model: EW-S3936GM-AP

36-Port L2+ Managed PoE Switch with 10G Uplink

8 × 10/100/1000M PoE ports + 24 × 100/1000M SFP uplinks
4 × 1/2.5/10G SFP+ uplinks for 10G aggregation
IEEE 802.3af/at PoE on ports 1–8, up to 30 W per port
598 Gbps switching capacity and 32K MAC address table

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

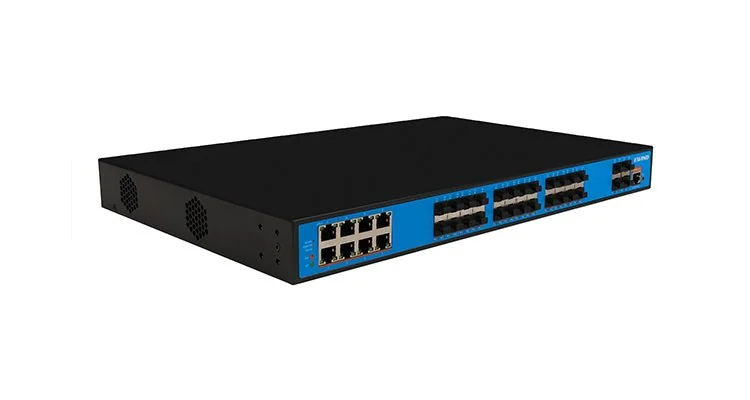

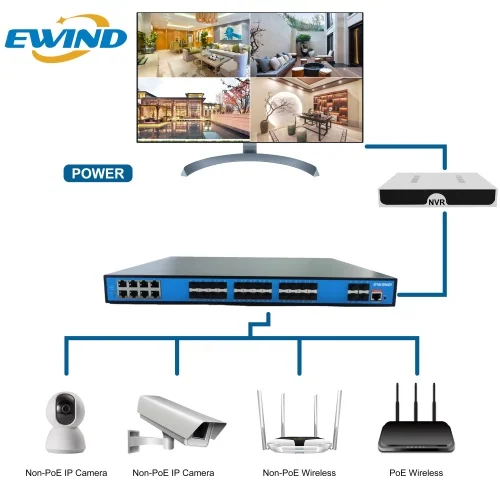

EW-S3936GM-AP is an L2+ managed aggregation switch for enterprise, campus and security networks. Eight Gigabit PoE ports power edge devices, twenty-four 100/1000M SFP uplinks aggregate fiber access, and four 1/2.5/10G SFP+ uplinks connect the core. Its built-in AC supply and standard 1U rack form fit high-density deployments.

36-port aggregation

Eight Gigabit PoE ports, twenty-four 100/1000M SFP uplinks and four SFP+ uplinks.

Managed PoE access

IEEE 802.3af/at on ports 1–8, with up to 30 W per port and real-time status.

598Gbps switching

Non-blocking switching with 107.14 Mpps forwarding and a 32K MAC table.

L2+ resilience

VLAN, LACP, STP/RSTP/MSTP, ERPS, QoS and security controls.

Product technical specifications
Specification	Details

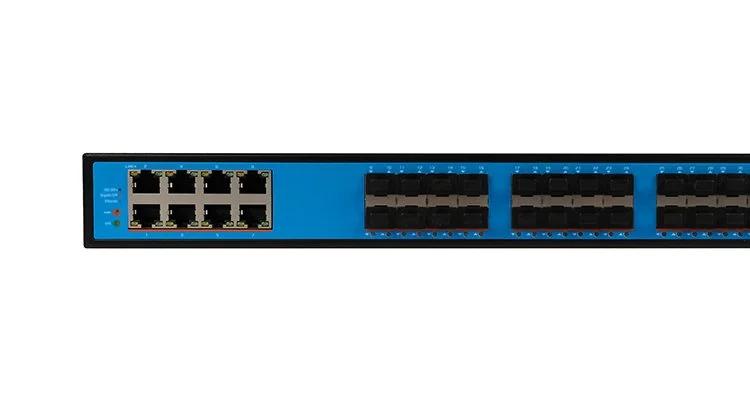

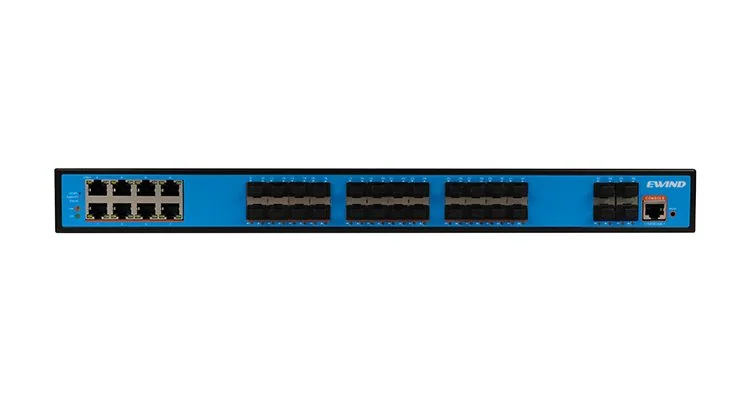

Interfaces	8 × 10/100/1000Base-T PoE ports; 24 × 100/1000M SFP uplinks; 4 × 1/2.5/10G SFP+ uplinks; 1 × RS232 console port.
Managed type	L2+ managed aggregation switch with software-based static/default routing.
PoE	IEEE 802.3af/at on ports 1–8; up to 30 W per port; real-time power status, scheduling and priority control.
Switching performance	598 Gbps switching capacity; 107.14 Mpps forwarding rate; store-and-forward.
Addressing capacity	32K MAC address table; 32M buffer memory.
Fiber uplinks	100/1000M SFP and 1/2.5/10G SFP+ interfaces. Fiber modules are ordered separately; single-mode, multimode, single-fiber and dual-fiber options are available.

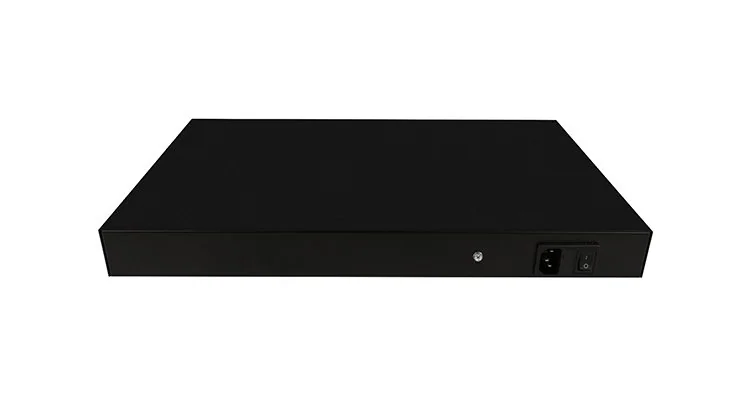

Power	Built-in AC 100–220 V, 50–60 Hz supply; 130 W total power; standby <8 W; full load <130 W.
Operating environment	Operating: −20 to +55 °C, 5–90% RH. Storage: −40 to +80 °C, 5–95% RH. Non-condensing.
Mechanical	440 × 290 × 44.5 mm; net weight <4 kg; gross weight <5 kg; desktop or 19-inch 1U cabinet installation.
Protection and compliance	IP30; ESD ±8 kV contact / ±15 kV air; surge protection ±4 kV at power common-mode/differential-mode and ports. CCC, CE, CE/LVD EN60950, FCC Part 15 Class B and RoHS.
Warranty	3 years, with lifetime maintenance.

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber and link planning

The switch combines 24 × 100/1000M SFP uplinks with four 1/2.5/10G SFP+ uplinks. Modules are ordered separately, with single-mode, multimode, single-fiber, dual-fiber and LC options. Optical reach depends on the selected module and fiber.

VLAN and routing

Port- and protocol-based VLANs, IEEE 802.1Q, QinQ and Access/Trunk/Hybrid modes. L2+ software routing supports communication between VLANs, with up to 128 static/default routes and 1,024 ARP entries.

Aggregation and redundancy

LACP and static aggregation support up to eight groups with eight ports per group. STP, RSTP, MSTP and G.8032 ERPS ring redundancy provide link resilience; the source lists ring self-healing below 20 ms.

Multicast and QoS

IGMP Snooping v1/v2, MLD Snooping v1/v2 and multicast VLAN. Eight output queues per port, 802.1p/DSCP mapping, SP/WRR scheduling, rate limiting, packet filtering and bi-directional traffic mirroring.

Security and management

L2–L4 ACLs, 802.1X, centralized MAC authentication, AAA/RADIUS, SSH, SSL, port isolation, IP source protection and DoS protection. HTTPS web management, console/Telnet/SSH CLI, SNMP v1/v2c/v3, DHCP client and snooping, LLDP, NTP and diagnostics.

PoE and installation

Ports 1–8 support IEEE 802.3af/at and 1/2 (+), 3/6 (−) PoE pin assignment. Configure per-port allocation, priority, delayed start and time schedules. Built-in AC supply and included hanging ears support standard 1U rack installation.
