Power control per port
Set power limits, priority, delayed startup and PoE schedules.
Model: EW-S2828GM-AP
24-Port Gigabit L2+ PoE Switch with 4 10G SFP+ Uplinks
- 24 Gigabit PoE ports supporting IEEE 802.3af/at
- 4 × 1G/2.5G/10G SFP+ uplinks
- 400W supply; up to 30W per PoE port
- L2+ management, static routing and ERPS
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

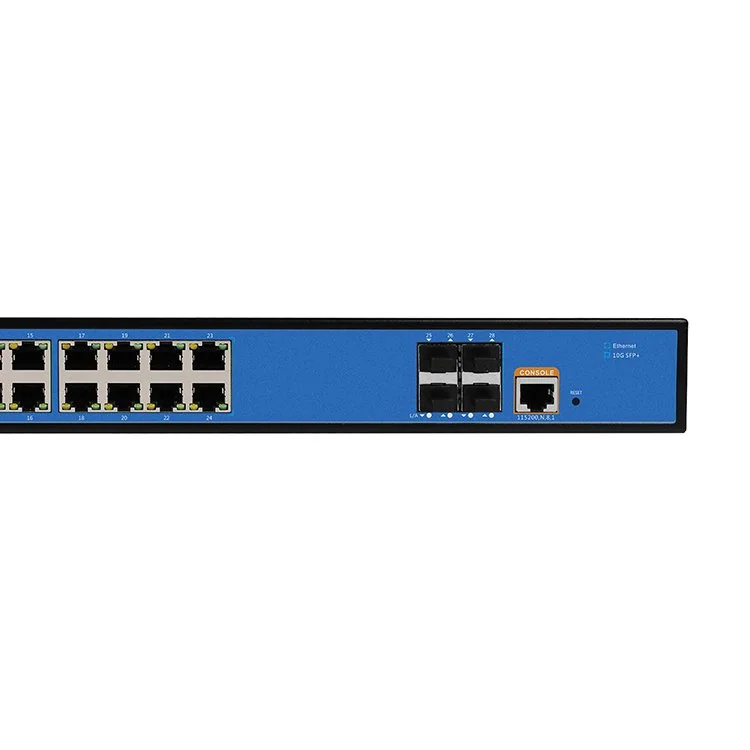

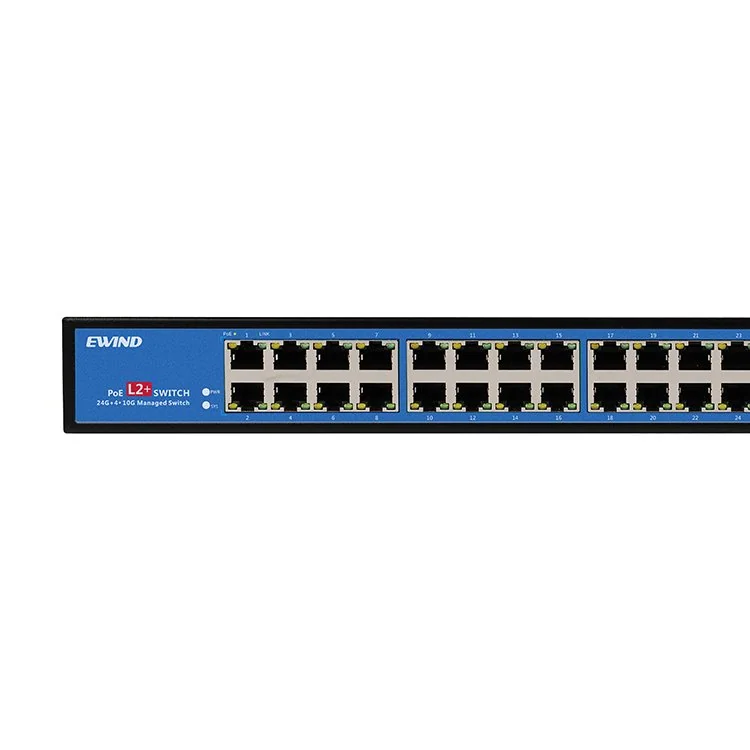

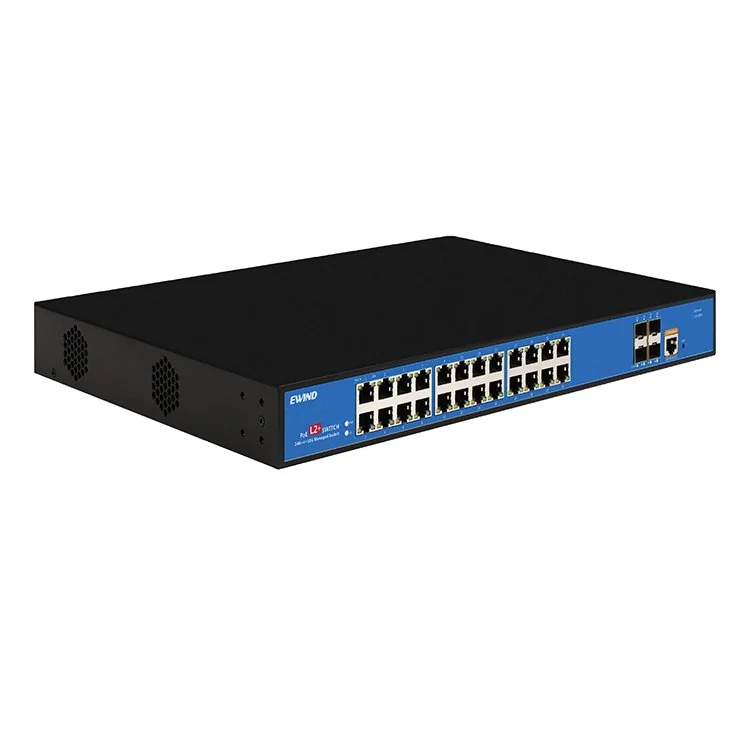

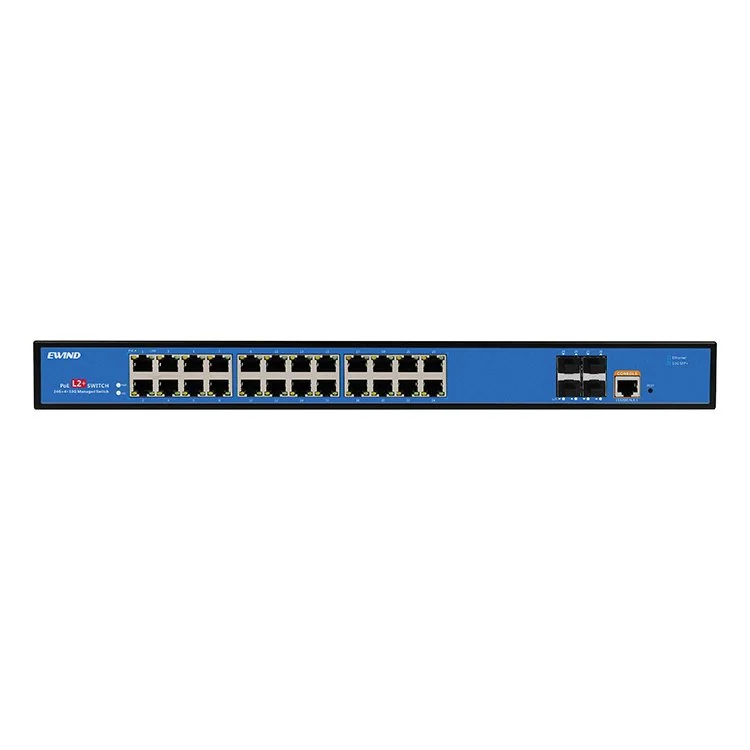

EW-S2828GM-AP provides 24 Gigabit PoE access ports and four 1G/2.5G/10G SFP+ uplinks. L2+ management combines scheduled PoE, VLANs, static routing and ring protection in a 1U rack enclosure with a built-in 400W supply.
10G fiber uplinks
Four SFP+ slots connect cameras and access points to the upstream network.
Managed segmentation
VLANs, ACLs, authentication and QoS control traffic across the access network.
| Specification | Details |
|---|---|
| Model | EW-S2828GM-AP |
| PoE ports | 24 × 10/100/1000BASE-T RJ45 |
| Fiber uplinks | 4 × 1G/2.5G/10G SFP+ |
| PoE standard | IEEE 802.3af/at; up to 30W per port |
| Power supply | 400W; AC 100–220V, 50–60Hz |
| Management | L2+; web, CLI, SNMP and console |
| Switching capacity | 128Gbps |
| MAC table | 32K entries |
| Dimensions | 440 × 290 × 44.5 mm |
| Installation | Desktop or 19-inch 1U rack |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2828GM-AP switch | 1 | SET |
| Rack mounting brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S2828GM-AP Resources
PDF · Specifications · Installation · Ordering
