High-density access
Connect up to 48 copper Ethernet devices and aggregate traffic through four multi-rate fiber uplinks.
Model: EW-S2948GM

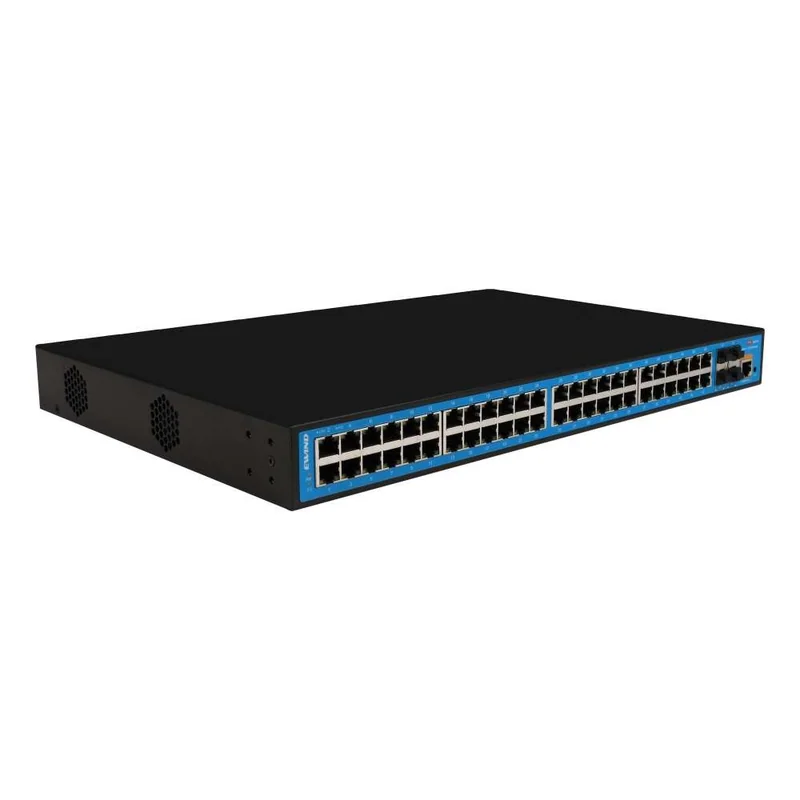

48-Port Gigabit L2+ Managed Switch with 4 10G Uplinks

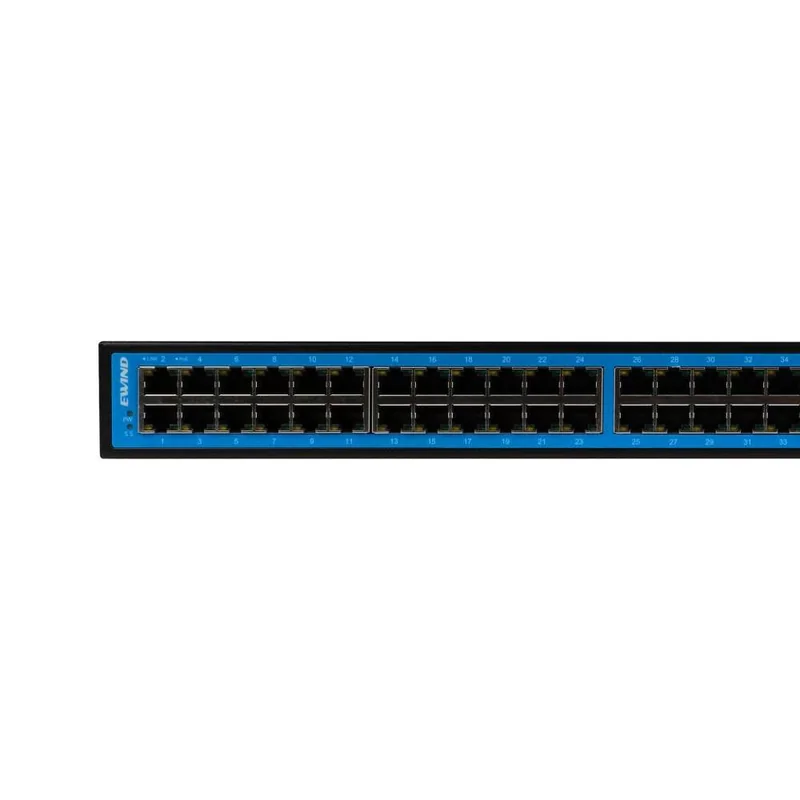

- 48 Gigabit RJ45 data ports + 4 multi-rate SFP+ slots

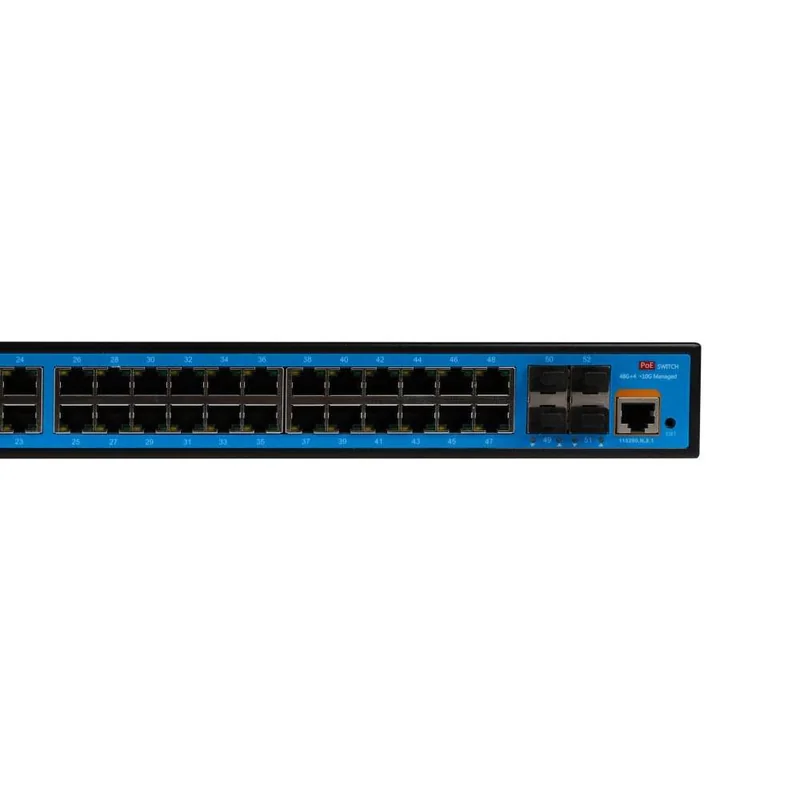

- 1G / 2.5G / 10G fiber uplinks
- L2+ management · static software routing
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2948GM provides 48 Gigabit copper data ports and four 1/2.5/10G SFP+ uplinks for enterprise and campus access networks. L2+ management combines VLAN, ACL and QoS controls with redundant-link protocols and static software routing.
Controlled network traffic
VLAN, ACL, QoS and multicast controls help separate users and prioritize traffic.
Rack installation
The 1U chassis includes an internal AC supply and a console port for local administration.
| Specification | Details |
|---|---|
| Model | EW-S2948GM |
| Copper ports | 48 × 10/100/1000BASE-T RJ45 data ports |
| Fiber uplinks | 4 × 1/2.5/10G SFP+ slots; modules sold separately |
| Management | L2+; IPv4/IPv6 management |
| Routing | Static/default routes with software forwarding |
| Console | RS232; 115200 baud, 8N1 |
| MAC address table | 32K entries |
| Power input | Internal supply; 100–240V AC, 50/60Hz |
| Enclosure / installation | IP30; desktop or 19-inch 1U rack |
| Dimensions | 440 × 290 × 44.5 mm |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2948GM managed Ethernet switch | 1 | SET |
| Rack-mount brackets | 1 | PAIR |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
