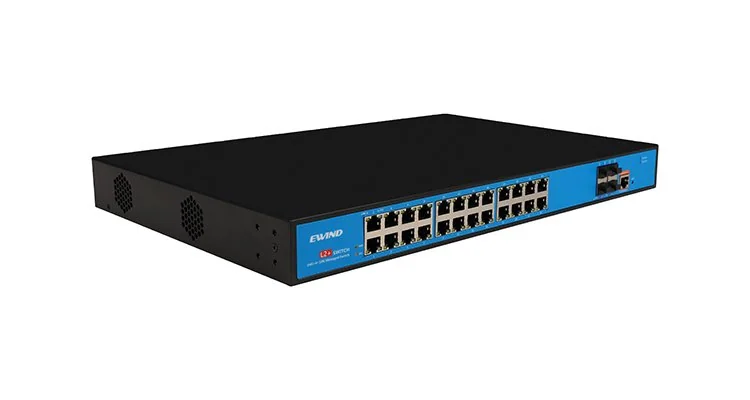

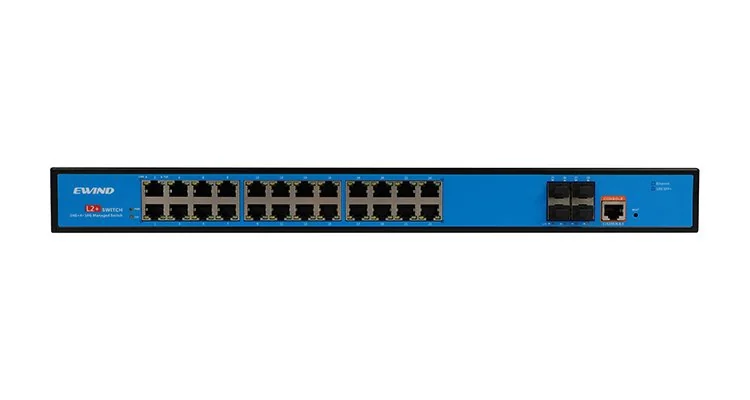

Model: EW-S2928GM-AP

24-Port Gigabit L2+ Managed PoE Switch with 4 10G Uplinks

24 Gigabit PoE ports; IEEE 802.3af/at
4 × 1G/2.5G/10G SFP+ uplinks
400W supply; up to 30W per port
L2+ management with static routing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S2928GM-AP connects 24 Gigabit PoE devices to four 1G/2.5G/10G SFP+ uplinks. Its 400W power configuration, scheduled PoE controls and L2+ management support access networks with VLANs, static routing and ERPS redundancy.

Controlled PoE

Monitor each port and configure power allocation, priorities and schedules.

Fiber uplinks up to 10G

Four SFP+ slots connect to aggregation switches and recording networks.

Access segmentation

VLANs, ACLs, QoS and authentication control traffic and device access.

Product technical specifications
Specification	Details
Model	EW-S2928GM-AP

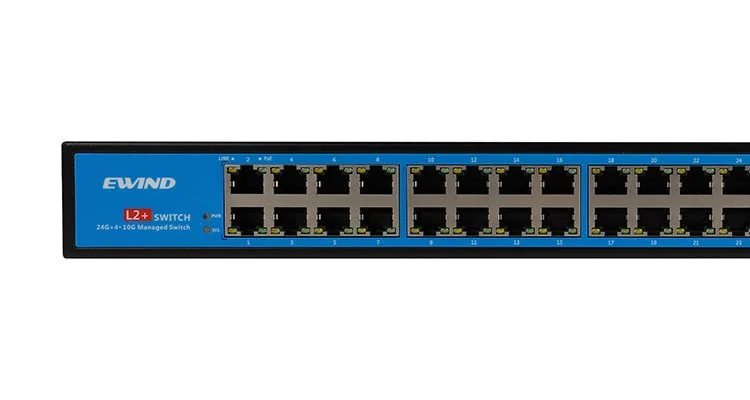

PoE ports	24 × 10/100/1000BASE-T RJ45

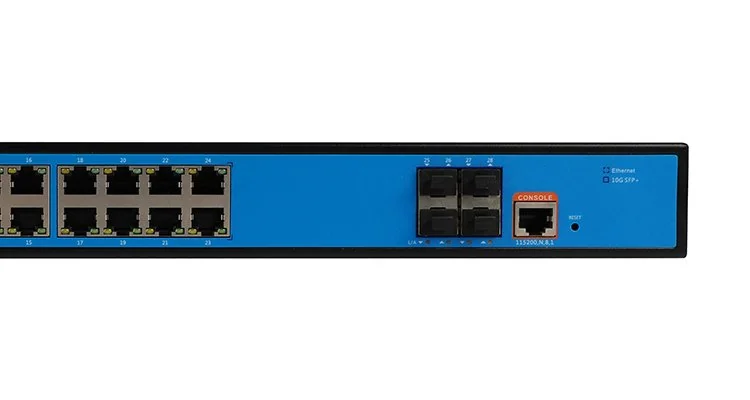

Fiber uplinks	4 × 1G/2.5G/10G SFP+
PoE standard	IEEE 802.3af/at; up to 30W per port
Power supply	400W; AC 100–220V, 50–60Hz
Management	L2+; web, CLI, SNMP and RS232 console
Routing	Static/default routes; software forwarding
MAC table	32K entries
Dimensions	440 × 290 × 44.5 mm
Installation	Desktop or 19-inch 1U rack
Operating temperature	−20°C to +55°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Power configuration

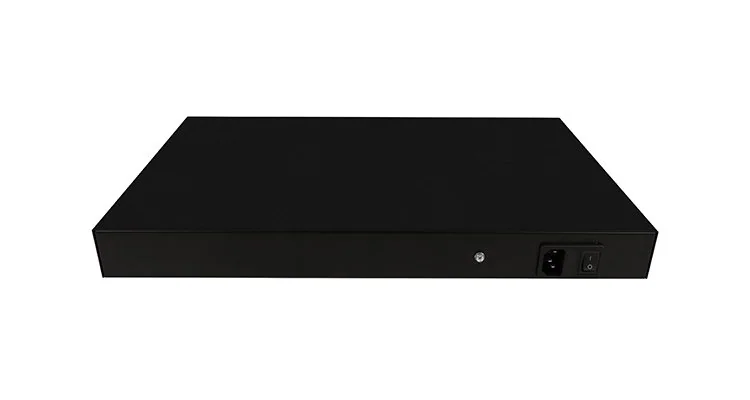

This AP model uses a 400W supply. The AP-AT variant has a separate 600W configuration. Power is shared across the switch and connected devices; 30W is the per-port limit. Standby consumption is below 10W.

PoE controls

Total and per-port power limits, allocation, priority, delayed startup, operating schedules and status monitoring.

Routing and resilience

Up to 128 static/default routes and 1,024 ARP entries; IPv4/IPv6 management. 802.1Q and protocol VLANs, QinQ, LACP, STP/RSTP/MSTP and ERPS.

Security and traffic

IGMP/MLD snooping, mirroring, eight output queues and 802.1p/DSCP mapping. ACLs, 802.1X, RADIUS, ARP inspection, source protection and DHCP snooping.

Installation and diagnostics

IP30 enclosure; net weight below 4.4 kg. SFP+ modules are ordered separately. HTTPS, SSH, SNMP, LLDP, NTP and cable diagnostics. Storage: −40°C to +80°C.
