Model: EW-S57930TM-AP

24-Port 2.5G Layer 3 PoE Switch with Six 10G Uplinks

24 × 10/100/1000/2500Mbps PoE ports
6 × 1G/10G SFP+ uplinks
90W PoE on ports 1–8; 450W total power supply
Layer 3 static and policy routing

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S57930TM-AP provides 24 multi-Gigabit PoE access ports and six 1G/10G SFP+ uplinks. Ports 1–8 support up to 90W IEEE 802.3bt delivery, while Layer 3 routing, VLANs and traffic controls support enterprise and campus access networks.

2.5G access, 10G uplinks

24 multi-Gigabit copper ports with six SFP+ connections.

Eight 90W ports

IEEE 802.3bt on ports 1–8; af/at across all access ports.

Layer 3 management

Static and policy routing, VLANs, ACLs and QoS.

240Gbps port capacity

178.6Mpps forwarding for the installed port configuration.

Product technical specifications
Specification	Details
PoE access ports	24 × 10/100/1000/2500Mbps RJ45
Fiber uplinks	6 × 1G/10G SFP+
Ports 1–8 PoE	IEEE 802.3af/at/bt; up to 90W per port
Ports 9–24 PoE	IEEE 802.3af/at; up to 30W per port
Total power supply	450W
Port switching capacity	240Gbps
Forwarding rate	178.6Mpps
Management interface	1 console; reset button

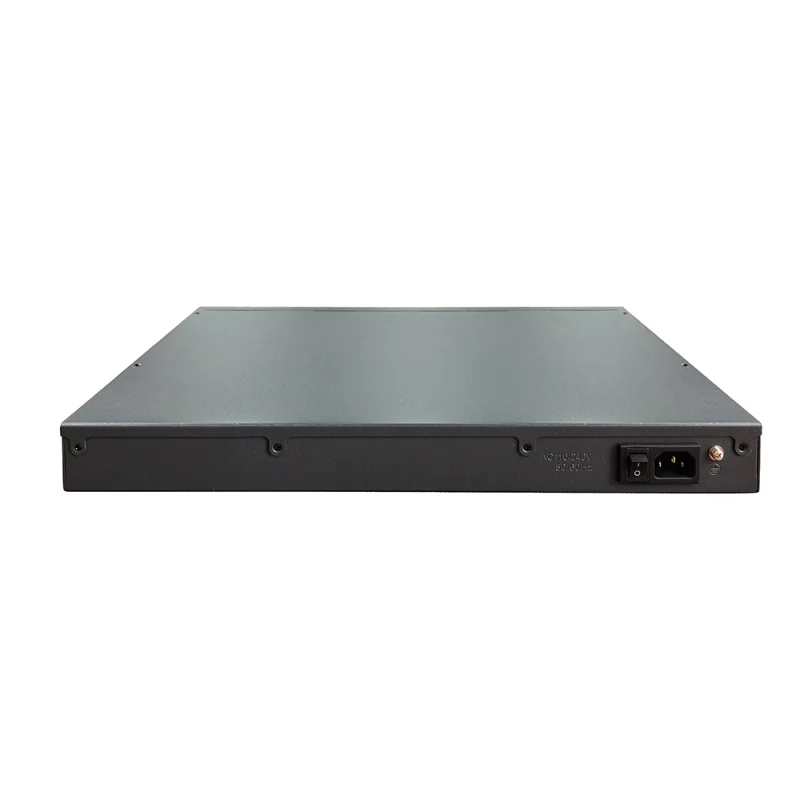

Power input	100–240V AC, 50–60Hz
Dimensions (W × D × H)	440 × 285 × 44mm
Operating temperature	0°C to +45°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE control

PoE diagnosis, timed restart and port power priority are supported. Ports 1–8 can deliver up to 90W; all port allocations remain subject to the shared 450W supply.

Routing and VLANs

IPv4 inter-VLAN routing, multiple IP addresses, static routes, default routes and policy routing. 4K VLAN support with port-, MAC-, protocol- and IP-subnet-based VLANs, voice VLAN and QinQ.

Redundancy and multicast

Static aggregation and LACP, STP/RSTP/MSTP with BPDU/root protection, and ERPS. IGMP snooping v1/v2 and proxy. DHCP server, client, relay and snooping.

QoS and access security

MAC/IP ACLs, 802.1p/DSCP mapping and remarking, eight queues with SP/WRR/SP+WRR scheduling. 802.1X, RADIUS, MAC authentication, port isolation, ARP binding and storm suppression.

Administration and environment

Console or SSH CLI, HTTPS web interface, SNMP v1/v2, LLDP, NTP, logs, port/CPU mirroring and factory reset. Net weight <5.5kg. Operating humidity: 10–90%; storage: −40°C to +70°C, 5–90% RH, non-condensing.
