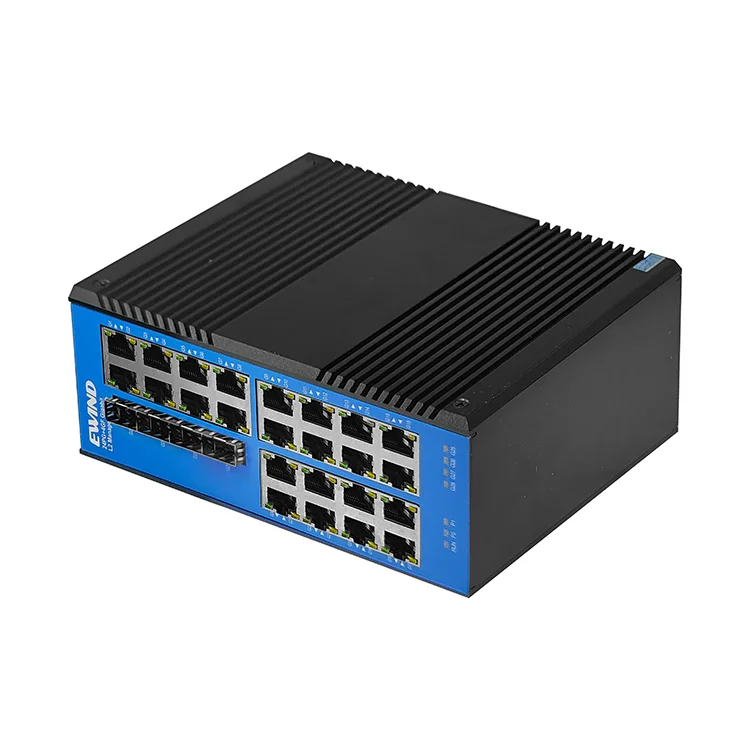

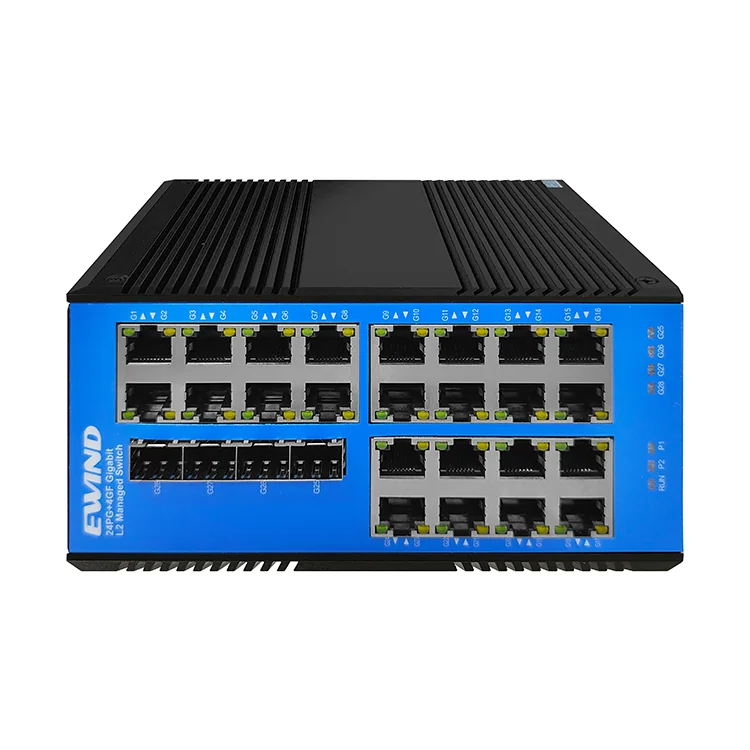

Model: EW-IS3628M

28-Port Gigabit Managed Industrial Ethernet Switch

24 Gigabit RJ45 data ports + 4 SFP uplinks
Web and RS232 console management
802.1Q VLANs, RSTP and ring-network functions
Redundant DC inputs; fanless IP40 enclosure

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

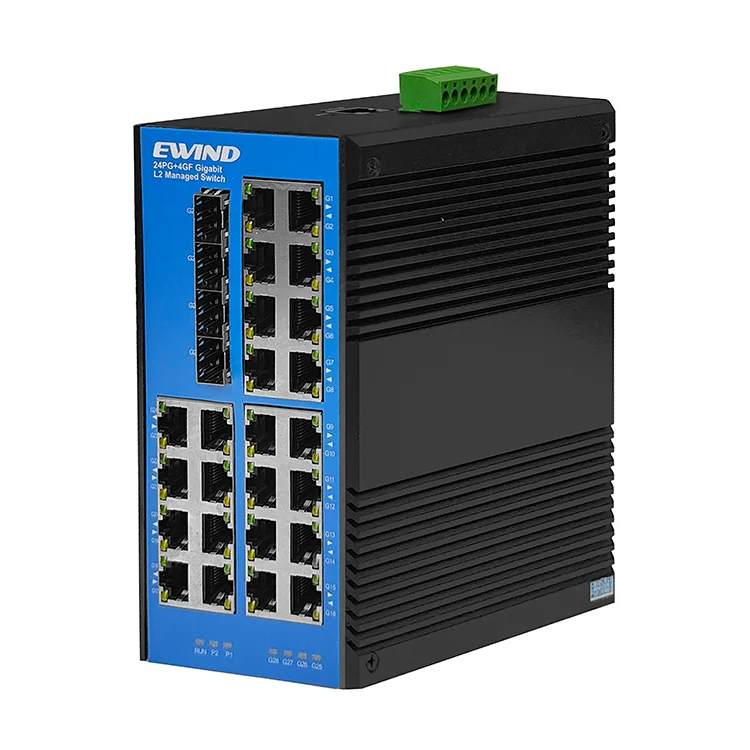

EW-IS3628M connects 24 Gigabit RJ45 data ports and four 100/1000Mbps SFP uplinks in a fanless industrial enclosure. Web and console administration provide VLANs, traffic controls and network redundancy for DIN-rail installations operating from −40°C to +75°C.

28 network connections

24 copper access ports and four 100/1000Mbps SFP slots.

Managed traffic

VLAN segmentation, port rate limits and loop protection.

Industrial installation

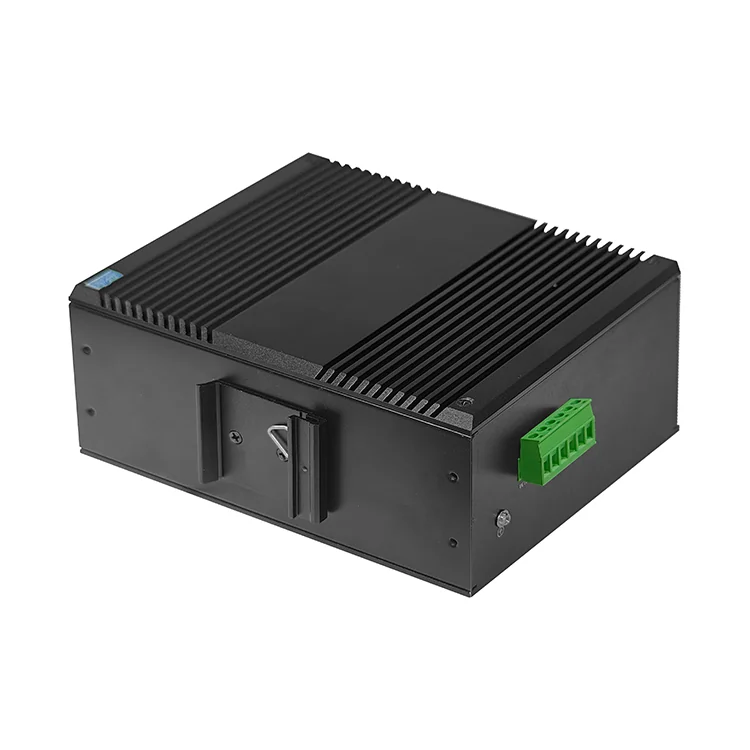

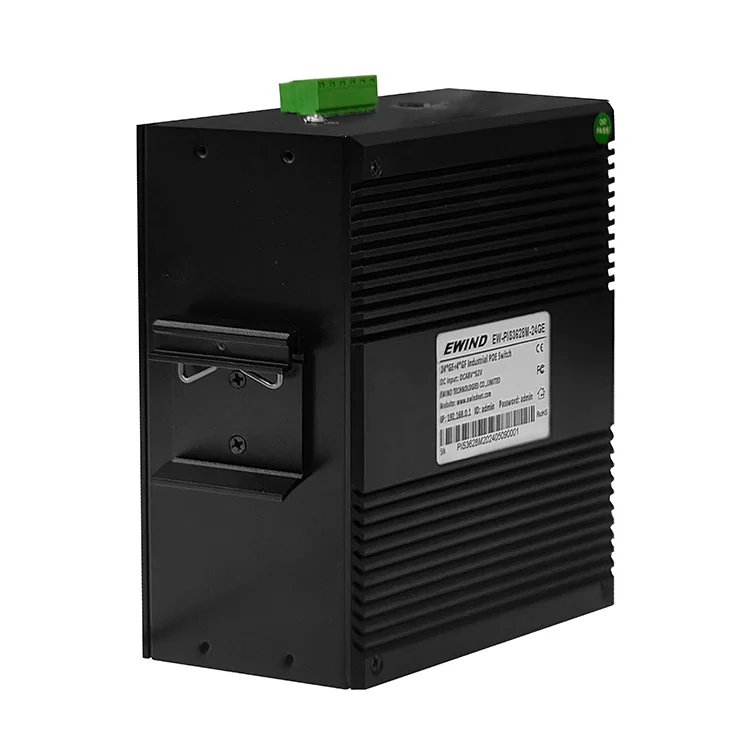

DIN-rail mounting and fanless IP40 housing.

Remote maintenance

Web management, console access and configuration backup.

Product technical specifications
Specification	Details
Copper ports	24 × 10/100/1000Mbps RJ45; data
Fiber uplinks	4 × 100/1000Mbps SFP
Console	1 × RS232; 115200, N, 8, 1
Management	L2+; web and console

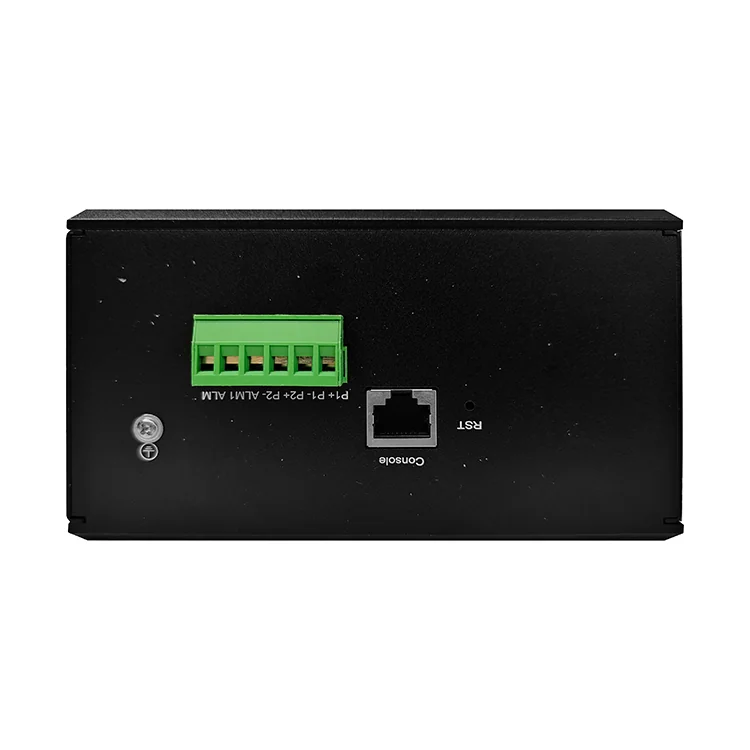

Power connections	Dual redundant DC input; 6-pin terminal
MAC address table	32K entries
VLAN support	Up to 4096 VLANs
Installation / enclosure	DIN rail; fanless IP40
Operating temperature	−40°C to +75°C
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLANs and redundancy

Port-based and IEEE 802.1Q VLANs, RSTP, fast ring-network functions, static port aggregation and loop detection/avoidance.

Traffic control

IGMP snooping, broadcast/multicast/unicast storm suppression, port input/output bandwidth controls and multi-to-one port mirroring. Copper ports auto-negotiate speed and duplex with MDI/MDIX.

Management and security

Web and RS232 console administration, DHCP client, SNMP v1/v2, configuration backup, firmware upload, factory reset and logs. The datasheet also lists MAC filtering, MAC binding and 802.1X authentication.

Power and environment

Two DC feeds provide power redundancy. Select a supply according to the input rating on the delivered unit. Operating humidity: 10–90%; storage: −40°C to +85°C and 5–95% RH, non-condensing.

Fiber selection

Use compatible 100/1000Mbps SFP modules for the intended fiber type and distance. Optical reach is determined by the installed module.
