Model: EW-S1918CF-AP

16-Port Fast Ethernet PoE Switch with Gigabit Combo Uplink

16 × 10/100Mbps IEEE 802.3af/at PoE ports
1 Gigabit RJ45 uplink + 1 RJ45/SFP combo uplink
Up to 30W per PoE port; 300W power supply
DIP-switch extend, isolation and PoE watchdog modes

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S1918CF-AP connects 16 Fast Ethernet PoE devices with Gigabit copper and fiber uplink options. It supports IEEE 802.3af/at power delivery up to 30W per PoE port, with a 300W power supply and fanless operation for surveillance and access networks.

16 PoE connections

Fast Ethernet access for cameras, phones and wireless APs.

Copper or fiber uplink

One dedicated Gigabit RJ45 port and one RJ45/SFP combo port.

300W power supply

IEEE 802.3af/at detection with up to 30W per powered port.

Unmanaged operation

DIP switches provide extend, isolation and watchdog settings.

Product technical specifications
Specification	Details
PoE access ports	16 × 10/100Mbps RJ45
Uplinks	1 × Gigabit RJ45 + 1 × RJ45/SFP combo
PoE standard	IEEE 802.3af/at
Maximum power per PoE port	30W
Power supply	Built-in 300W; 100–240V AC, 50/60Hz
MAC address table	8K entries

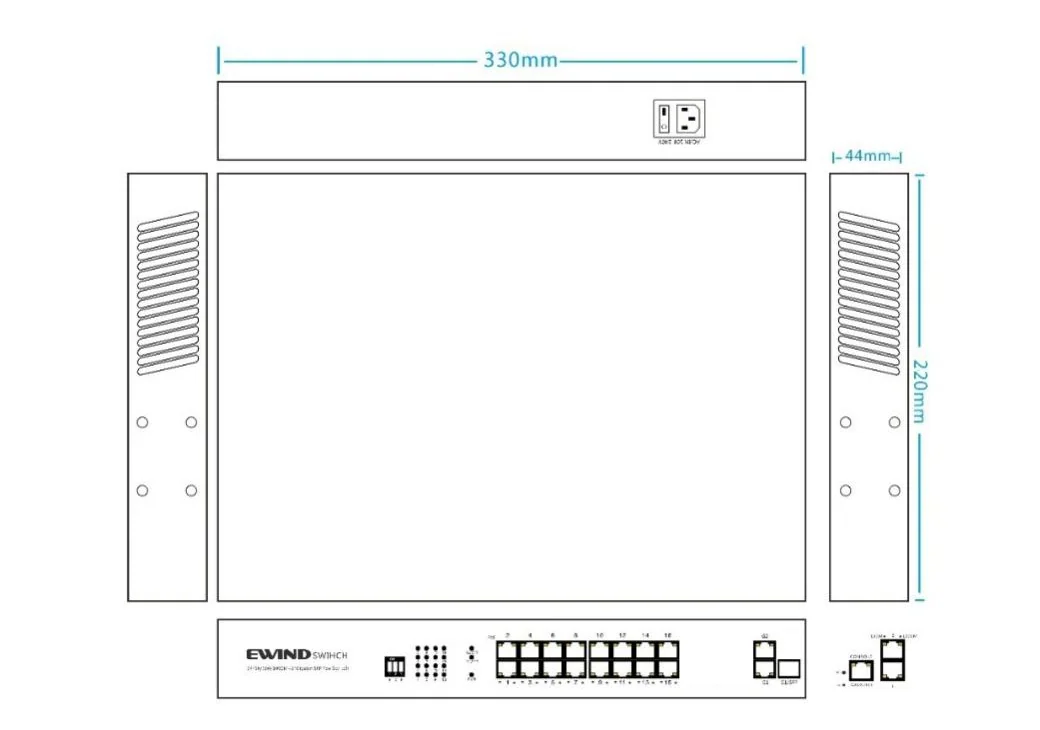

Dimensions (W × D × H)	330 × 220 × 44mm
Cooling / enclosure	Fanless; IP30
Operating temperature	−20°C to +55°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

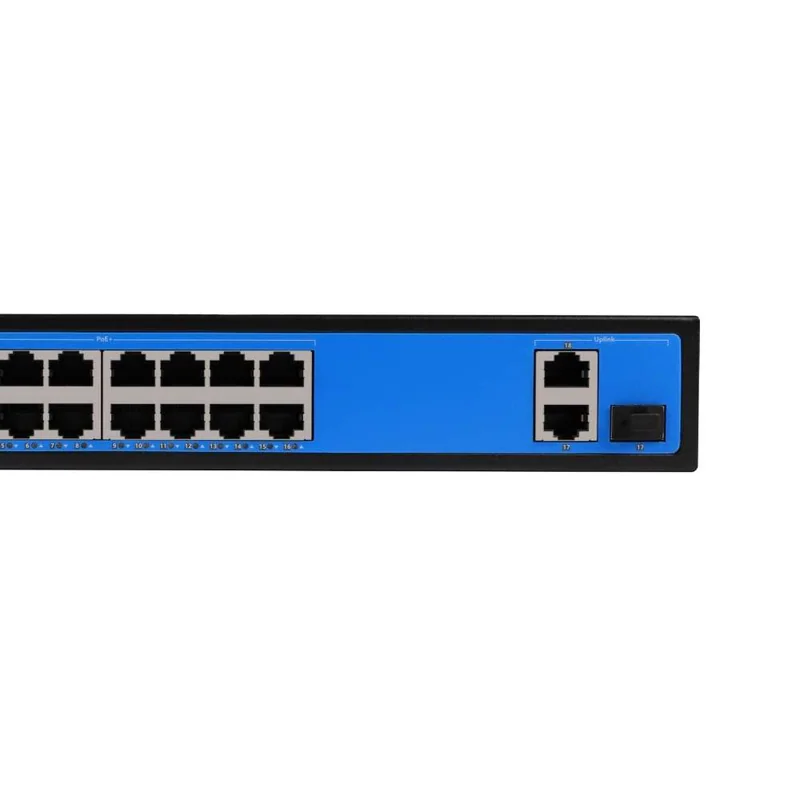

Uplink and Ethernet operation

The combo uplink provides alternative RJ45 and SFP connections for one logical port. SFP modules are ordered separately. Copper ports support automatic speed negotiation and MDI/MDIX; forwarding is store-and-forward.

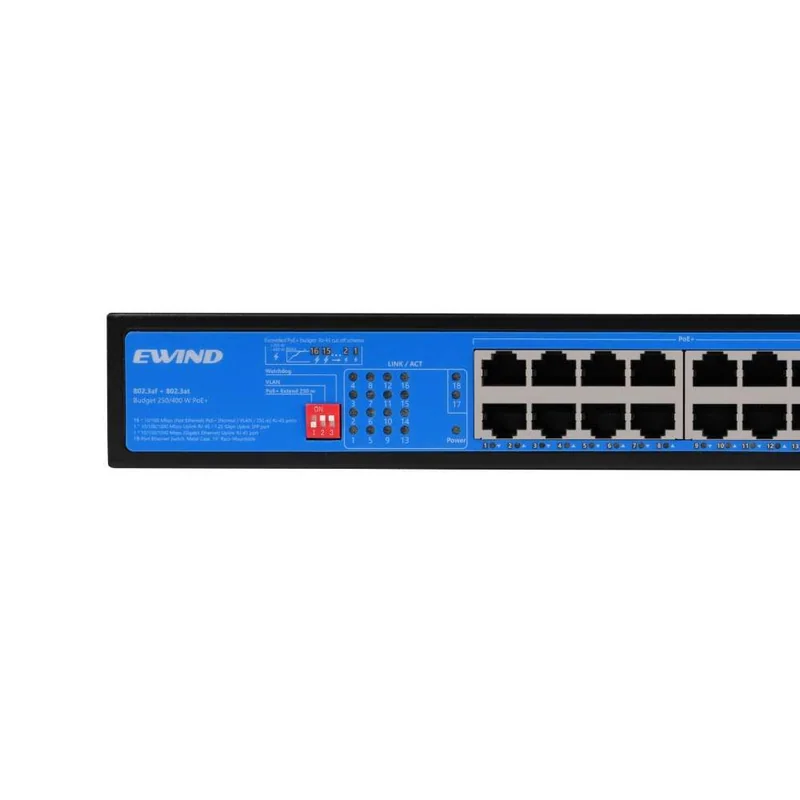

DIP-switch modes

E: extend transmission up to 300m at 10Mbps on the affected link, while other ports retain their normal rates within 100m. V: port isolation on ports 1–4. D: PoE watchdog on ports 1–4. Port priority is enabled by default.

PoE power delivery

Ports 1–16 detect IEEE 802.3af/at powered devices. Default power pins are 1/2 (+) and 3/6 (−). The 30W per-port maximum is subject to the available shared power supply.

Installation and environment

Desktop, wall or 19-inch 1U rack installation. Net weight <3kg. Operating humidity: 5–90%, non-condensing. Storage: −40°C to +75°C, 5–95% RH, non-condensing.

Protection and status

ESD protection: ±8kV contact, ±15kV air. Surge protection: power ±4kV common mode / ±2kV differential mode; ports ±4kV. LEDs indicate power, link/activity and PoE status.
