All-Gigabit PoE access
Eight auto-sensing Gigabit RJ45 ports provide powered endpoint connections.
Model: EW-WPS812G
8-Port Gigabit Outdoor PoE Switch with 4 Uplinks
- 8 × 10/100/1000Mbps PoE ports
- 2 × 100/1000Mbps RJ45 + 2 × SFP uplinks
- 120W total PoE budget; PoE watchdog
- IP65 enclosure; wall or pole mounting
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

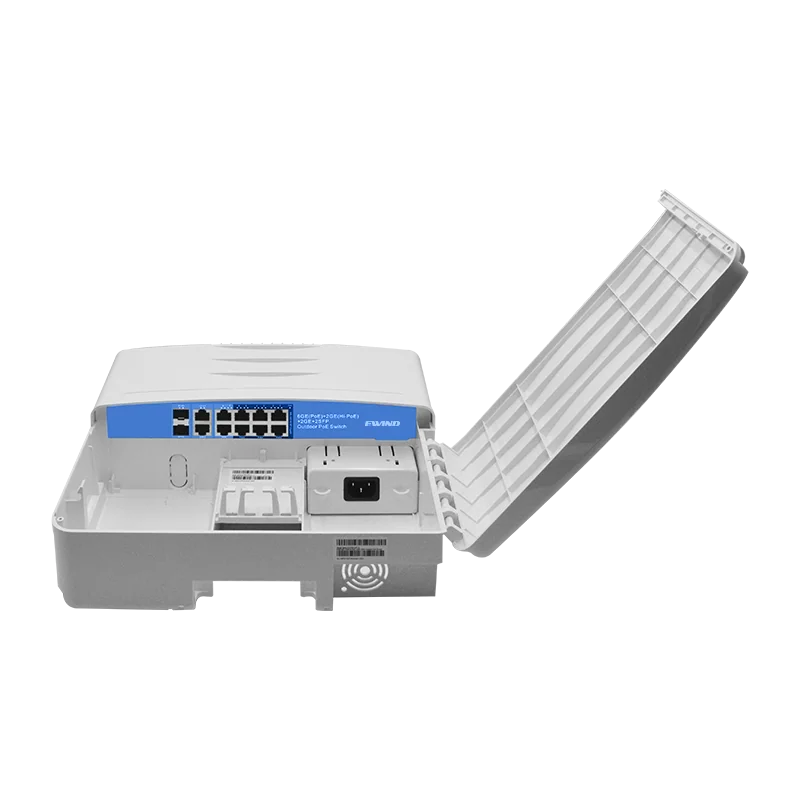

EW-WPS812G provides eight Gigabit PoE ports, two copper uplinks and two SFP slots in an IP65 outdoor enclosure. Ports 1–6 support IEEE 802.3af/at and ports 7–8 support IEEE 802.3bt, sharing a 120W budget for outdoor cameras and wireless equipment.
Multiple PoE standards
Six af/at ports and two bt ports share the switch's 120W power budget.
Outdoor deployment
IP65 protection, surge protection and −30 to +70°C operation suit outdoor networks.
| Specification | Details |
|---|---|
| Hardware version | V2 |
| PoE ports | 8 × 10/100/1000Mbps RJ45 |
| PoE standards | Ports 1–6: IEEE 802.3af/at; ports 7–8: IEEE 802.3bt |
| Uplinks | 2 × 100/1000Mbps RJ45; 2 × 100/1000Mbps SFP |
| Total PoE budget | 120W |
| AC input | 100–240V, 50/60Hz |
| Switching / forwarding | 24Gbps / 17.37Mpps |
| MAC / maximum frame | 8K entries / 10240 bytes |
| Enclosure / mounting | IP65; wall or pole |
| Dimensions / net weight | 350 × 255 × 90mm / 1.4kg |
| Operating temperature | −30 to +70°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-WPS812G outdoor Gigabit PoE switch | 1 | SET |
| Power cord | 1 | PC |
| Quick installation guide | 1 | PC |
| Wall mounting kit | 1 | SET |
| Pole mounting kit | 1 | SET |
| Screws | 6 | PCS |
| Warranty card | 1 | PC |
Applications
Outdoor IP surveillance and wireless access with copper and fiber uplinks.
