4 + 2 Gigabit ports
Four PoE device connections plus two copper uplinks.
Model: EW-S1906CG-DP

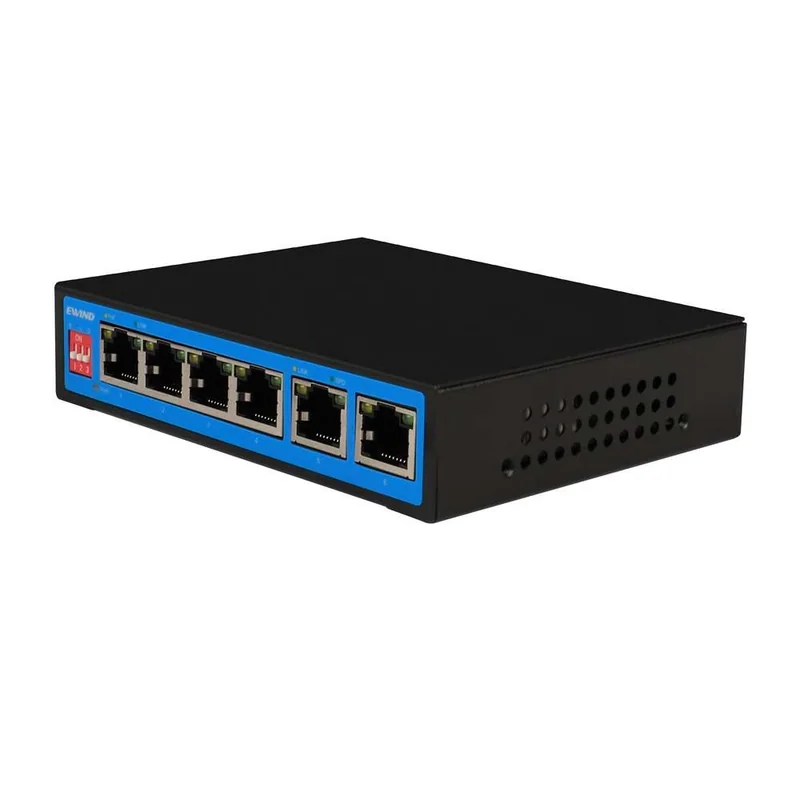

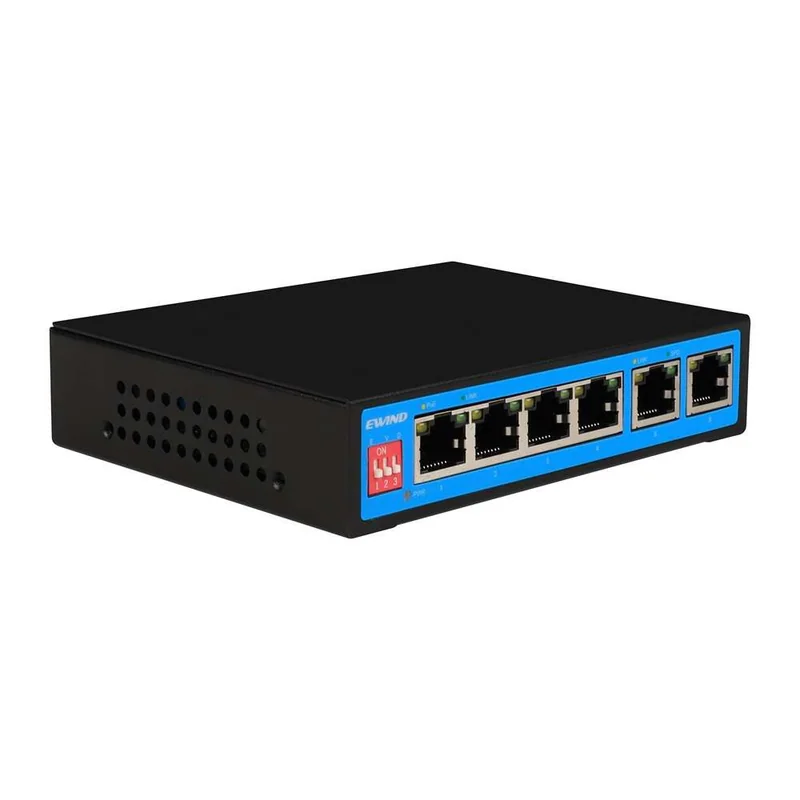

6-Port Gigabit PoE Switch with Dual RJ45 Uplinks
- 4 × Gigabit IEEE 802.3af/at PoE ports; 2 × Gigabit data uplinks
- Up to 30W per port; 60W adapter supplied, 120W option available
- 12Gbps switching capacity; 8.93Mpps forwarding
- 127 × 97 × 28mm enclosure; desktop or wall mount
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1906CG-DP provides four Gigabit PoE ports and two Gigabit copper uplinks in a compact desktop or wall-mounted enclosure. A supplied 60W adapter powers the standard configuration, with watchdog, isolation and extend controls available through DIP switches.

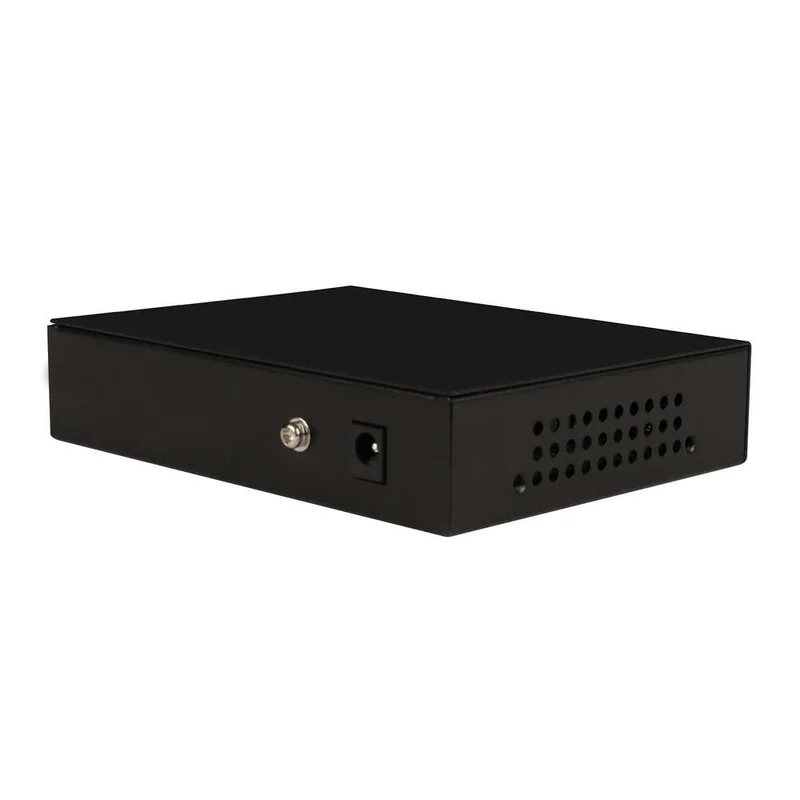

External power
Standard 52VDC/60W supply with an optional 120W configuration.
Extend mode
Up to 300m at 10Mbps on the extended link.
Watchdog and isolation
Local DIP switches control PoE recovery and port isolation.
| Specification | Details |
|---|---|
| PoE ports | 4 × Gigabit RJ45; IEEE 802.3af/at; up to 30W per port |
| Uplinks | 2 × 10/100/1000Base-T RJ45 data ports |
| Switching performance | 12Gbps; 8.93Mpps; store-and-forward |
| Memory | 8K MAC entries; 2M buffer |
| Power supply | External 52VDC adapter; 60W standard, 120W optional |
| Power consumption | Standby <2W; full load <60W for the standard configuration |
| Dimensions / mounting | 127 × 97 × 28mm; desktop or wall mount |
| Operating conditions | −20°C to +55°C; 5%–90% RH, non-condensing |
| Protection | IP30; ESD ±8kV contact / ±15kV air |
| Warranty | 3 years; lifetime maintenance |

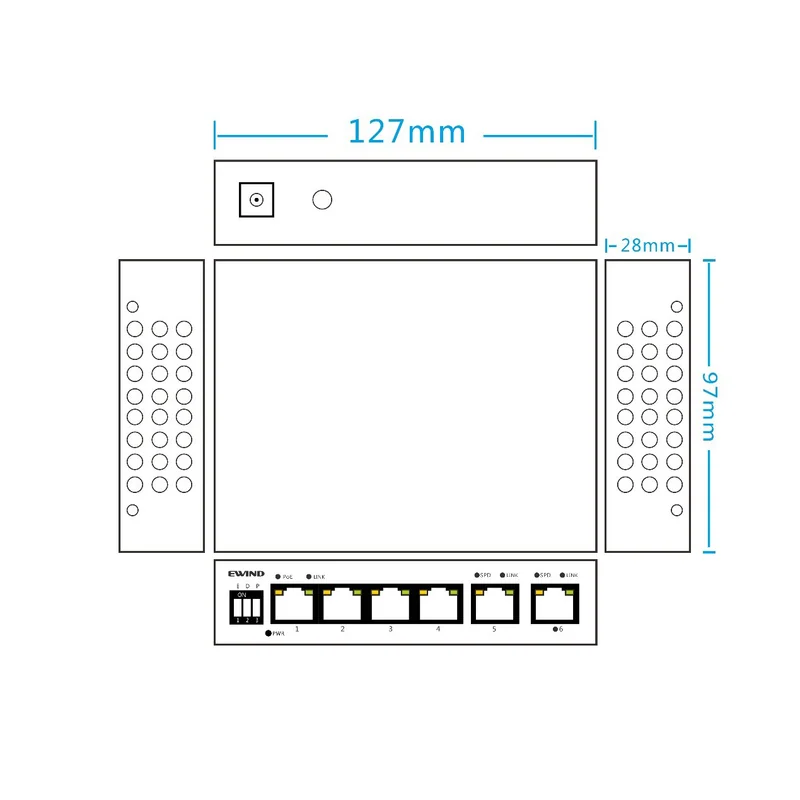

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 6-Port Gigabit PoE Switch (EW-S1906CG-DP) | 1 | SET |
| External power adapter (60W) | 1 | PC |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
Applications

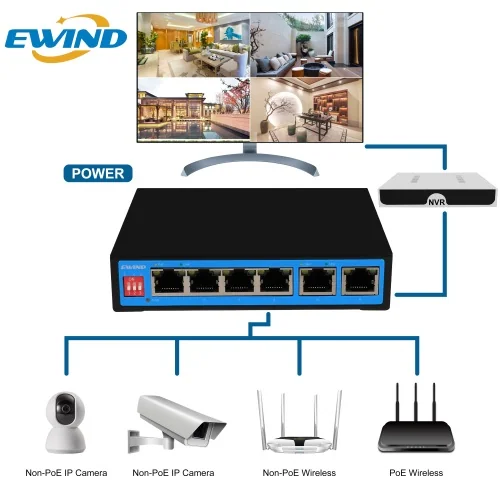

Enterprise, campus and security networks.
EW-S1906CG-DP Resources
PDF · Specifications · Installation · Ordering
