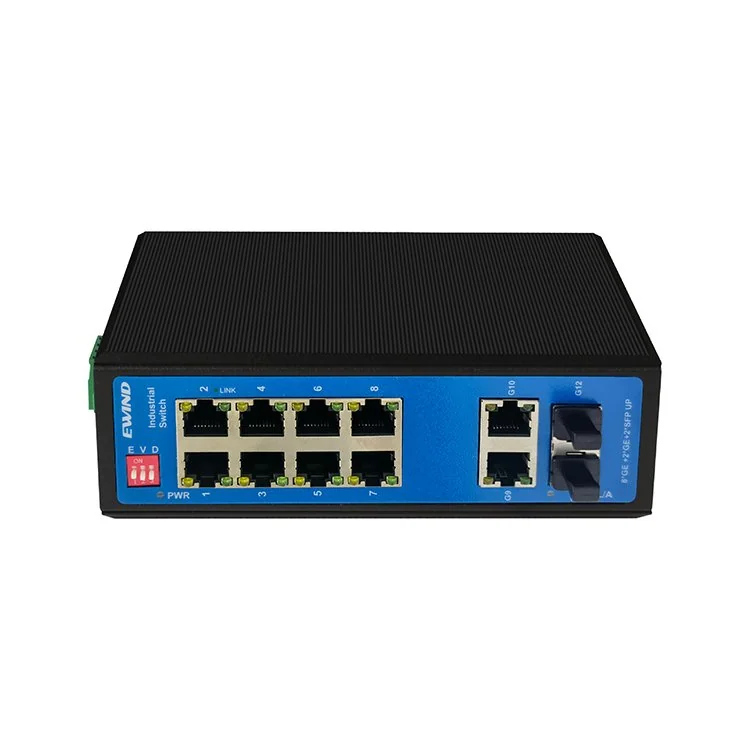

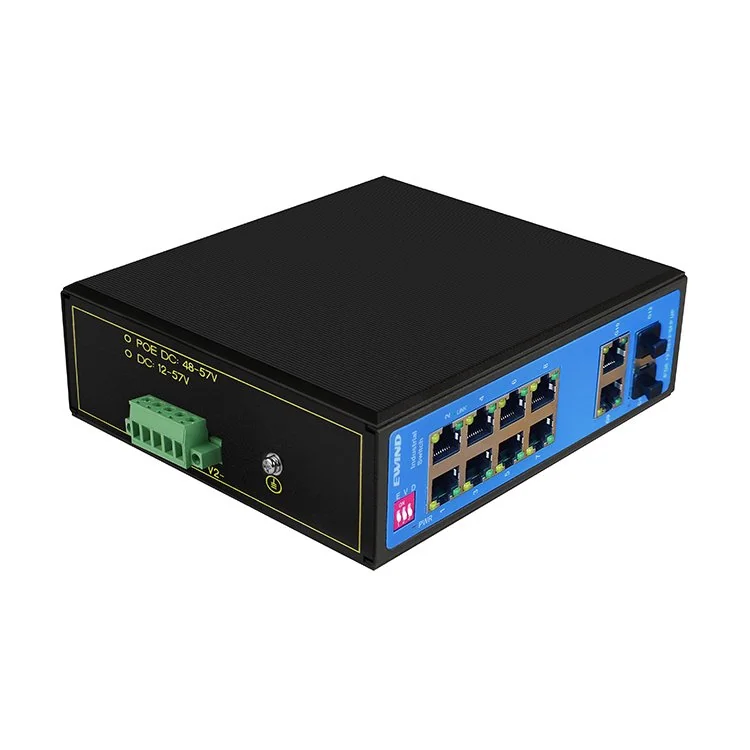

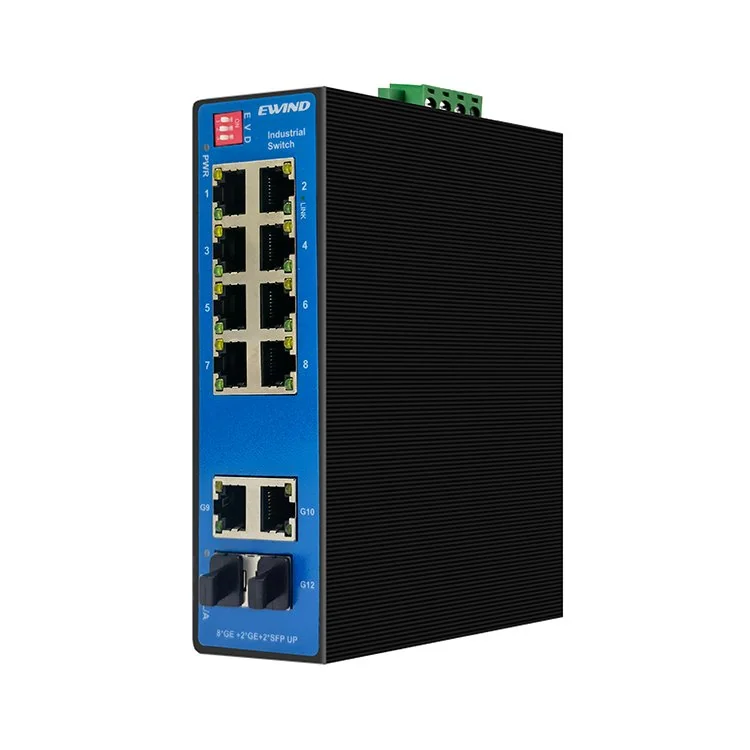

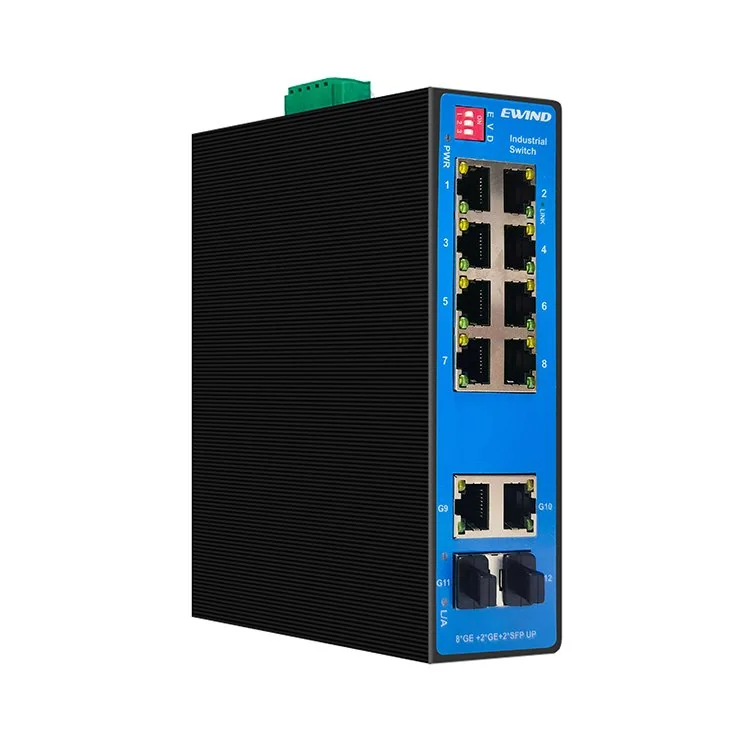

Model: EW-PIS3912-8GE

12-Port Industrial Gigabit PoE Switch with SFP and 12V Booster

8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
2 × Gigabit RJ45 uplinks and 2 × Gigabit SFP ports
24Gbps non-blocking switching and 17.856Mpps forwarding
12–40VDC input with 48V PoE output boost

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS3912-8GE combines eight Gigabit PoE ports, two Gigabit RJ45 uplinks and two Gigabit SFP ports in an unmanaged industrial enclosure. Its 12–40VDC input and internal 48V PoE boost allow PoE deployment from low-voltage field power systems.

PoE booster

Convert low-voltage DC input into 48V PoE for connected endpoints.

12-port mix

Eight PoE copper ports, two RJ45 uplinks and two SFP ports cover industrial access.

Wire-speed switching

24Gbps capacity and full-wire-speed forwarding keep traffic moving.

Industrial protection

Redundant input, IP40 and 6kV lightning protection suit harsh cabinets.

Product technical specifications
Specification	Details
Interfaces	8 × 10/100/1000Mbps PoE RJ45; 2 × 10/100/1000Mbps RJ45; 2 × 1000Mbps SFP
PoE standard	IEEE 802.3af/at; up to 30W per PoE port

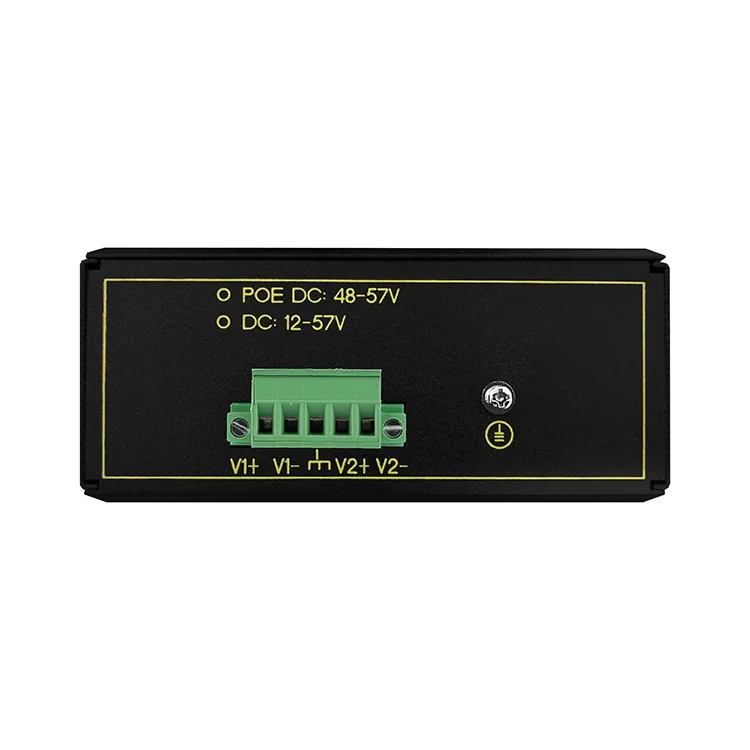

Power conversion	12–40VDC input; 48V PoE output; dual 5-pin industrial terminals
Switching performance	24Gbps non-blocking; 17.856Mpps at 64 bytes; full wire speed
Memory	16K MAC table; 4M buffer; 10K jumbo frames
Fiber reach	Multimode 850nm up to 500m or 1310nm up to 2km; single-mode 1310nm up to 40km or 1550nm up to 120km

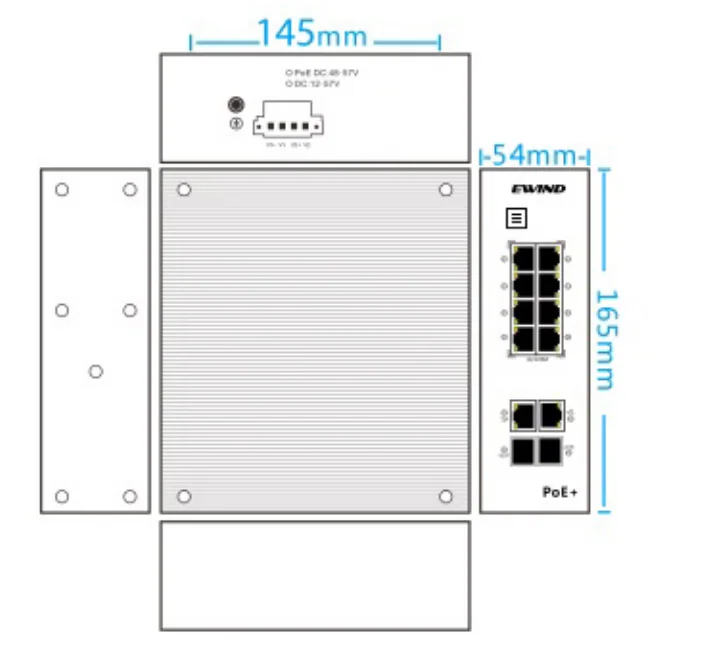

Dimensions / weight	165 × 145 × 54mm; net under 1.3kg, gross under 1.8kg
Environment	Operating −40°C to +75°C; storage −40°C to +85°C
Protection	IP40; 6kV lightning and industrial EMC protection; reverse-polarity protection
Warranty	5 years; lifelong maintenance
