250W PoE budget
Power allocation, priority and scheduling for ports 1–16.
Model: EW-S2916GMB-AP(250W)
18-Port Gigabit Managed PoE Switch — 250W
- 16 × 10/100/1000Mbps PoE ports + 2 SFP uplinks
- IEEE 802.3af/at; 30W maximum per port
- 250W total PoE power budget
- L2+ management with VLAN, ACL, QoS and ERPS
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2916GMB-AP provides 16 Gigabit PoE access ports and two Gigabit SFP uplinks in a managed 1U enclosure. IEEE 802.3af/at delivery is limited to 250W total, with real-time PoE status, scheduling and priority controls.
Gigabit copper and fiber
16 PoE RJ45 ports plus two 100/1000Mbps SFP slots.
L2+ control
VLAN, ACL, QoS, multicast and redundant-ring features.
1U installation
Built-in AC supply and 440mm rack-width enclosure.
| Specification | Details |
|---|---|
| PoE access ports | 16 × 10/100/1000Mbps RJ45 |
| Fiber uplinks | 2 × 100/1000Mbps SFP |
| Console | 1 × RS232; 115200, N, 8, 1 |
| Management | L2+; web, CLI and SNMP |
| PoE standard | IEEE 802.3af/at |
| PoE budget | 250W total; 30W maximum per port |
| Power input | 100–240V AC, 50/60Hz, built-in supply |
| Dimensions | 440 × 290 × 45mm |
| Installation / protection | Desktop or 19-inch 1U; IP30 |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |

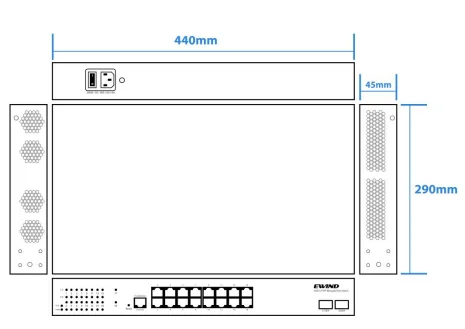

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2916GMB-AP (250W) 18-port managed PoE switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

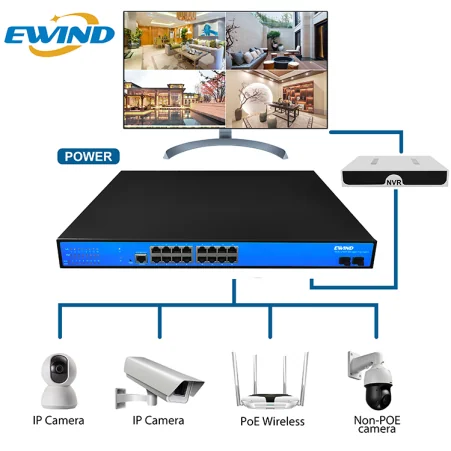

Applications
Enterprise, campus and security networks.
EW-S2916GMB-AP(250W) Resources
PDF · Specifications · Installation · Ordering
