Gigabit + SFP
Eight copper PoE ports and two fiber uplinks connect mixed access networks.

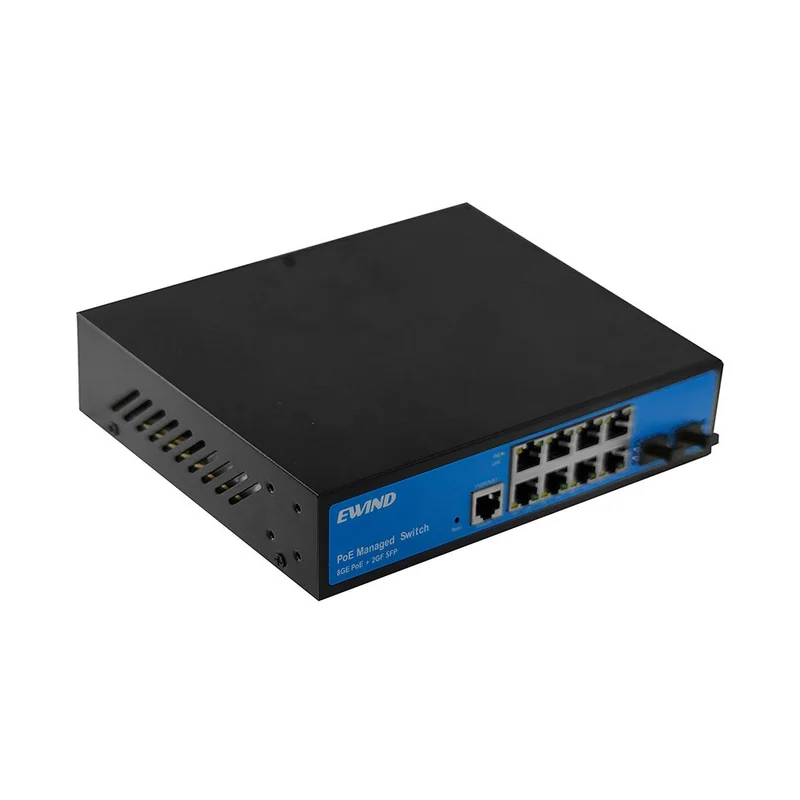

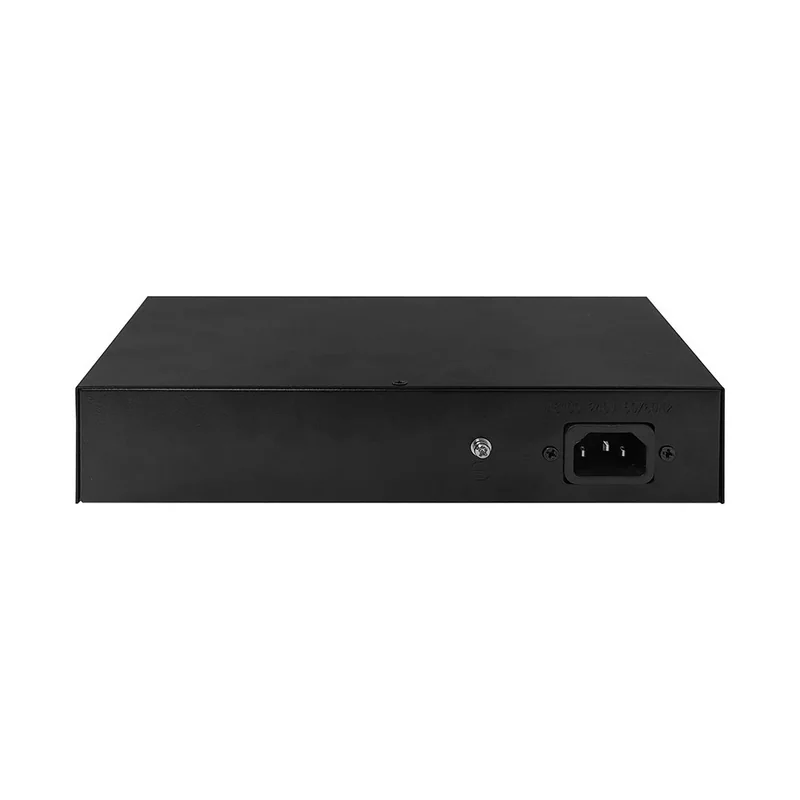

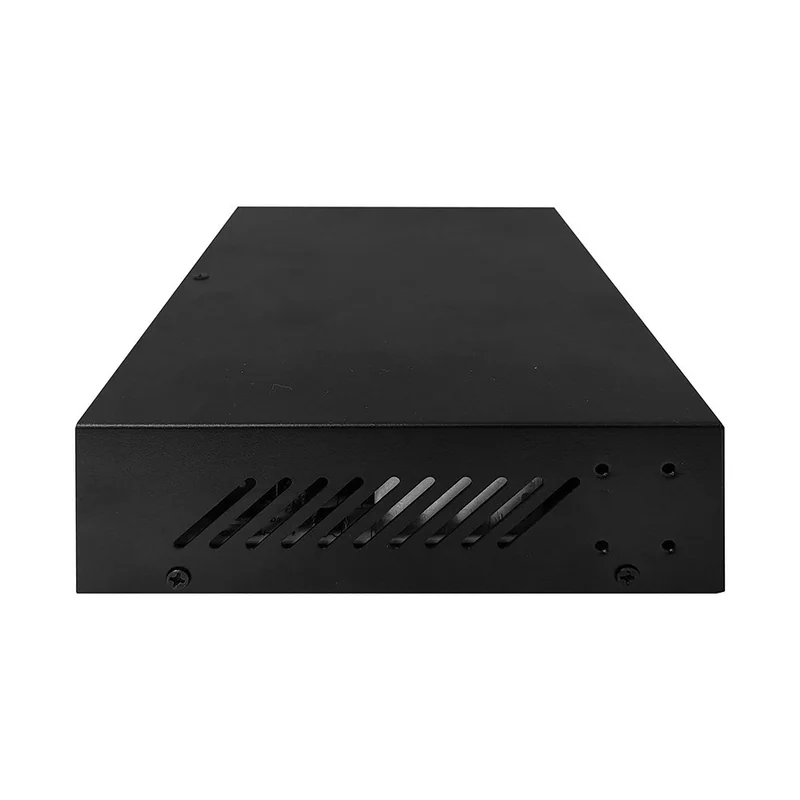

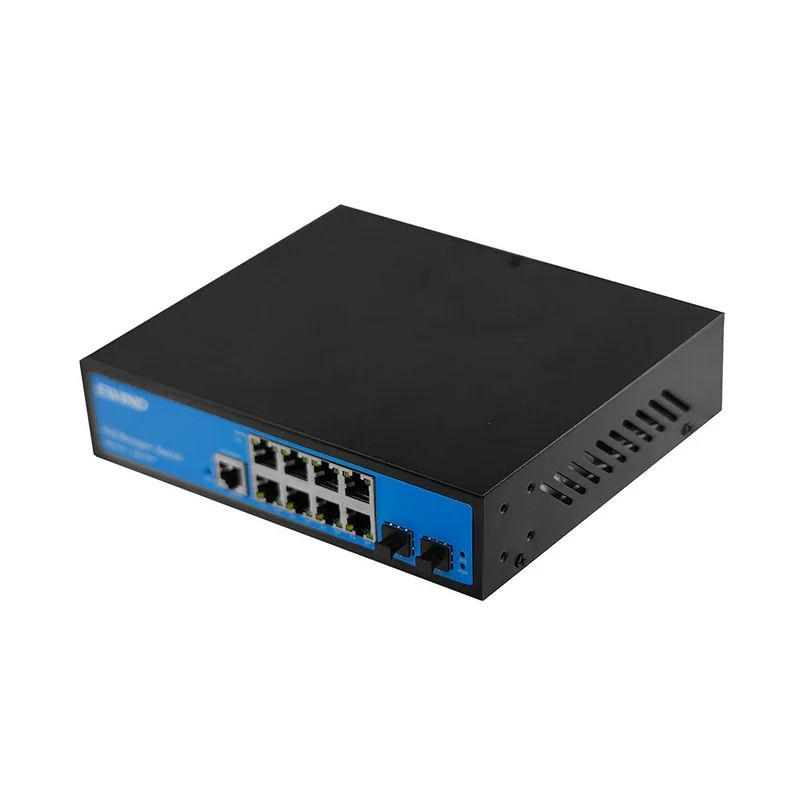

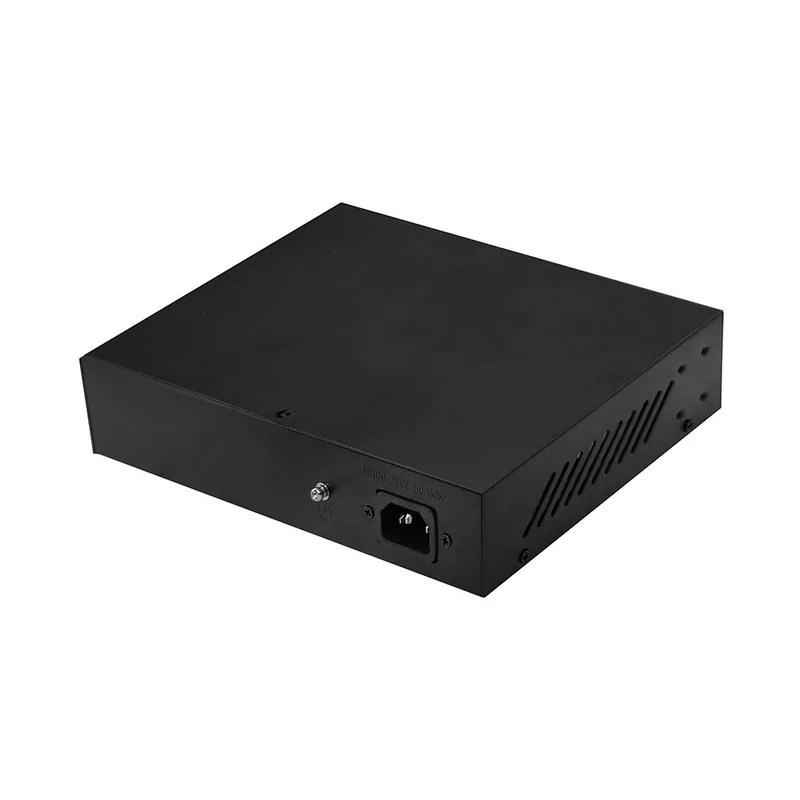

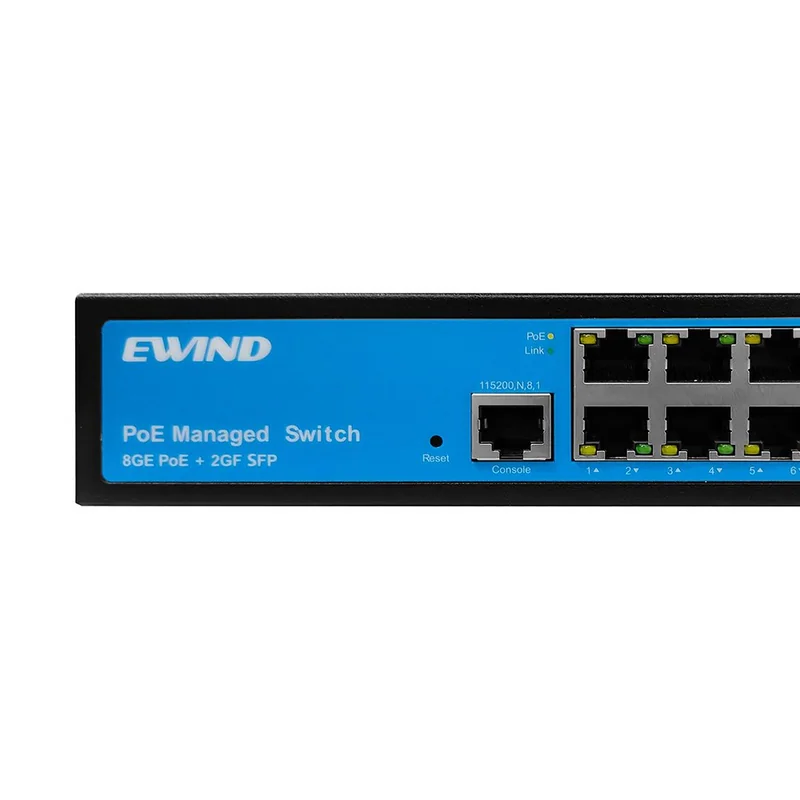

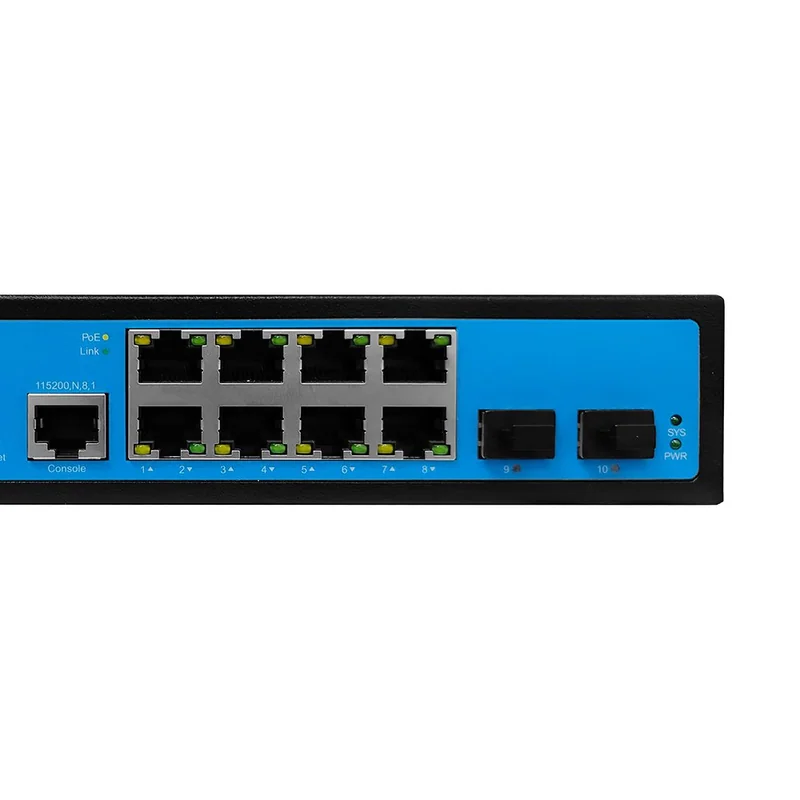

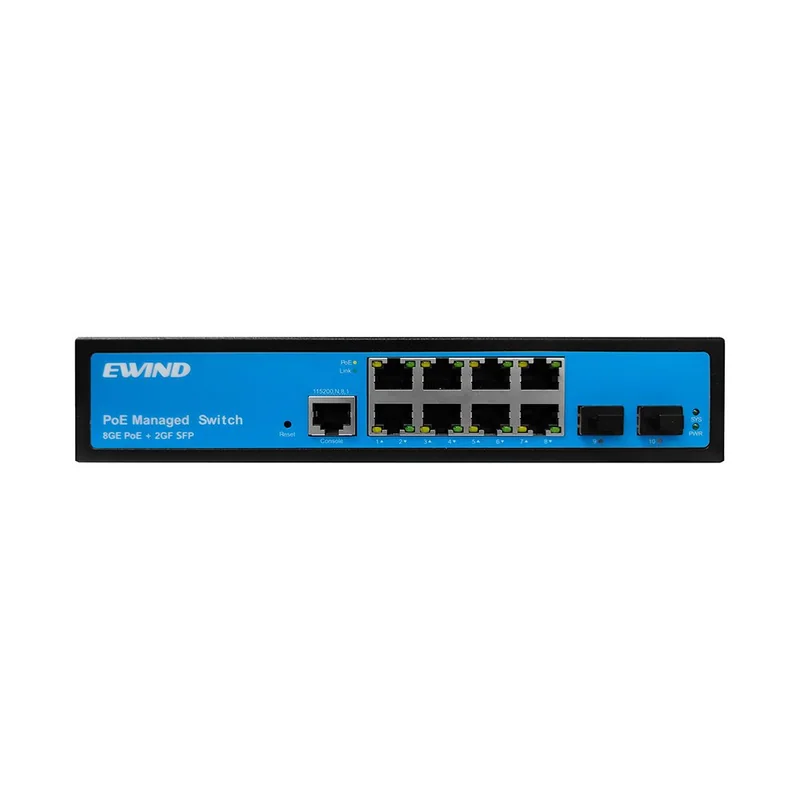

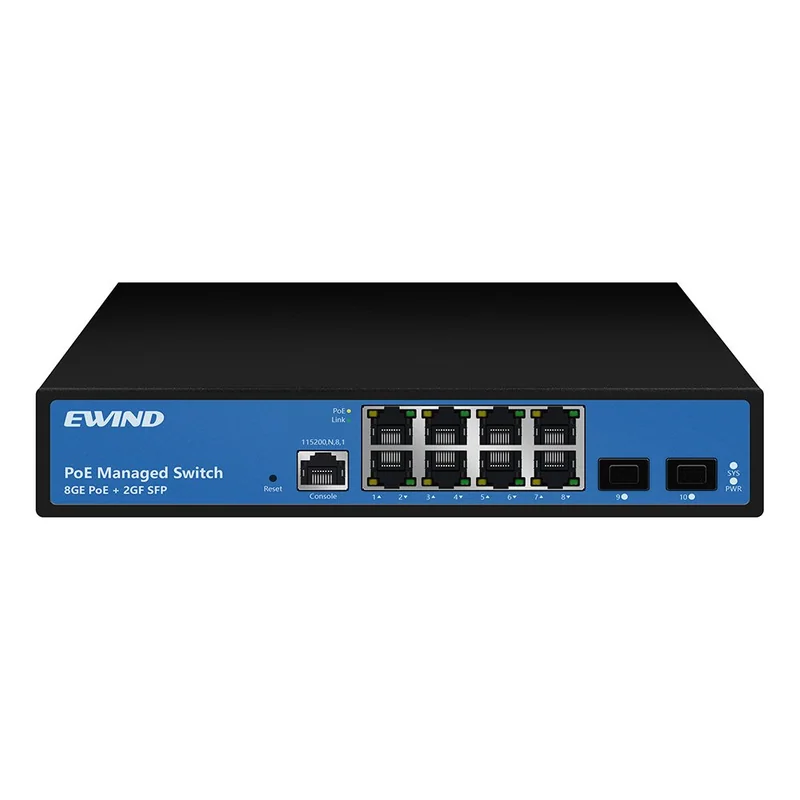

Model: EW-S2910GM-AP
10-Port Gigabit Layer 2+ Managed PoE Switch with Dual SFP
- 8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at
- 2 × 100/1000Mbps SFP uplinks
- 15.4W standard and 30W maximum per PoE port
- QoS, STP/RSTP, IGMP, DHCP, SNMP, WEB, VLAN and ERPS
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2910GM-AP is a managed Gigabit PoE switch with eight 10/100/1000Mbps PoE ports, two 100/1000Mbps SFP uplinks and a 120W power budget. QoS, VLAN, ERPS, SNMP and web/SSH management support controlled enterprise and surveillance networks.
120W budget
Power cameras, phones and wireless devices from one managed switch.
Layer 2+ control
VLAN, QoS, STP/RSTP, IGMP and ERPS support predictable traffic.
Remote management
Web, SSH, SNMP and real-time PoE controls simplify operations.
| Specification | Details |
|---|---|
| Interfaces | 8 × 10/100/1000Mbps PoE RJ45; 2 × 100/1000Mbps SFP |
| PoE standard | IEEE 802.3af/at; 15.4W standard / 30W maximum per port |
| Power budget | 120W total |
| Management | WEB, SSH, SNMP, Telnet, NTP and DHCP support |
| Network features | QoS, STP/RSTP, IGMP, VLAN, ERPS and PoE priority |
| PoE controls | Real-time port power display, timed on/off and forced PoE mode |
| Dimensions | 220 × 145 × 44mm |
| Installation | Desktop or rack mounting with hanging ears |
| Application | IP cameras, IP phones, speakers, computers, wireless APs, Wi-Fi and printers |
| Warranty | 3 years |

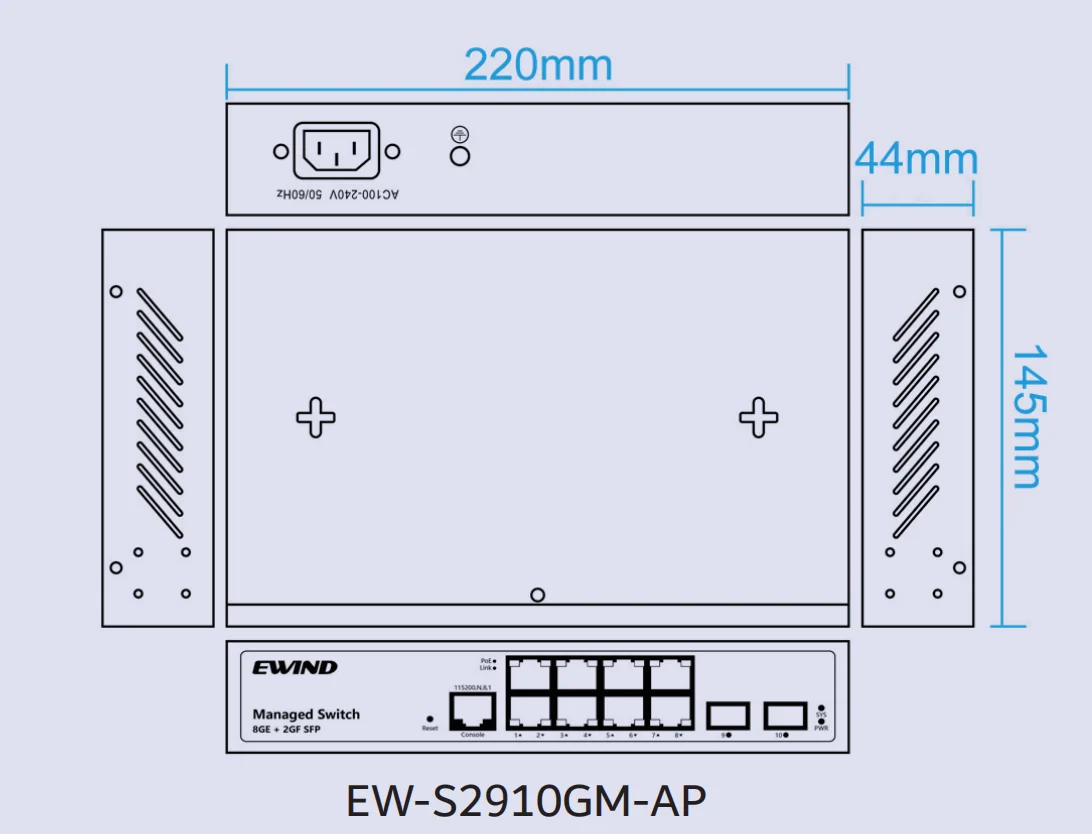

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| Full Gigabit Layer 2+ Managed PoE Switch (EW-S2910GM-AP) | 1 | SET |
| User guide and warranty card | 1 | PC |
| Hanging ear | 1 | PAIR |
Applications
Enterprise, campus, office and security networks with managed PoE access.
