Model: EW-S2924GMA-AP

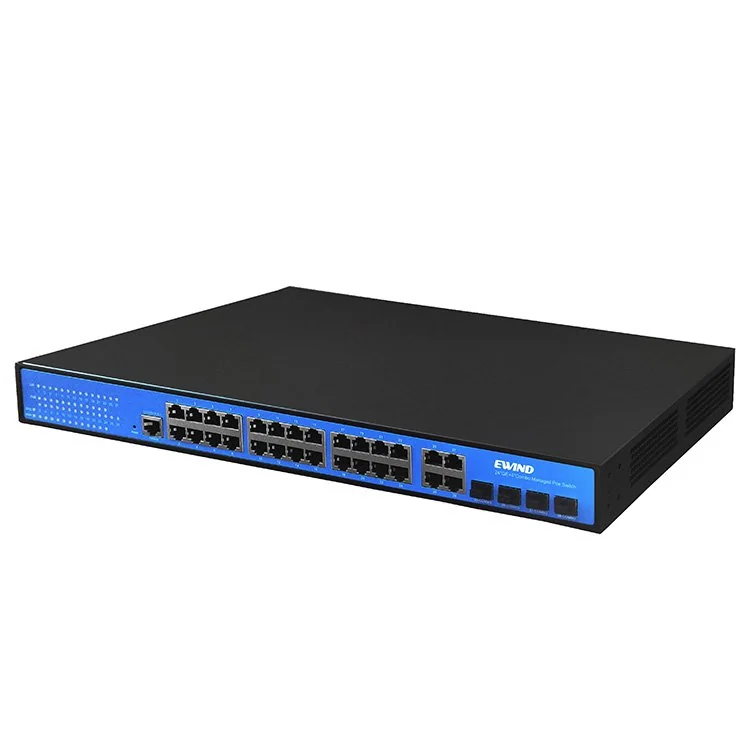

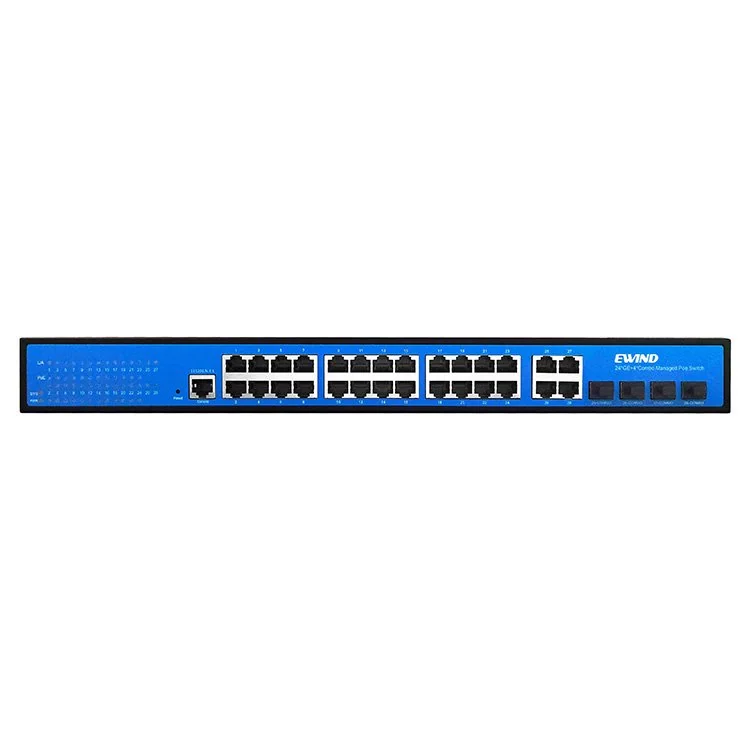

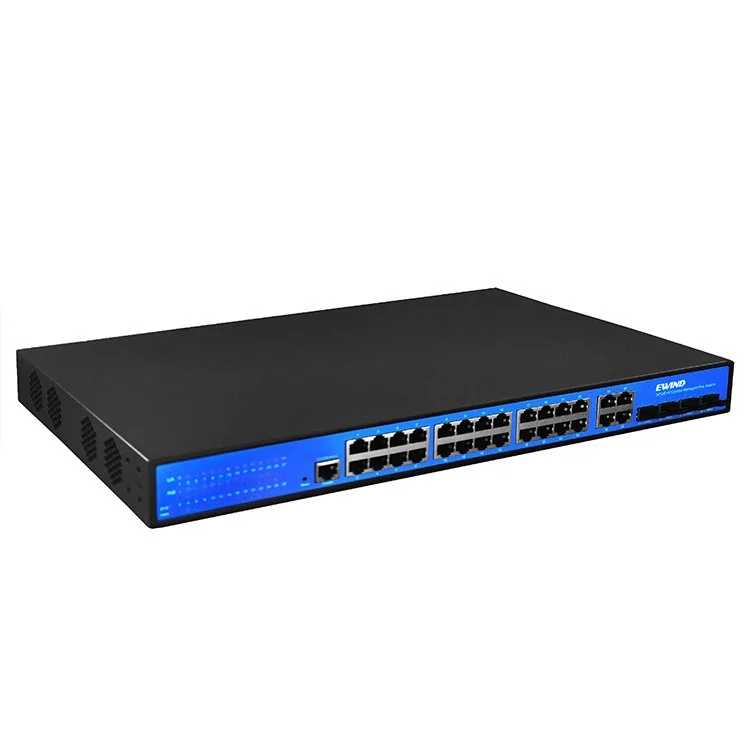

24-Port Managed L2+ PoE Switch with 4 Combo Uplinks

24 × 10/100/1000BASE-T PoE ports · up to 30W per port
4 combo uplink ports · RS232 console · 56Gbps switching
400W built-in AC supply · PoE Watchdog · L2+ IPv4/IPv6 management

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S2924GMA-AP is a 24-port Gigabit managed PoE switch with four combo data uplinks and a 400W built-in supply. L2+ routing, PoE scheduling, watchdog recovery, ERPS, ACL/QoS and 1U installation support demanding surveillance and enterprise access networks.

Managed 24-port PoE

Configure per-port PoE allocation, priority, schedule, delayed startup and watchdog reboot for unresponsive powered devices.

Four combo uplinks

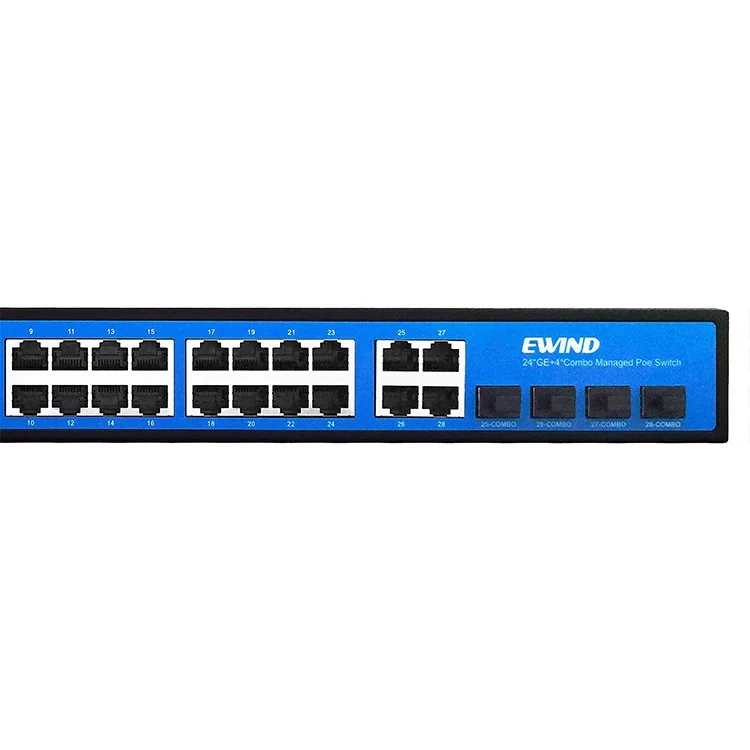

Ports 25–28 provide combo data connectivity with Gigabit SFP module options for copper or fiber upstream links.

L2+ enterprise controls

Static routing, 4K VLAN, ERPS, ACLs, QoS, authentication and one-button factory reset support controlled networks.

Product technical specifications
Specification	Details
Model	EW-S2924GMA-AP
PoE ports	24 × 10/100/1000BASE-T; IEEE 802.3af/at; up to 30W per port
Combo uplinks	4 × combo data ports; Gigabit SFP module options

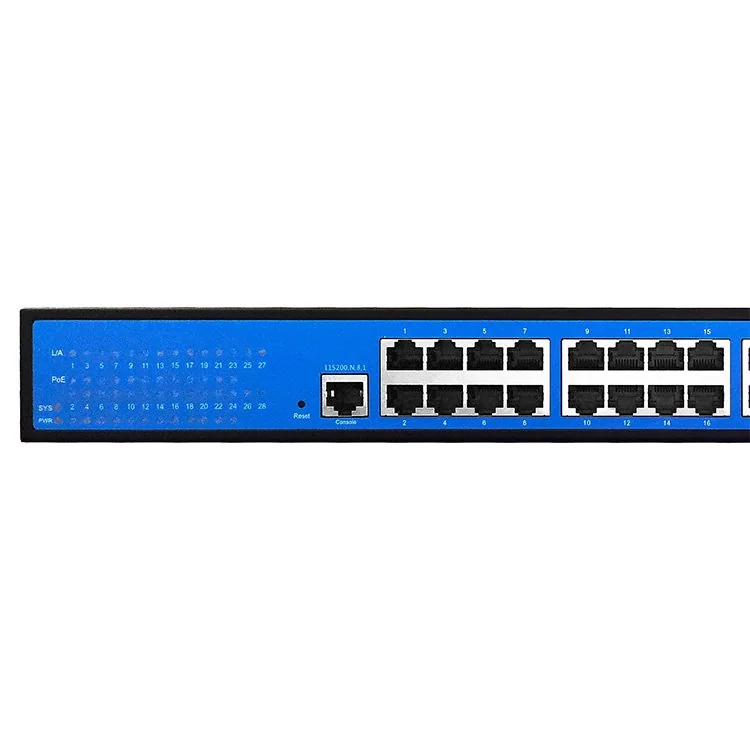

Console / management	1 × RS232 console; L2+ web, CLI, SNMP and NMS management
Power supply / budget	Built-in AC 100–220V, 50–60Hz; 400W total
Switching / forwarding	56Gbps non-blocking / 26.78Mpps
MAC / buffer / jumbo	8K / 6M / 9.6K
Layer 3 / VLAN	IPv4/IPv6 management, soft routing, 128 static/default routes, 4K VLAN, QinQ, voice and MAC VLAN
Dimensions / installation	440 × 290 × 44.5 mm; desktop or 19-inch 1U cabinet
Protection / environment	IP30; −20 to +55°C; 5–90% RH
Warranty	3 years; lifetime maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE operations

The switch supports total power limits, per-port allocation, AF/AT enablement, priority, delayed startup, scheduling and PoE Watchdog reboot. Keep the combined endpoint demand within the 400W budget.

Resilient network features

STP/RSTP/MSTP and G.8032 ERPS provide redundancy; the source states recovery below 20ms, up to 250 rings and up to 254 devices per ring.

Security and QoS

L2–L4 ACLs, 802.1X, AAA/RADIUS, SSH/SSL, IP source protection, ARP inspection, port isolation, flow filtering, rate limiting and eight output queues per port are listed.

Uplink planning

Combo ports can use the available copper/fiber module options. Select compatible SFP modules and fiber type for the upstream design.
