Managed PoE
Control power mode, priority, status and schedules from the management interface.

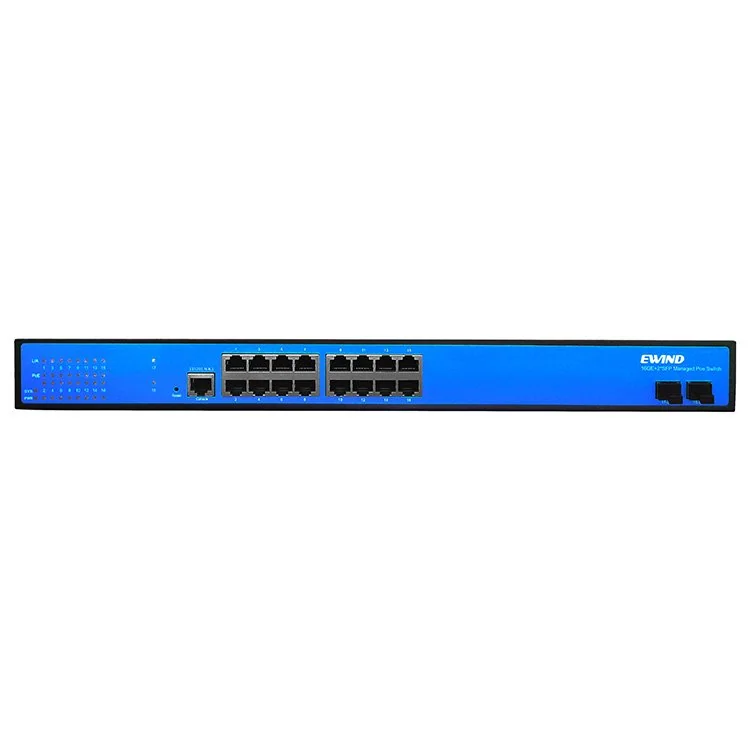

Model: EW-S2916GM-AP
18-Port Gigabit Managed PoE Switch
- 16 × 10/100/1000Mbps PoE ports + 2 SFP uplinks
- IEEE 802.3af/at; 30W maximum per port
- L2+ management with VLAN, ACL, QoS and ERPS
- Real-time PoE status, priority and scheduling
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2916GM-AP combines 16 Gigabit PoE ports with two Gigabit SFP uplinks and L2+ management. It supplies IEEE 802.3af/at devices up to 30W per port, with web and console controls for PoE scheduling, VLANs, traffic policies and resilient network paths.
Gigabit uplinks
16 PoE copper ports and two 100/1000Mbps SFP slots.
L2+ features
VLAN, ACL, QoS, multicast and ring-network redundancy.
Rack-ready
Built-in AC supply and desktop or 19-inch 1U installation.
| Specification | Details |
|---|---|
| PoE access ports | 16 × 10/100/1000Mbps RJ45 |
| Fiber uplinks | 2 × 100/1000Mbps SFP |
| Console | 1 × RS232; 115200, N, 8, 1 |
| Management | L2+; web, CLI and SNMP |
| PoE standard | IEEE 802.3af/at |
| Maximum power per port | 30W |
| Power input | 100–240V AC, 50/60Hz, built-in supply |
| Switching capacity | 36Gbps |
| Forwarding rate | 26.78Mpps |
| Dimensions | 440 × 290 × 45mm |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |

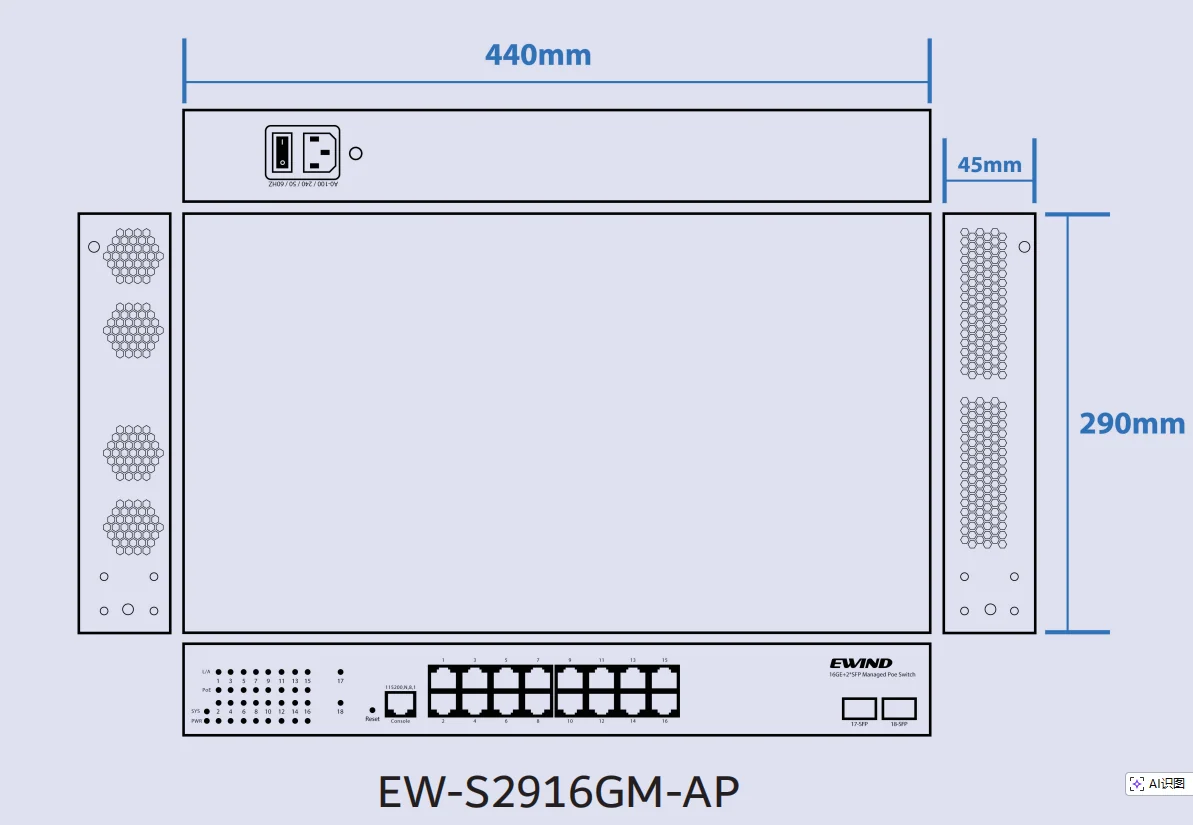

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2916GM-AP 18-port Gigabit managed PoE switch | 1 | SET |
| User guide and warranty card | 1 | PC |
| Rack-mount brackets | 1 | PAIR |

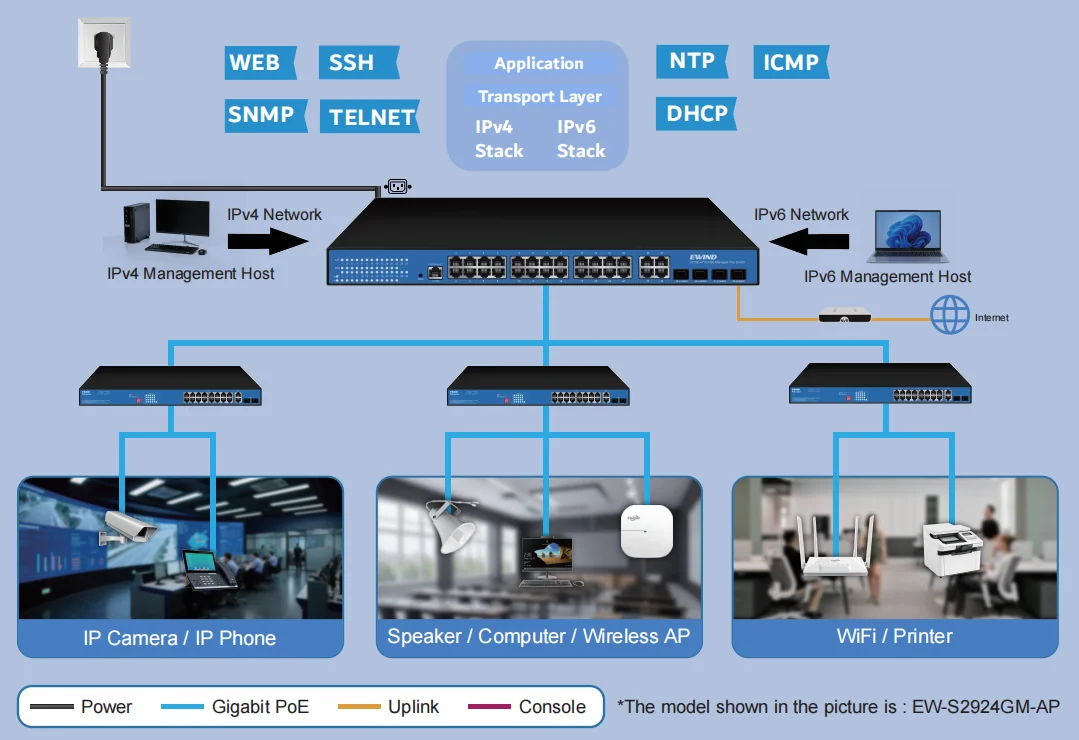

Applications
Enterprise, campus and security networks.
EW-S2916GM-AP Resources
PDF · Specifications · Installation · Ordering
