Simple wired expansion
Connect five Ethernet devices with automatic 10/100Mbps speed detection and cable crossover handling.
Model: EW-S1505

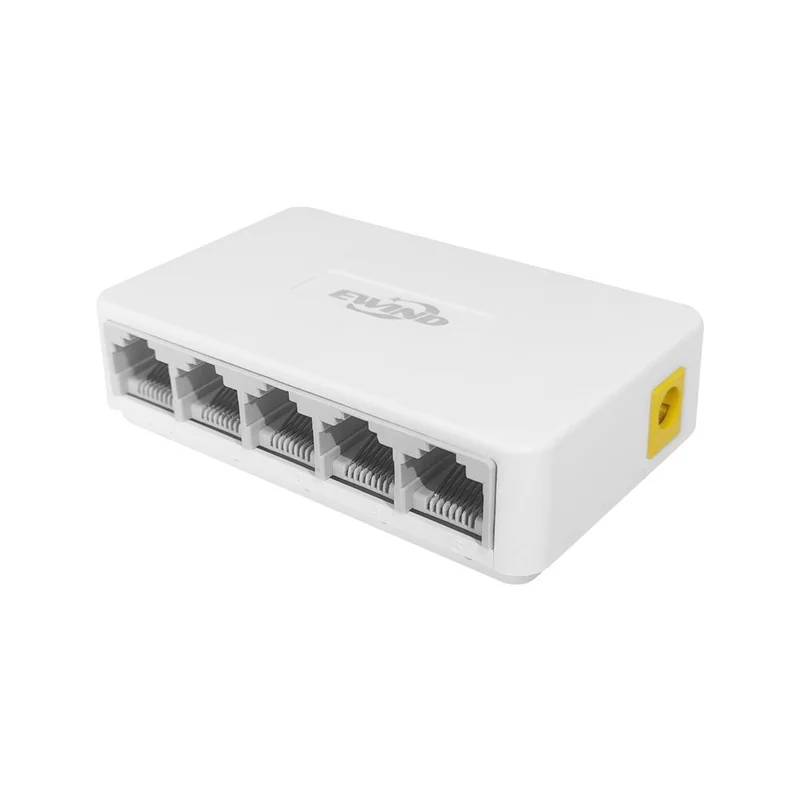

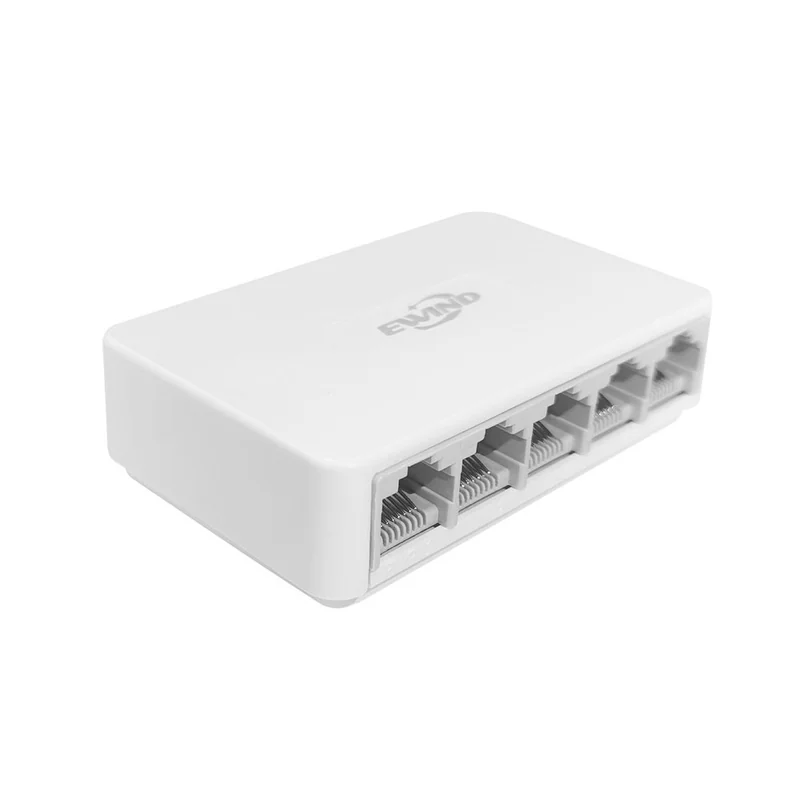

5-Port Fast Ethernet Desktop Switch
- 5 × 10/100Mbps RJ45 data ports
- 1 Gbps switching capacity · 0.744 Mpps
- 83 × 52 × 22 mm enclosure · external 5V adapter
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1505 provides five 10/100Mbps data ports for simple home, office and CCTV networks. Its small desktop enclosure, automatic MDI/MDIX and included 5V power adapter make wired network expansion straightforward.
CCTV data connections
Link recorders and independently powered cameras without configuring a managed switch.
Compact and low power
The small enclosure uses a 5V adapter and consumes less than 3W at maximum load.
| Specification | Details |
|---|---|
| Model | EW-S1505 |

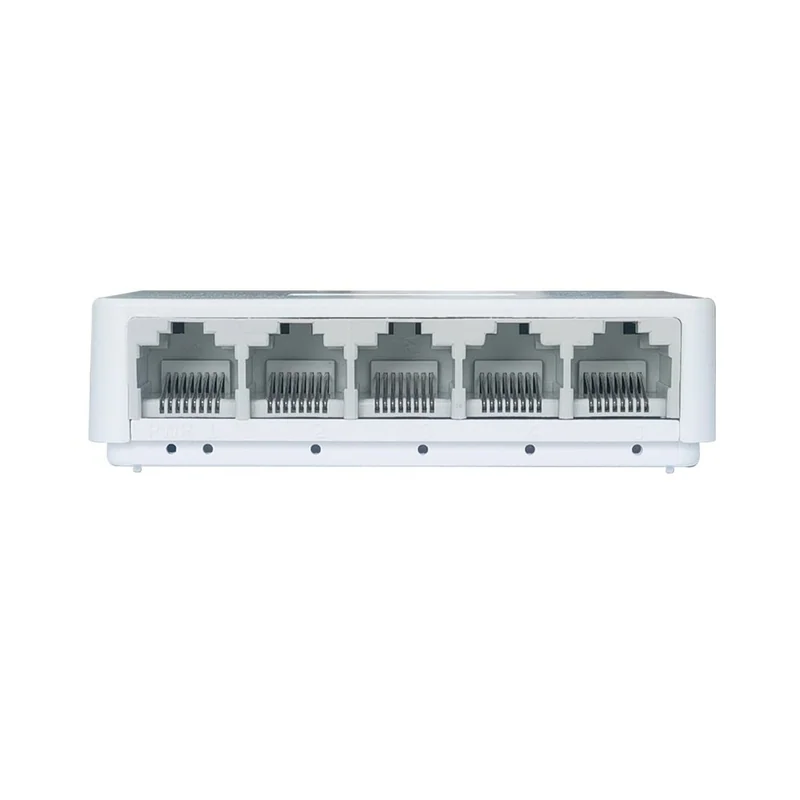

| Ethernet ports | 5 × 10/100Mbps RJ45; auto MDI/MDIX |
| Management | Unmanaged; plug and play |
| Switching / forwarding | 1 Gbps / 0.744 Mpps |
| MAC address table | 1K entries |

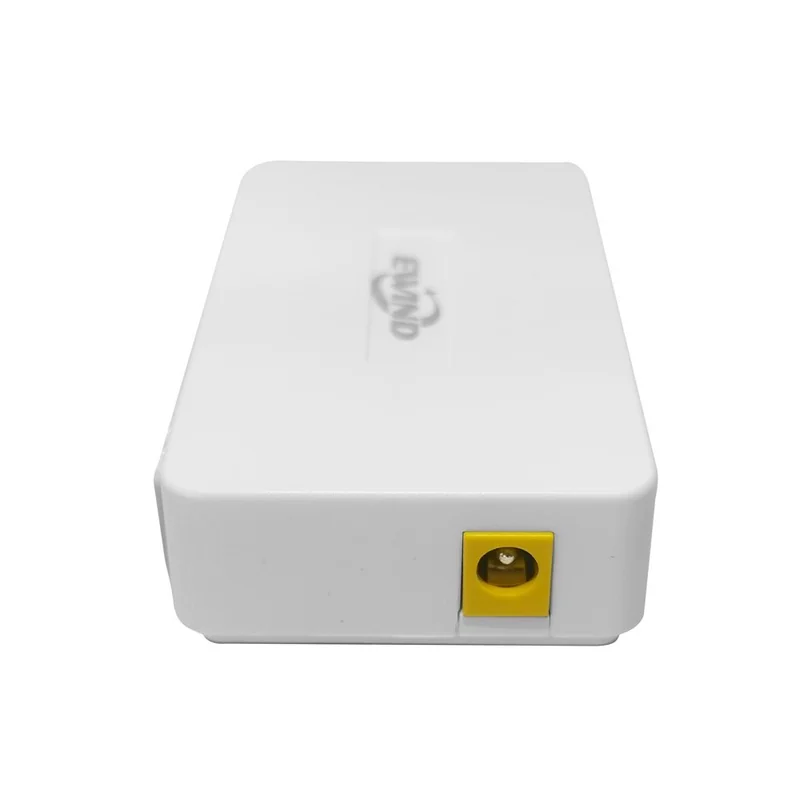

| Switch power input | 5V DC; external 1A adapter included |
| Adapter AC input | 100–240V AC, 50/60Hz |
| Power consumption | 0.7W standby; <3W maximum |
| Dimensions | 83 × 52 × 22 mm |

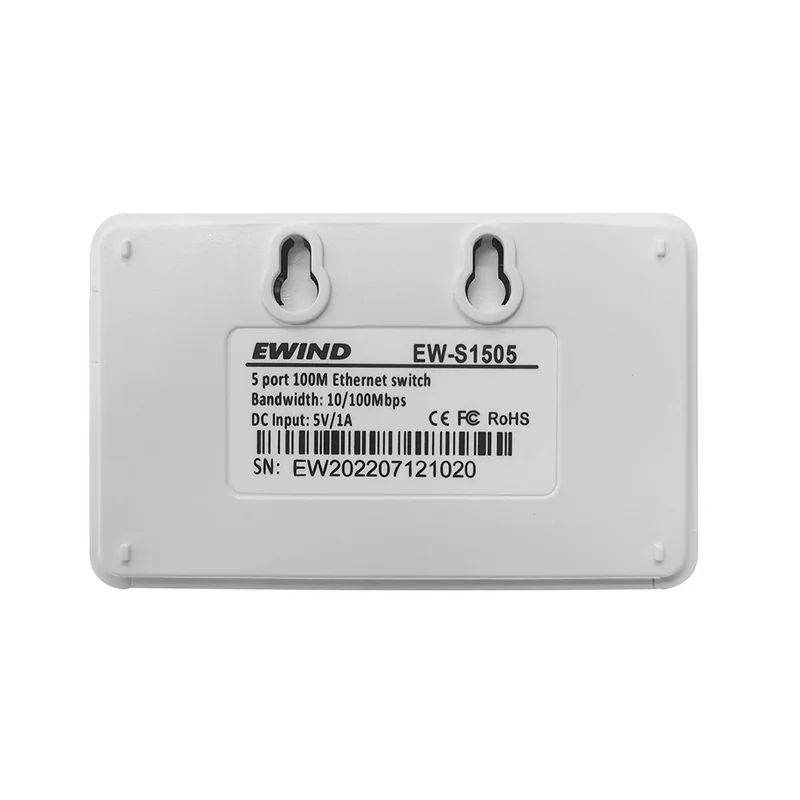

| Installation | Desktop or wall mount |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 1 year |

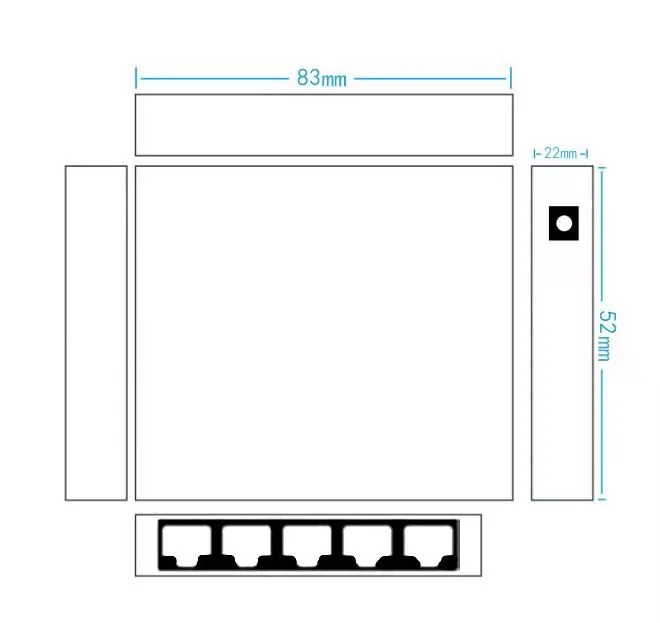

Dimensions

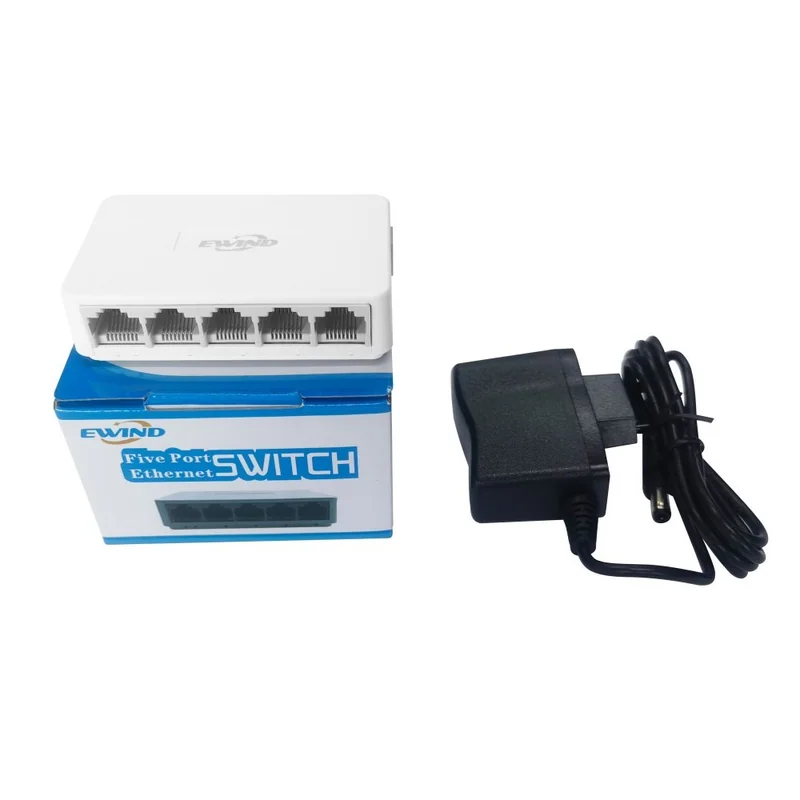

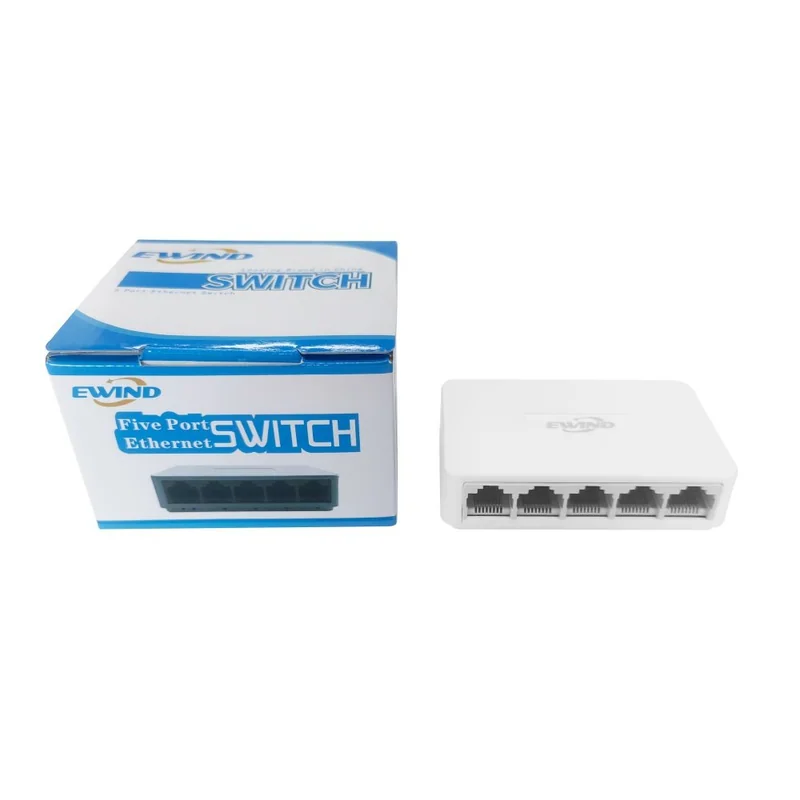

Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1505 Fast Ethernet switch | 1 | SET |
| 5V/1A external power adapter | 1 | PCS |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
