Model: EW-S2916GM

18-Port Gigabit L2+ Managed Ethernet Switch

16 Gigabit RJ45 data ports + 2 SFP uplinks
L2+ management with software-based static routing
VLAN, ACL, QoS and multicast control
STP/RSTP/MSTP and ERPS redundancy

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S2916GM combines 16 Gigabit RJ45 data ports with two 100/1000Mbps SFP uplinks for managed access networks. L2+ management provides VLAN segmentation, traffic policies and redundant network paths, with web, CLI and SNMP administration in a 19-inch rack enclosure.

18 network ports

16 copper connections and two 100/1000Mbps SFP uplinks.

Traffic control

VLANs, ACLs, QoS and 802.1X access authentication.

Redundant paths

STP, RSTP, MSTP and G.8032 ERPS ring support.

Managed access

HTTPS, SSH CLI, SNMP and an RS232 console port.

Product technical specifications
Specification	Details
Copper ports	16 × 10/100/1000BASE-T RJ45; data only

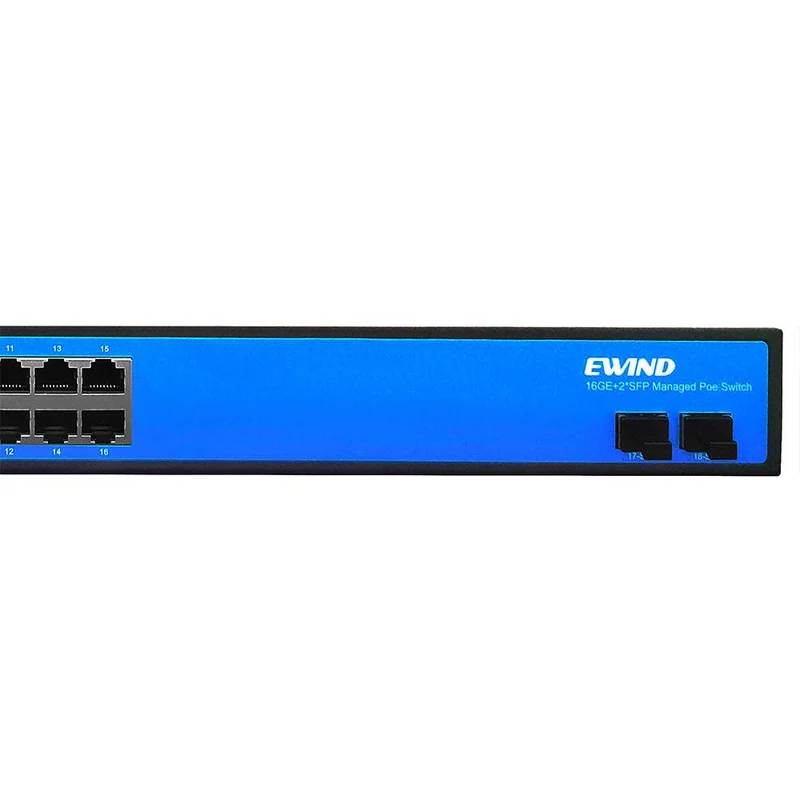

Fiber uplinks	2 × 100/1000BASE-X SFP slots

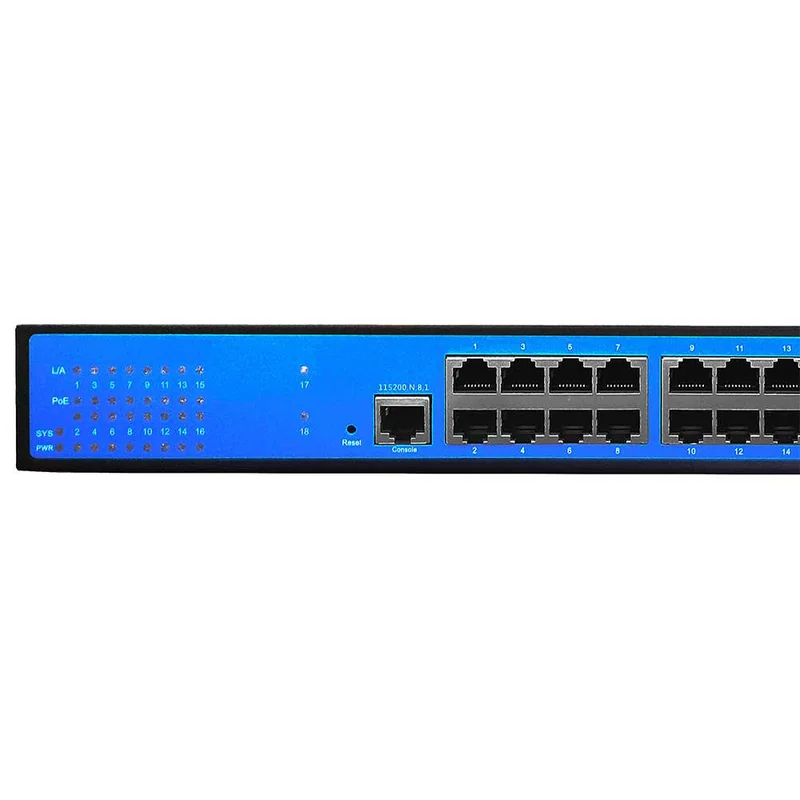

Console	1 × RS232; 115200, N, 8, 1
Management	L2+; IPv4/IPv6 management
Forwarding rate	26.78Mpps
MAC address table	8K entries

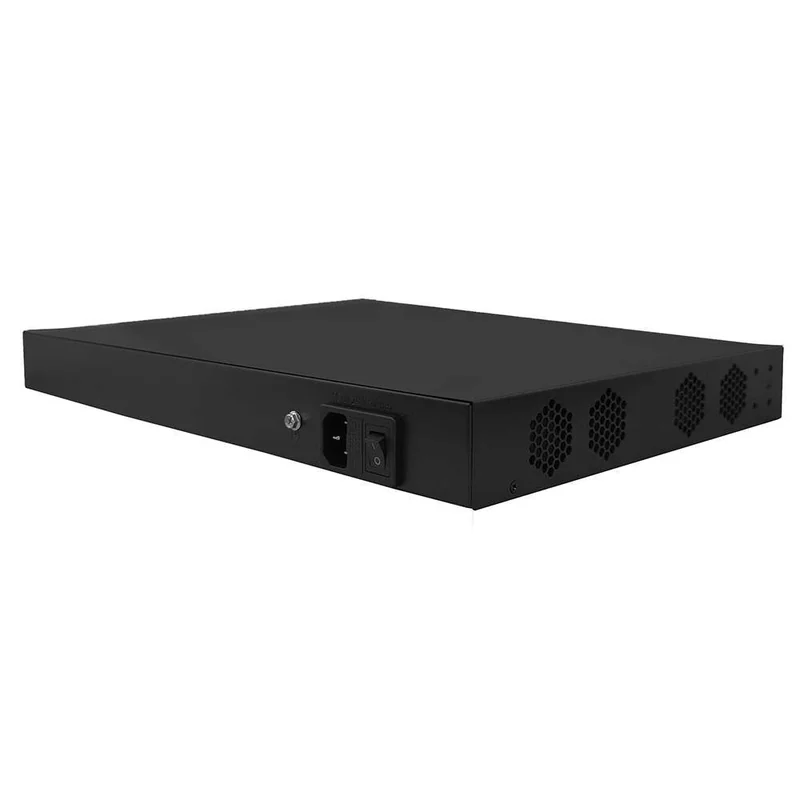

Power input	Built-in AC supply; 100–220V, 50/60Hz
Dimensions	440 × 290 × 45mm
Installation	Desktop or 19-inch 1U rack
Operating temperature	−20°C to +55°C
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLANs and link redundancy

4K VLAN support with 802.1Q, port-, protocol- and MAC-based VLANs, voice VLAN and QinQ. Access, trunk and hybrid port modes. LACP and static aggregation; STP/RSTP/MSTP and G.8032 ERPS.

Routing and multicast

Software-based static and default routing with IPv4/IPv6 management. IGMP snooping v1/v2, MLD snooping v1/v2 and multicast VLAN support.

QoS and access control

Eight output queues per port, 802.1p/DSCP mapping and SP, WRR or SP+WRR scheduling. Rate limiting and L2–L4 ACLs. 802.1X, RADIUS, IP-MAC-VLAN-port binding, ARP inspection and storm control.

Management and diagnostics

HTTPS web management, SSH 2.0 CLI and SNMP v1/v2c/v3. LLDP, NTP, logs, ping, cable diagnostics, port mirroring and factory reset. DHCP client, server, relay and snooping.

Cabling and installation

Auto-negotiating copper ports with MDI/MDIX and links up to 100m. Select SFP optics to match the fiber type, wavelength and required distance; reach depends on the installed module. IP30 enclosure, net weight <4.5kg.

Environment and protection

Operating humidity: 5–90%, non-condensing. Storage: −40°C to +75°C, 5–95% RH. ESD: ±8kV contact / ±15kV air. Surge: power ±4kV common mode / ±2kV differential mode; ports ±4kV.
