Full Gigabit access
Eight auto-sensing RJ45 ports connect local devices at up to 1Gbps with automatic crossover handling.
Model: EW-S1608CGU
8-Port Gigabit Unmanaged Switch with Metal Case
- 8 × 10/100/1000Mbps RJ45 ports
- 16 Gbps switching capacity · 11.904 Mpps
- 4M buffer · 8K MAC table · metal enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1608CGU provides eight Gigabit RJ45 ports for simple CCTV, home and office networks. The non-PoE switch uses automatic MDI/MDIX, MAC learning and an external 5V/1A adapter for plug-and-play installation.
Non-PoE CCTV expansion
The unmanaged switch carries data for recorders and independently powered endpoints.
Compact external power
The eight-port model uses a 5V/1A external adapter and consumes less than 5W at full load.
| Specification | Details |
|---|---|
| Model | EW-S1608CGU |
| Ethernet ports | 8 × 10/100/1000Mbps RJ45 |
| Management | Unmanaged; plug and play |
| Switching / forwarding | 16 Gbps / 11.904 Mpps |
| MAC / buffer | 8K / 4M |
| Power supply | 5V DC/1A external adapter |
| Power consumption | Standby <3W; full load <5W |
| Dimensions / weight | 147 × 67 × 26 mm; 0.2kg net |
| Installation | Desktop or wall mount |
| Operating environment | −20 to +55°C; 10–90% RH, non-condensing |
| Warranty | 1 year |

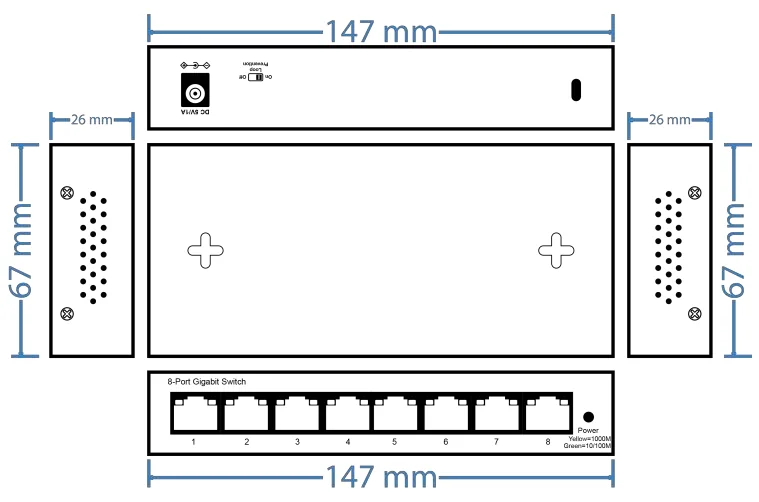

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1608CGU Gigabit Ethernet switch | 1 | SET |
| 5V/1A external power adapter | 1 | PCS |
| User guide and warranty card | 1 | PCS |
EW-S1608CGU Resources
PDF · Specifications · Installation · Ordering
