Fast Ethernet access

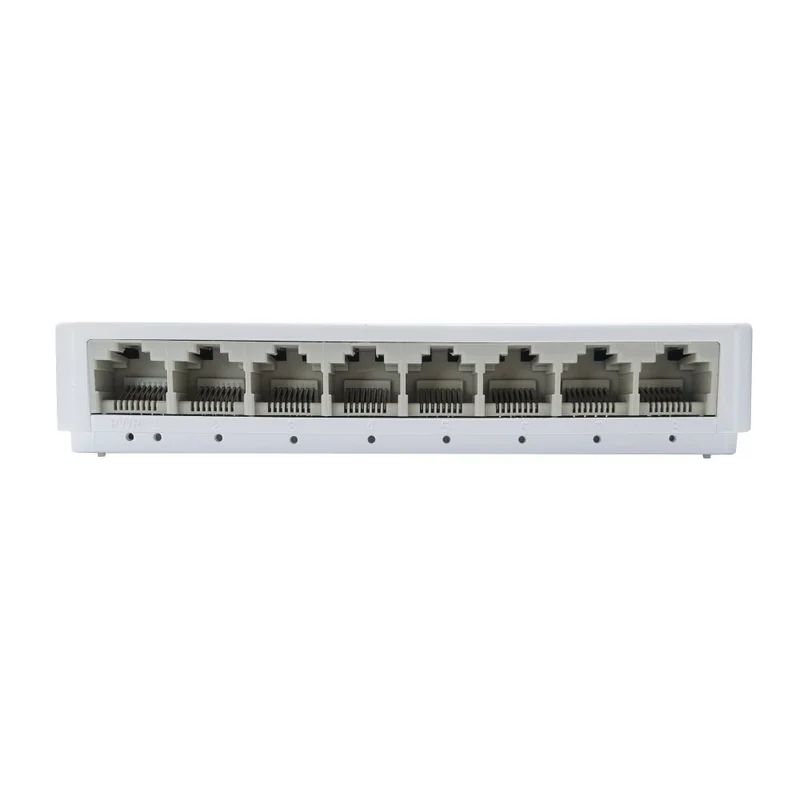

Eight auto-sensing ports connect local devices at 10 or 100Mbps with automatic cable crossover handling.

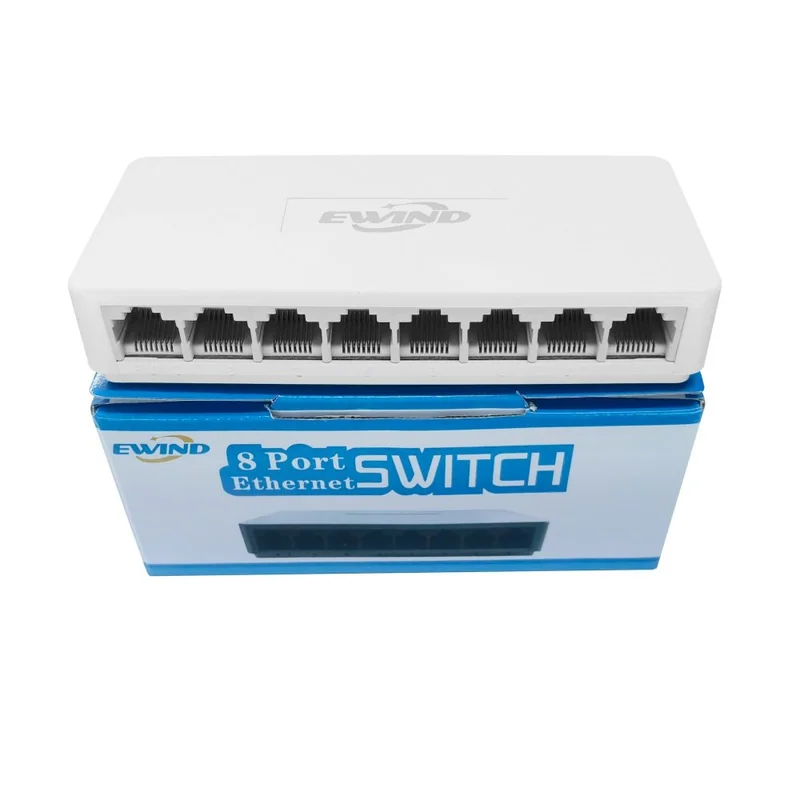

Model: EW-S1508

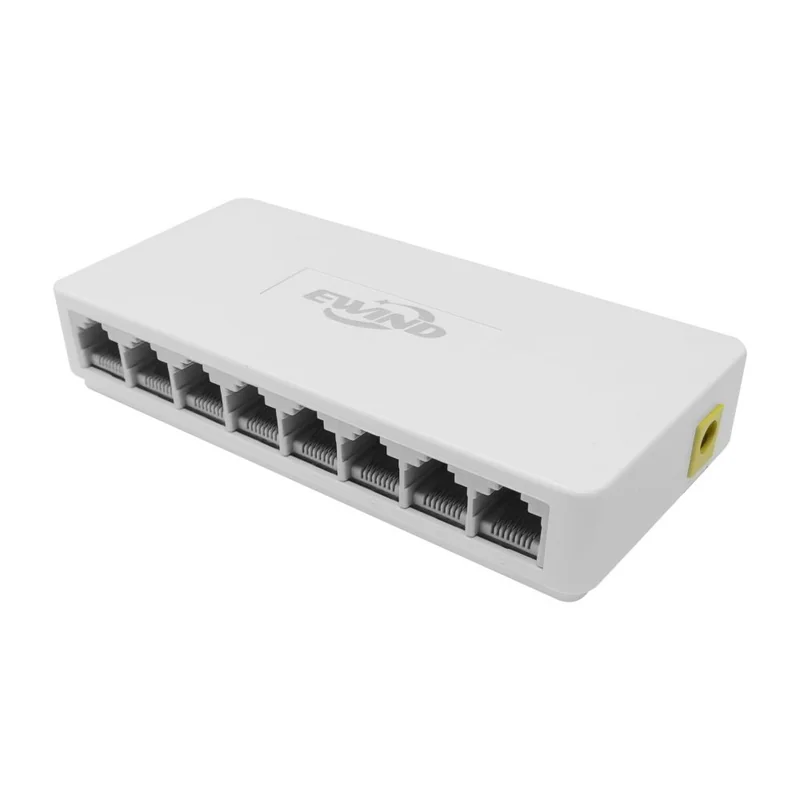

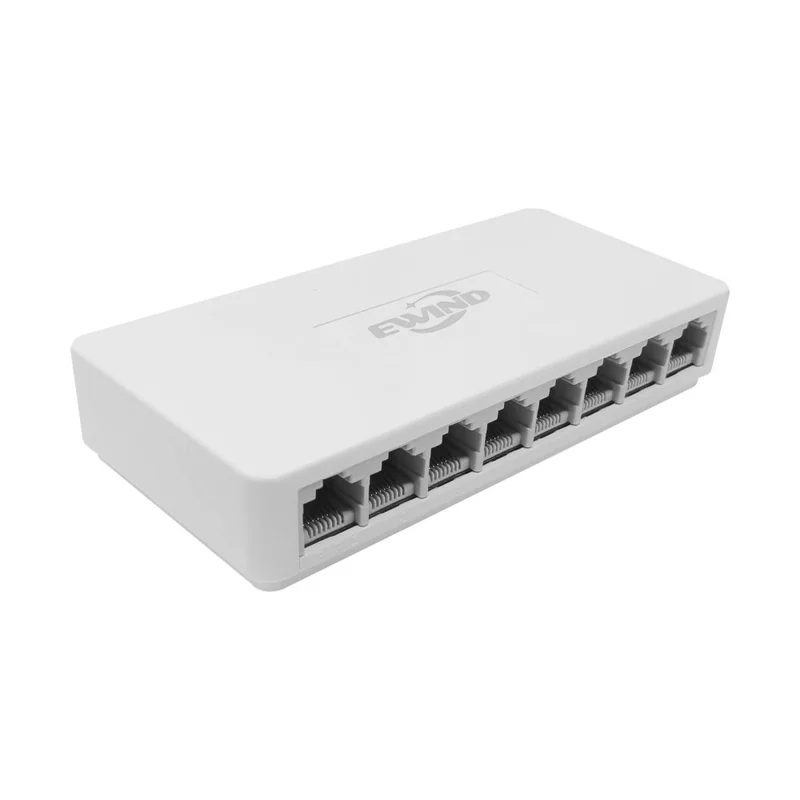

8-Port Fast Ethernet Unmanaged Switch
- 8 × 10/100Mbps RJ45 data ports
- 1.6 Gbps bandwidth · 1.19 Mpps
- 128 × 60 × 24 mm enclosure · 5V adapter
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

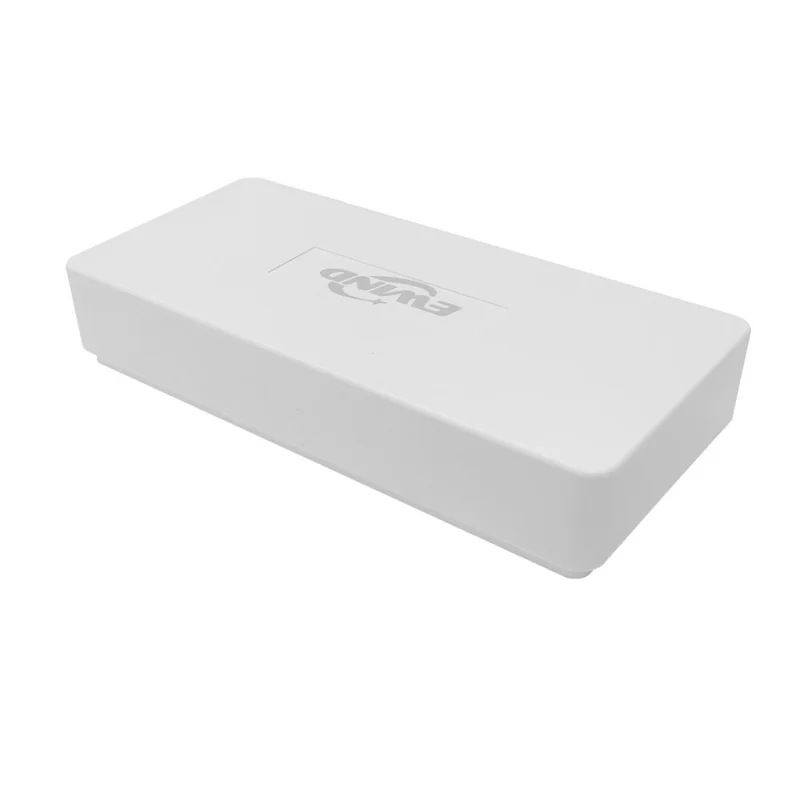

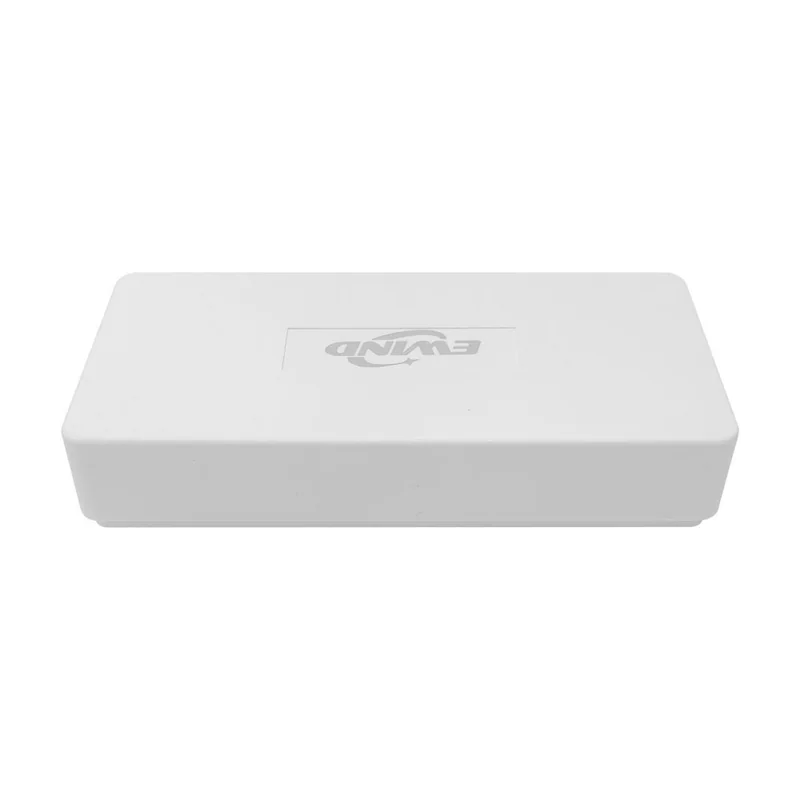

EW-S1508 provides eight 10/100Mbps RJ45 ports for simple home, office and CCTV networks. Automatic speed detection and MDI/MDIX support quick expansion in a compact desktop enclosure with an external 5V adapter.
Simple CCTV expansion
An unmanaged data switch for recorders, computers and independently powered endpoints.

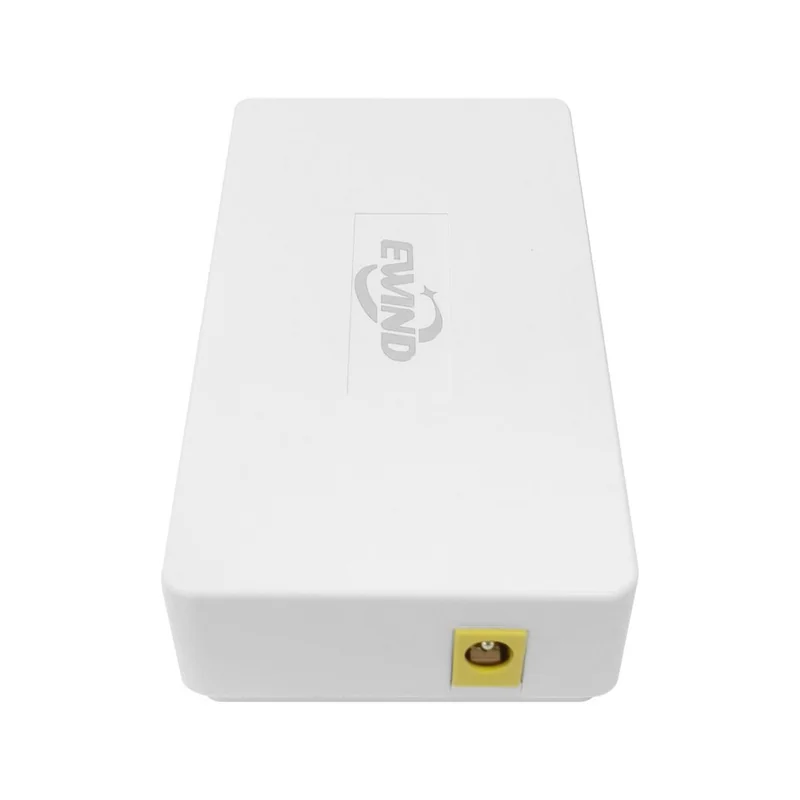

Compact external power
The included 5V/1A adapter supports a low-power desktop or wall-mounted installation.
| Specification | Details |
|---|---|
| Model | EW-S1508 |
| Ethernet ports | 8 × 10/100Mbps RJ45; auto MDI/MDIX |
| Management | Unmanaged; plug and play |
| Bandwidth / forwarding | 1.6 Gbps / 1.19 Mpps |
| MAC / buffer | 2K / 1M |
| Switch power input | 5V DC; external 1A adapter |
| Adapter AC input | 100–240V AC, 50/60Hz |
| Power consumption | 0.7W standby; <5W maximum |
| Dimensions | 128 × 60 × 24 mm |

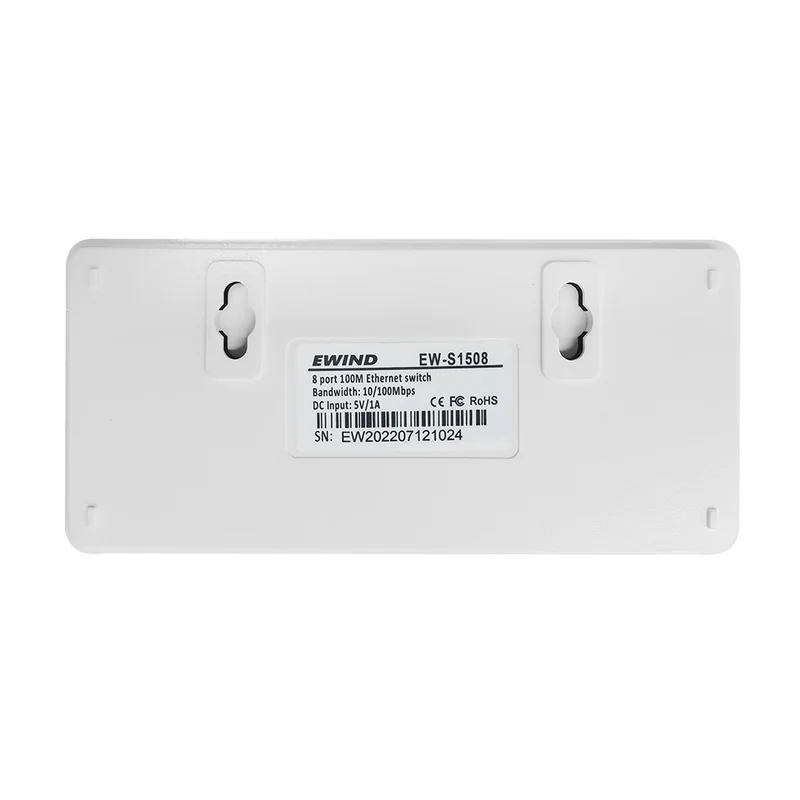

| Installation | Desktop or wall mount |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 1 year |

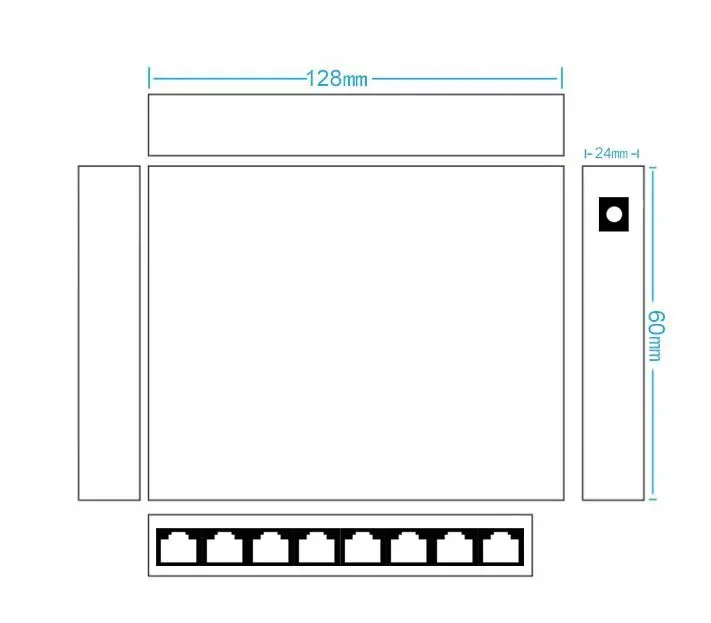

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1508 Fast Ethernet switch | 1 | SET |
| 5V/1A external power adapter | 1 | PCS |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
EW-S1508 Resources
PDF · Specifications · Installation · Ordering
