Eight powered connections
IEEE 802.3af/at supplies compatible devices within the shared 120W budget.
Model: EW-S1912CG-AP
8-Port Gigabit PoE Switch with 2 RJ45 and 2 SFP Uplinks
- 8 × Gigabit PoE ports; up to 30W per port
- 2 × Gigabit RJ45 + 2 × Gigabit SFP uplinks
- 120W PoE budget; built-in AC supply
- PoE watchdog, port isolation and extend mode
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1912CG-AP connects eight Gigabit PoE endpoints and provides two Gigabit RJ45 plus two Gigabit SFP uplinks. Its built-in 120W supply, IEEE 802.3af/at support and DIP-switch watchdog and isolation functions suit office, hotel and campus access networks.
Four uplink ports
Two copper and two fiber uplinks support flexible network connections.

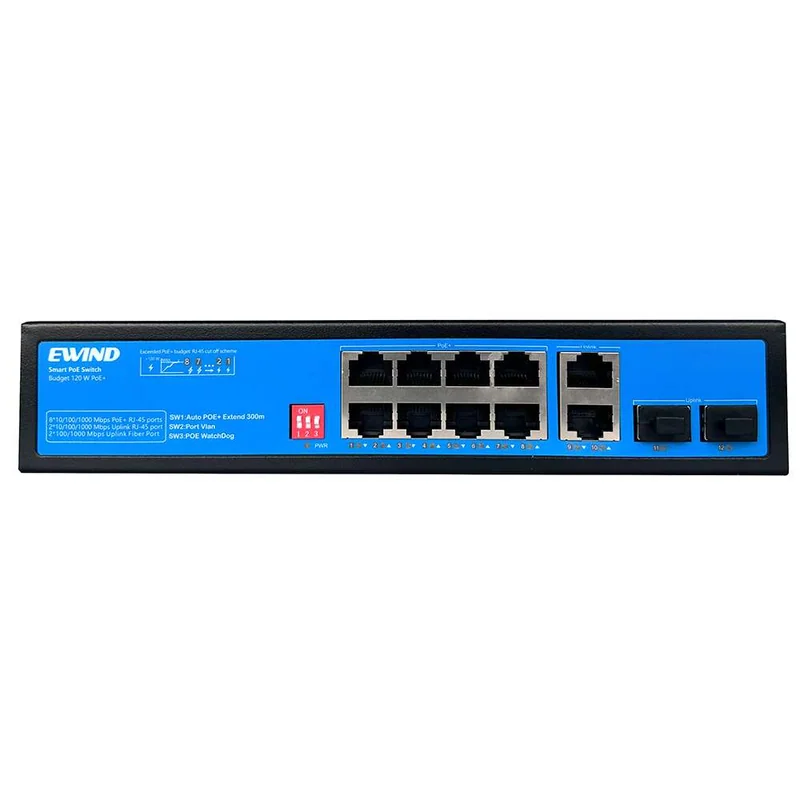

DIP-switch controls
Enable endpoint watchdog, isolate PoE ports or extend a link at reduced speed.
| Specification | Details |
|---|---|
| PoE ports | 8 × 10/100/1000Mbps RJ45 |
| Uplinks | 2 × 10/100/1000Mbps RJ45; 2 × Gigabit SFP |
| PoE standard / maximum per port | IEEE 802.3af/at / 30W |
| PoE budget | 120W maximum, per datasheet |
| Management | Unmanaged; DIP-switch functions |
| Switching / forwarding | 24Gbps / 17.86Mpps |
| MAC / buffer | 4K entries / 4M |

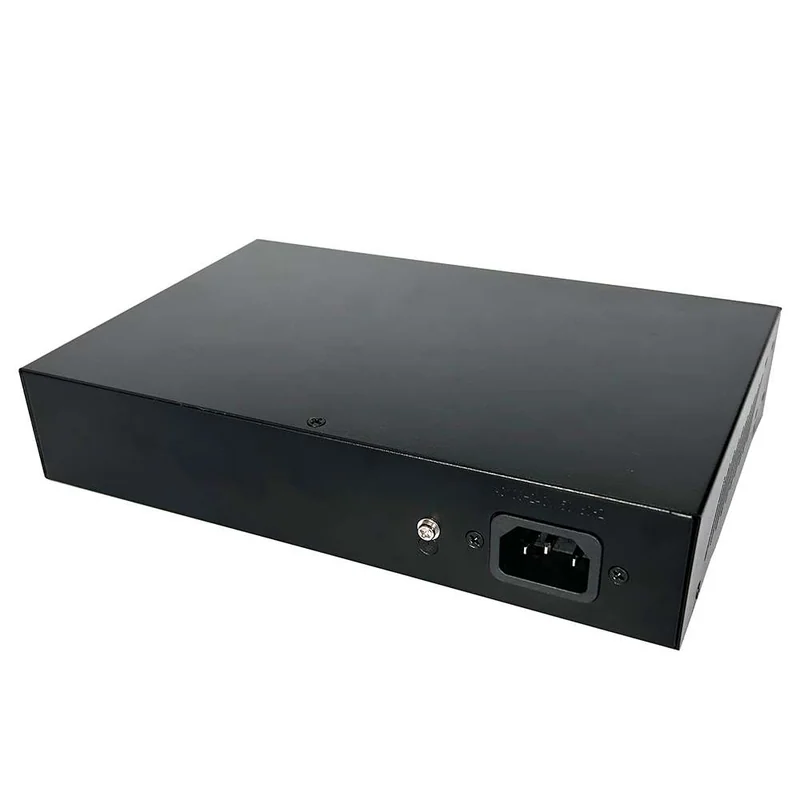

| Power supply | Built-in 120W; 100–240V AC, 50–60Hz |
| Dimensions | 220 × 145 × 44mm |
| Operating temperature | −20 to +55°C |
| Enclosure / mounting | IP30; desktop or wall |
| Warranty | 3 years |

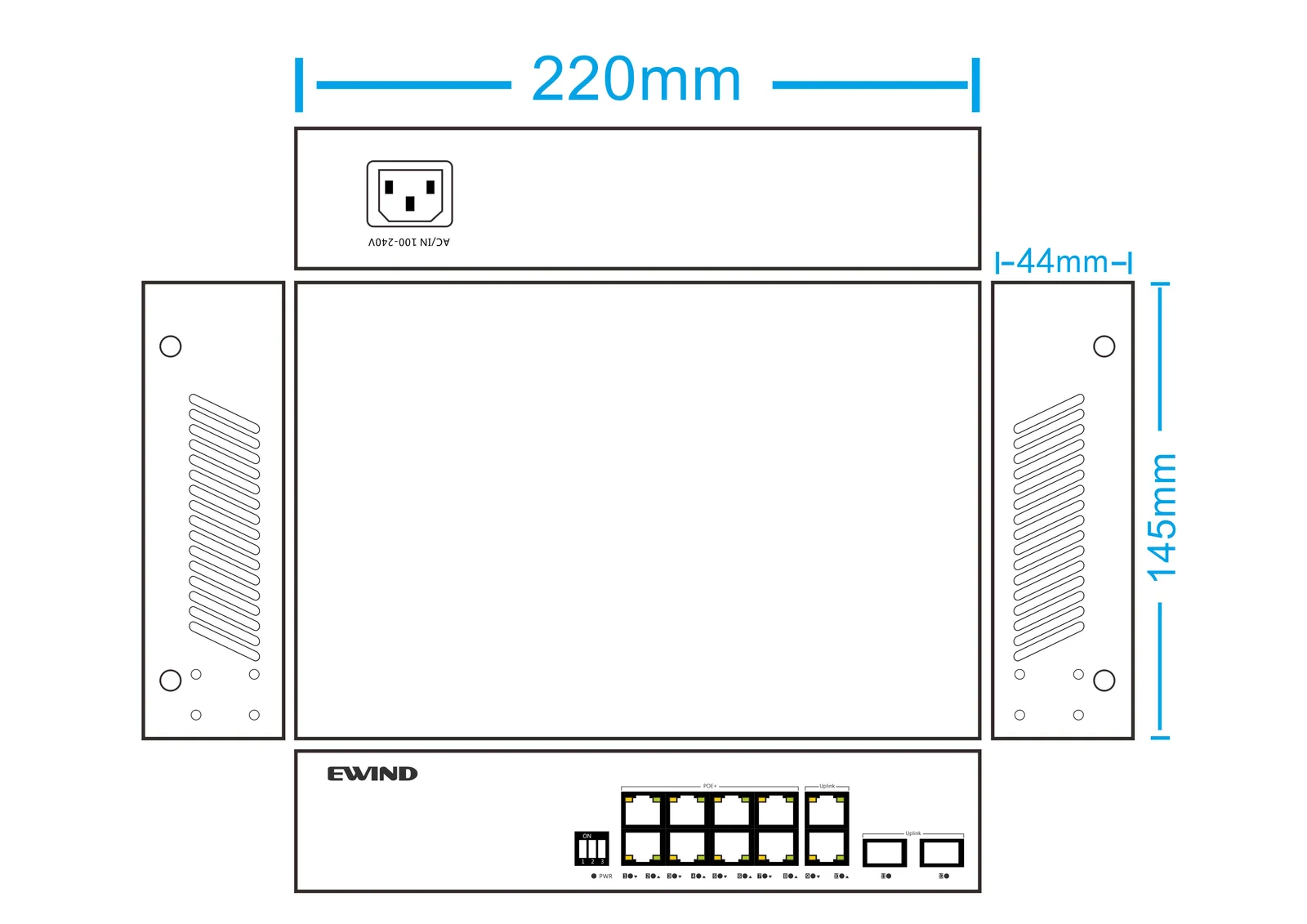

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1912CG-AP Gigabit PoE switch with built-in power supply | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

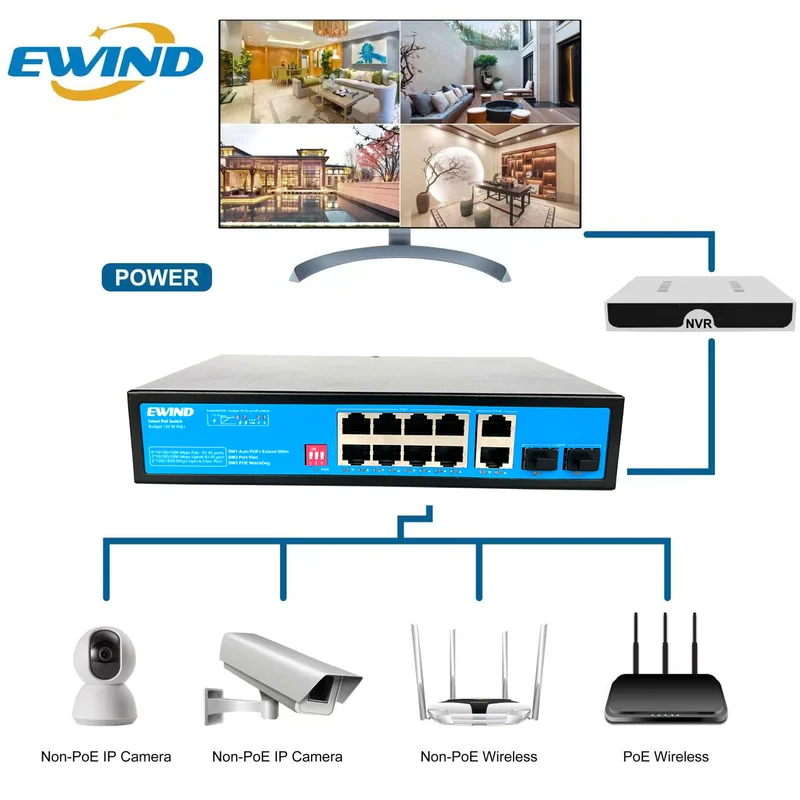

Applications
Office, hotel and campus camera and wireless access networks.
