Model: EW-PIS6810M-8GE

8-Port 2.5G Managed Industrial PoE Switch

8 × Gigabit PoE ports + 2 × 1G/2.5G SFP uplinks
IEEE 802.3af/at PoE, up to 30 W per port
L2+ management with VLAN, ERPS ring redundancy and static routing
48–57 V DC redundant inputs with reverse-polarity protection

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

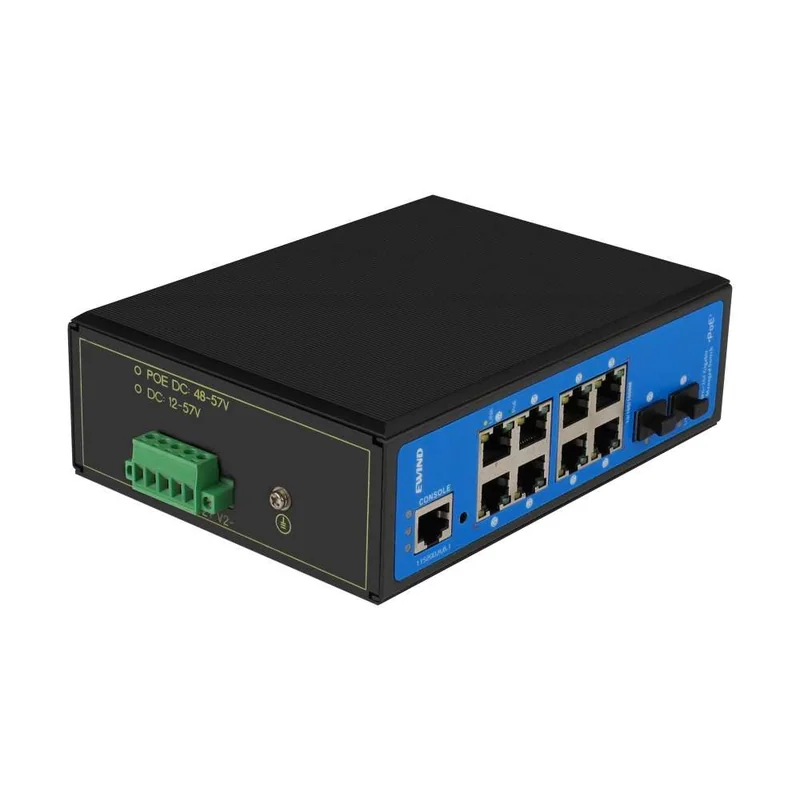

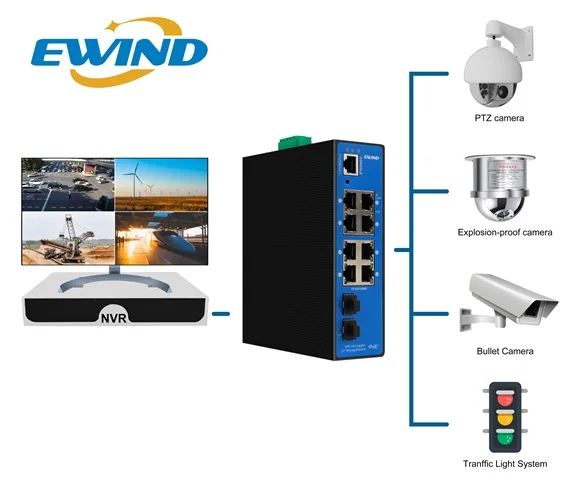

EW-PIS6810M-8GE is a DIN-rail L2+ managed industrial PoE switch for surveillance, transportation and industrial automation. Eight Gigabit PoE ports connect and power field devices, while two 1G/2.5G SFP uplinks provide fiber connectivity. Redundant DC inputs and an IP40 aluminum enclosure support operation from −40 to +85 °C.

Gigabit PoE + 2.5G fiber

Eight Gigabit PoE ports and two 1G/2.5G SFP uplinks for industrial access.

Managed PoE

Up to 30 W per port, with power allocation, priority and scheduling.

Industrial design

IP40 aluminum enclosure, redundant DC inputs and −40 to +85 °C operation.

Resilient networking

STP/RSTP/MSTP, ERPS ring redundancy and L2+ network management.

Product technical specifications
Specification	Details

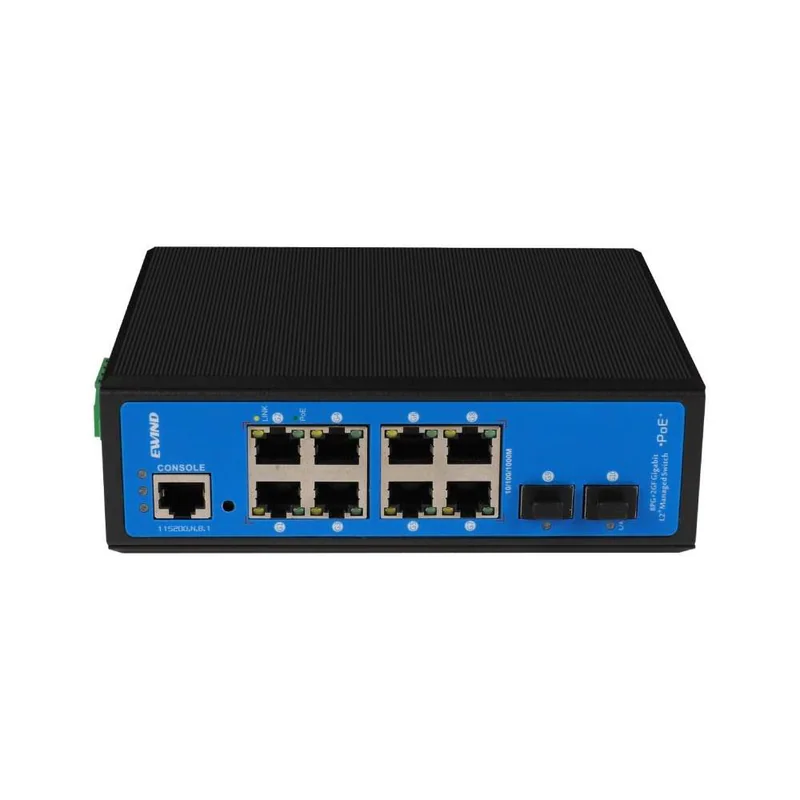

Interfaces	8 × 10/100/1000Base-T PoE ports; 2 × 1G/2.5G SFP slots; 1 × RS232 console port.
Managed type	L2+ managed switch; IPv4/IPv6 management and software-based static/default routing.
PoE	IEEE 802.3af/at on ports 1–8; up to 30 W per port; per-port allocation, priority, scheduling and status monitoring.
Forwarding and capacity	Store-and-forward; 14.88 Mpps forwarding rate; 8K MAC address table; 4M buffer memory; 10K jumbo frames.

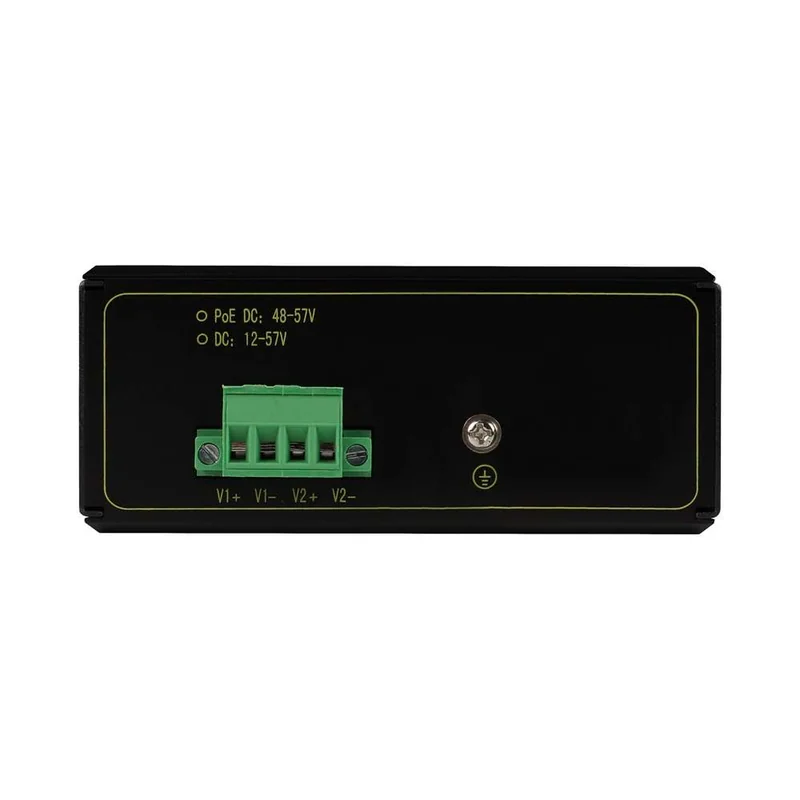

Power input	48–57 V DC; dual redundant inputs through a 4-pin terminal; reverse-polarity protection.
Power supply	External supply ordered separately; 48 V / 120 W or 48 V / 240 W options. Total power is listed as 120 W in the specification table; confirm the required PoE budget when ordering.
Operating environment	Operating: −40 to +85 °C, 5–90% RH. Storage: −40 to +125 °C, 5–95% RH. Non-condensing.

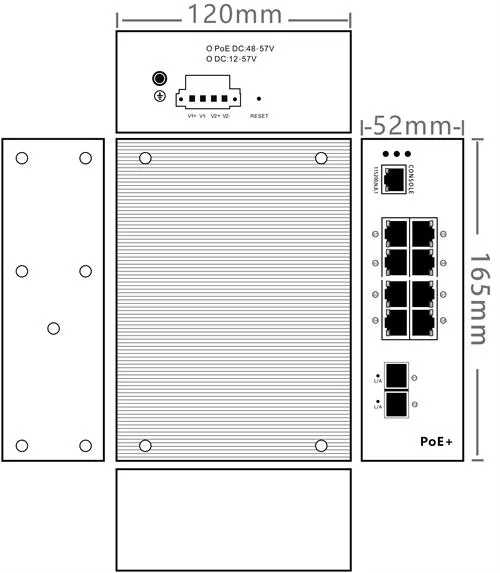

Mechanical	165 × 120 × 52 mm; net weight <0.8 kg; gross weight <1.2 kg; aluminum enclosure; DIN-rail mounting.
Protection	IP40; 6 kV lightning protection (8/20 μs); ESD: ±8 kV contact / ±15 kV air.
Compliance	CCC, CE, CE/LVD EN60950, FCC Part 15 Class B and RoHS.
Warranty	5 years, with lifelong maintenance.

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Fiber and link planning

SFP modules are ordered separately, with single-mode/multimode and single-fiber/dual-fiber options. Copper links reach up to 100 m with Cat5e or better cable at Gigabit speed. Auto-negotiation and auto MDI/MDI-X are supported. Optical reach depends on the selected module and fiber.

VLAN and redundancy

Port-, protocol-, MAC- and voice-based VLANs; IEEE 802.1Q and QinQ; Access/Trunk/Hybrid port modes. LACP and static aggregation; STP/RSTP/MSTP; G.8032 ERPS ring redundancy.

Routing, multicast and QoS

Software-based static/default routing and inter-VLAN communication; 128 static/default routes and 1,024 ARP entries. IGMP/MLD Snooping v1/v2 and multicast VLANs. Eight queues per port, 802.1p/DSCP mapping, SP/WRR scheduling, rate limiting and port mirroring.

Security and management

802.1X, AAA/RADIUS, L2–L4 ACLs, port isolation, IP/MAC/VLAN/port binding and DoS protection. HTTPS web management, console/Telnet/SSH CLI, SNMP v1/v2c/v3, DHCP client/server/relay/snooping, LLDP, NTP, logs, ping and cable diagnostics.

PoE and installation

PoE pins: 1/2 (+), 3/6 (−). Configure per-port power, priority, delayed start and schedules. RS232 console settings: 115200 baud, 8 data bits, no parity, 1 stop bit. Power, link/activity and PoE LEDs show operating status. Power supply and SFP modules are not included.

Industrial immunity

IEC 61000-4-4 EFT: ±4 kV power / ±2 kV data. IEC 61000-4-5 surge: power common-mode ±4 kV / differential-mode ±2 kV; data ±4 kV. Radiated immunity: 10 V/m at 80–1000 MHz; conducted RF: 10 V at 150 kHz–80 MHz. Additional magnetic-field and transient test levels are listed in the PDF datasheet.
