Model: EW-PIS3810M-8GE-BT

8-Port Gigabit L2+ Managed Industrial PoE Switch with 2 SFP Uplinks

8 × Gigabit PoE ports · up to 95W per port
2 × 100/1000M SFP fiber uplinks · 192Gbps switching
L2+ management · ERPS ring recovery · dual redundant DC inputs

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

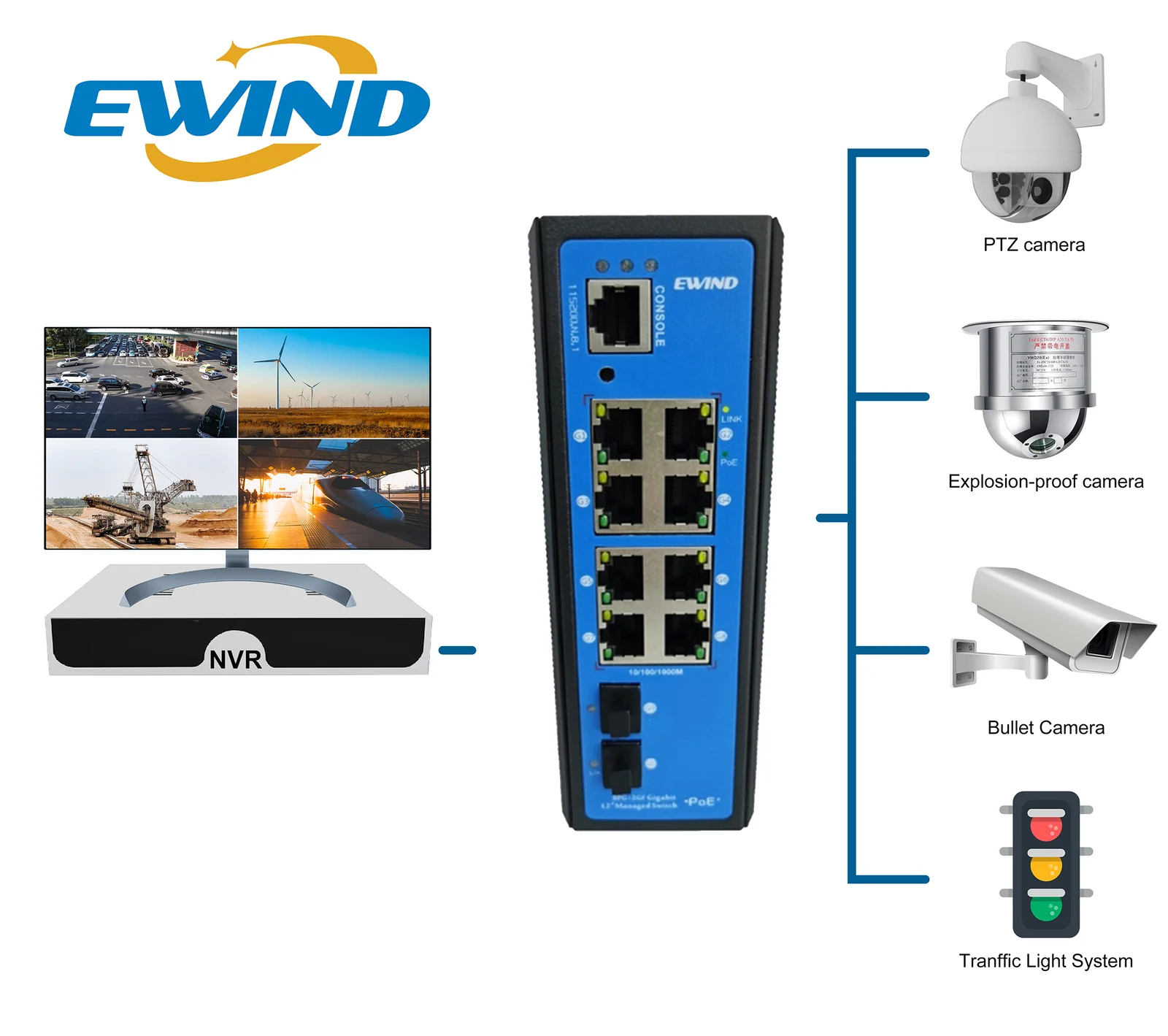

EW-PIS3810M-8GE-BT combines eight Gigabit 802.3af/at/bt PoE ports with two Gigabit SFP uplinks, a console port and redundant DC inputs. L2+ routing, VLAN, ring recovery and per-port PoE controls make it suited to demanding industrial surveillance and control networks.

High-power Gigabit PoE

Ports 1–8 support IEEE 802.3af/at/bt with up to 95W per port and a 480W shared budget.

Fiber uplink options

Two 100/1000M SFP slots accept separately purchased multimode or single-mode modules.

Industrial resilience

IP40 housing, −40 to +85°C operation, redundant Phoenix-terminal power and ring recovery support field deployments.

Product technical specifications
Specification	Details
Model	EW-PIS3810M-8GE-BT
PoE ports	8 × 10/100/1000BASE-T PoE; ports 1–8
Fiber uplinks	2 × 100/1000M SFP
Management port	1 × RS232 console, 115200/N/8/1
PoE standard / port limit	IEEE 802.3af/at/bt; up to 95W per port
Total PoE budget / input	480W; 48–57VDC
Switching / forwarding	192Gbps non-blocking / 14.88Mpps
MAC / buffer / jumbo frame	8K / 4M / 10K
Management features	L2+ routing, VLAN, LACP, STP/RSTP/MSTP, ERPS, QoS, ACL, SNMP and HTTPS
Power interface	Two redundant 4-pin Phoenix V+/V− inputs; reverse-polarity protection
Dimensions / installation	165 × 120 × 52 mm; industrial rail-type mounting
Protection / environment	IP40; −40 to +85°C; 5–95% RH, non-condensing
Warranty	5 years; lifelong maintenance

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE management

Per-port AF/AT enablement, power allocation and priority, status monitoring, delayed startup and time scheduling are available through the managed interface.

Industrial redundancy

ERPS supports up to 255 rings with a stated self-healing time below 20ms. STP/RSTP/MSTP are also supported for network redundancy.

Power and fiber planning

The switch requires an external 48–57VDC source; optional 48V/120W or 48V/240W industrial supplies are listed. SFP modules are ordered separately and determine multimode or single-mode reach.

Security and operations

IPv4/IPv6 management, SSH/HTTPS, 802.1X, RADIUS, DHCP snooping, ACL, port isolation and LLDP support controlled deployments.
