Model: EW-S3912GM-AP

8-Port Gigabit L2+ Managed PoE Switch with 4 10G SFP+ Uplinks

8 × Gigabit PoE ports; up to 30W per port
4 × 1/2.5/10G SFP+ uplinks
L2+ management with VLAN, QoS, ACL and ERPS
120W AP model; managed PoE scheduling

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-S3912GM-AP provides eight Gigabit IEEE 802.3af/at PoE ports and four 1/2.5/10G SFP+ uplinks. L2+ management combines VLANs, QoS, access control, ring redundancy and scheduled PoE, with a built-in 120W supply for the AP model.

Four 10G uplinks

SFP+ slots support 1G, 2.5G and 10G optical connections with separately ordered modules.

Managed PoE

Set per-port power allocation, priorities, startup delays and on/off schedules.

Network segmentation

VLANs, access controls and redundant link protocols support managed access networks.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45; IEEE 802.3af/at
Uplink ports	4 × 1/2.5/10G SFP+
Management	L2+; Web, CLI and SNMP
Console	RS232; 115200 baud, 8N1
Maximum PoE per port	30W
AP power supply	120W built-in; 100–220V AC, 50–60Hz
MAC table / buffer	32K entries / 32M

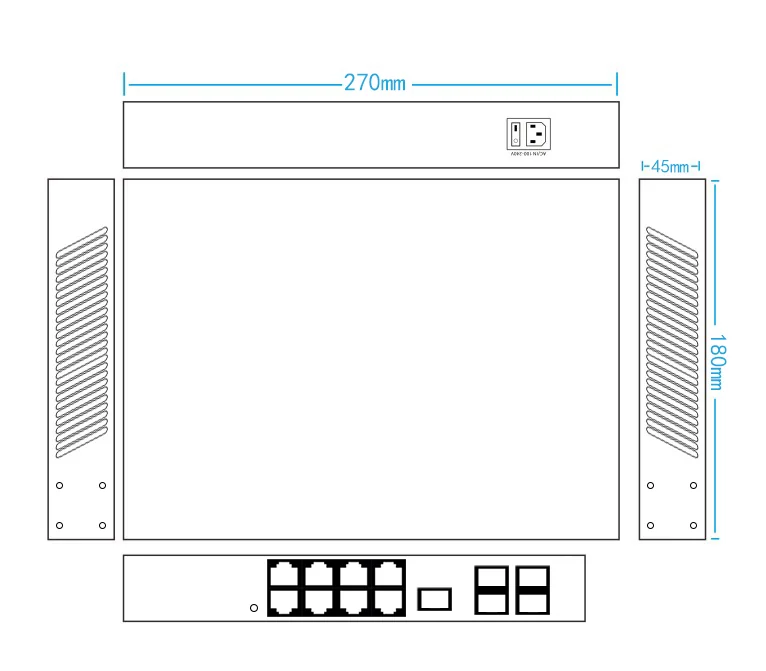

Dimensions (L × W × H)	270 × 180 × 45mm
Operating temperature	−20 to +55°C
Enclosure / installation	IP30; desktop or 19-inch 1U rack
Warranty	3 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

VLAN, routing and multicast

Supports IEEE 802.1Q, port/protocol VLANs, Access/Trunk/Hybrid modes and QinQ. IPv4/IPv6 management with software-based static/default routing. IGMP and MLD snooping, multicast VLAN and port mirroring.

Link redundancy and aggregation

Supports STP, RSTP, MSTP, G.8032 ERPS, LACP and static link aggregation.

QoS and access security

Eight output queues per port; 802.1p/DSCP classification and SP/WRR scheduling. L2–L4 ACLs, 802.1X, AAA/RADIUS, port isolation and IP/MAC/VLAN/port binding.

PoE and power variants

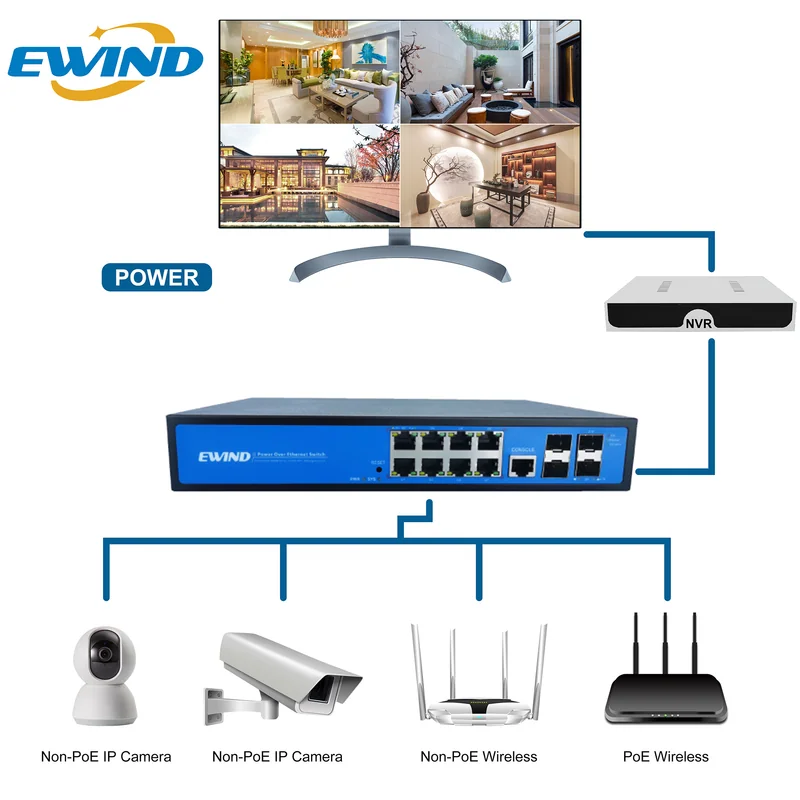

Configure total and per-port power limits, output priority, delayed startup and scheduled operation. EW-S3912GM-AP uses the 120W supply; the separately specified EW-S3912GM-AP-AT version uses 250W. Non-PoE endpoints need separate power.

Management and maintenance

HTTPS Web management, SSH CLI and SNMP v1/v2c/v3. DHCP client/server/relay/snooping, NTP, system logs, LLDP, cable diagnostics and a factory-reset button.

Environment and protection

Storage: −40 to +80°C. Operating humidity: 5–90% RH; storage: 5–95% RH, non-condensing. ESD ±8kV contact / ±15kV air; surge power ±4kV common mode / ±2kV differential mode, ports ±4kV.
