54-port access
48 Gigabit PoE ports plus six 1/2.5/10G SFP+ uplinks.
Model: EW-S5954GM-AP(RTL)
54-Port Layer 3+ Gigabit Managed PoE Switch with 10G Uplink
- L3+ 48*10/100/1000M RJ45 ports+6*10G(SFP+) fiber port Managed PoE Switch,PoE(1-48)support 802.3af/at,6 ports support 10G (SFP+) fiber port
- PoE port support AF/ATintelligent recognition,Standard power is 15.4W/port, Maximum power:30W/port,only support 1,2(+)/3,6(-)
- Bandwidth:216Gbps,MAC table:32K
- Support L3+ Dynamic Routing, IPv4/IPv6,RIP v1/v2,OSPF v2& VRRP etc
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S5954GM-AP(RTL) is a 1U Layer 3+ managed PoE switch for high-density Gigabit access, 10G aggregation and enterprise network control.
Intelligent PoE
IEEE 802.3af/at with up to 30W per port and real-time power status.
216Gbps switching
Non-blocking switching with a 32K MAC address table.
Layer 3+ control
IPv4/IPv6 routing, RIP, OSPF, VRRP and enterprise security controls.
| Specification | Details |
|---|---|
| Interfaces | 48 × 10/100/1000Base-T PoE ports; 6 × 1/2.5/10G SFP+ uplink slots; 1 × RS232 console port. |
| Managed type | Layer 3+ managed switch. |
| PoE | IEEE 802.3af/at on ports 1–48; up to 30 W per port; 15.4 W standard power per port; per-port allocation, priority, scheduling and status monitoring. |
| Switching performance | 216 Gbps non-blocking switching capacity; 107.14 Mpps forwarding rate. |
| Addressing capacity | 32K MAC address table; 32M buffer memory. |
| Layer 3 routing | IPv4/IPv6 management, static and default routing, RIP v1/v2, OSPF v2, VRRP and inter-VLAN routing. |
| Power | Built-in supply; AC 100–220 V, 50–60 Hz; 800 W total power; standby <15 W; full load <800 W. |
| Operating environment | Operating: −20 to +55 °C; 5–90% RH, non-condensing. Storage: −40 to +80 °C; 5–95% RH, non-condensing. |
| Mechanical | 440 × 290 × 44.5 mm; net weight <4.9 kg; desktop or 19-inch 1U cabinet installation. |
| Protection and compliance | ESD: ±8 kV contact / ±15 kV air; surge protection: ±4 kV at power and ports; enclosure rating requires confirmation because the source lists both IP30 and IP40. CCC, CE, FCC Part 15 Class B and RoHS. |
| Warranty | 3 years, with lifelong maintenance. |

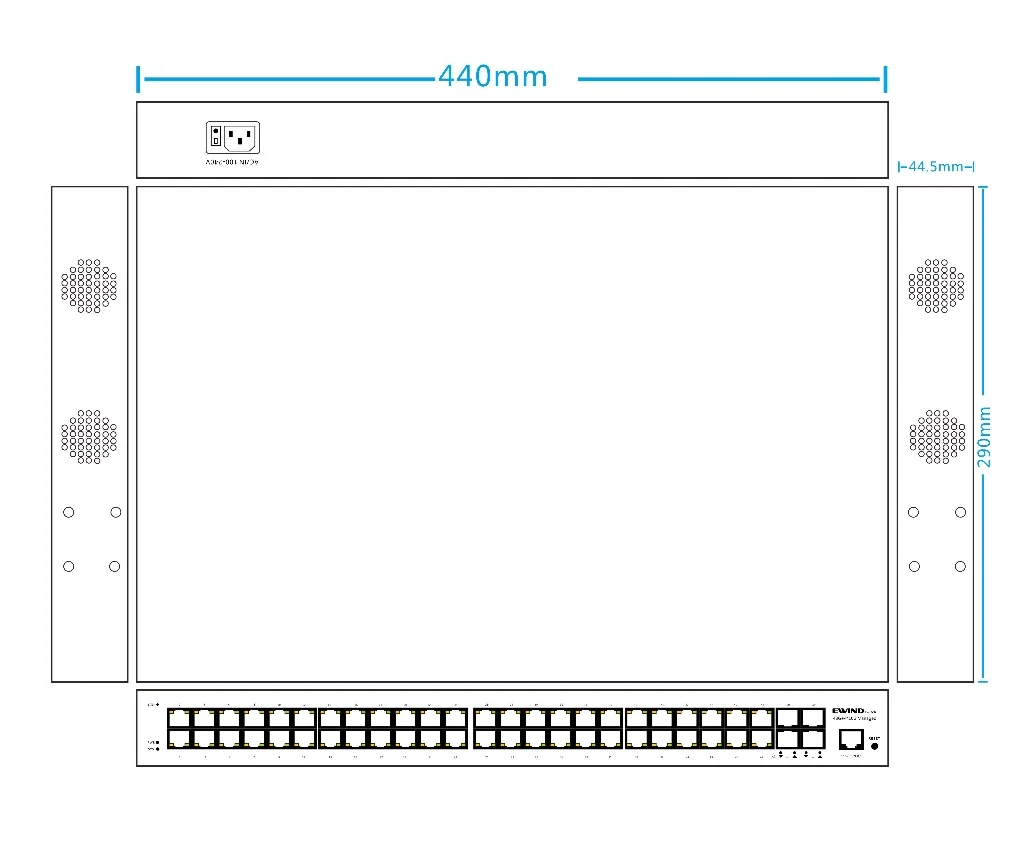

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| 54 Ports L3+ Managed PoE Switch with 10G uplink (EW-S5954GM-AP(RTL)) | 1 | SET |
| Hanging ear | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

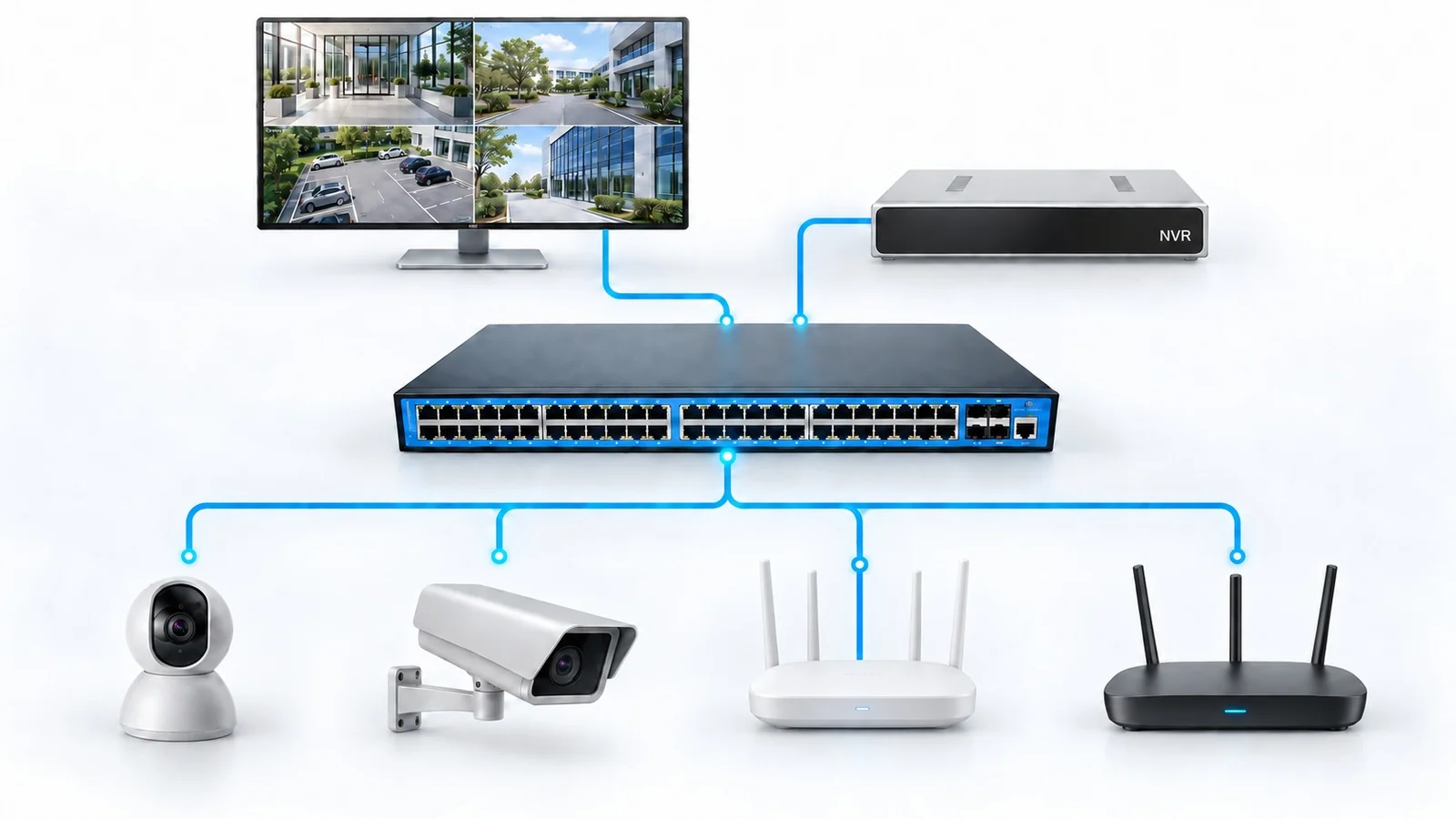

Applications
Enterprise, campus and security networks.
Non-PoE IP CameraNon-PoE IP CameraNon-PoE WirelessPoE Wireless
EW-S5954GM-AP(RTL) Resources
PDF · Specifications · Installation · Ordering
