Model: EW-S1819CF-AP

19-Port Gigabit Uplink PoE Switch with Hi-PoE

16 × 10/100Mbps PoE ports, 2 × Gigabit RJ45 uplinks and 1 × Gigabit SFP uplink

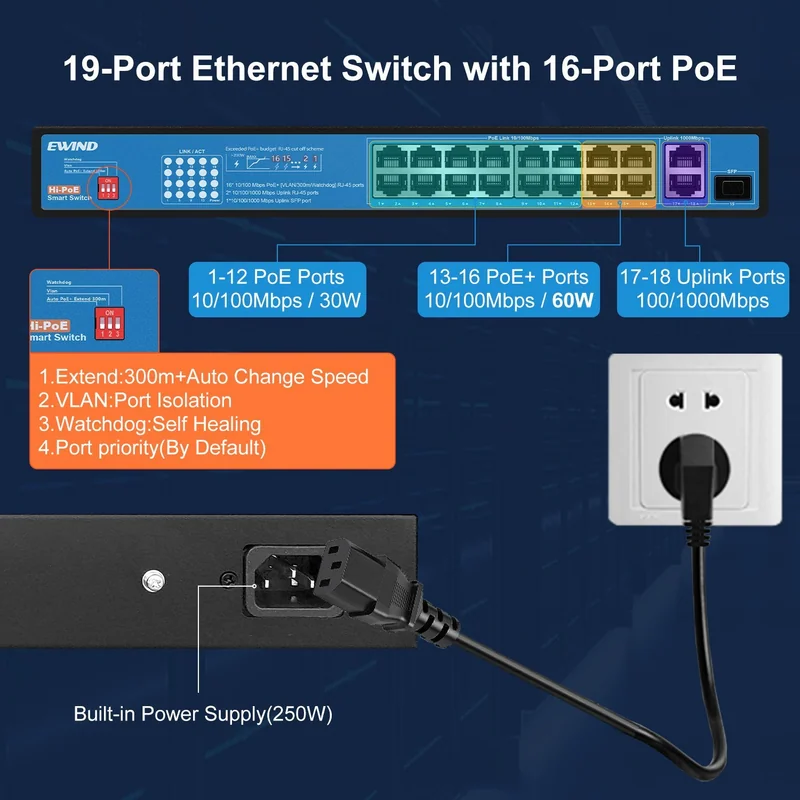

Ports 1–16 support IEEE 802.3af/at; ports 13–16 support up to 60W Hi-PoE
AI Extend up to 300m with VLAN isolation and AI PoE watchdog
Port priority by default for traffic-sensitive camera and wireless endpoints

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

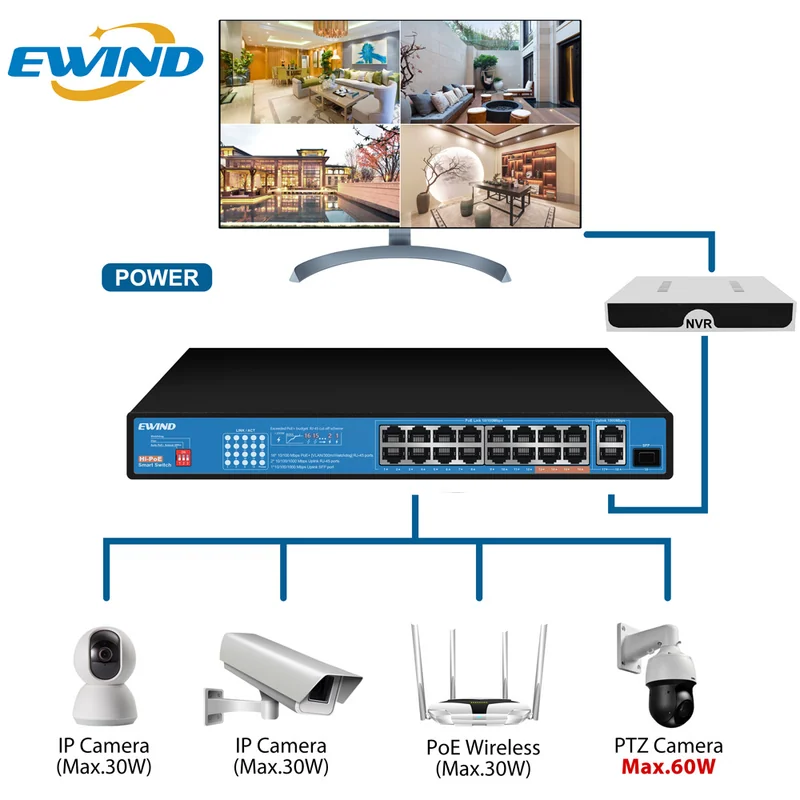

EW-S1819CF-AP is a 19-port PoE switch with 16 Fast Ethernet PoE ports, two Gigabit RJ45 uplinks, one SFP uplink and 60W Hi-PoE ports for high-density security networks.

16 PoE ports

Fast Ethernet PoE ports power cameras and wireless endpoints across a dense edge network.

60W Hi-PoE

Ports 13–16 support IEEE 802.3af/at/bt for PTZ and other high-power devices.

Three uplinks

Two Gigabit RJ45 ports and one Gigabit SFP port provide flexible uplink choices.

AI protection

VLAN isolation and AI PoE watchdog support stable camera deployments.

Product technical specifications
Specification	Details
Interfaces	16 × 10/100Mbps PoE ports, 2 × 10/100/1000Mbps RJ45 uplinks and 1 × 100/1000Mbps SFP uplink
PoE standard	Ports 1–16 support IEEE 802.3af/at; ports 13–16 also support IEEE 802.3bt up to 60W
Port power	15.4W standard, 30W maximum per port; ports 13–16 up to 60W
Smart features	Port priority, AI Extend 300m, VLAN isolation and AI PoE watchdog self-healing

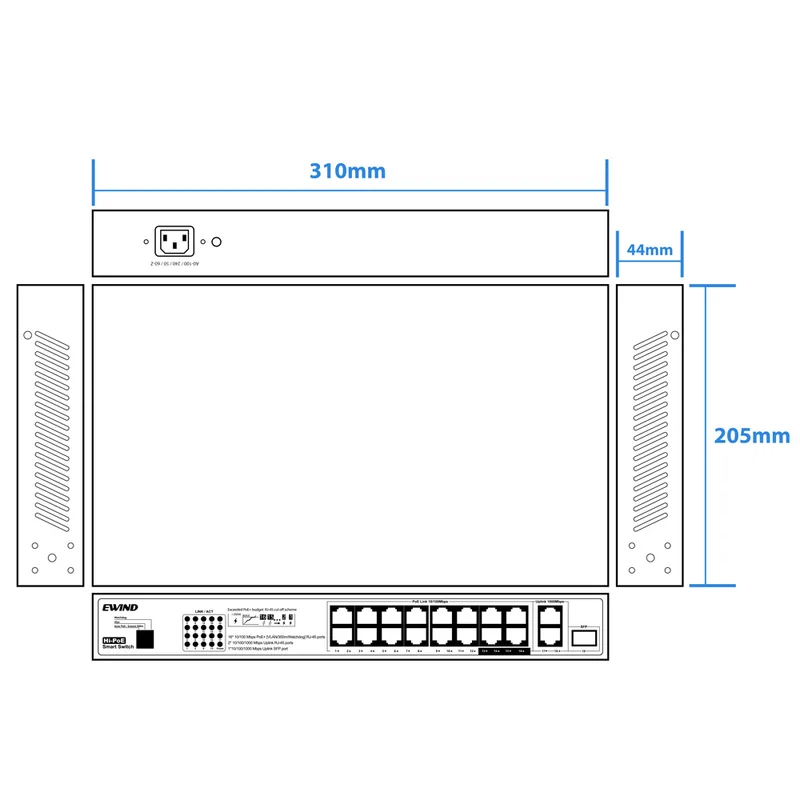

Dimensions	Source dimension drawing supplied; rack and desktop deployment details are shown in the product materials

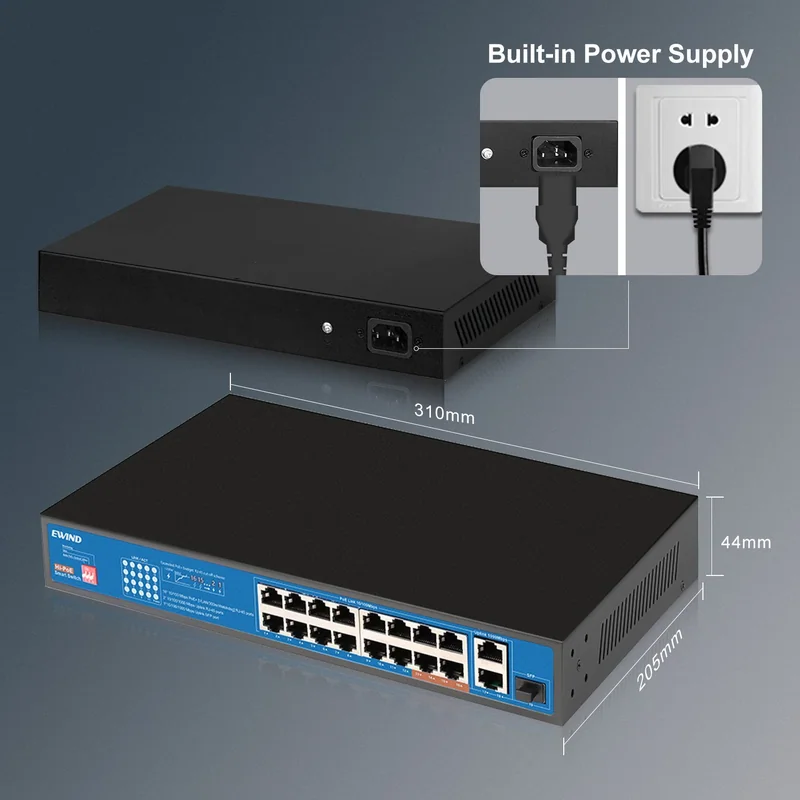

Installation	Desktop, wall mount or 19-inch 1U cabinet installation
Environment	Industrial PoE switch family enclosure with managed edge protection
Protection	IP30 with ESD and surge protection
