Model: EW-IS1702

2-Port Fast Ethernet Industrial Switch with SC Fiber Uplink

1 × 10/100Mbps RJ45 + 1 × SC fiber port
Default single-mode dual-fiber link up to 20km
Redundant 12–48V DC inputs
IP40 enclosure; −40 to +75°C operation

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

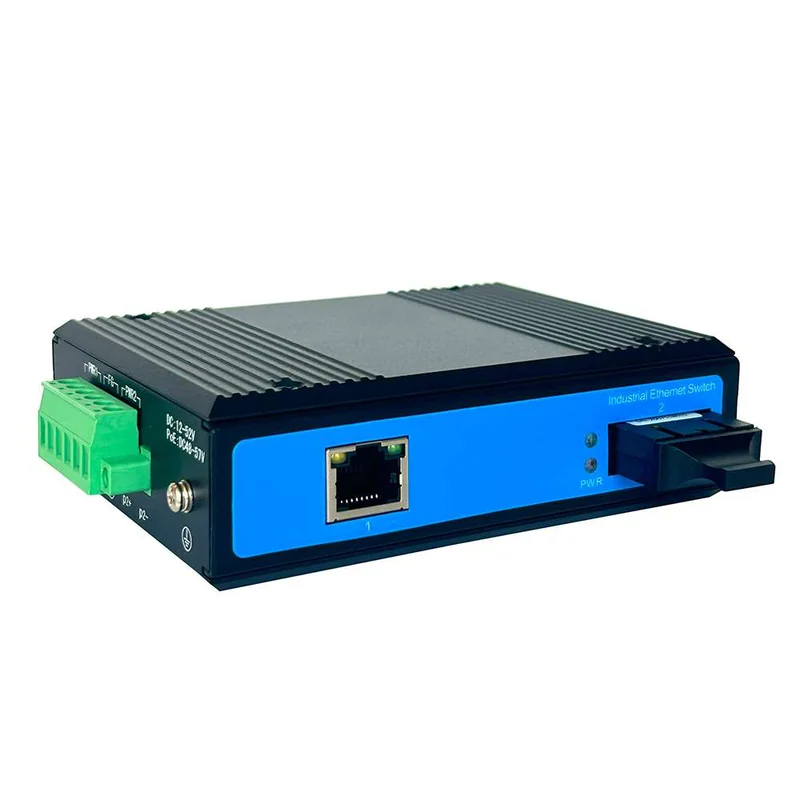

EW-IS1702 connects a 10/100Mbps copper Ethernet device to an SC fiber link. Unmanaged operation, redundant 12–48V DC inputs and DIN-rail mounting support industrial network extensions, with a default 20km single-mode dual-fiber option and additional optical variants.

Copper-to-fiber link

Connect one Fast Ethernet RJ45 device to an industrial SC fiber network.

Optical options

Choose single-mode dual-fiber, multimode or paired single-fiber versions for the required link.

Industrial power and mounting

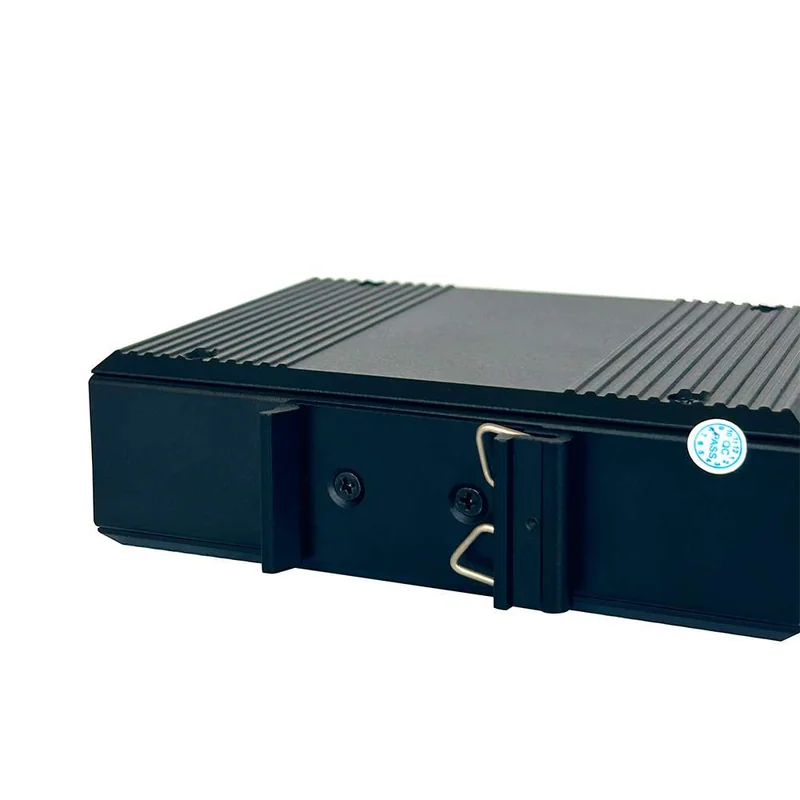

Redundant DC terminals, DIN-rail installation and an IP40 enclosure suit cabinets.

Product technical specifications
Specification	Details
RJ45 port	1 × 10/100Base-TX; auto MDI/MDIX
Fiber port	1 × SC optical port; 155Mbps optical rate
Default optical version	Single-mode dual-fiber; 1310nm; up to 20km
Management	Unmanaged
Forwarding rate	0.30Mpps at 64 bytes
MAC table / buffer	1K entries / 768K

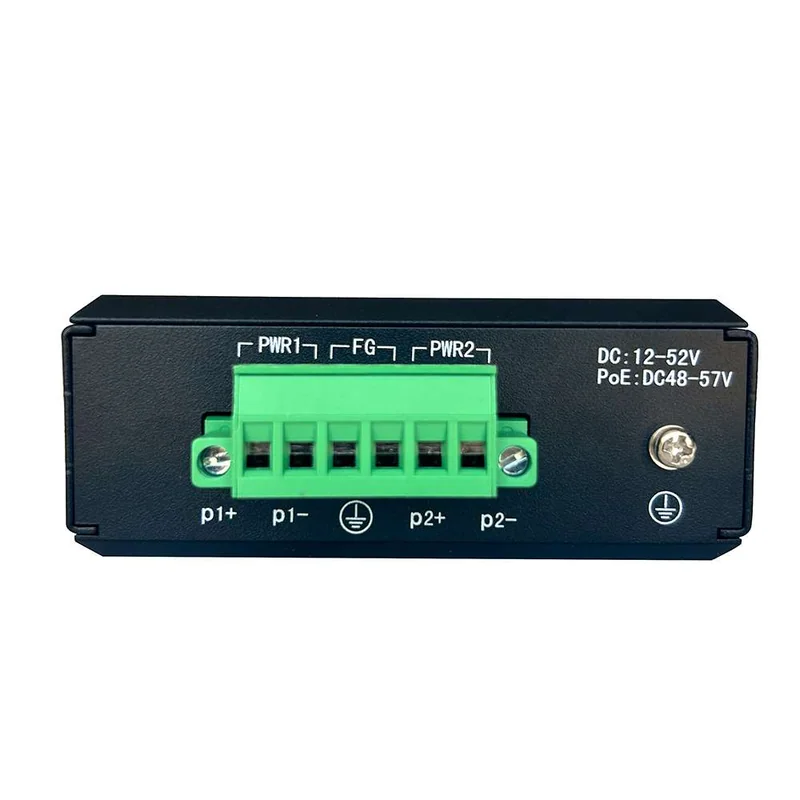

Power input	12–48V DC; redundant 6-pin terminal; reverse-polarity protection
Power supply	Not included

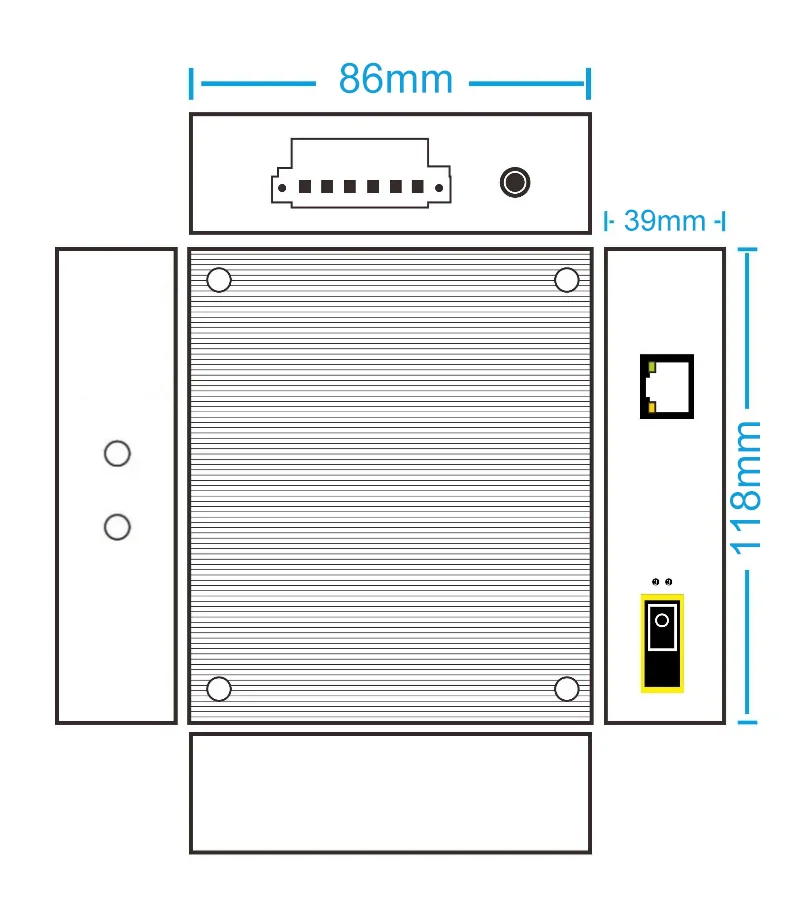

Dimensions (L × W × H)	118 × 86 × 39mm
Operating temperature	−40 to +75°C
Enclosure / mounting	IP40; desktop or DIN rail
Warranty	5 years

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Optical ordering options

EW-IS1702-1FE: 1310nm, 20km single-mode dual-fiber. EW-IS1702-1FE-M: 850nm/0.5km or 1310nm/2km multimode. EW-IS1702-1FE-A and -B: paired 1310nm and 1550nm, 20km single-mode single-fiber versions.

Ethernet operation

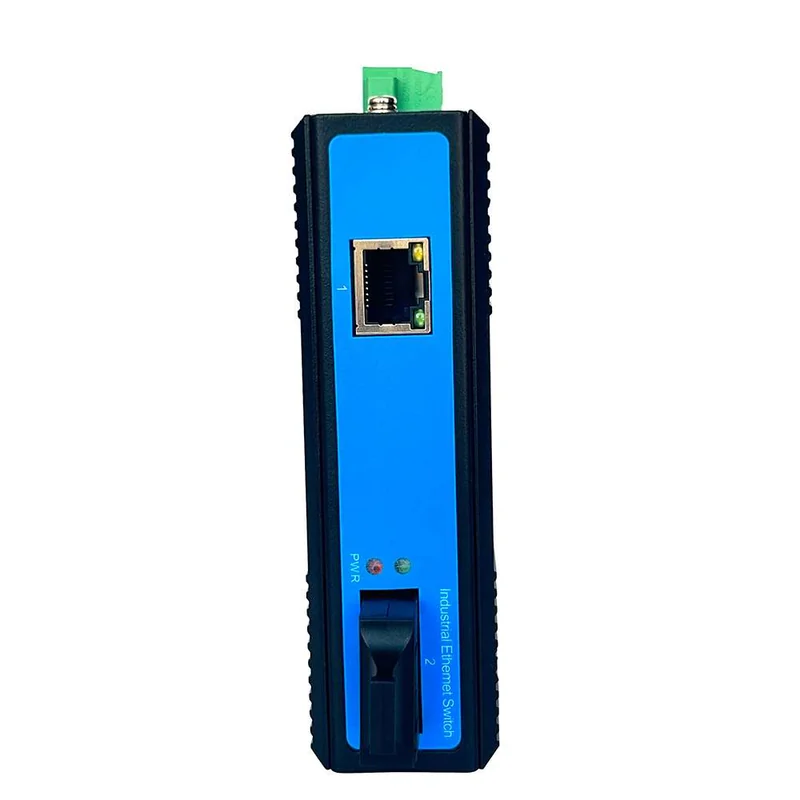

Store-and-forward operation, full/half-duplex auto-negotiation and automatic MDI/MDIX. Maximum frame size: 1536 bytes. LEDs indicate power, Ethernet link and fiber activity.

Environmental and mechanical details

Operating humidity: 5–90% RH. Storage: −40 to +85°C and 5–95% RH, non-condensing. Net weight <0.2kg; gross weight <0.5kg. Mechanical references: IEC 60068-2-6, -2-27 and -2-32.

Electrical protection

ESD: ±8kV contact and ±15kV air. Surge: power ±4kV common mode / ±2kV differential mode; data ±4kV. Further EMC test references are listed in the PDF.
