Four PoE connections
Power compatible cameras and access devices within the selected supply configuration.
Model: EW-PIS1806-4GE

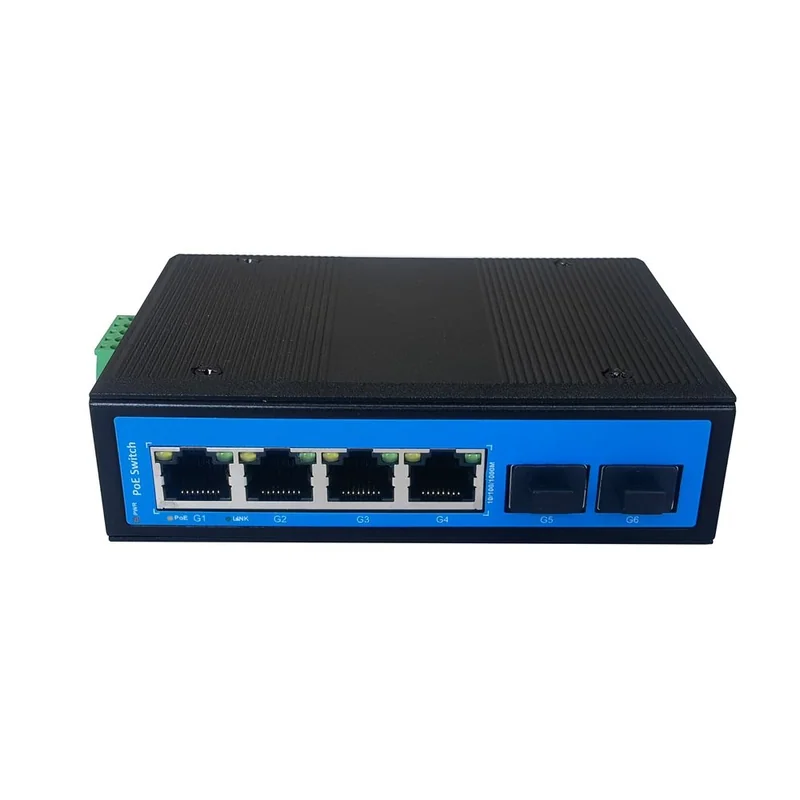

4-Port Gigabit Industrial PoE Switch with 2 SFP Uplinks
- 4 Gigabit PoE ports + 2 Gigabit SFP uplinks
- IEEE 802.3af/at; up to 30W per port
- 48–57V DC input; external supply required
- Unmanaged with E/V/D DIP controls
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

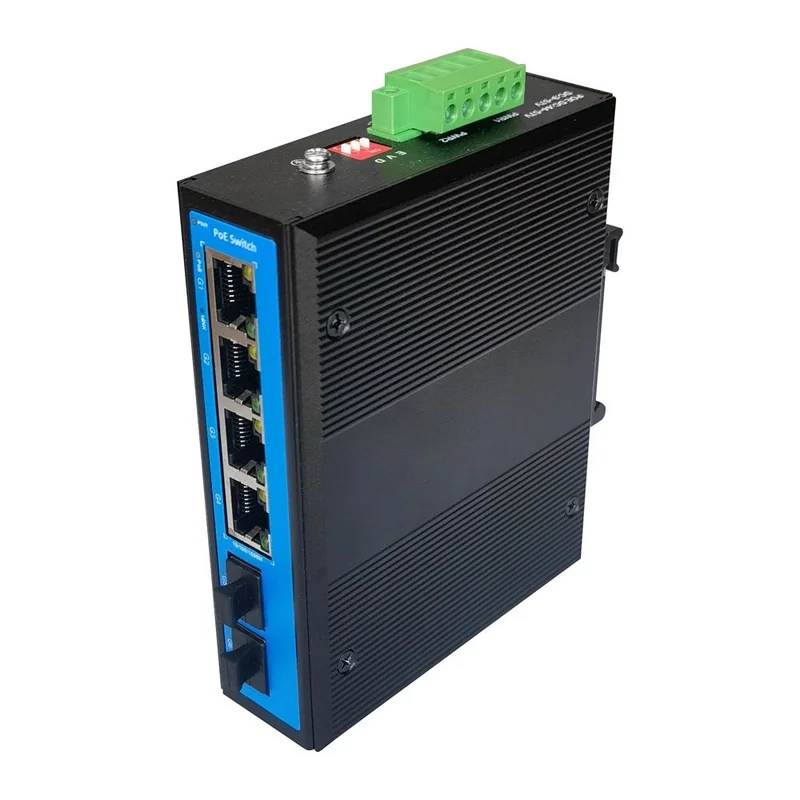

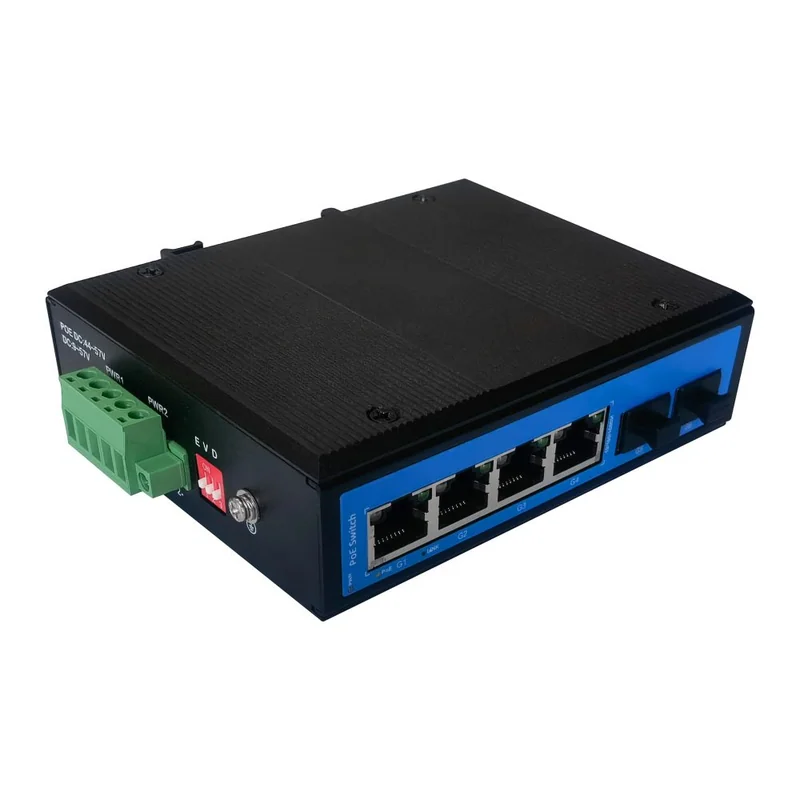

EW-PIS1806-4GE provides four Gigabit PoE ports and two Gigabit SFP uplinks in a compact DIN-rail enclosure. Redundant DC inputs and DIP controls for extension, isolation and watchdog recovery support industrial access networks.
Two fiber uplinks
100/1000Mbps SFP slots connect the local network to upstream equipment.
Industrial installation

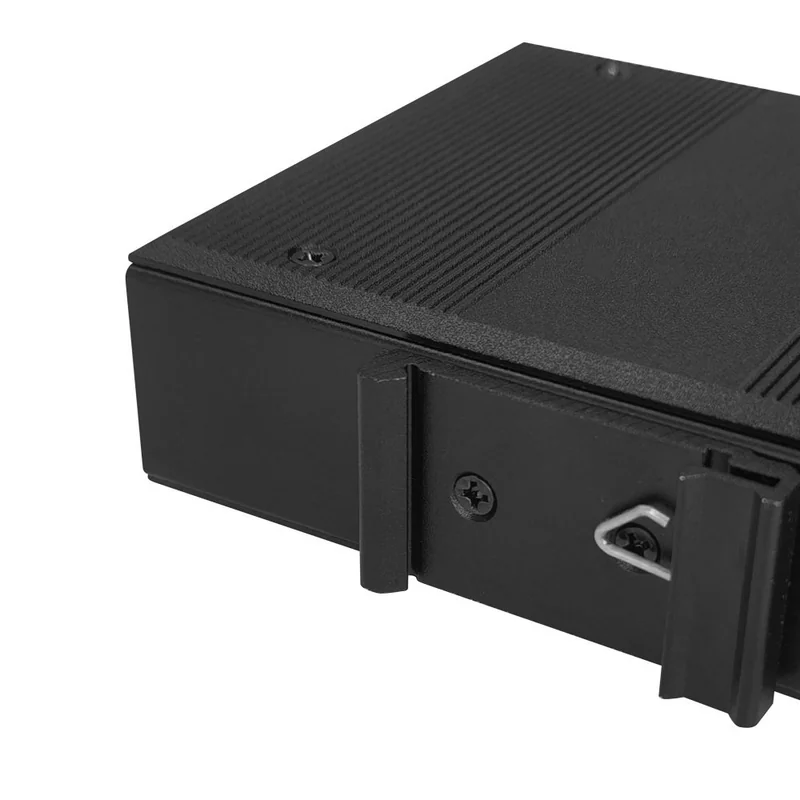

The IP40 enclosure supports desktop or 35 mm DIN-rail mounting.
| Specification | Details |
|---|---|

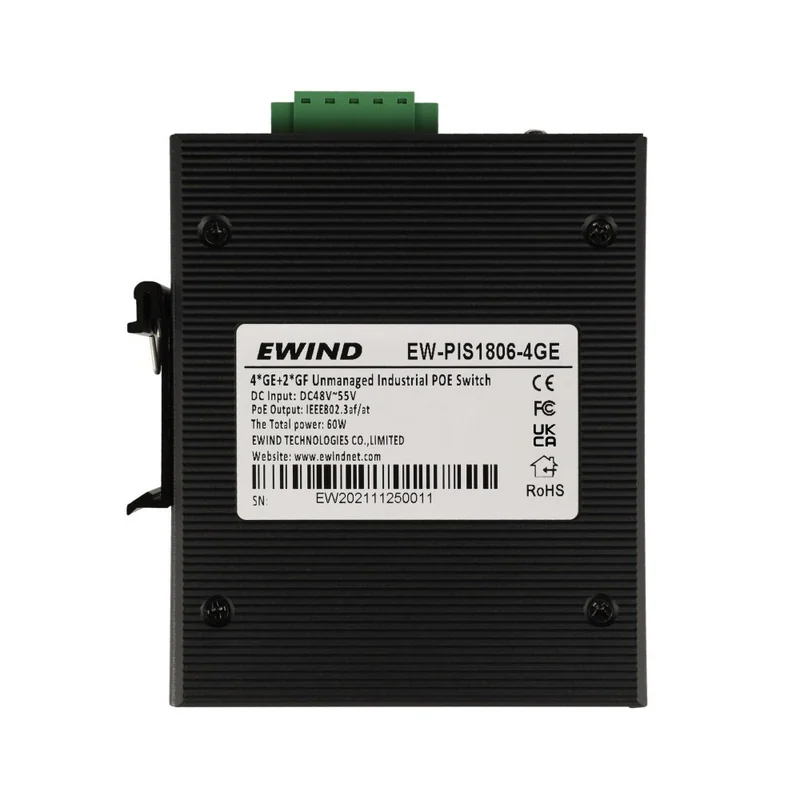

| Model | EW-PIS1806-4GE |
| PoE ports | 4 × Gigabit RJ45; IEEE 802.3af/at |
| Uplinks | 2 × 100/1000Mbps SFP |
| Per-port power | Up to 30W |
| Power configuration | 60W; external supply ordered separately |

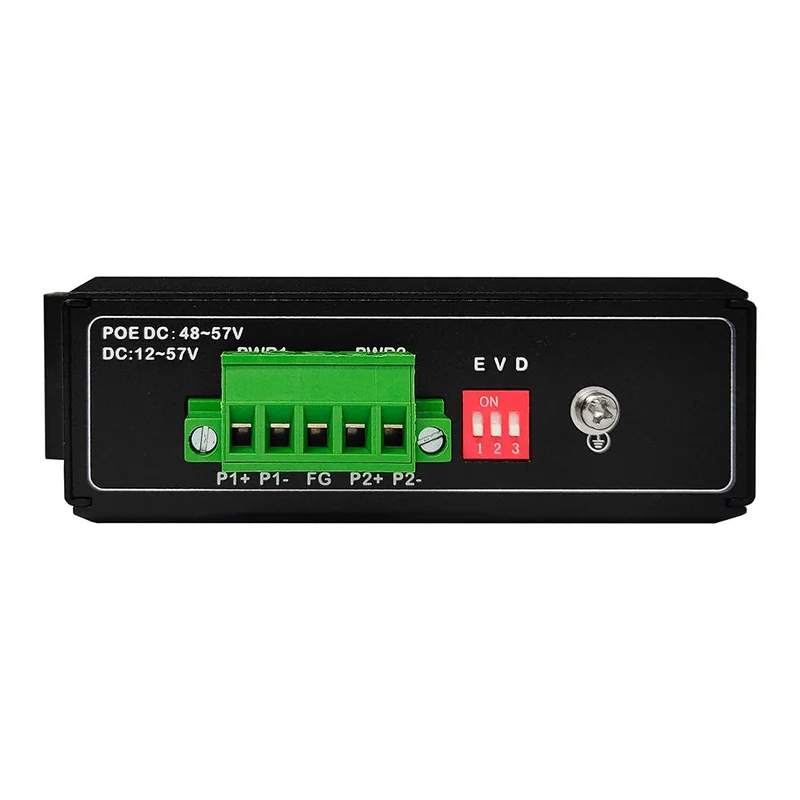

| Power input | DC 48–57V; redundant five-pin terminal |
| Management | Unmanaged; E/V/D DIP controls |
| Switching / forwarding | 12Gbps / 8.93Mpps |
| MAC table | 4K entries |
| Dimensions / enclosure | 119 × 100 × 35 mm; IP40 |
| Operating temperature | −40°C to +75°C |
| Warranty | 5 years |
Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PIS1806-4GE industrial PoE switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

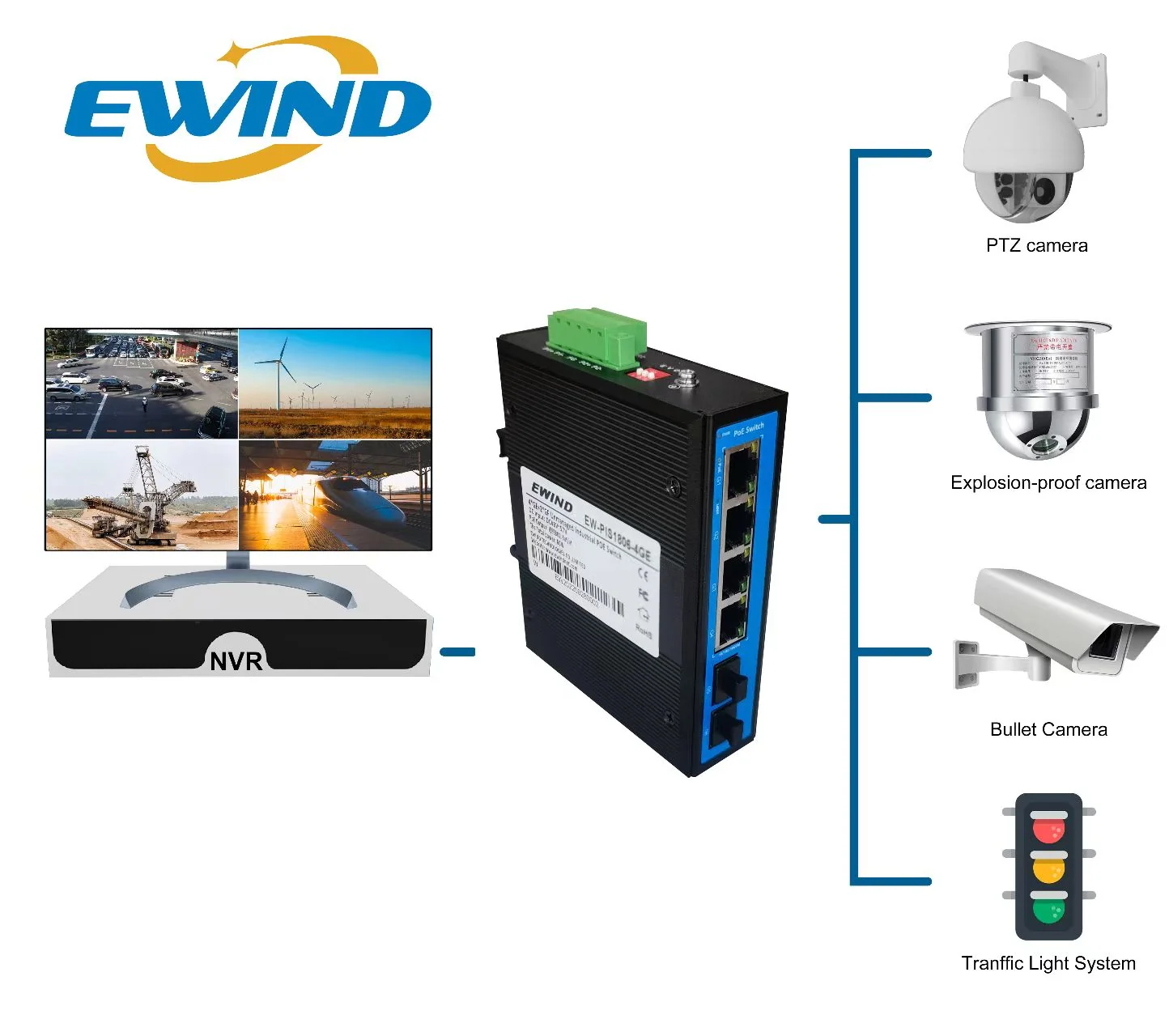

Applications
Industrial camera and control-device connections with fiber backhaul. Select compatible PoE devices within the available power budget.
