12V power output
A dedicated DC lead supplies a compatible 12V device from its PoE connection.

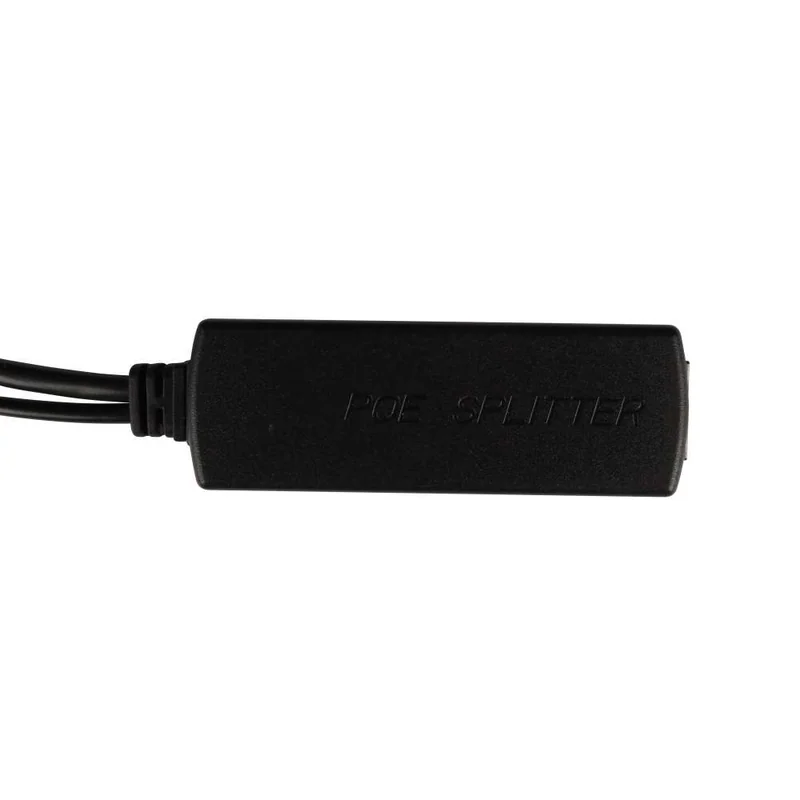

Model: EW-PD101F-AF-12
Fast Ethernet PoE Splitter with 12V DC Output
- 12V DC output with 5.5 × 2.1mm plug
- 10/100Mbps RJ45 data output
- IEEE 802.3af; 44–57V input
- 1500V isolation; 180mm cable
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PD101F-AF-12 separates IEEE 802.3af PoE into 12V DC power and a 10/100Mbps Ethernet connection for a compatible non-PoE device. A 5.5 × 2.1mm DC plug, 180mm cable and 1500V isolation support compact camera and network-device installations.
Fast Ethernet data
The RJ45 output carries 10/100Mbps data separately from the DC power lead.
Protected conversion
Input-to-output isolation and short-circuit, overcurrent and thermal protection.
| Specification | Details |
|---|---|
| PoE standard | IEEE 802.3af |
| PoE input voltage | 44–57V |
| DC output | 12V |
| Rated output power | 15.4W, as specified in the datasheet |
| Power connector | 5.5 × 2.1mm DC male |
| Ethernet connectors | RJ45 female input; RJ45 male output |
| Data rate | 10/100Mbps |
| Efficiency / isolation | ≥81.5% / 1500V |
| Cable length | 180mm |
| Operating temperature | −20 to +60°C |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PD101F-AF-12 PoE splitter cable | 1 | SET |
| Warranty card | 1 | PC |
EW-PD101F-AF-12 Resources
PDF · Specifications · Installation · Ordering
