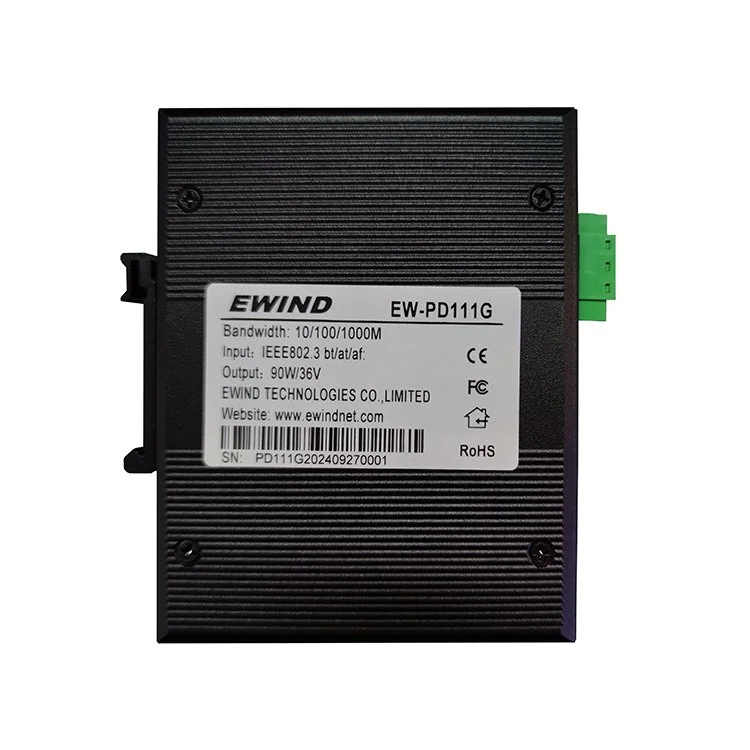

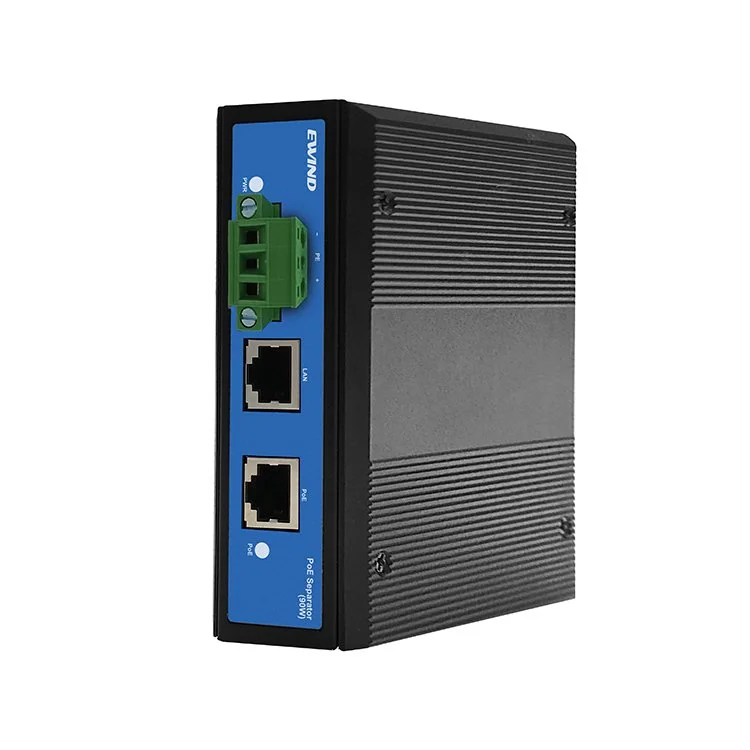

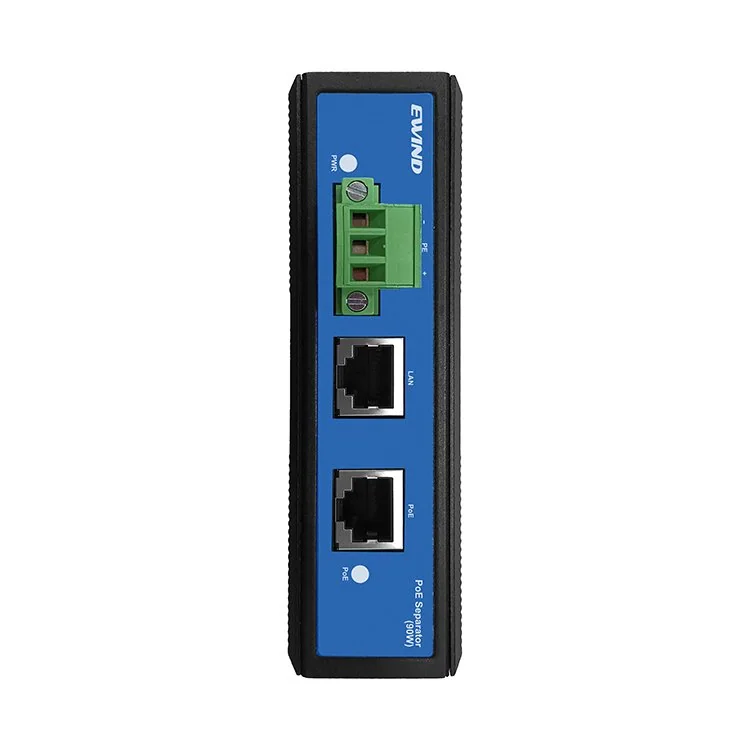

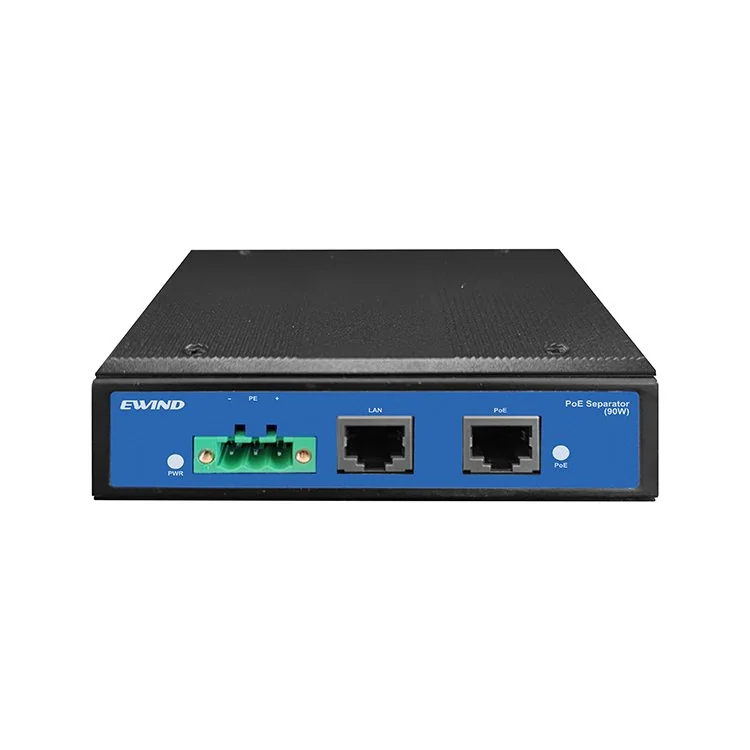

Model: EW-PD111G

Unmanaged 802.3bt Gigabit PoE Splitter

1 × 10/100/1000Mbps bt PoE input + 1 × 10/100/1000Mbps data uplink
90W bt input · selectable 36V/24V/12V DC output
≥81.5% efficiency · 100 × 80 × 35mm · DIN-rail capable

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

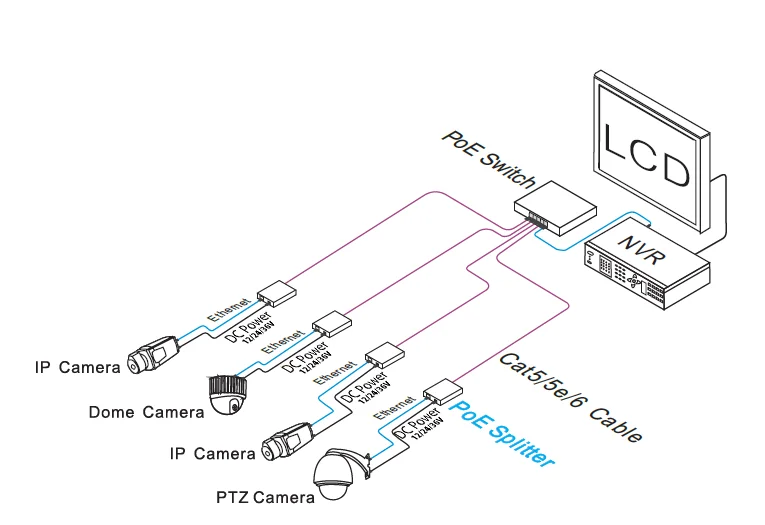

EW-PD111G separates a 48–57V 802.3bt PoE input into a 10/100/1000Mbps data uplink and a selectable DC output for a single endpoint. It supports 90W bt input and 90W/36V, 60W/24V or 30W/12V output modes in a compact IP40 enclosure.

Selectable DC power

Choose 36V/90W, 24V/60W or 12V/30W output according to the endpoint requirement.

Gigabit data separation

The PoE PD port and data uplink both support 10/100/1000Mbps auto-negotiation.

Protected industrial edge

Short-circuit and over-current recovery, 4kV port protection and IP40 housing support remote deployments.

Product technical specifications
Specification	Details
Model	EW-PD111G
PoE input	1 × 10/100/1000BASE-T 802.3bt PD RJ45; backward compatible with af/at
Data uplink	1 × 10/100/1000BASE-T RJ45
Input voltage	48–57VDC; power pairs 1/2(+), 3/6(-) and 4/5(+), 7/8(-)
Output modes	90W / 36V ±0.5V; 60W / 24V ±0.5V; or 30W / 12V ±0.5V
Efficiency / consumption	≥81.5%; standby <2W; full load ≤90W
Ripple / timing	100mV Vp-p max; rise time 50ms max; startup delay 2s max

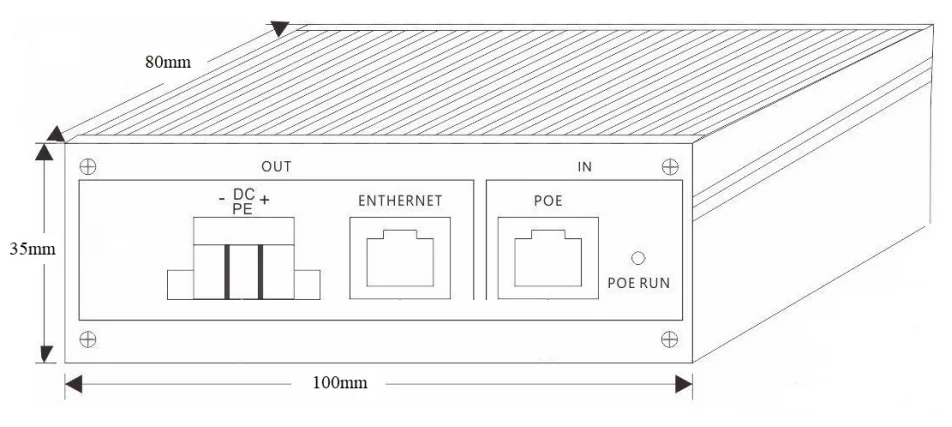

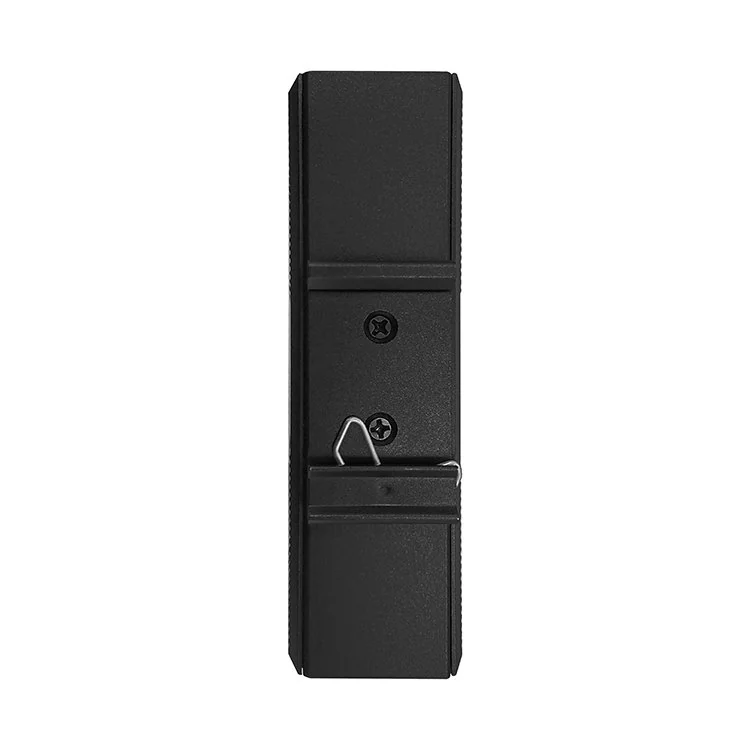

Dimensions / installation	100 × 80 × 35 mm; desktop, wall mount or DIN rail
Protection / environment	IP40; 4kV port lightning protection; −20 to +55°C; −40 to +80°C storage; 5–95% RH
Warranty	1 year; lifetime maintenance
