Model: EW-PD101USB-AF-5

12W Fast Ethernet PoE Splitter with 5V Micro USB Output

5V, 2.4A Micro USB output; 12W
10/100Mbps RJ45 data output
IEEE 802.3af; 44–57V PoE input
1500V input-to-output isolation

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

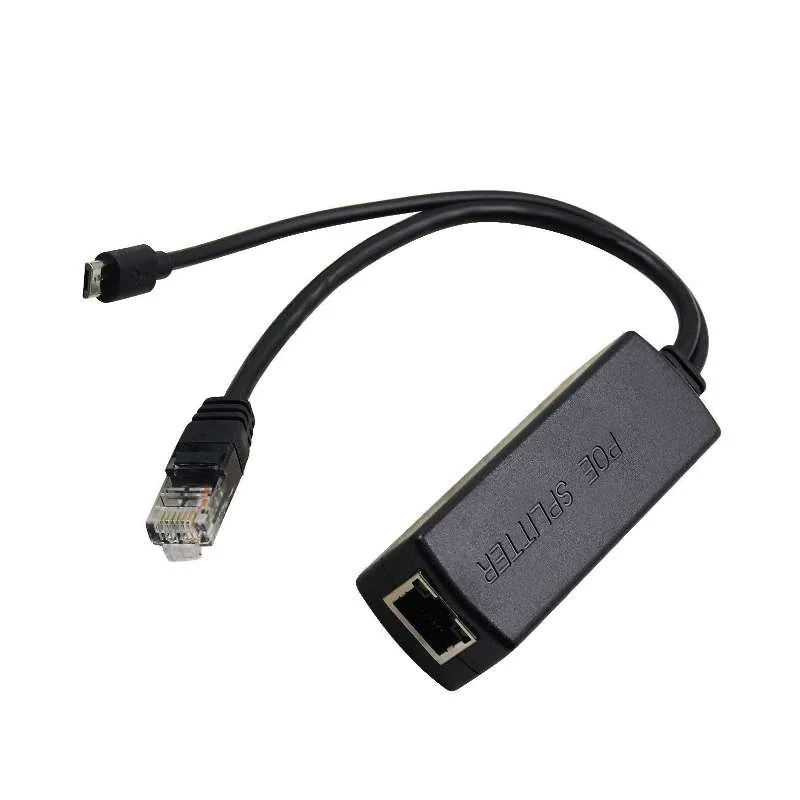

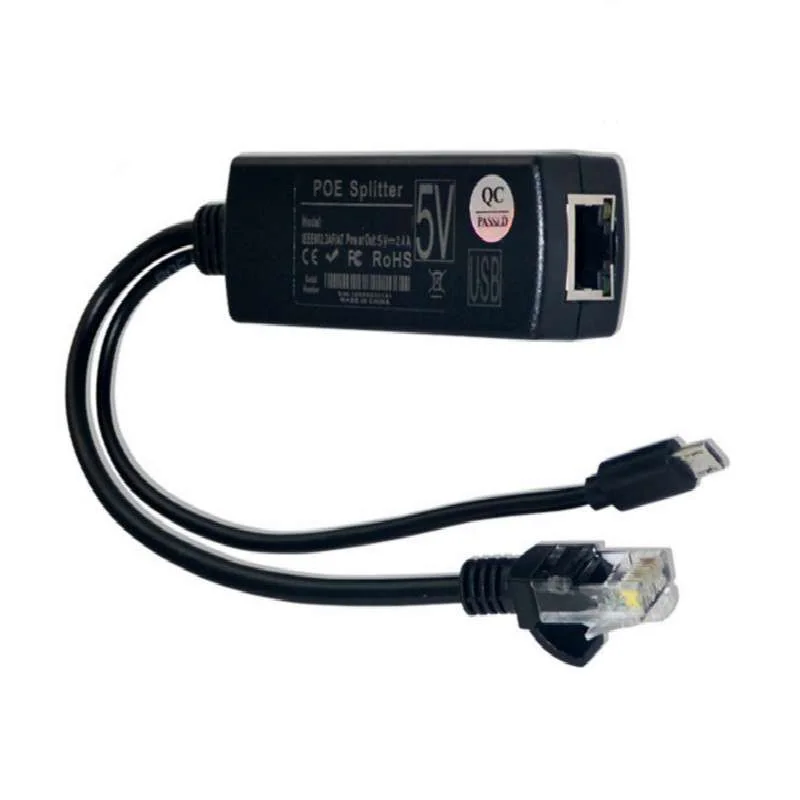

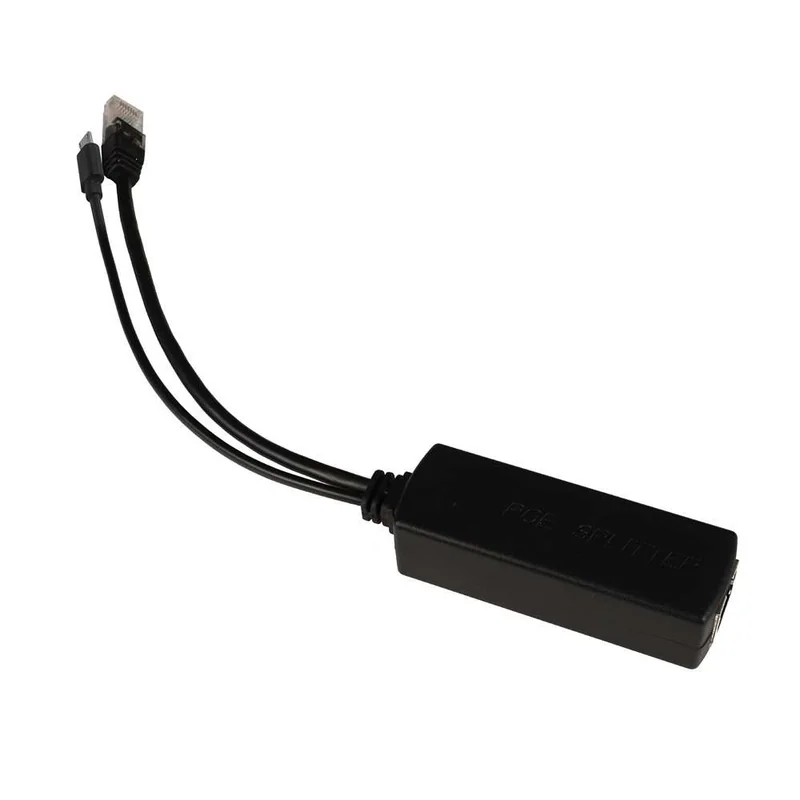

EW-PD101USB-AF-5 separates an IEEE 802.3af PoE connection into 10/100Mbps Ethernet data and a 5V, 2.4A Micro USB power output. The 190mm splitter cable supplies compatible low-voltage devices from a PoE switch or injector, with isolated conversion and overload protection.

5V Micro USB power

Provide up to 12W to a compatible 5V device through the Micro USB connector.

Separate data connection

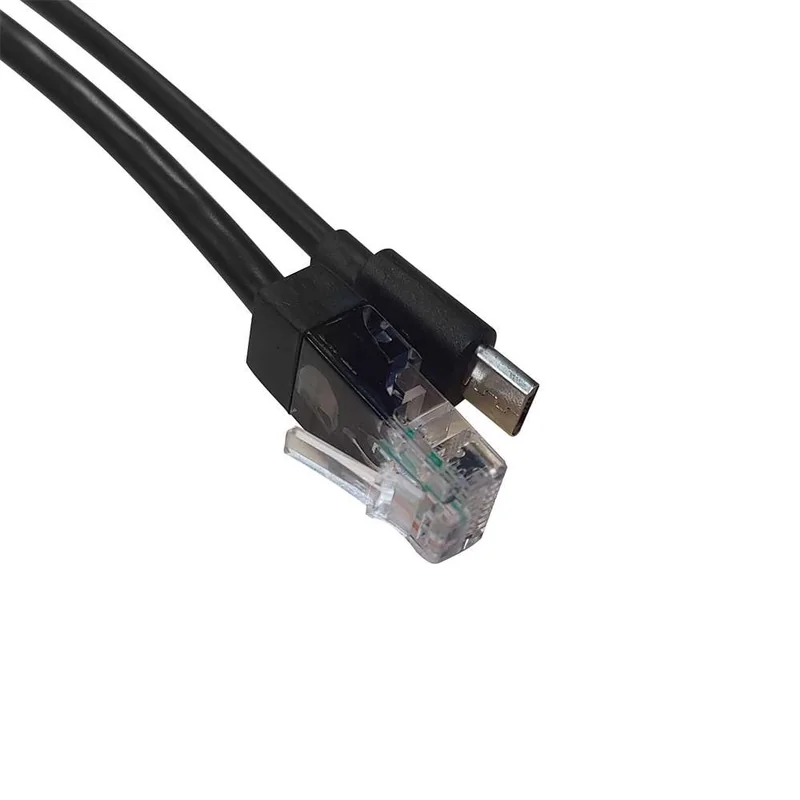

RJ45 PoE input splits into a Fast Ethernet RJ45 plug and a dedicated power lead.

Isolated conversion

1500V isolation and short-circuit, overcurrent and thermal protection support reliable power conversion.

Product technical specifications
Specification	Details
PoE standard	IEEE 802.3af; mid-span and end-span
Input voltage	44–57V DC over PoE
Power output	5V DC, 2.4A; 12W
Power connector	Micro USB output

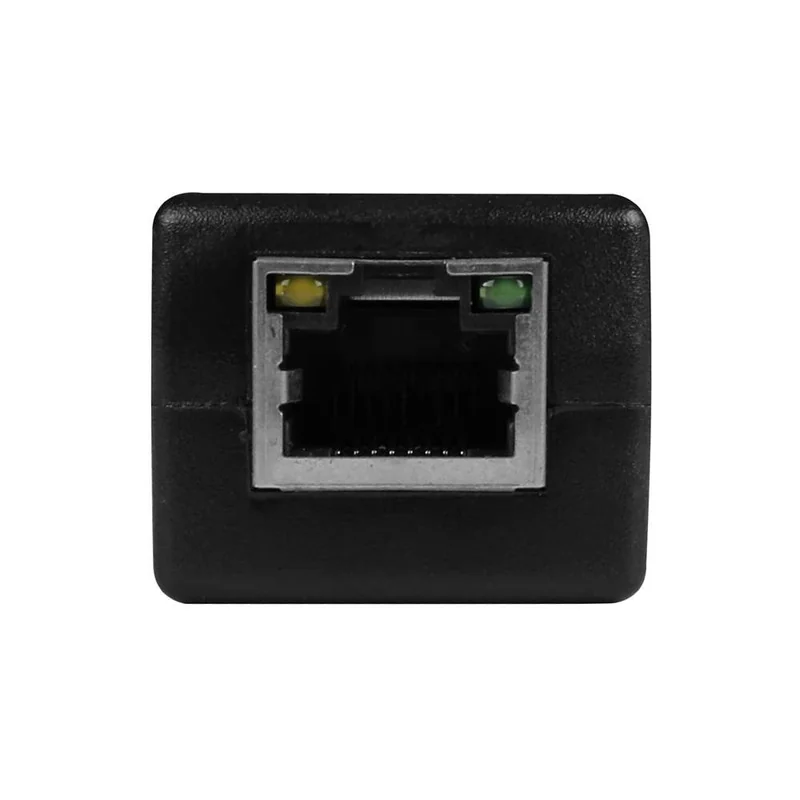

Ethernet connectors	RJ45 female input; RJ45 male data output
Data rate	10/100Mbps
Conversion efficiency	≥81.5%
Isolation	1500V input to output
Cable length	190mm
Operating temperature	−20 to +60°C
Warranty	1 year
