30W PoE+
Supply a single compatible endpoint through its network cable.

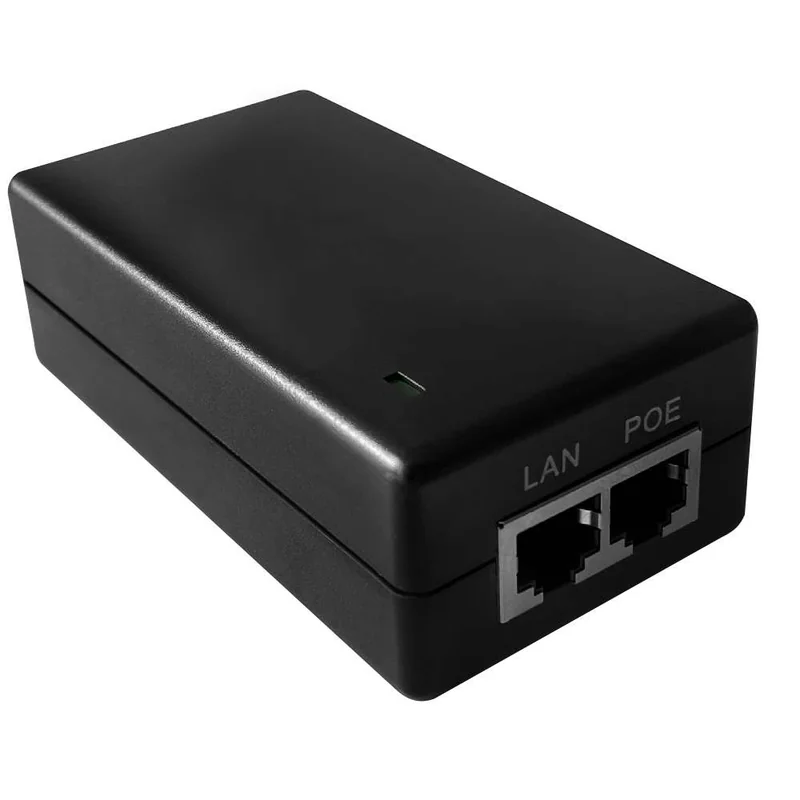

Model: EW-PSE101G-AC-AT
30W Gigabit PoE+ Injector with AC Input
- 1 × Gigabit data input and 1 × 30W PoE+ output
- IEEE 802.3af/at compatibility
- 100–240VAC input; 52V output
- 108 × 44 × 33mm fanless enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101G-AC-AT adds IEEE 802.3af/at PoE to a Gigabit Ethernet connection for a camera, wireless access point or other compatible endpoint. The integrated AC supply delivers up to 30W at 52V, with a compact fanless housing for desktop or wall installation.
Gigabit connection
Preserve 1000Mbps Ethernet between the switch and powered device.
Built-in protection
Thermal cutoff and ESD-protected network ports support reliable operation.
Compact installation
The 0.14kg housing fits a desktop or wall installation.
| Specification | Details |
|---|---|
| Ports | 1 × Gigabit Ethernet input; 1 × Gigabit PoE output; 1 × AC input |
| PoE output | 30W; 52V; IEEE 802.3af/at |
| Power input | 100–240VAC, 50–60Hz |
| Power pairs | Pins 1/2 positive; 3/6 negative |
| Dimensions / weight | 108 × 44 × 33mm; 0.14kg |
| Installation | Desktop or wall mounted; fanless |
| Operating environment | −20°C to +55°C; 10%–90% RH, non-condensing |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE101G-AC-AT 30W Gigabit PoE injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-PSE101G-AC-AT Resources
PDF · Specifications · Installation · Ordering
