AC-to-PoE power
Supply one compatible IEEE 802.3af endpoint with up to 15.4W.
Model: EW-PSE101F-AC-AF

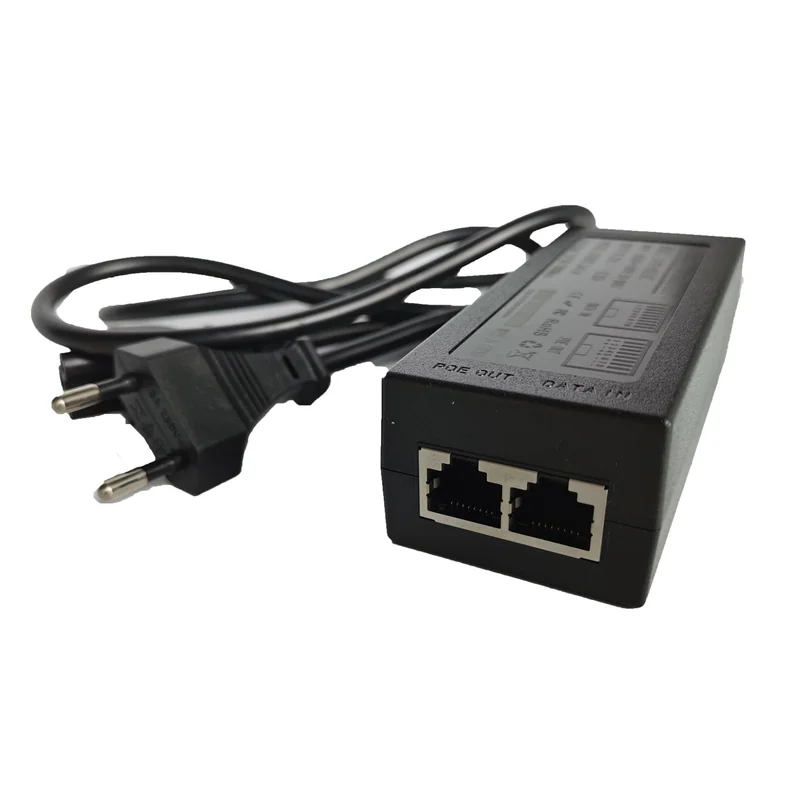

15.4W Fast Ethernet AC PoE Injector
- IEEE 802.3af; up to 15.4W PoE output
- 10/100Mbps Ethernet
- 100–240V AC input; 52V output
- Fanless desktop or wall installation
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101F-AC-AF adds IEEE 802.3af power to a 10/100Mbps Ethernet connection for one compatible endpoint. It accepts 100–240V AC and delivers up to 15.4W through its PoE output, with separate RJ45 data input and a fanless enclosure for desktop or wall installation.
Fast Ethernet input
Connect a non-PoE Ethernet source to the separate RJ45 data input.

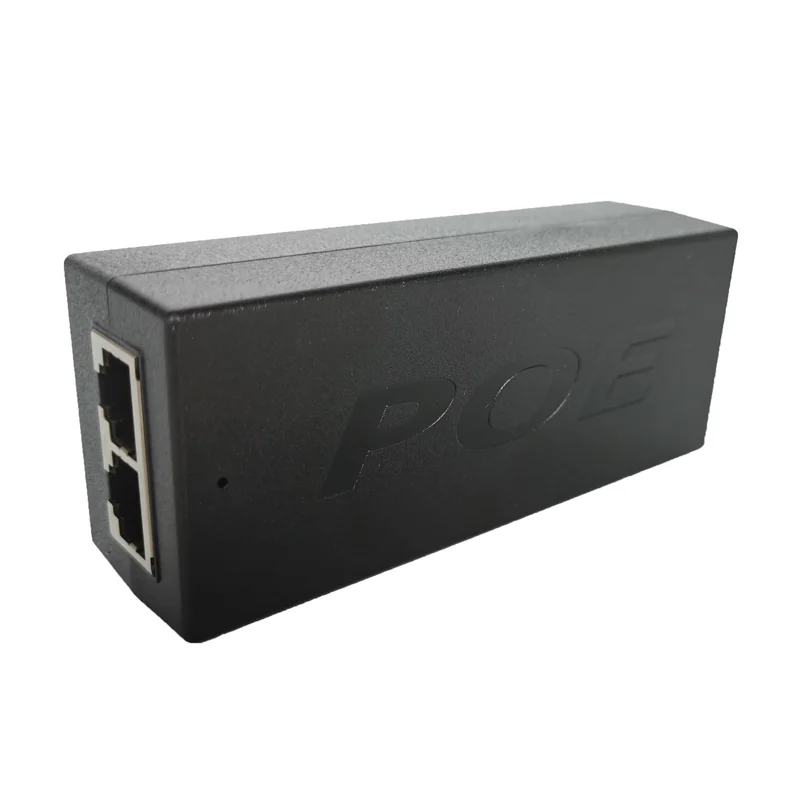

Compact housing
A 108 × 44 × 33mm enclosure supports desktop or wall placement.
| Specification | Details |
|---|---|
| RJ45 ports | 1 × data input; 1 × PoE output |
| Data rate | 10/100Mbps |
| PoE standard | IEEE 802.3af |
| PoE output power | Up to 15.4W |
| AC input | 100–240V, 50–60Hz |
| Output voltage | 52V |
| PoE pairs | 1/2 positive; 3/6 negative |
| Dimensions / weight | 108 × 44 × 33mm; 0.14kg |
| Operating temperature | −20 to +55°C |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE101F-AC-AF 15.4W PoE injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-PSE101F-AC-AF Resources
PDF · Specifications · Installation · Ordering
