Model: EW-PSE101G-DC-60

60W Gigabit DC PoE Injector with 12–32VDC Input

10/100/1000Mbps single-port DC PoE injector
IEEE 802.3af/at/bt support with 60W PoE output
12–32VDC input and 44–57VDC PoE output
Gigabit data path with thermal and ESD protection

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

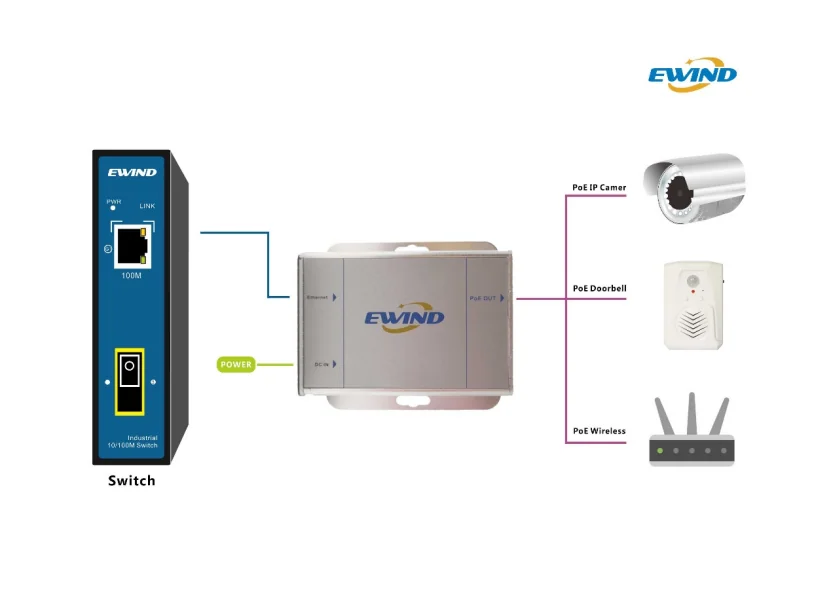

EW-PSE101G-DC-60 is a single-port 10/100/1000Mbps PoE injector that converts 12–32VDC input into 44–57VDC PoE for IEEE 802.3af/at/bt endpoints. Its 60W output supports higher-power cameras, doorbells and wireless equipment in low-voltage installations.

60W PoE

Power a high-demand IEEE 802.3bt endpoint from a DC source.

Gigabit data

Pass 10/100/1000Mbps data through the injector.

Low-voltage ready

Use it in remote cabinets, vehicles and field sites with 12–32VDC.

Protected conversion

Thermal, ESD and recovery protections support stable operation.

Product technical specifications
Specification	Details
Data ports	2 × 10/100/1000Mbps RJ45 copper ports
PoE standard	IEEE 802.3af/at/bt
PoE output	60W total; 60W per port for IEEE 802.3bt
DC input / output	12–32VDC input; 44–57VDC PoE output
Power pairs	1/2 and 4/5 positive; 3/6 and 7/8 negative
Cable medium	1000BASE-TX over Cat5 or better UTP up to 100m
Protection	Thermal protection above 100°C; IEC61000-4-2 ESD protection

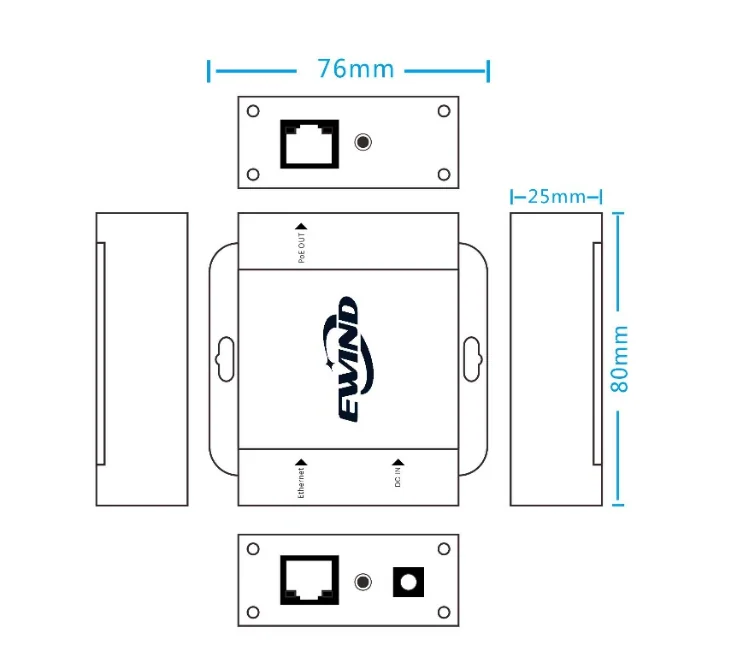

Dimensions / weight	Source table: 80 × 77 × 25mm; 0.13kg
Environment	Operating −20°C to +55°C; storage −20°C to +75°C; 10%–90% RH
Reliability / warranty	MTBF 100,000 hours; 3 years
