90W output
Add high-power PoE without replacing the upstream Ethernet switch.

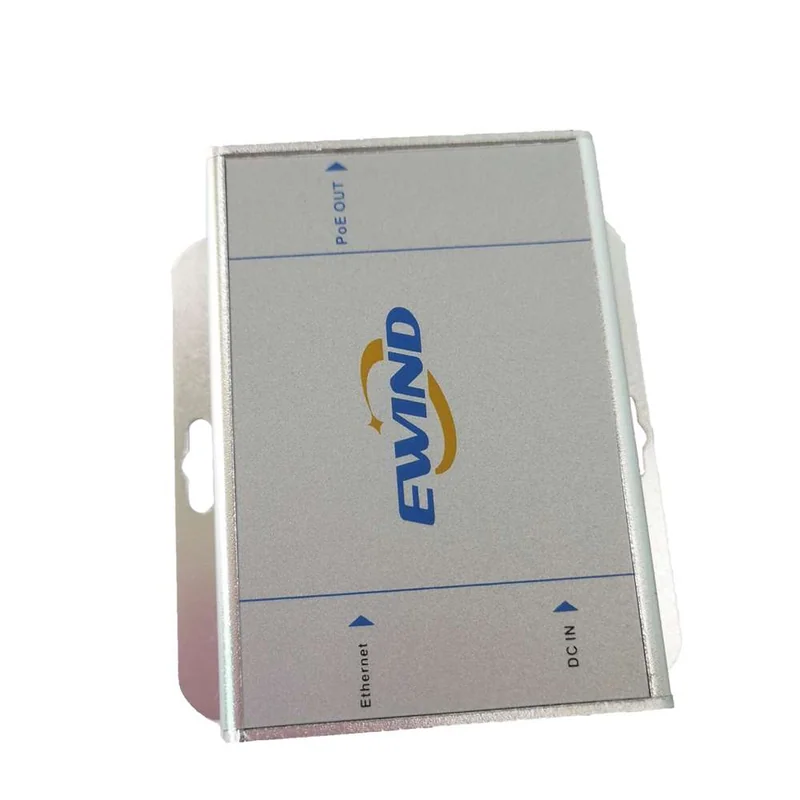

Model: EW-PSE101G-DC-90
90W Gigabit PoE Injector with 48–57VDC Input
- 1 × Gigabit data input and 1 × Gigabit PoE output
- Up to 90W output; IEEE 802.3af/at/bt compatibility
- 48–57VDC input through a 5.5 × 2.1mm connector
- Fanless desktop or wall-mounted enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101G-DC-90 adds up to 90W of IEEE 802.3bt PoE to a Gigabit Ethernet connection. It takes 48–57VDC power through a 5.5 × 2.1mm connector and supplies one PoE endpoint through its RJ45 output, with a fanless enclosure for desktop or wall mounting.
Gigabit throughput
Both RJ45 connections support 10/100/1000Mbps Ethernet.
Port protection
ESD and thermal protection are integrated into the injector.
Single endpoint
Connect one compatible camera, access point or other powered device.
| Specification | Details |
|---|---|
| Ethernet connections | 1 × 10/100/1000Mbps data input; 1 × 10/100/1000Mbps PoE output |
| PoE output | Up to 90W; IEEE 802.3af/at/bt |
| Power input | 48–57VDC; 5.5 × 2.1mm DC connector |
| Power pairs | Pins 1/2/4/5 positive; 3/6/7/8 negative |
| Dimensions / weight | 80 × 77 × 25mm; 0.13kg |
| Installation | Desktop or wall mounted; fanless |
| Operating environment | −20°C to +55°C; 10%–90% RH, non-condensing |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE101G-DC-90 Gigabit DC PoE injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
