One-to-four PoE expansion
The extender receives a 100Mbps PoE link and distributes it to four 100Mbps PoE endpoint ports.
Model: EW-PSE-PW6605F
IP66 Waterproof Fast Ethernet 4-Port PoE Extender
- 1 × 100Mbps PoE input + 4 × 100Mbps PoE outputs
- IEEE 802.3af/at compatible · 0.6Gbps backplane
- IP66 enclosure · 98 × 155 × 35mm · 1-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

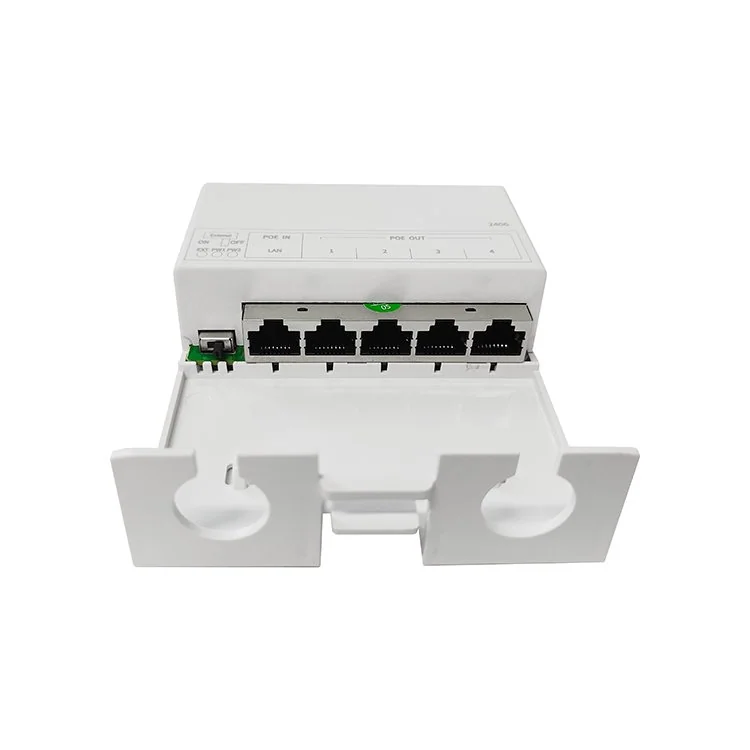

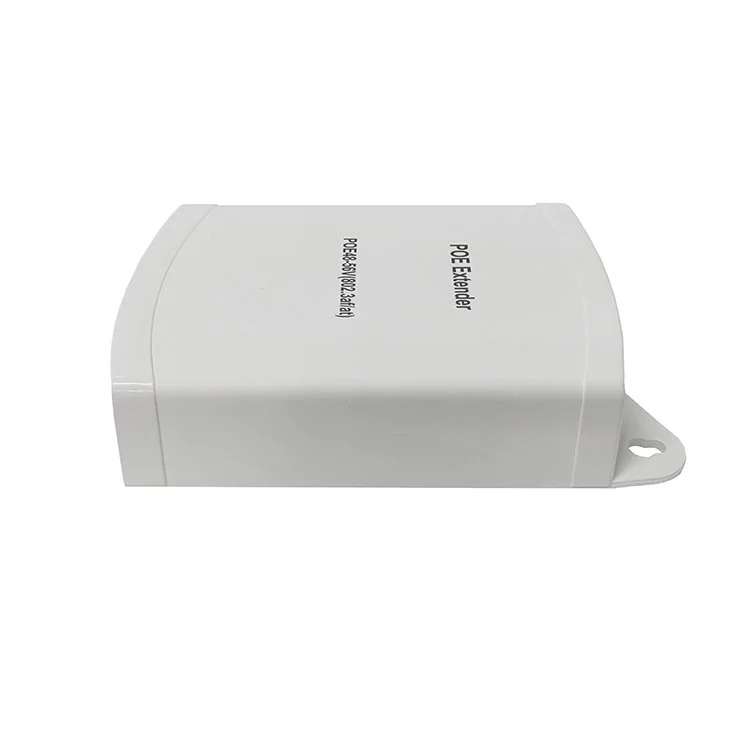

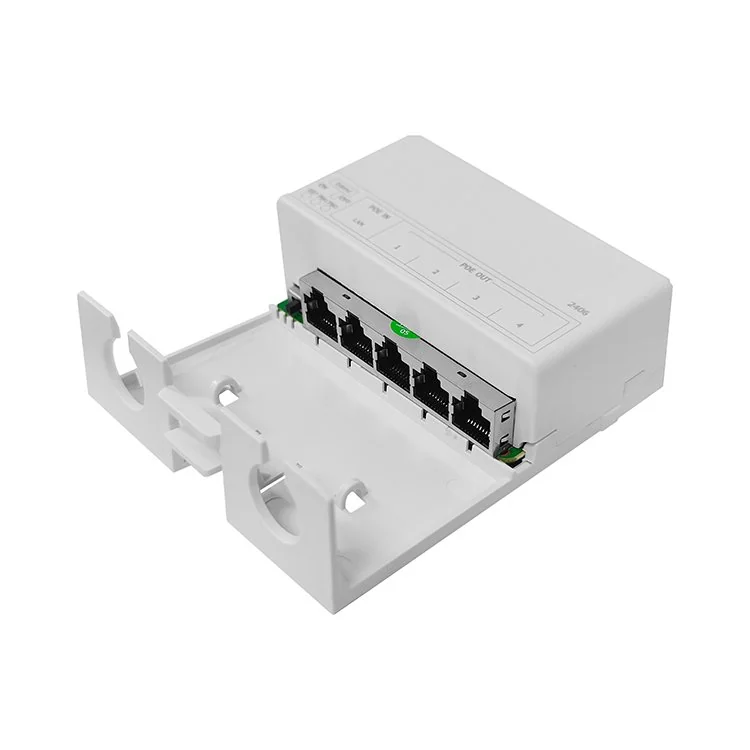

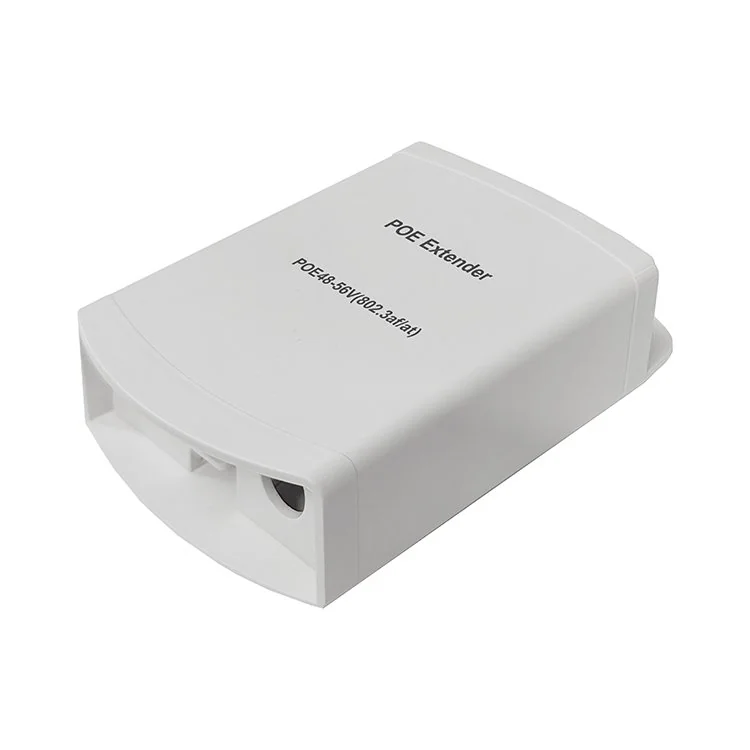

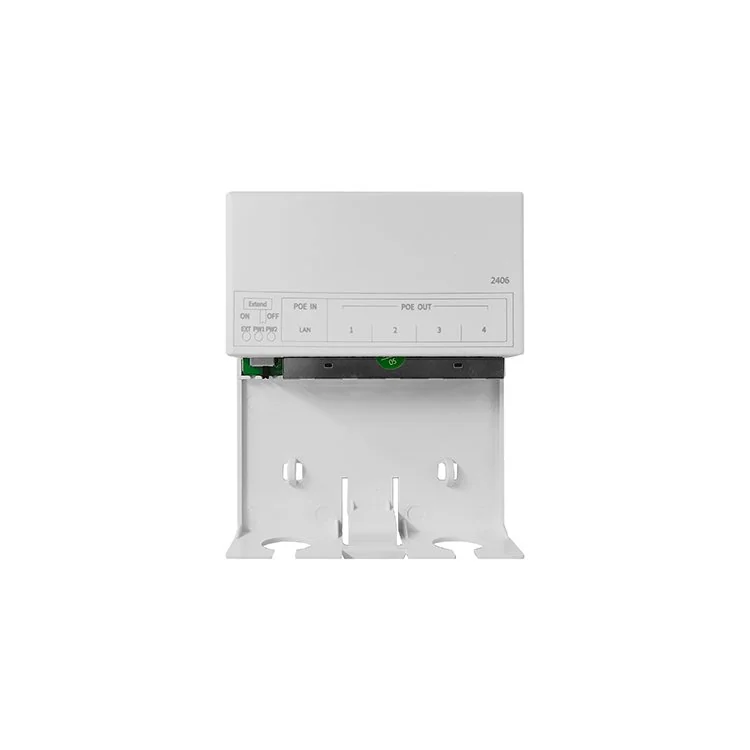

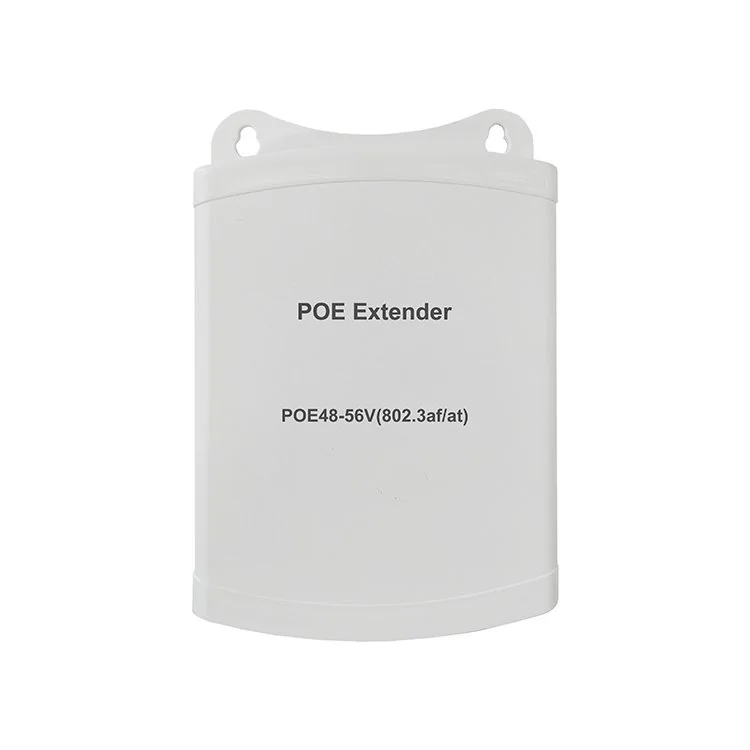

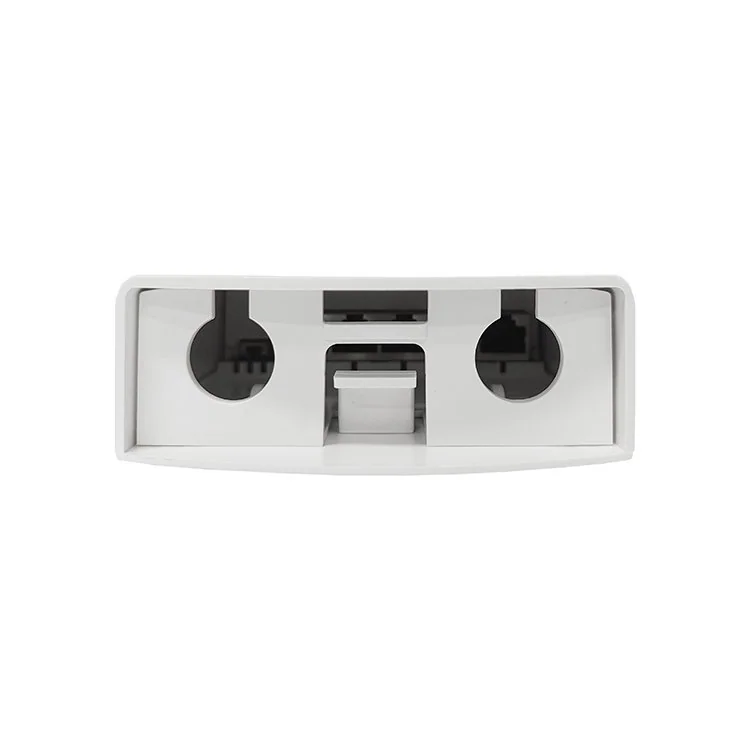

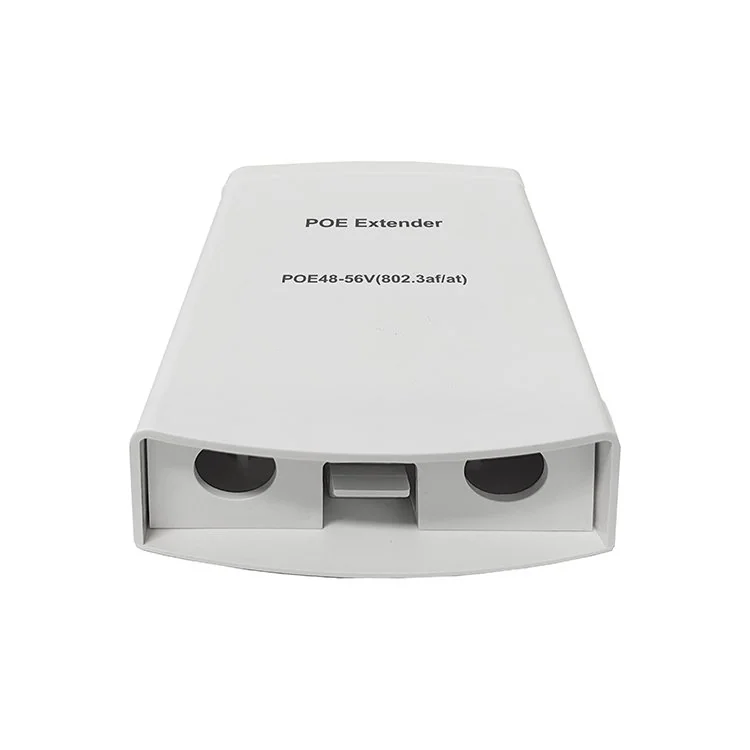

EW-PSE-PW6605F expands one 100Mbps PoE input into four 100Mbps PoE outputs from a sealed IP66 enclosure. It is suited to grouped cameras and access endpoints where a single protected PoE extension point serves several nearby devices.
Sealed edge enclosure
IP66 protection and a −20 to +55°C operating range suit exposed camera and access clusters.
Simple status and forwarding
IEEE 802.3af/at support, status LEDs and store-and-forward operation keep deployment straightforward.
| Specification | Details |
|---|---|
| Model | EW-PSE-PW6605F |
| PoE input | 1 × 100BASE-T PoE RJ45 |
| PoE outputs | 4 × 100BASE-T PoE RJ45 |
| PoE standard | IEEE 802.3af/at |
| Network medium | Cat5 or better UTP; up to 100m |
| Backplane / forwarding | 0.6Gbps; store-and-forward |
| MAC address table | 1K |
| Indicators | Power, network and PoE working status |
| Dimensions | 98 × 155 × 35 mm |
| Protection / environment | IP66; −20 to +55°C operating; −20 to +75°C storage; 10–90% RH |
| Warranty | 1 year |

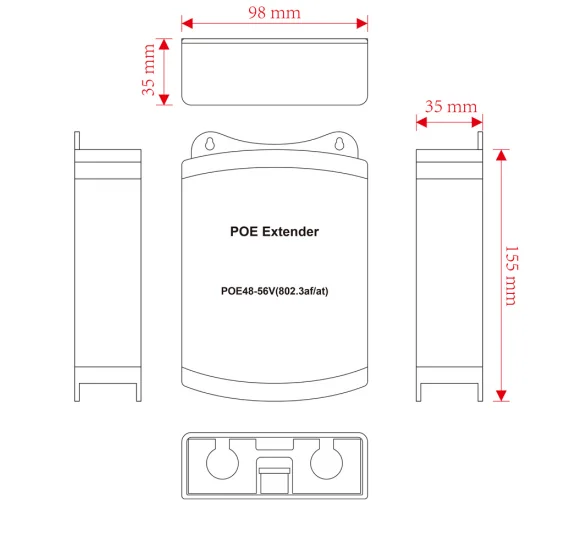

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| IP66 Waterproof 100M 4 Port POE Extender (EW-PSE-PW6605F) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |

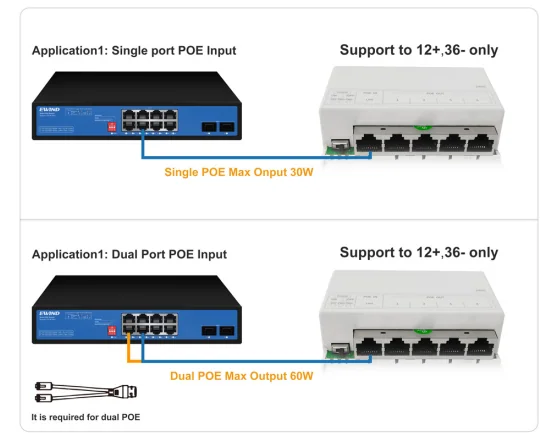

Applications
Outdoor camera clusters, access-control groups and exposed edge endpoints that need one sealed 100Mbps PoE input expanded to four outputs.
