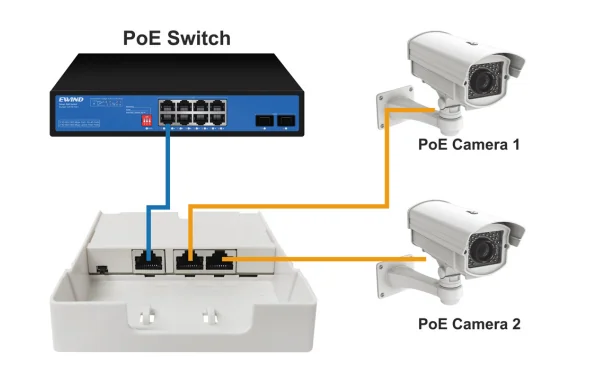

One-to-two PoE split
The extender receives a 100Mbps PoE link and fans it out to two 100Mbps PoE endpoint ports.

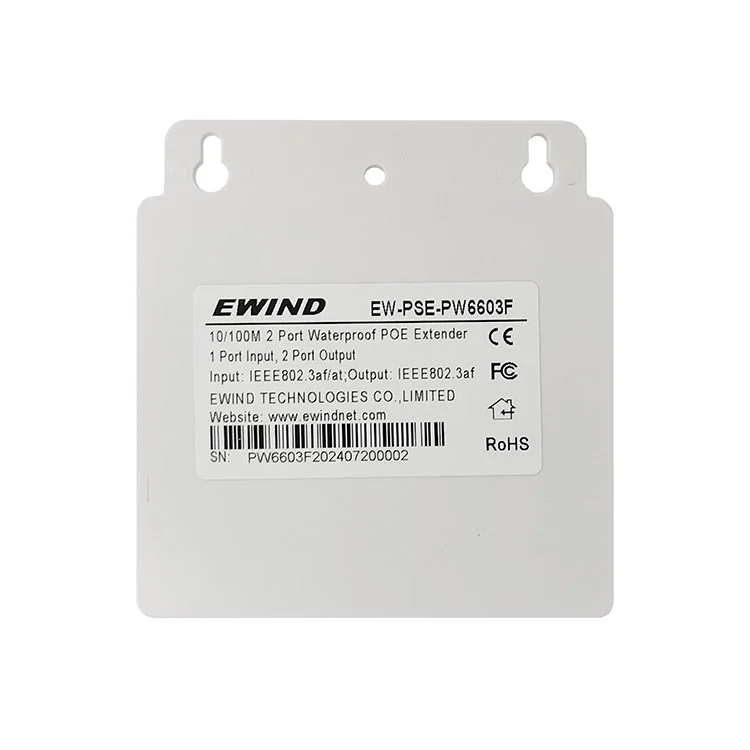

Model: EW-PSE-PW6603F

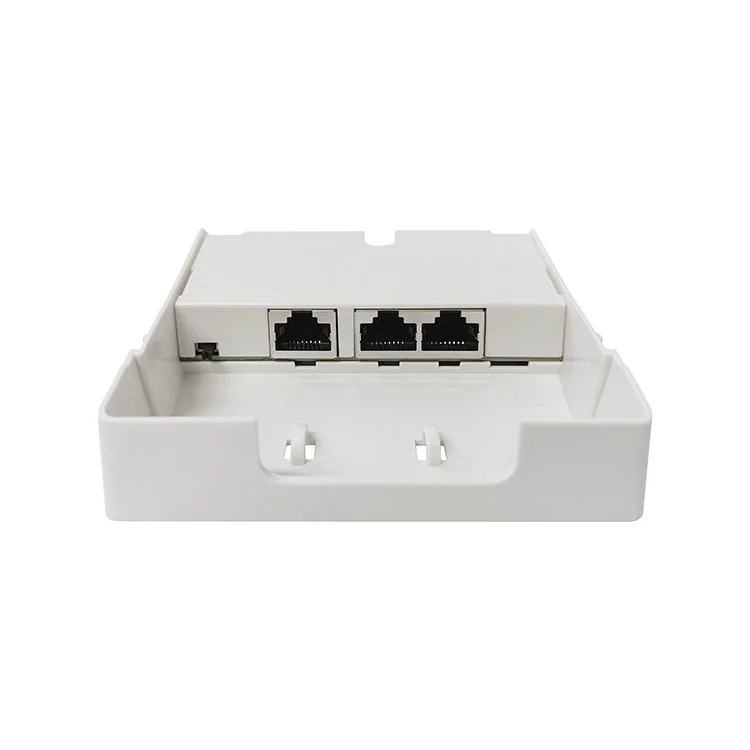

IP66 Waterproof Fast Ethernet 2-Port PoE Extender

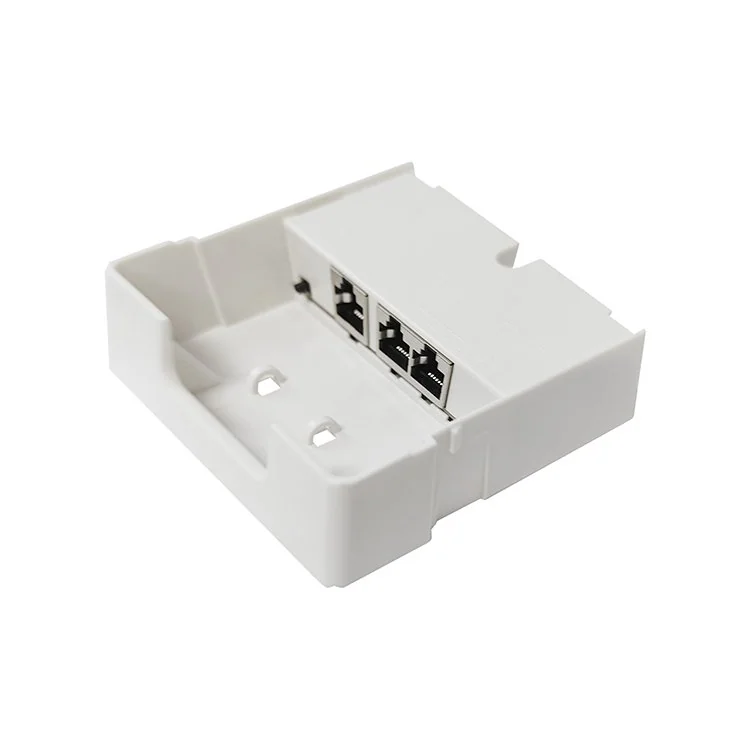

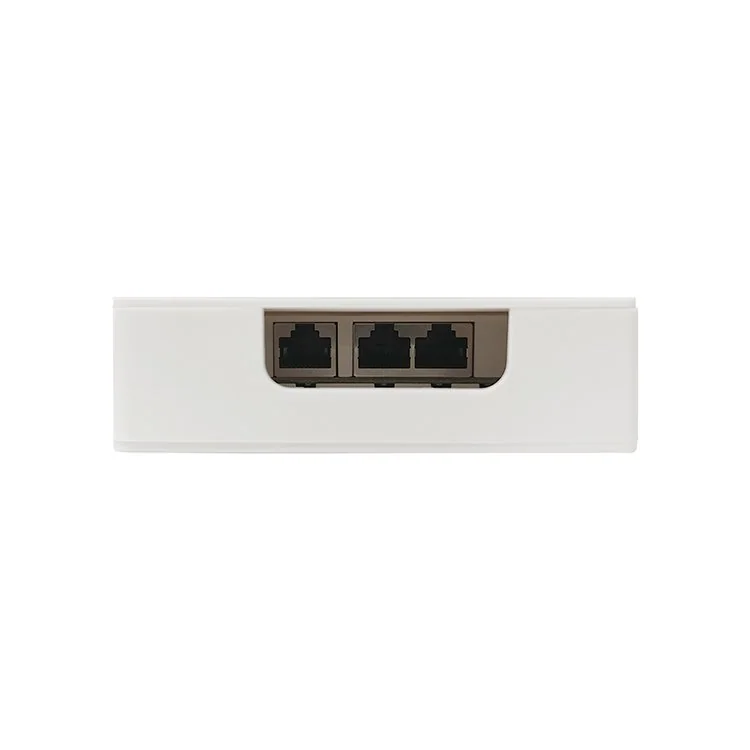

- 1 × 100Mbps PoE input + 2 × 100Mbps PoE outputs
- IEEE 802.3af/at compatible · 0.6Gbps backplane
- IP66 enclosure · 1K MAC table · 1-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE-PW6603F takes one 100Mbps PoE input and provides two 100Mbps PoE outputs from a sealed IP66 enclosure. It lets one upstream PoE switch or injector serve two remote endpoints while keeping installation simple and compact.

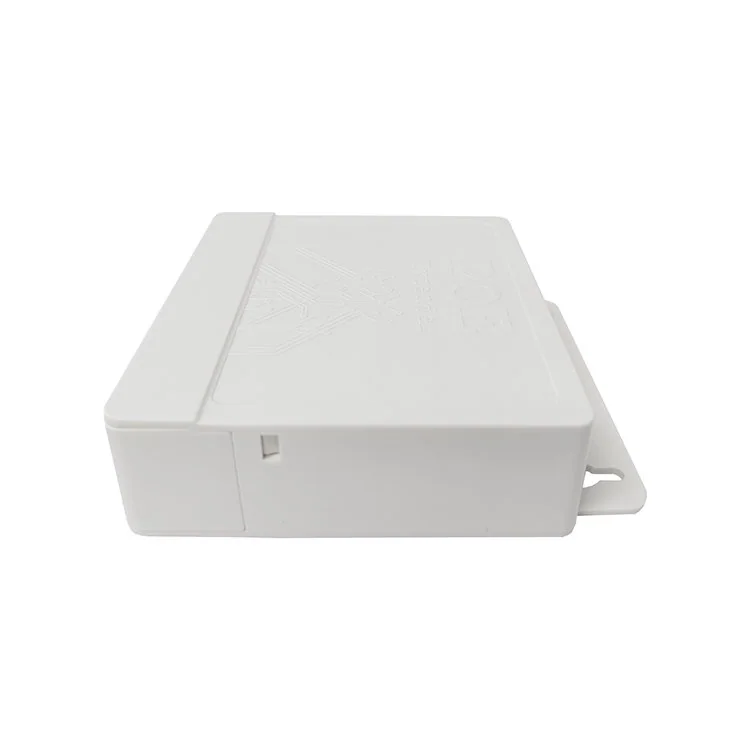

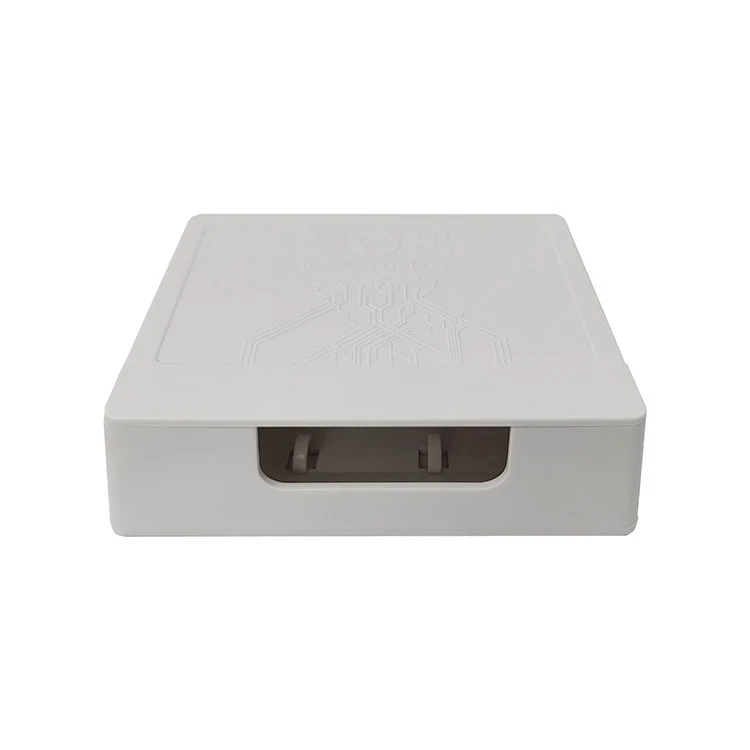

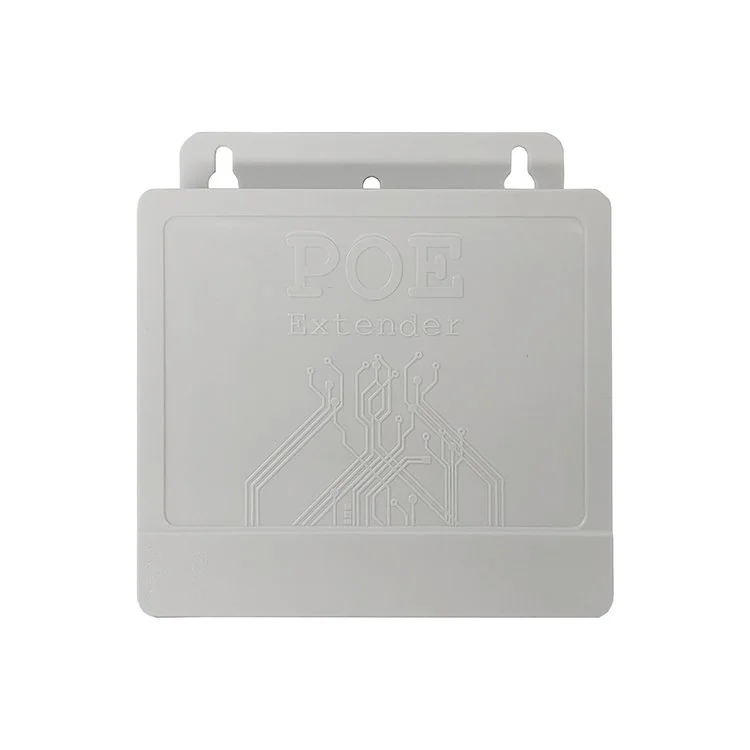

Sealed edge enclosure
IP66 protection and a −20 to +55°C operating range suit exposed cameras and access points.
Simple status and forwarding
IEEE 802.3af/at support, status LEDs and store-and-forward operation keep the extender easy to deploy.
| Specification | Details |
|---|---|
| Model | EW-PSE-PW6603F |
| PoE input | 1 × 100BASE-T PoE RJ45 |
| PoE outputs | 2 × 100BASE-T PoE RJ45 |
| PoE standard | IEEE 802.3af/at |
| Network medium | Cat5 or better UTP; up to 100m |
| Backplane / forwarding | 0.6Gbps; store-and-forward |
| MAC address table | 1K |
| Indicators | Power, network and PoE working status |
| Dimensions / weight | 98 × 106 × 29 mm listed in the product text; drawing labels 106 × 86 × 29 mm |
| Protection / environment | IP66; −20 to +55°C operating; −20 to +75°C storage; 10–90% RH |
| Warranty | 1 year |

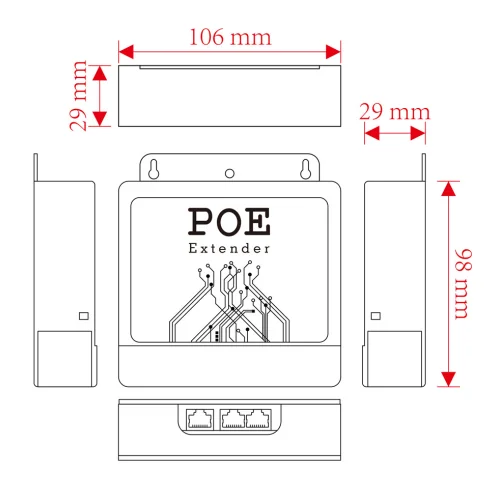

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| IP66 Waterproof 100M 2 Port POE Extender (EW-PSE-PW6603F) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |
Applications
Outdoor IP cameras and access-control endpoints that need one sealed 100Mbps PoE input expanded to two outputs.
