Inline Fast Ethernet extension
The extender passes a 100Mbps PoE link between an upstream switch or injector and a remote endpoint.
Model: EW-PSE-PW6602F
IP66 Waterproof Fast Ethernet 1-Port PoE Extender
- 1 × 100Mbps PoE input + 1 × 100Mbps PoE output
- IEEE 802.3af/at compatible · 0.6Gbps backplane
- IP66 enclosure · 96 × 25 × 22mm · 66g
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

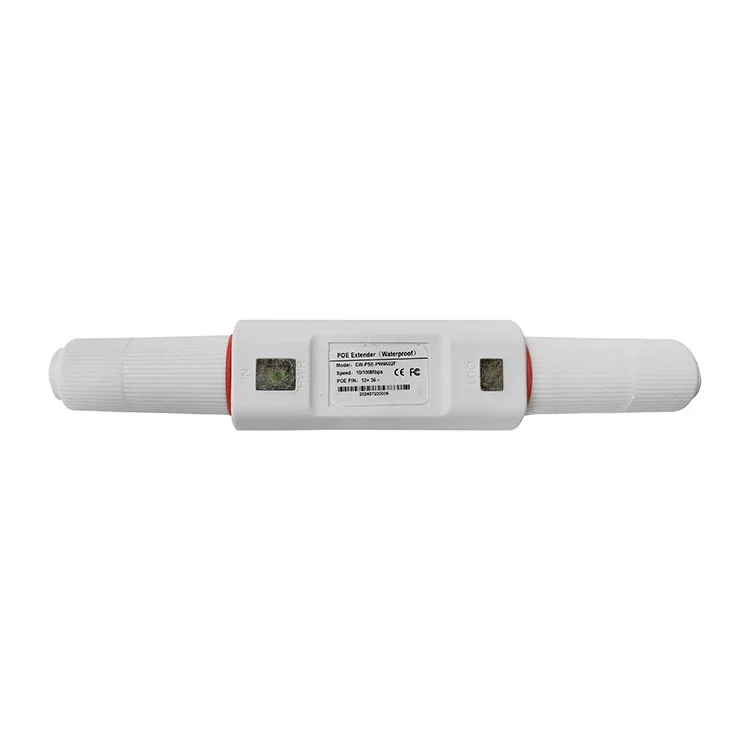

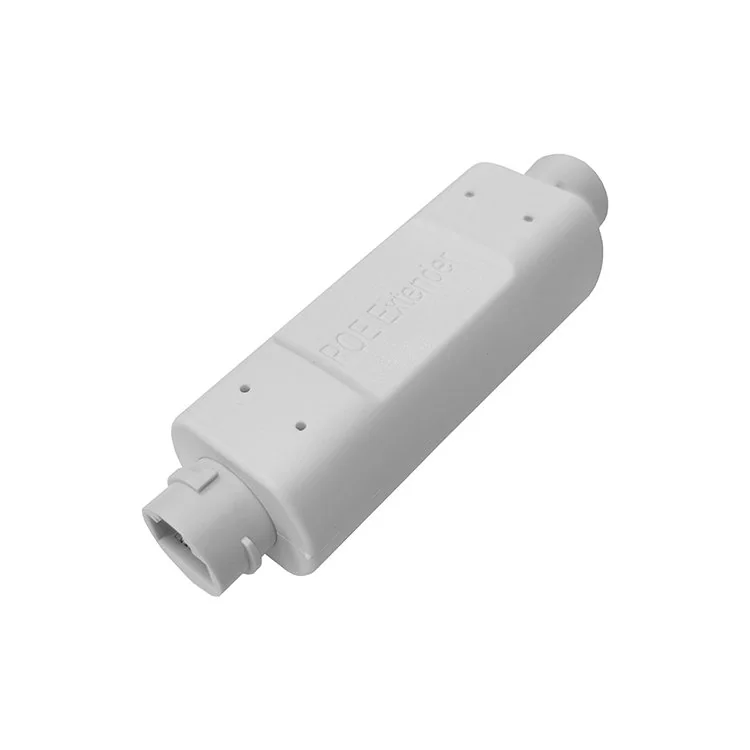

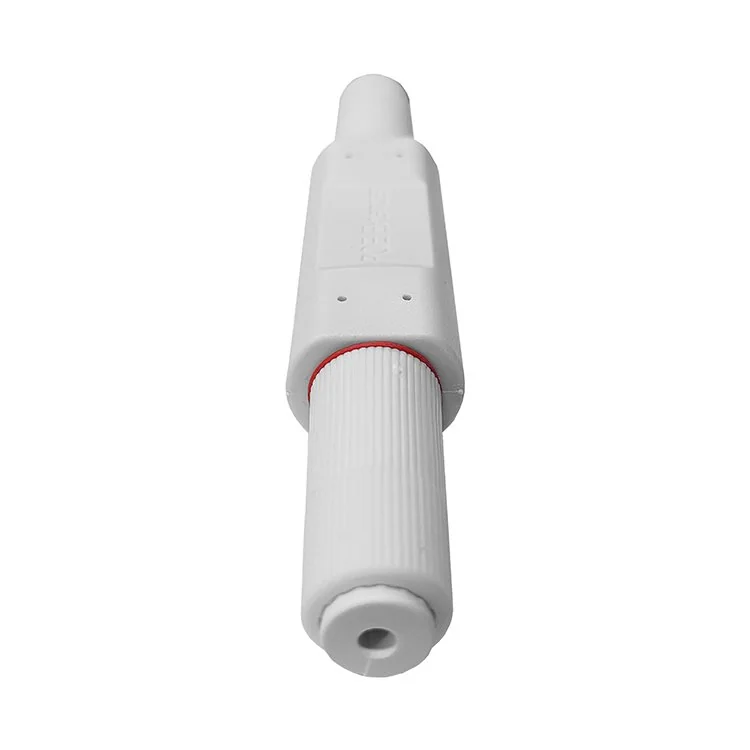

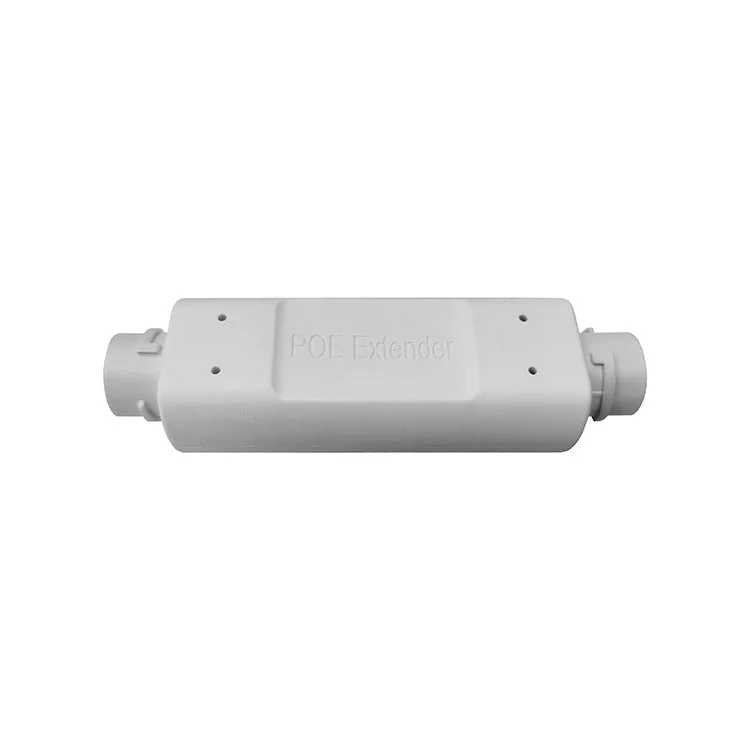

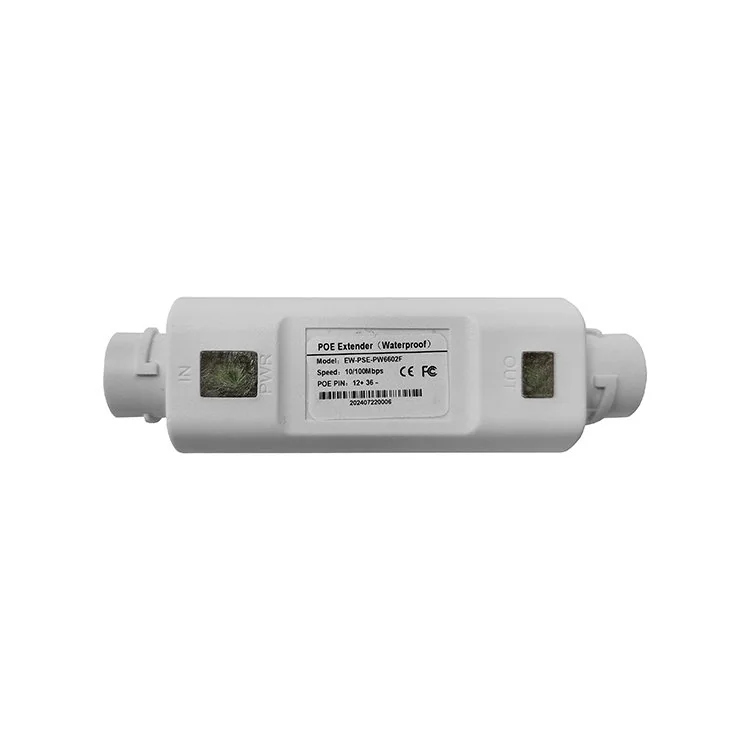

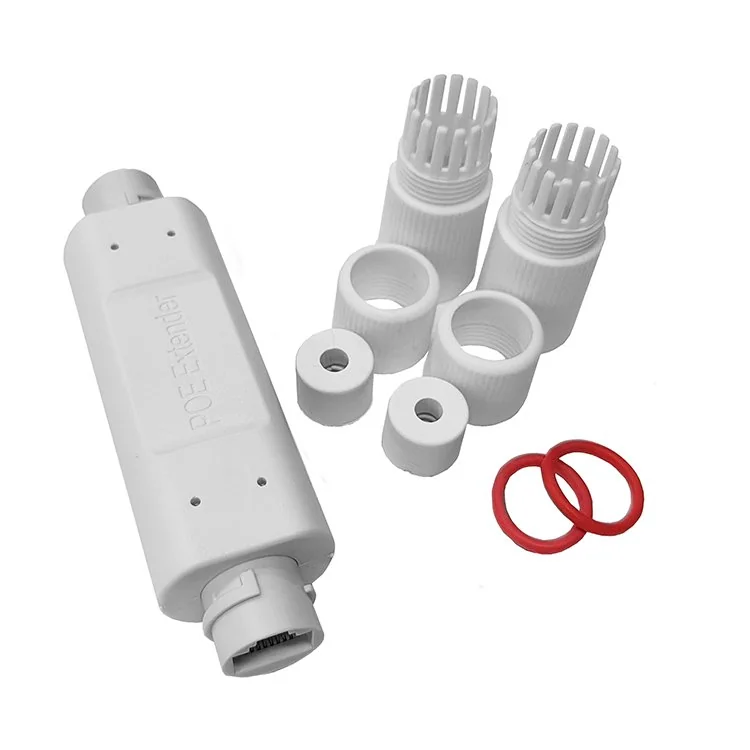

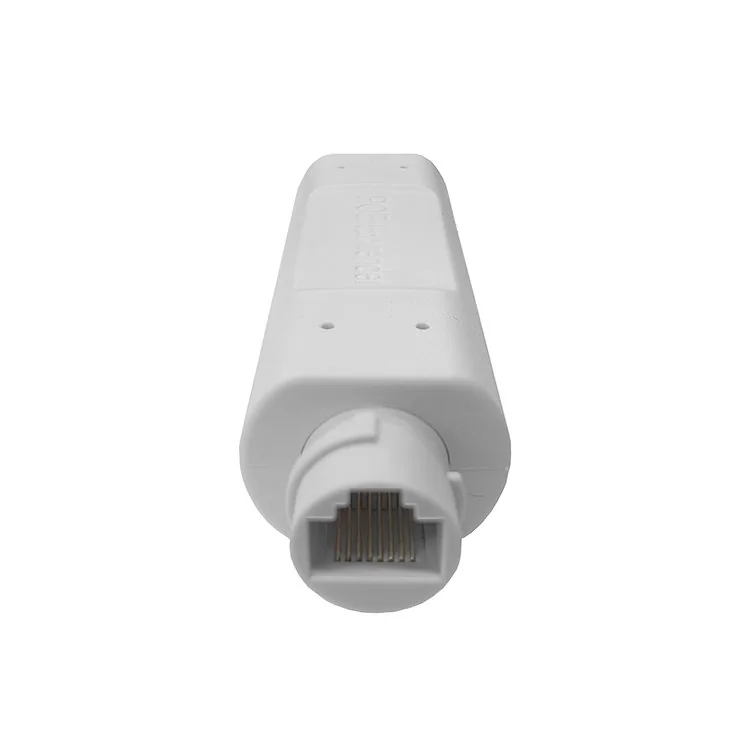

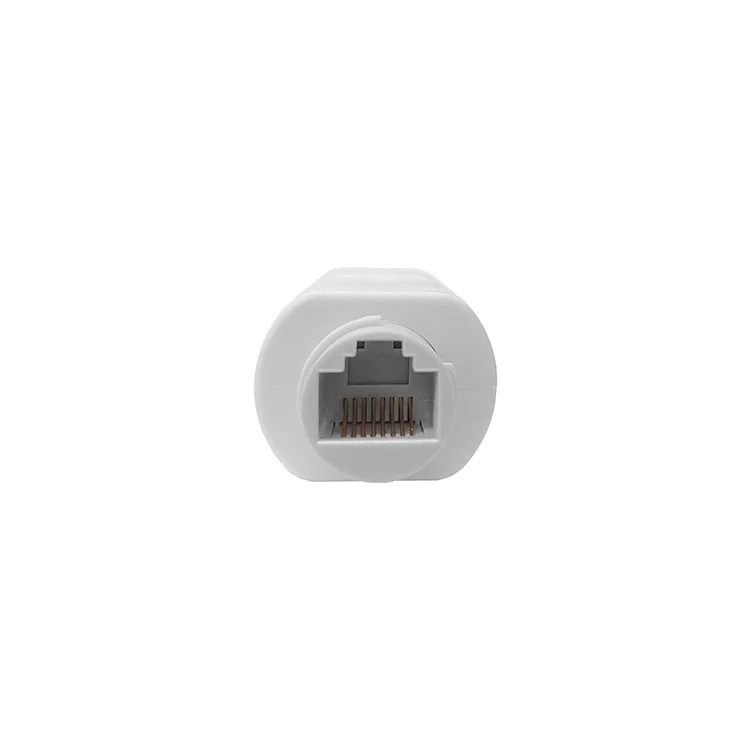

EW-PSE-PW6602F extends a 100Mbps PoE connection through a sealed IP66 enclosure. It accepts one 100M PoE RJ45 input and forwards data plus PoE through one 100M PoE RJ45 output, with a compact 96 × 25 × 22mm body for exposed edge runs.
Outdoor-ready housing
IP66 protection and a −20 to +55°C operating range suit exposed cameras and access points.
Simple PoE pass-through
IEEE 802.3af/at support, status LEDs and store-and-forward operation keep installation straightforward.
| Specification | Details |
|---|---|
| Model | EW-PSE-PW6602F |
| PoE input | 1 × 100BASE-T PoE RJ45 |
| PoE output | 1 × 100BASE-T PoE RJ45 |
| PoE standard | IEEE 802.3af/at |
| Network medium | Cat5 or better UTP; up to 100m |
| Backplane / forwarding | 0.6Gbps; store-and-forward |
| MAC address table | 2K |
| Indicators | Power, network and PoE working status |
| Dimensions / weight | 96 × 25 × 22 mm; 66g |
| Protection / environment | IP66; −20 to +55°C operating; −20 to +75°C storage; 10–90% RH |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| IP66 Waterproof 100M 1 Port POE Extender (EW-PSE-PW6602F) | 1 | SET |
| User Guide | 1 | PC |
| Warranty Card | 1 | PC |
