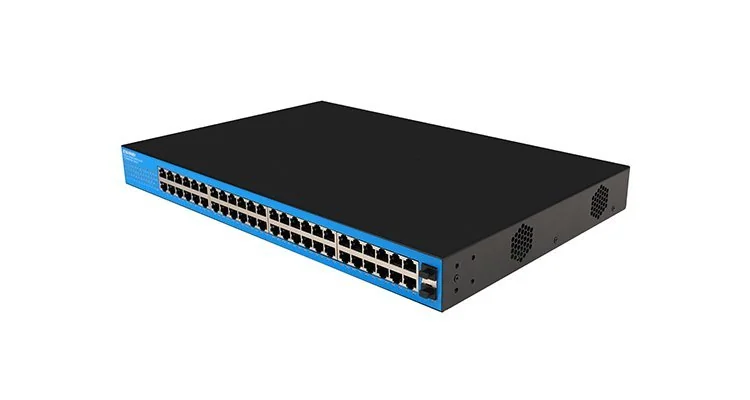

Model: EW-S1650CG

48-Port Gigabit Ethernet Switch with 2 SFP Uplinks

48 × 10/100/1000Mbps auto-sensing RJ45 ports
2 × 10/100/1000Mbps SFP uplinks · auto MDI/MDIX
32Gbps switching · 107.14Mpps · 32K MAC · built-in AC

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

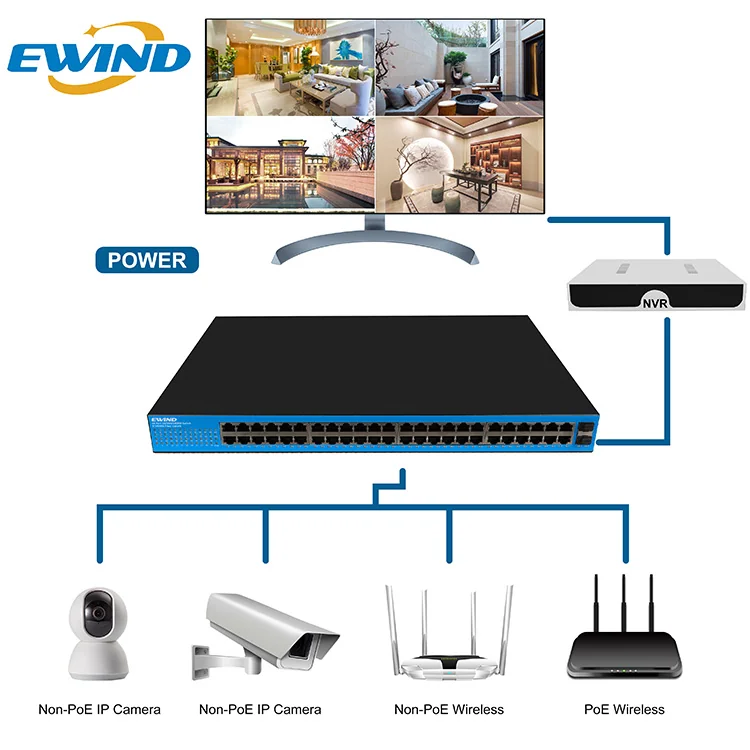

EW-S1650CG is a plug-and-play 48-port Gigabit switch with forty-eight auto-sensing RJ45 ports and two 10/100/1000Mbps SFP uplinks. Its non-blocking wire-speed forwarding, 32Gbps switching fabric and 1U-friendly enclosure suit CCTV, wireless and general access networks.

High-density Gigabit access

Forty-eight RJ45 ports support auto-negotiated 10/100/1000Mbps connections for cameras, computers and access points.

Two SFP uplinks

Two 10/100/1000Mbps SFP ports provide flexible upstream fiber or copper module connectivity.

Simple low-power deployment

Plug-and-play operation, self-learning MAC and under-25W full-load consumption keep the access layer easy to run.

Product technical specifications
Specification	Details
Model	EW-S1650CG
Copper ports	48 × 10/100/1000BASE-T auto-sensing RJ45
SFP uplinks	2 × 10/100/1000Mbps SFP; auto MDI/MDIX
Management	Unmanaged; plug and play; MAC self-learning
Switching / forwarding	32Gbps / 107.14Mpps
MAC / buffer	32K / 32M
Power supply / consumption	Built-in AC 100–240V, 50–60Hz; standby <5W, full load <25W

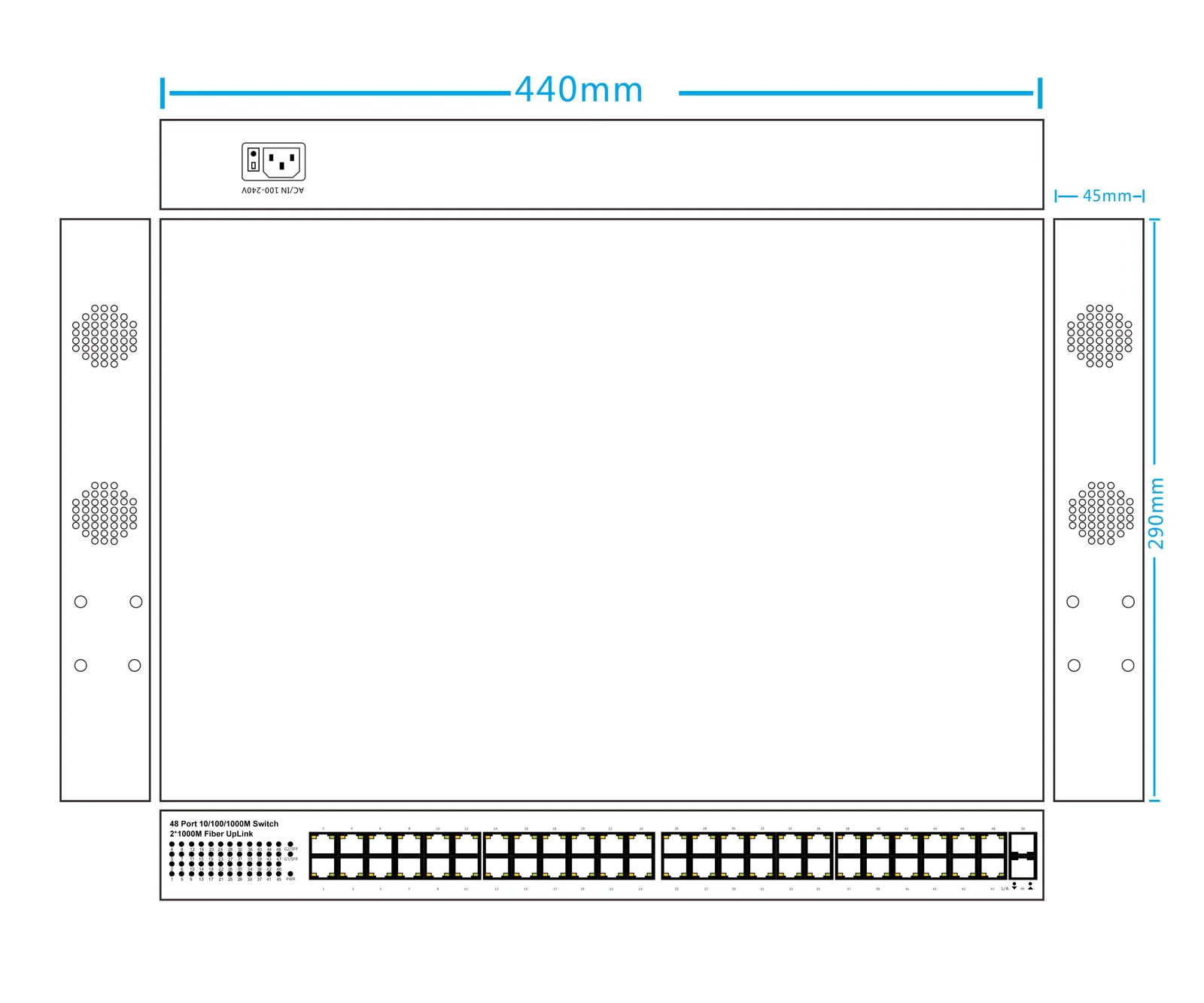

Dimensions / installation	440 × 290 × 45 mm; desktop, wall or 19-inch 1U cabinet
Protection / environment	−20 to +55°C; −40 to +75°C storage; 5–90% RH
Warranty	1 year
