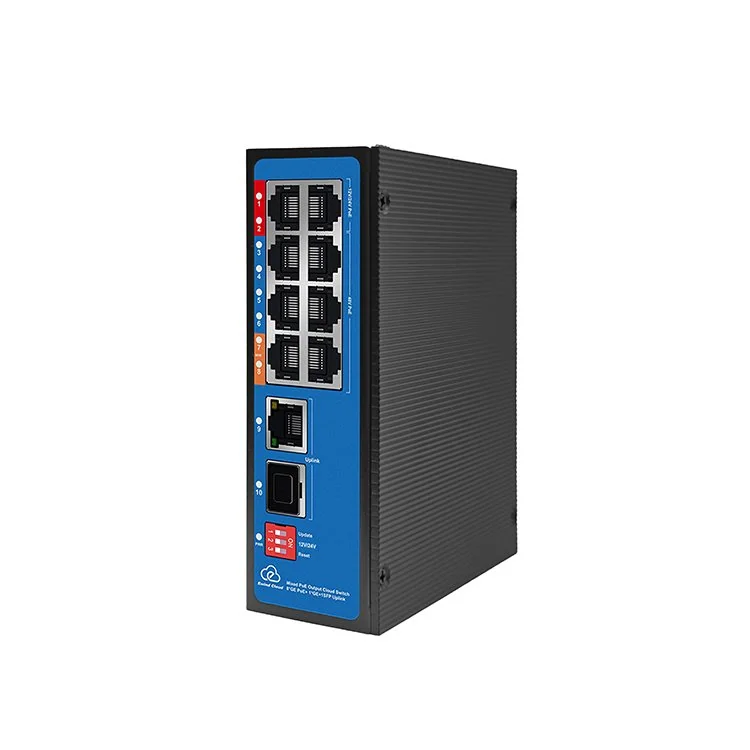

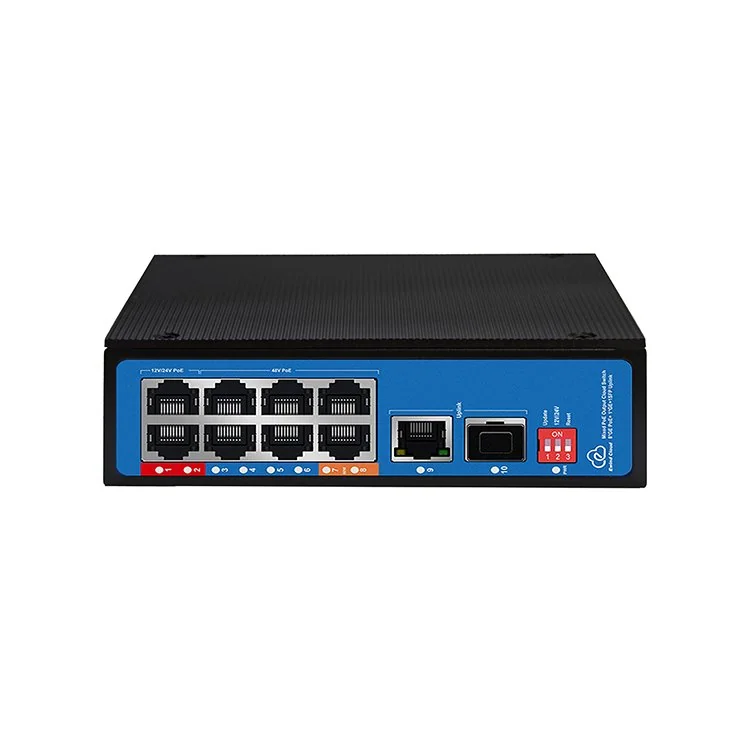

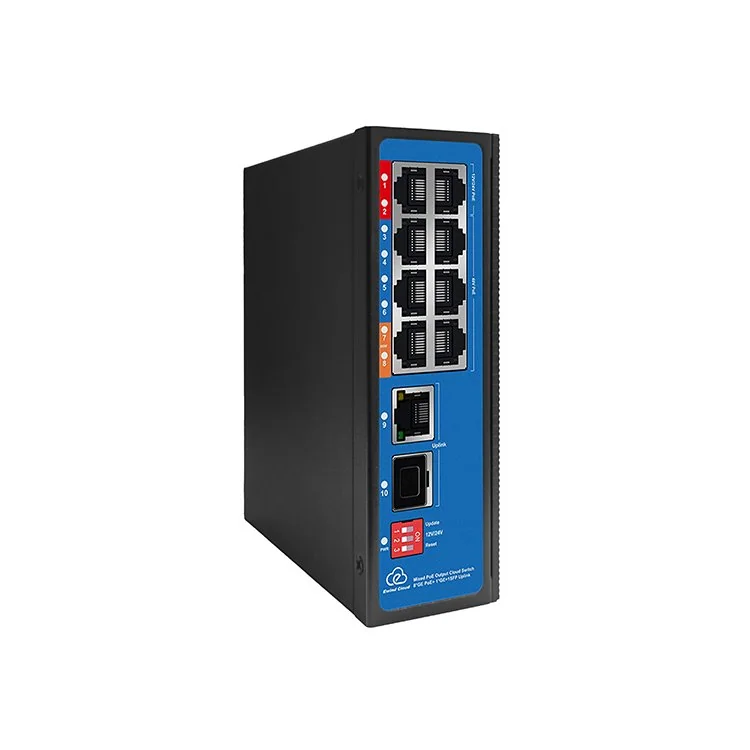

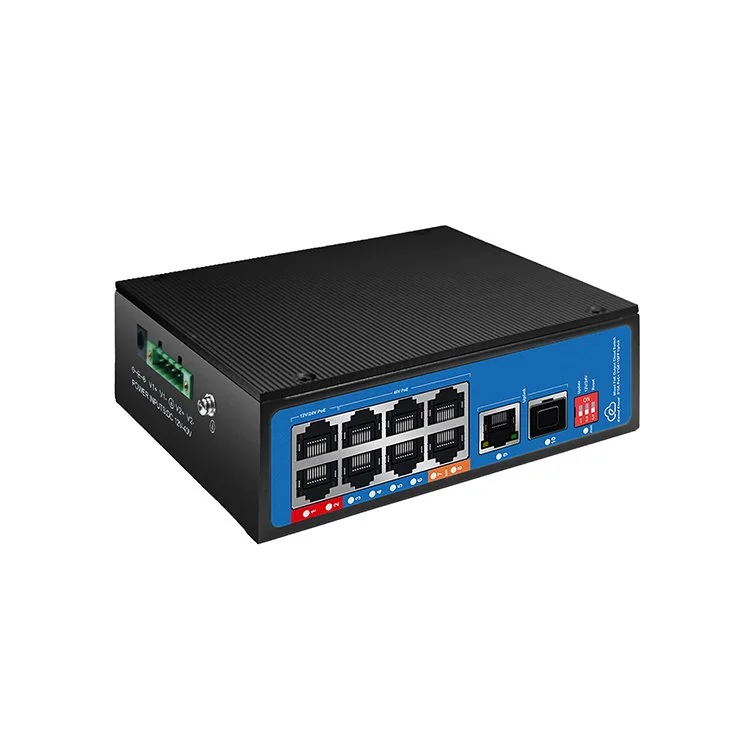

Model: EW-EPIS3910-8GE

8-Port Cloud Industrial Gigabit PoE Switch with SFP Uplink

8 × 10/100/1000Mbps PoE ports with IEEE 802.3af/at/bt support
1 × Gigabit RJ45 uplink and 1 × Gigabit SFP fiber uplink
20Gbps switching capacity, 14.88Mpps forwarding rate and 8K MAC table
12–40V DC input with redundant industrial terminal power

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-EPIS3910-8GE is an industrial cloud PoE switch with eight Gigabit PoE ports, Gigabit RJ45 and SFP uplinks, 12–40V DC input and IP40 DIN-rail mounting for connected industrial sites.

8-port Gigabit PoE

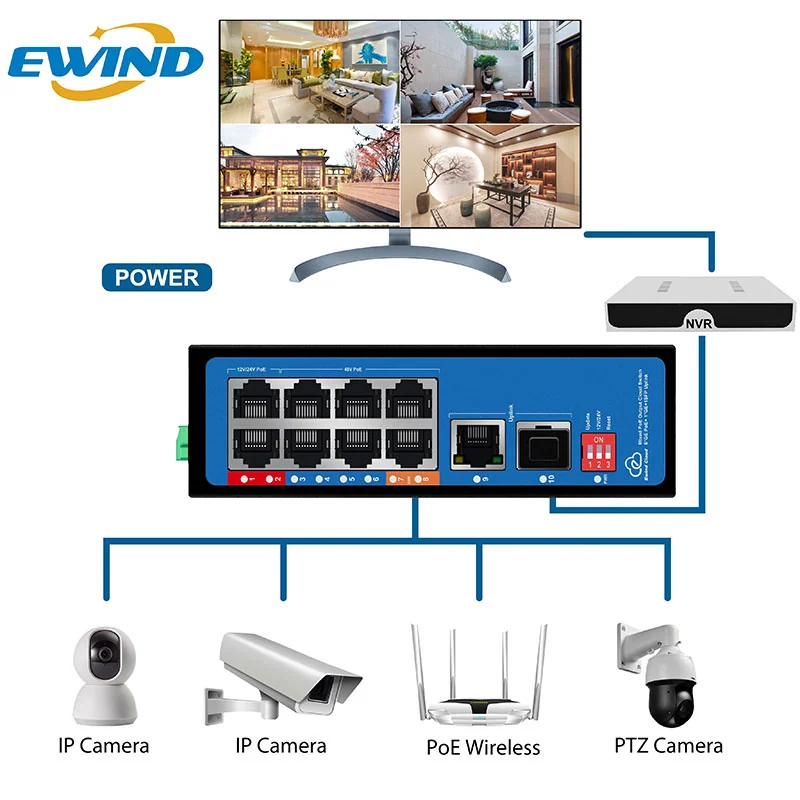

Eight 10/100/1000Mbps PoE ports connect cameras, access points and industrial endpoints.

RJ45 + SFP uplinks

A Gigabit copper uplink and Gigabit SFP fiber uplink support flexible backhaul choices.

Cloud-managed

Remote cloud and mobile app management expose topology, alarms, VLAN and PoE controls.

Industrial power

12–40V DC input, IP40 protection and DIN-rail mounting suit harsh industrial cabinets.

Product technical specifications
Specification	Details
PoE ports	8 × 10/100/1000Mbps RJ45 PoE ports; ports 1–8 support data and power
Uplinks	1 × 10/100/1000Mbps RJ45 port and 1 × 100/1000Mbps SFP fiber port
PoE standard	IEEE 802.3af/at/bt; ports 1–2 support selectable 12V/24V non-standard PoE, ports 3–6 up to 30W and ports 7–8 up to 60W
Switching performance	20Gbps switching capacity; 14.88Mpps forwarding rate; store-and-forward
Memory	8K MAC table, 2M buffer memory and 10K jumbo frames
Power budget	Typical 120W with DC12V input or 200W with DC24V input; standby under 3W

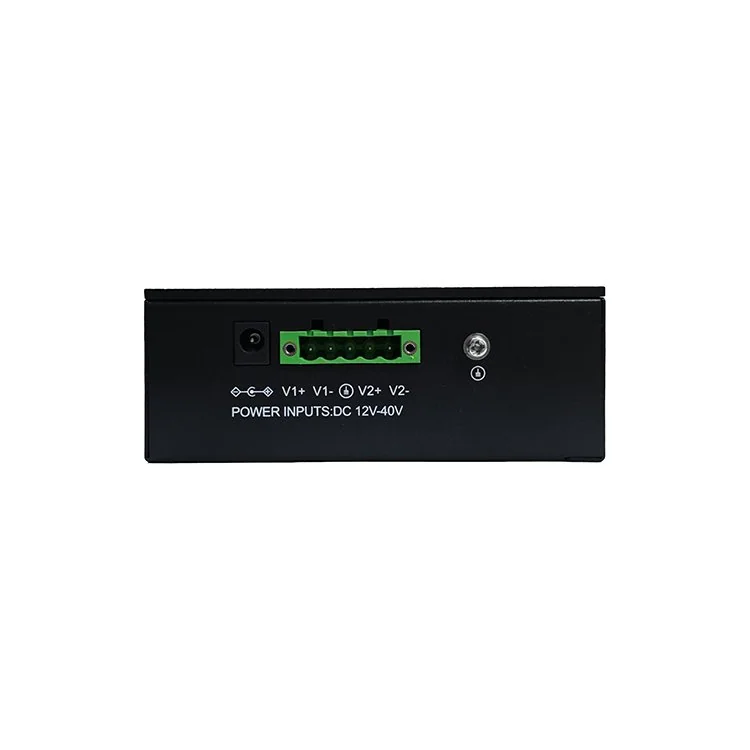

Power input	DC12–40V through a DC5.5mm × 2.5mm input and five-pin industrial Phoenix terminal
Fiber reach	Multimode 850nm up to 500m or 1310nm up to 2km; single-mode 1310nm up to 40km or 1550nm up to 120km

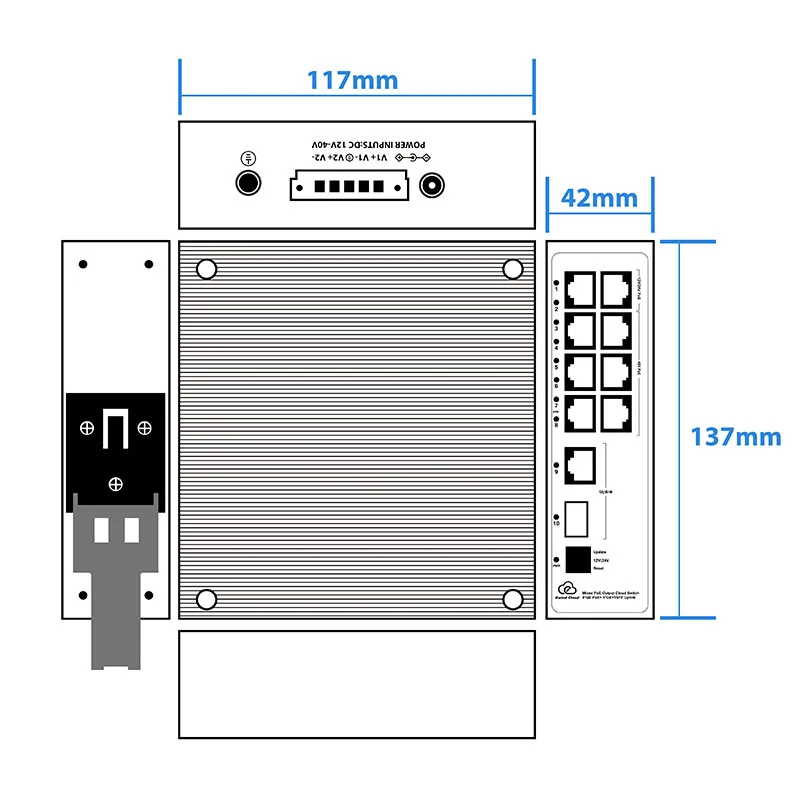

Dimensions and weight	137 × 117 × 42mm; 0.8kg
Environment	Operating −40℃ to +85℃; 5%–90% RH, non-condensing
Protection	IP40; 6kV lightning protection with industrial ESD, EFT and surge protection

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

PoE delivery

Ports 1–2 provide selectable 12V or 24V non-standard PoE, ports 3–6 support IEEE 802.3af/at up to 30W and ports 7–8 support IEEE 802.3af/at/bt up to 60W.

Cloud operations

The EWIND cloud platform and mobile app support remote status, real-time alarms, PoE scheduling, auto-alive checks, port settings, VLAN and automatic topology mapping.

Industrial networking

Store-and-forward switching, 20Gbps capacity, 8K MAC, 10K jumbo frames and a Gigabit SFP uplink support stable fiber-connected edge networks.

Power and protection

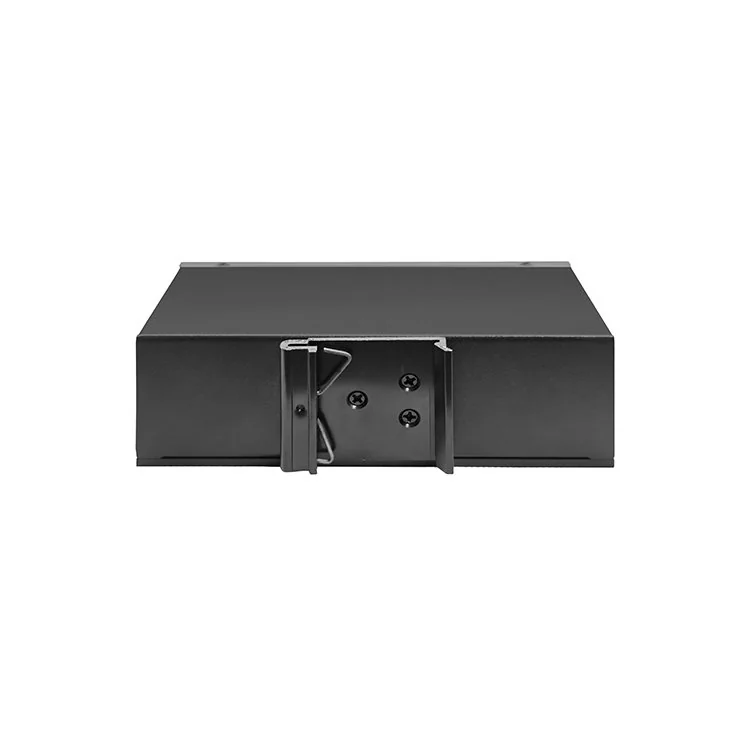

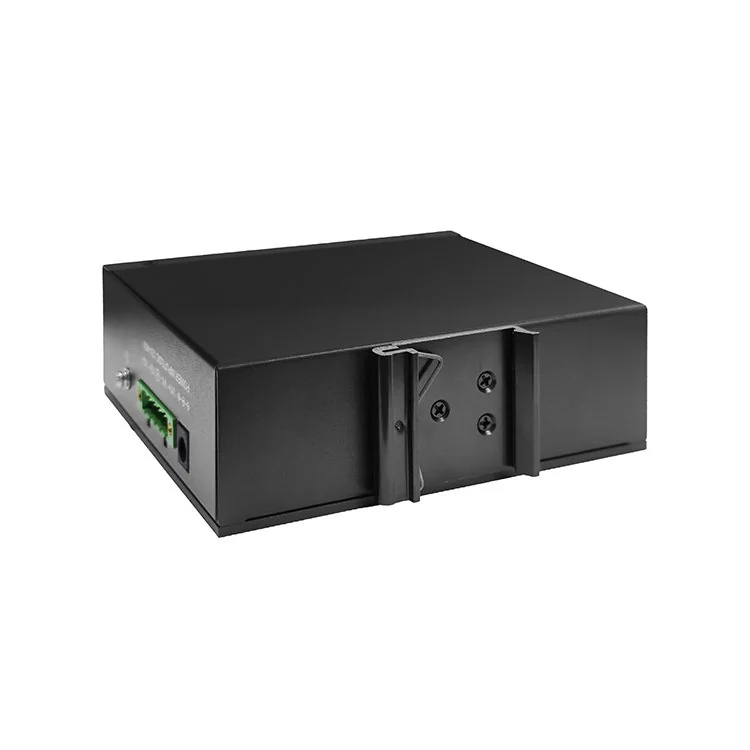

Redundant DC12–40V industrial power inputs, IP40 protection, DIN-rail installation and −40℃ to +85℃ operation support cabinet and outdoor industrial deployments.
