Flexible uplinks
Each combo pair offers a choice of copper or fiber on one logical port.
Model: EW-S2924GM

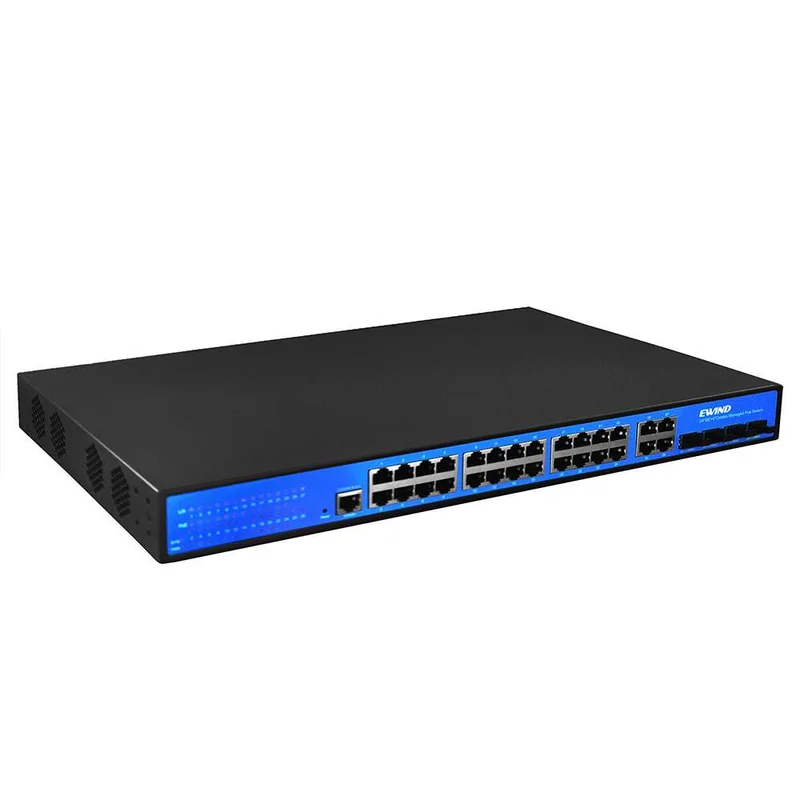

28-Port Gigabit L2+ Managed Switch with 4 Combo Ports
- 24 Gigabit RJ45 + 4 Gigabit combo ports
- Data-only interfaces; no PoE output
- L2+ management with static routing
- 56Gbps switching; 3-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S2924GM provides 24 Gigabit RJ45 ports and four Gigabit copper/fiber combo ports for data networks. L2+ management includes VLANs, static routing, ERPS, QoS and access controls, with web, CLI and SNMP administration.
Segmented networks
VLANs, ACLs, 802.1X and port binding control access and traffic.
L2+ administration
Manage static routes, redundancy and diagnostics through web, CLI or SNMP.
| Specification | Details |
|---|---|
| Model | EW-S2924GM |
| Access ports | 24 × 10/100/1000BASE-T RJ45 |
| Combo ports | 4 × Gigabit RJ45/SFP combo |
| PoE | Not supported; data-only ports |
| Management | L2+; web, CLI, SNMP and RS232 console |
| Switching capacity | 56Gbps |
| MAC table | 8K entries |

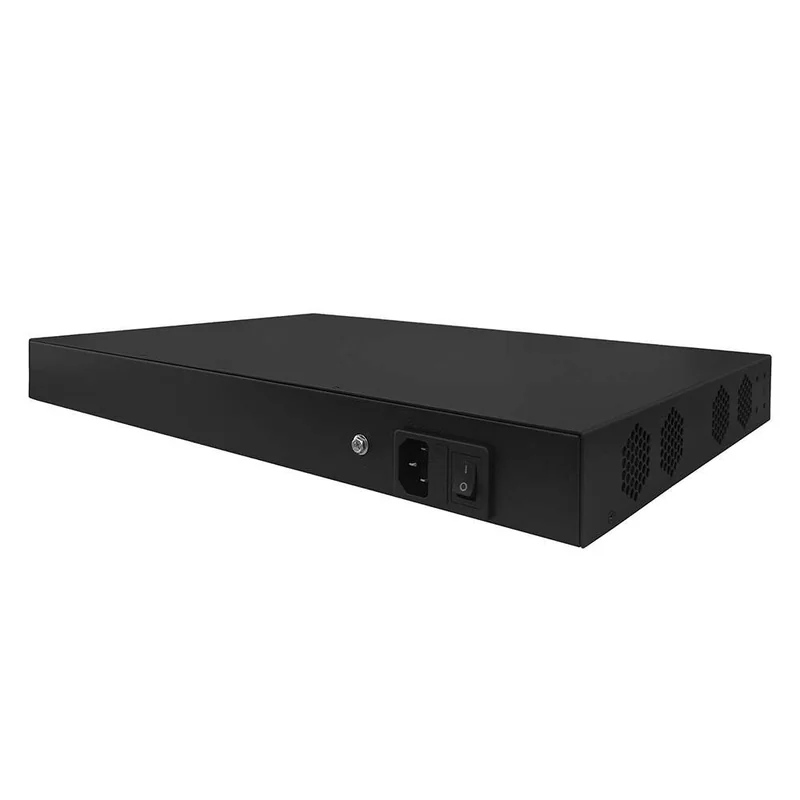

| Power input | AC 100–220V, 50–60Hz; built-in supply |
| Dimensions | 440 × 290 × 45 mm |
| Installation | Desktop or 19-inch 1U rack |
| Operating temperature | −20°C to +55°C |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S2924GM switch | 1 | SET |
| Rack mounting brackets | 1 | PAIR |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-S2924GM Resources
PDF · Specifications · Installation · Ordering
