Eight Fast Ethernet ports
Connect recorders, computers and independently powered endpoints with automatic speed and duplex handling.
Model: EW-S1508CF
8-Port Fast Ethernet Unmanaged Switch
- 8 × 10/100Mbps RJ45 data ports
- 1.6 Gbps bandwidth · 8K MAC table
- Compact metal case · external 5V adapter
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1508CF adds eight 10/100Mbps Ethernet connections for small office, home and CCTV networks. Automatic speed detection and MDI/MDIX support plug-and-play expansion in a compact metal enclosure.
CCTV data expansion
A simple unmanaged switch for surveillance and small office networks without configuration.
Low-power desktop access
The supplied 5V/1A adapter powers the compact enclosure with under 6W maximum consumption.
| Specification | Details |
|---|---|
| Model | EW-S1508CF |
| Ethernet ports | 8 × 10/100Mbps RJ45; auto MDI/MDIX |
| Management | Unmanaged; plug and play |
| Bandwidth / forwarding | 1.6 Gbps / 11.9 Mpps |
| MAC / buffer | 8K / 4M |
| Switch power input | 5V DC; external 1A adapter |
| Adapter AC input | 100–240V AC, 50/60Hz, 0.5A |
| Power consumption | 0.7W standby; <6W maximum |
| Dimensions | 100 × 70 × 27 mm |
| Installation | Desktop or wall mount |
| Operating environment | −20 to +55°C; 5–90% RH, non-condensing |
| Warranty | 1 year |

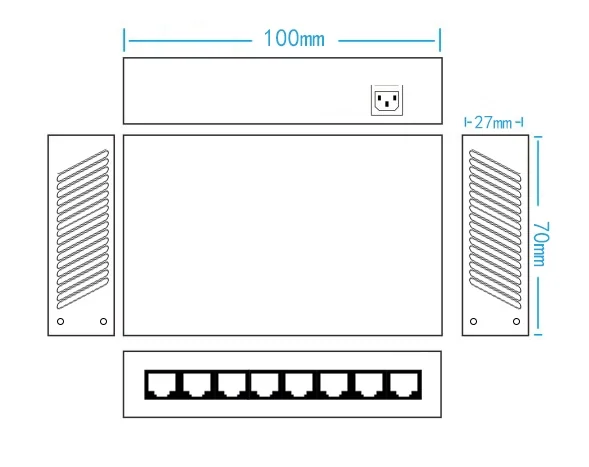

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1508CF Ethernet switch | 1 | SET |
| 5V/1A external power adapter | 1 | PCS |
| User guide | 1 | PCS |
| Warranty card | 1 | PCS |
