16 access ports
Connect Fast Ethernet equipment without management configuration.
Model: EW-S1516CF

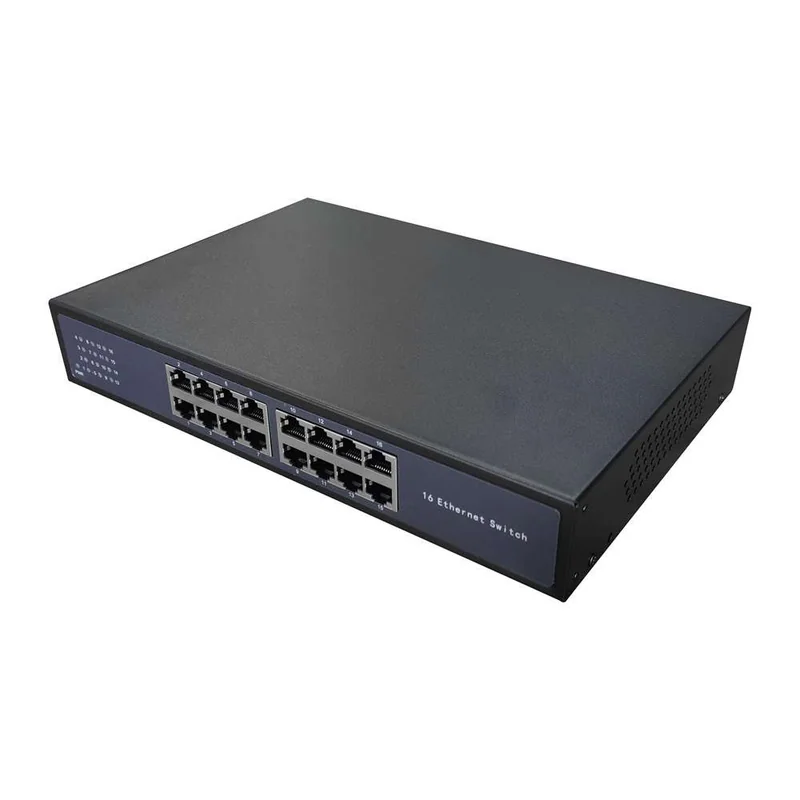

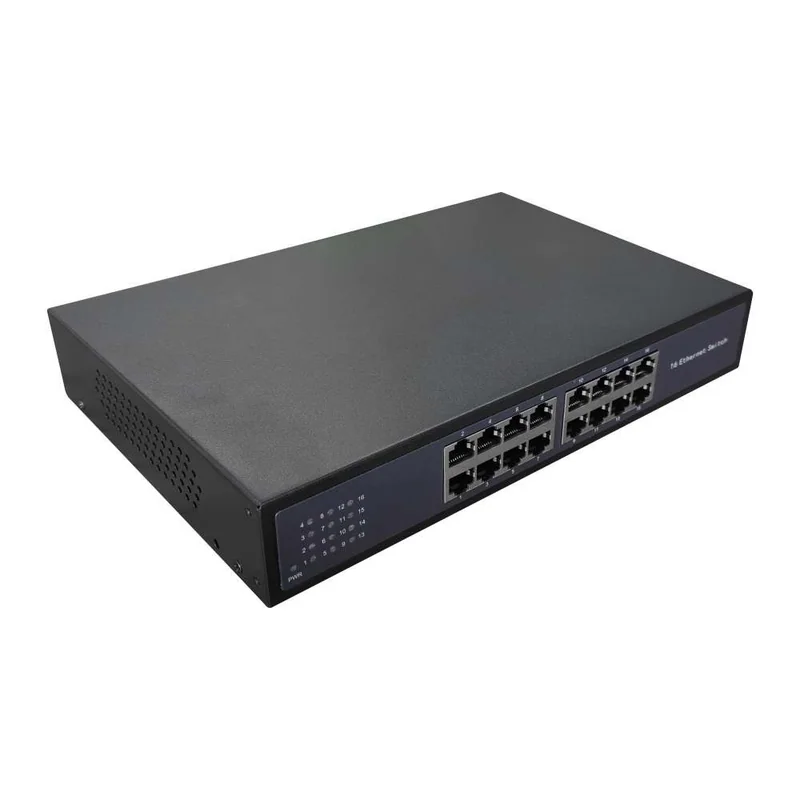

16-Port Fast Ethernet Unmanaged Switch
- 16 × 10/100Mbps RJ45 ports with Auto MDI/MDIX
- 2.38Mpps store-and-forward switching
- 8K MAC table and 4.1M buffer
- External 12V/2A adapter; desktop, wall or 1U cabinet mounting
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-S1516CF adds sixteen 10/100Mbps Ethernet connections for office and local network equipment. Auto-negotiation, Auto MDI/MDIX and automatic MAC learning support plug-and-play setup, with an external 12V supply and desktop, wall or 1U cabinet installation.
Automatic learning
MAC self-learning and duplex negotiation simplify setup.
Flexible mounting
A 270 × 180 × 45mm chassis fits desks, walls and 19-inch cabinets.
Low power use
Specified consumption is below 5W at standby and 15W at full load.
| Specification | Details |
|---|---|
| Ethernet ports | 16 × 10/100Mbps RJ45; Auto MDI/MDIX |
| Forwarding | 2.38Mpps; store-and-forward |
| Memory | 8K MAC address table; 4.1M buffer |
| Power input | 12VDC / 2A external adapter |
| Power consumption | Standby <5W; full load <15W |
| Dimensions | 270 × 180 × 45mm |
| Installation | Desktop, wall mounting or 19-inch 1U cabinet |
| Operating environment | −20°C to +55°C; 5%–90% RH, non-condensing |
| Warranty | 1 year |

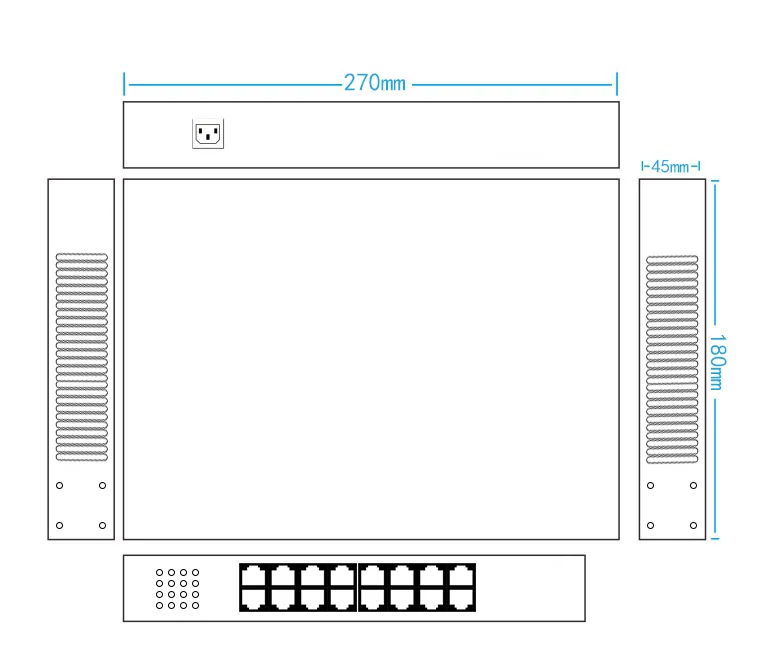

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-S1516CF 16-port Fast Ethernet switch | 1 | SET |
| External power adapter | 1 | PC |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
