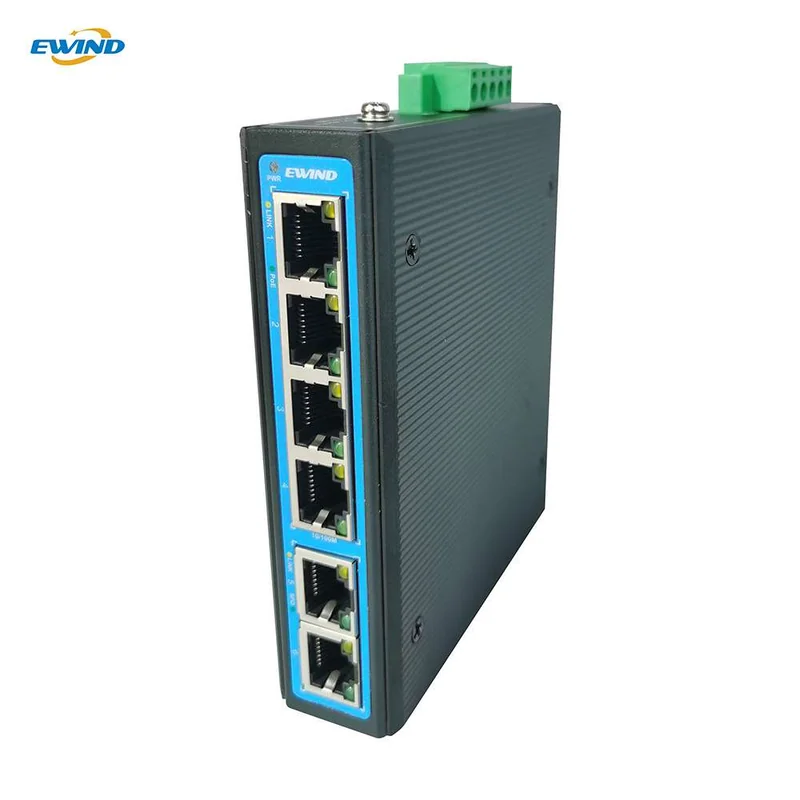

Model: EW-PIS1706FE

4-Port Fast Ethernet Industrial PoE Switch with 2 Uplinks

4 × 10/100Mbps PoE ports + 2 × 100Mbps uplinks
IEEE 802.3af/at · up to 30W per PoE port
Dual 48–57V DC inputs · 60W or 120W configuration

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PIS1706FE powers four Fast Ethernet endpoints and provides two data-only uplinks in a compact industrial enclosure. Redundant 48–57V DC inputs, DIN-rail mounting and a −40 to +85°C operating range support transport, power and outdoor surveillance cabinets.

Industrial PoE access

Ports 1–4 automatically detect compatible AF/AT endpoints and deliver up to 30W per port.

Two data uplinks

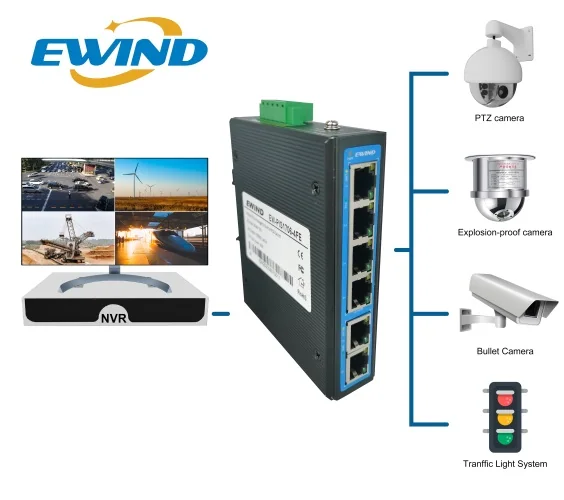

Two 100Mbps RJ45 uplinks connect the PoE segment to an upstream switch or recorder.

Rugged cabinet design

IP40 housing, redundant Phoenix-terminal power and DIN-rail mounting suit industrial installations.

Product technical specifications
Specification	Details
Model	EW-PIS1706FE
PoE ports	4 × 10/100BASE-TX RJ45
Uplinks	2 × 100BASE-TX RJ45 data ports
PoE standard / port limit	IEEE 802.3af/at; up to 30W per port
Power configuration	60W or 120W at 48V DC; supply ordered separately
Switching / forwarding	1.2 Gbps / 0.89 Mpps
MAC / buffer	2K / 1M

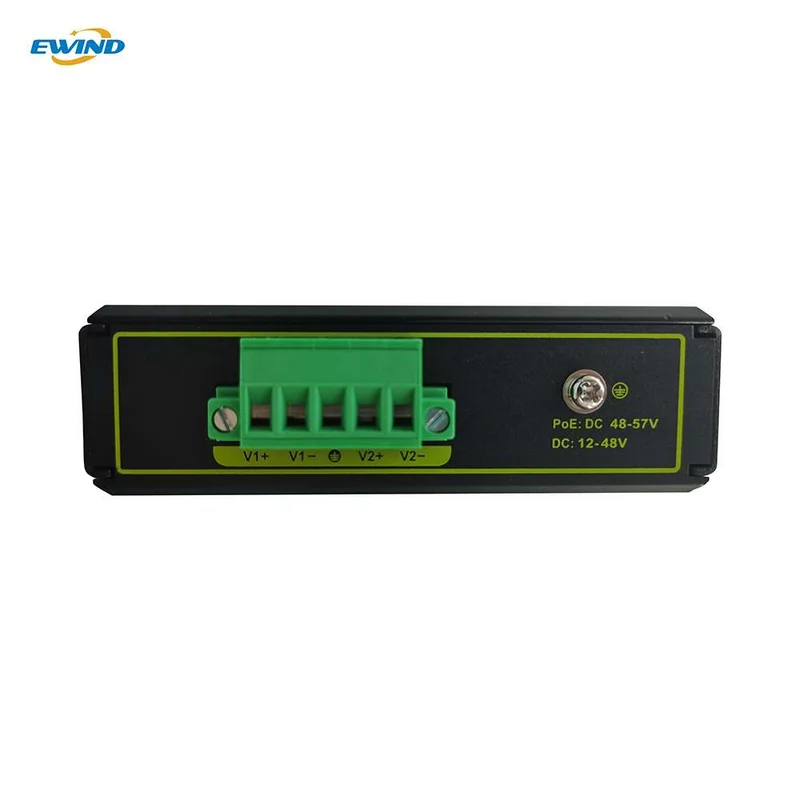

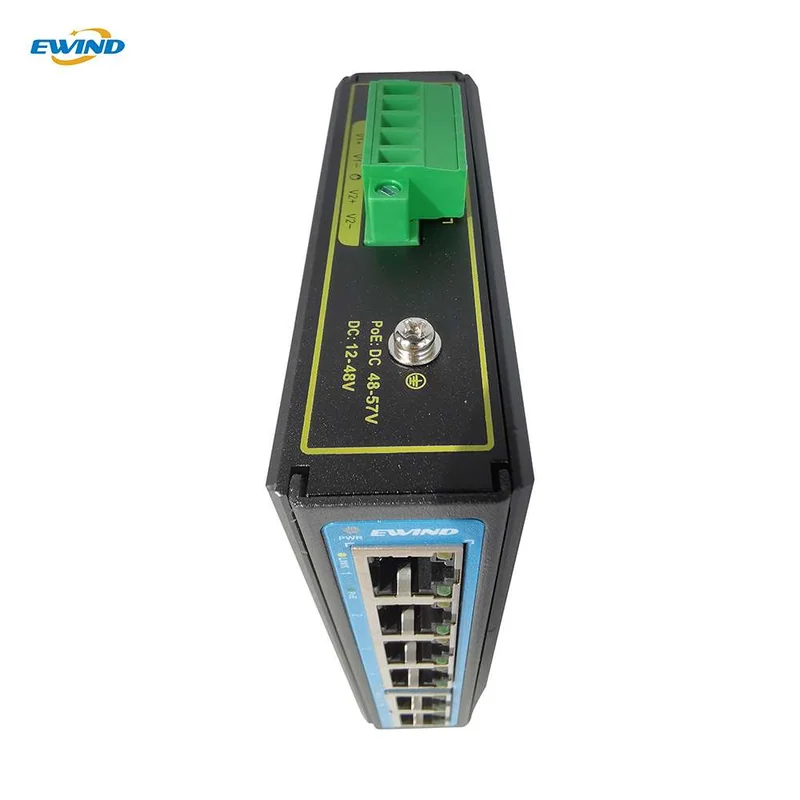

Power input	48–57V DC; dual 5-pin Phoenix terminal
Enclosure / installation	IP40; desktop or DIN rail

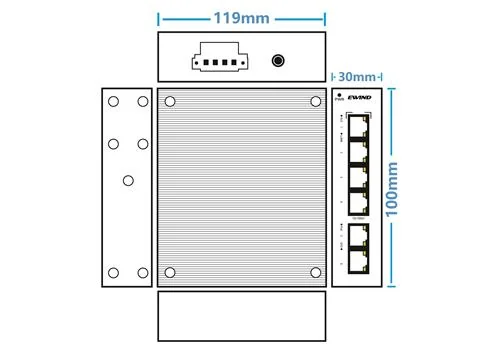

Dimensions / weight	119 × 100 × 30 mm; <0.5kg net
Operating environment	−40 to +85°C; 5–90% RH, non-condensing
Warranty	5 years
