Copper to fiber

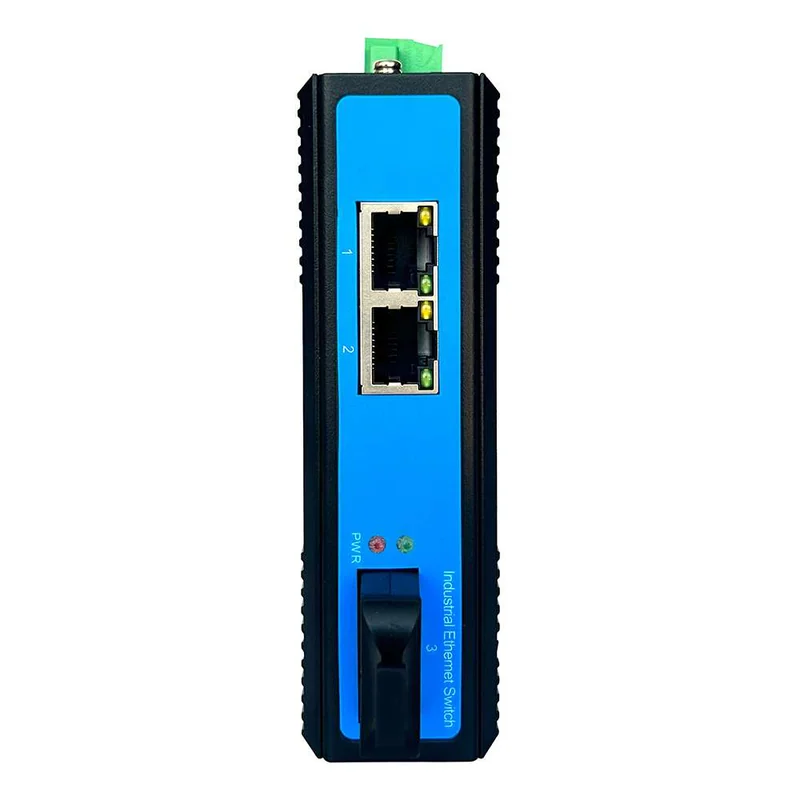

Two 10/100Mbps access ports connect industrial devices to a fiber network.
Model: EW-IS1703
3-Port Fast Ethernet Industrial Switch with SC Fiber Uplink
- 2 Fast Ethernet RJ45 ports + 1 SC fiber uplink
- Data-only interfaces; unmanaged operation
- Redundant 12–48V DC inputs
- IP40 enclosure; 5-year warranty
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-IS1703 connects two Fast Ethernet copper devices to an SC fiber uplink. The unmanaged, data-only switch supports redundant 12–48V DC inputs, DIN-rail mounting and operation from −40°C to +75°C.

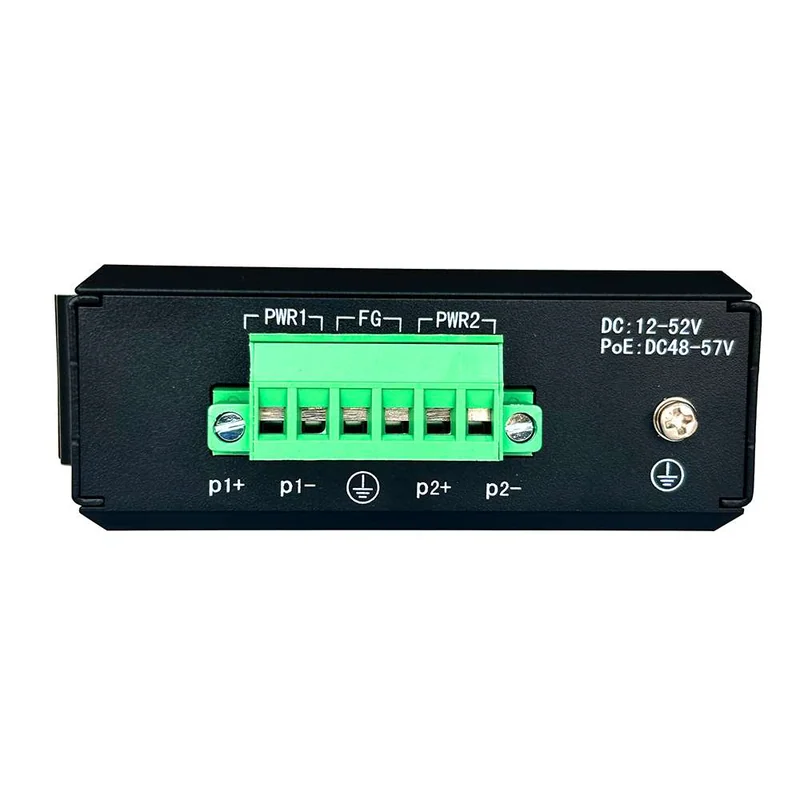

Redundant DC input
Dual supply inputs include reverse-polarity protection; the external supply is ordered separately.

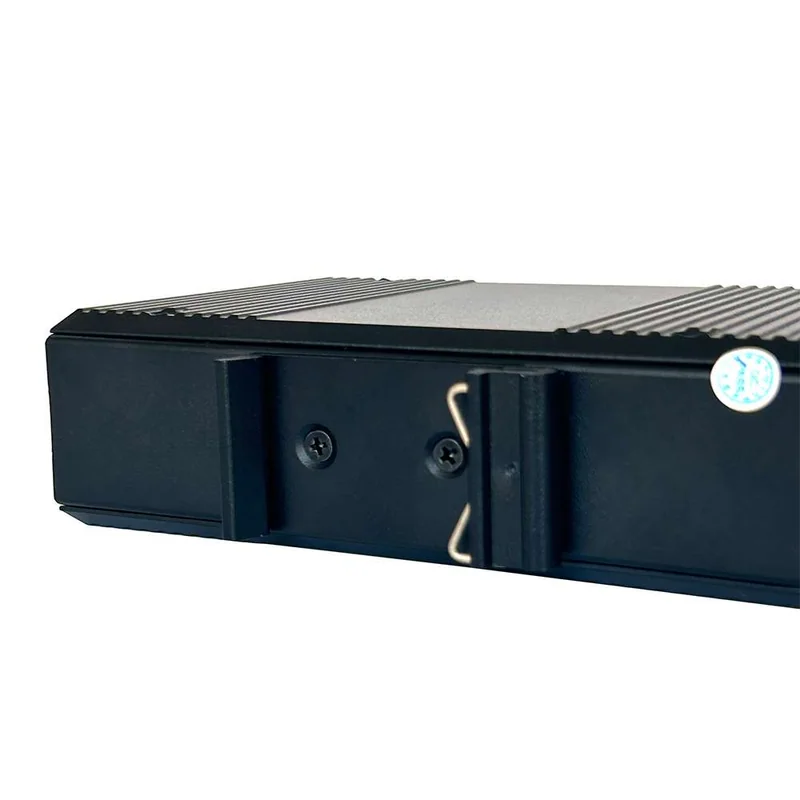

DIN-rail installation
The compact IP40 housing supports cabinet installation across a wide temperature range.
| Specification | Details |
|---|---|
| Model | EW-IS1703 |
| Copper ports | 2 × 10/100BASE-TX RJ45; data only |
| Fiber port | 1 × SC; 100BASE-FX Ethernet |
| Management | Unmanaged |
| Power input | DC 12–48V; redundant inputs |
| Power connection | 6-pin industrial terminal; reverse-polarity protection |
| MAC table | 1K entries |
| Dimensions | 118 × 86 × 39 mm |
| Mounting | DIN rail or desktop |
| Protection | IP40 |
| Operating temperature | −40°C to +75°C |
| Warranty | 5 years |

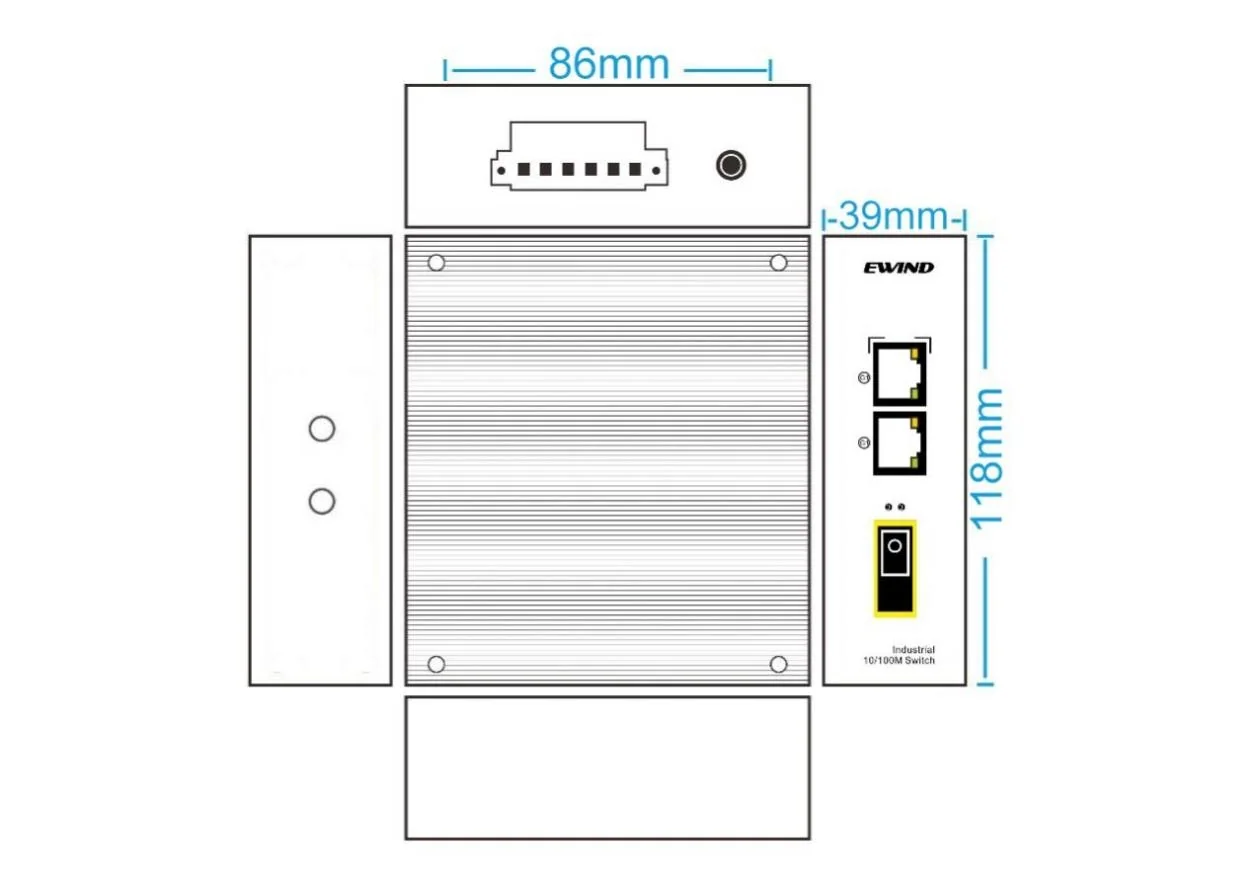

Dimensions
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-IS1703 industrial fiber switch | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |

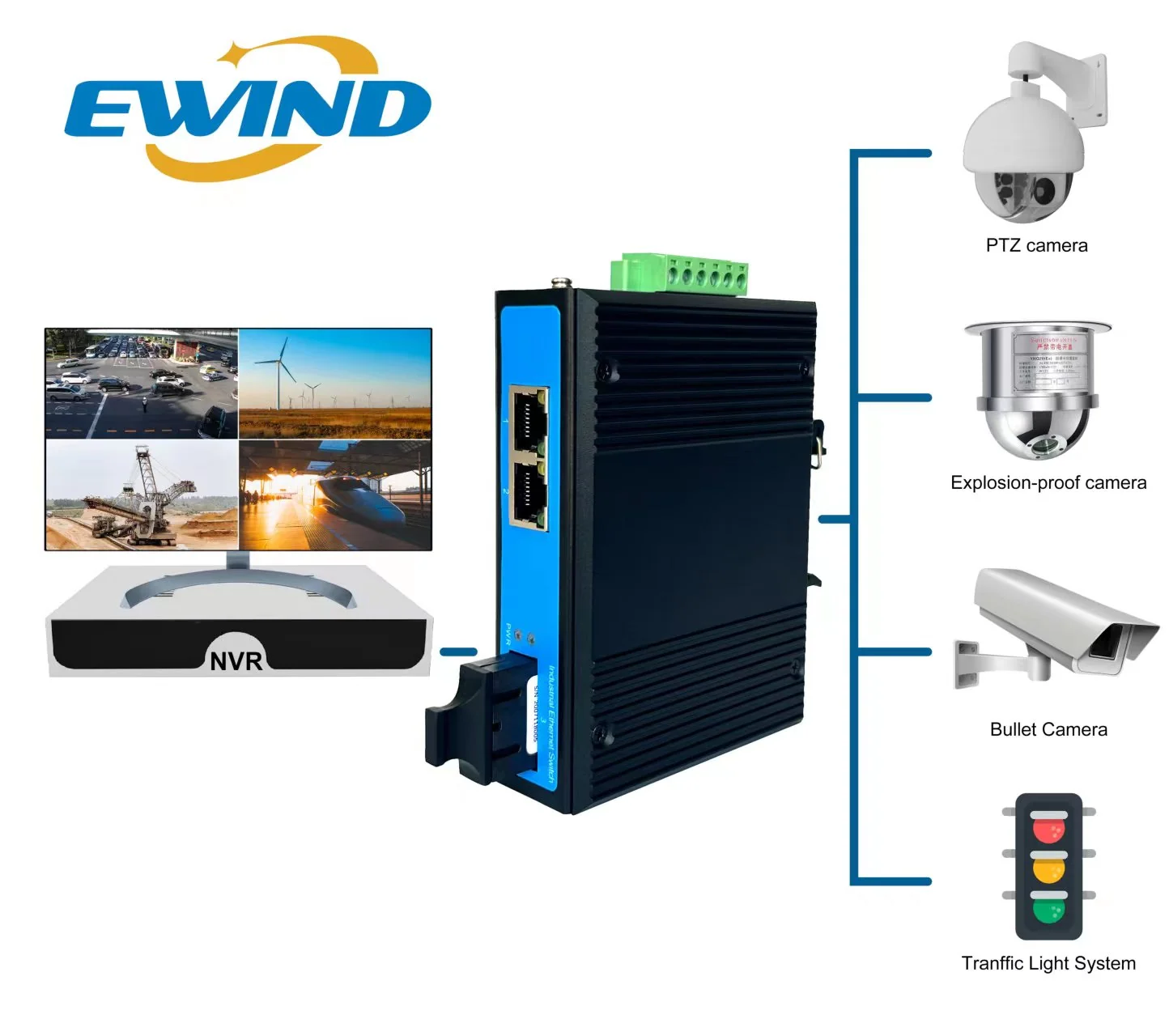

Applications
Example device types for industrial fiber links. The switch connects up to two copper devices; each device needs its own power source.
