Model: EW-PD101F-TYPEC-5

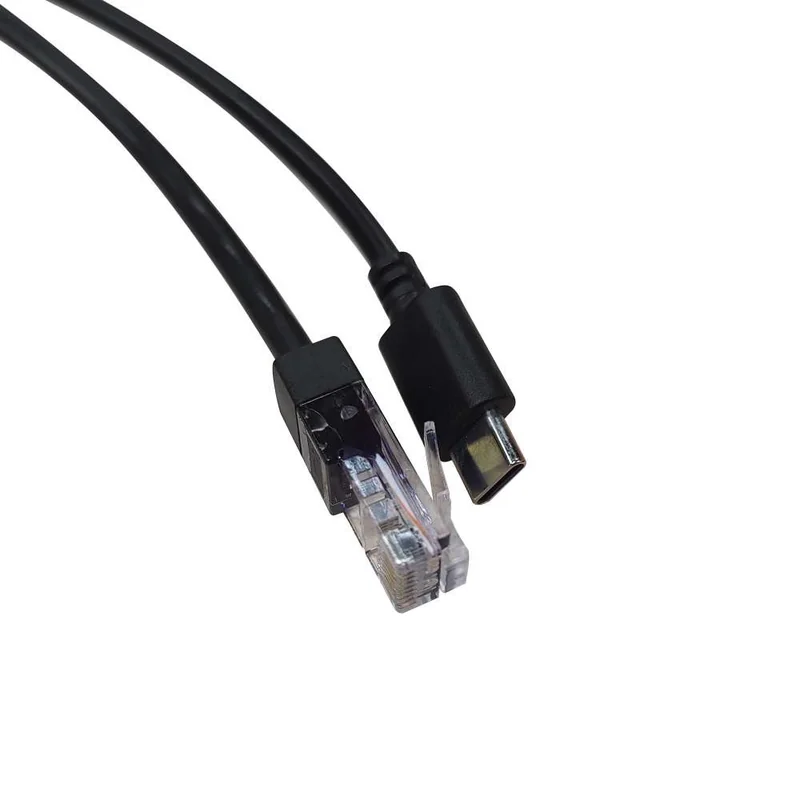

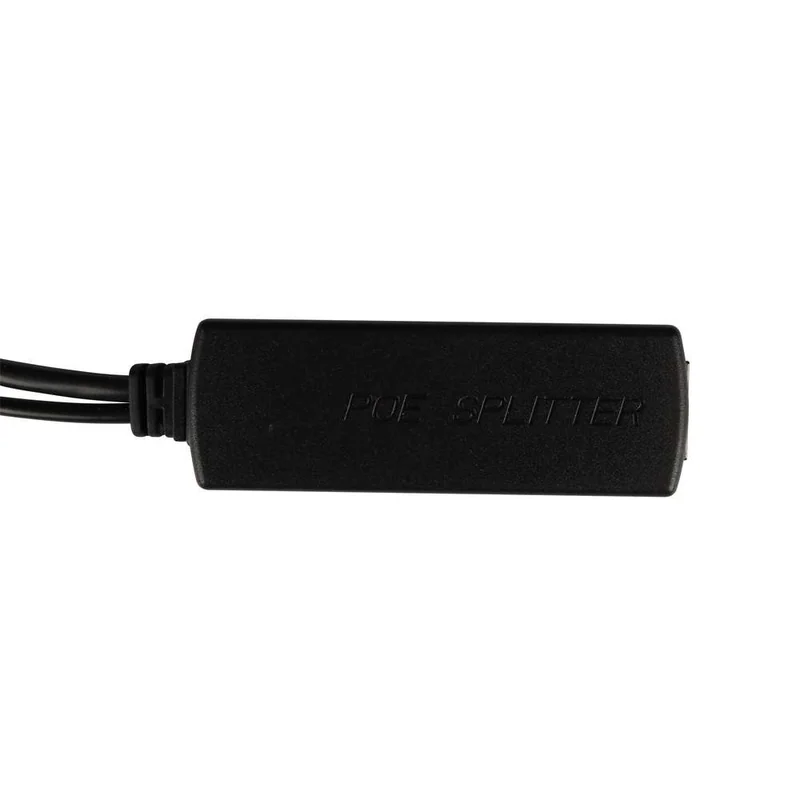

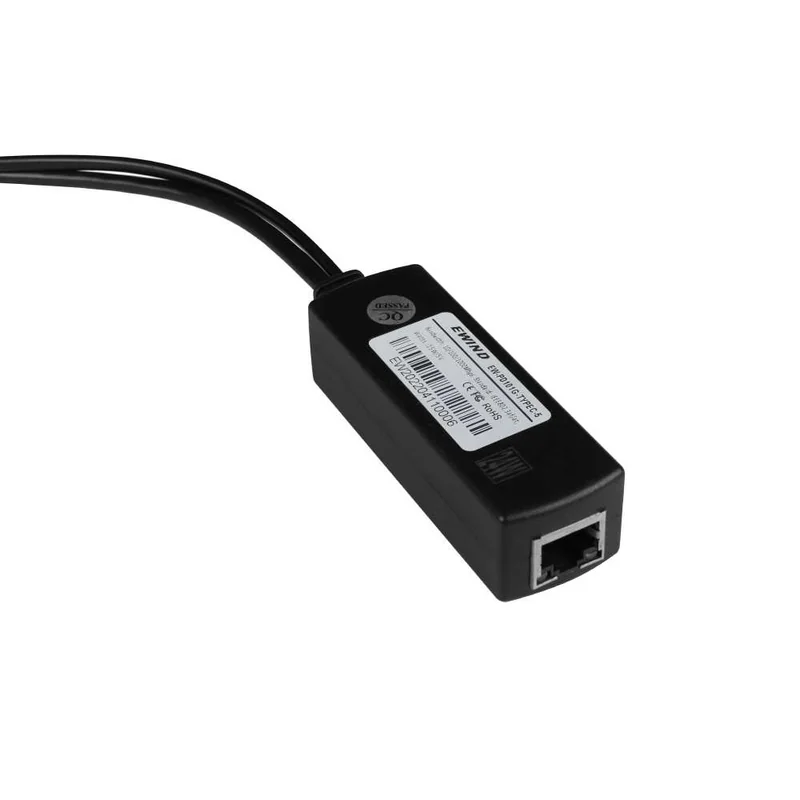

10/100M PoE Splitter Cable with USB Type-C Output

10/100Mbps PoE splitter cable · 44–57V input
DC 5V/2A output · 10W rated output in the electrical table
190mm length · ≥81.5% efficiency · over-current and thermal protection

Project inquiry

Request pricing and lead time

Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.

info@ewindnet.com

Overview

EW-PD101F-TYPEC-5 separates a 44–57V PoE input into Fast Ethernet data and a regulated low-voltage output for a small endpoint. The source product name identifies a Type-C to RJ45 cable, while the electrical table specifies DC 5V/2A output and 10W rated power.

PoE to low-voltage power

The cable accepts a PoE input and provides a regulated low-voltage output for a compatible endpoint.

Fast Ethernet data path

Transmission bandwidth is 10/100Mbps with an RJ45 input connector listed in the source.

Protected conversion

Short-circuit, over-current and over-voltage recovery functions protect the DC/DC stage.

Product technical specifications
Specification	Details
Model	EW-PD101F-TYPEC-5
Product type	10/100M PoE splitter cable; Type-C to RJ45 product name
PoE input	44–57V
DC output	5V / 2A; 10W rated output in the technical specification

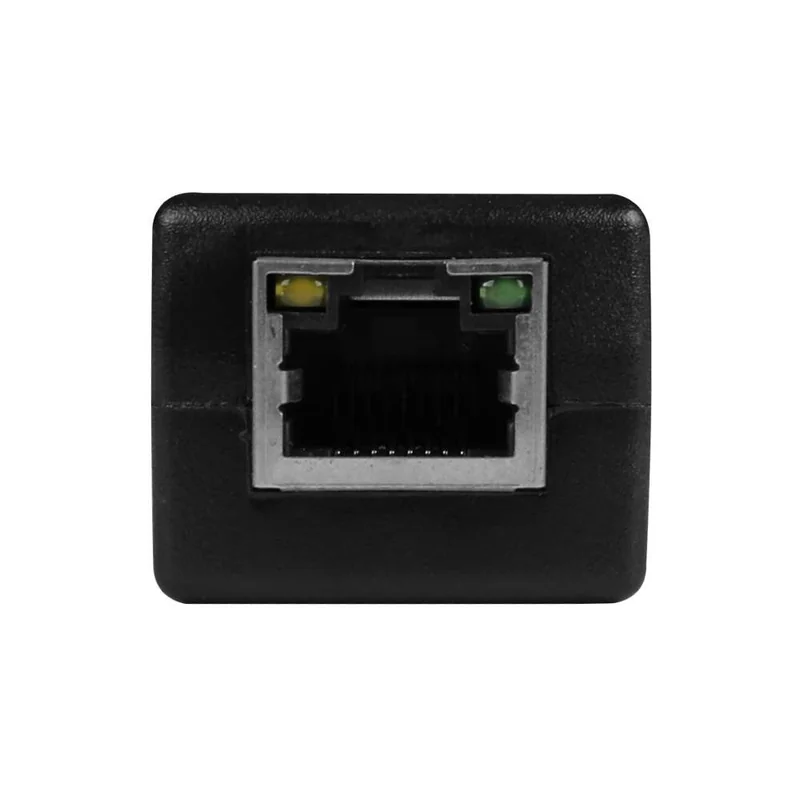

Connector	1 × RJ45 input port; Type-C output is identified by the product name
Transmission / length	10/100Mbps; 190 mm
Conversion efficiency	≥81.5%
Protection / isolation	Over-current, over-temperature, short-circuit and over-voltage recovery; isolation supported
Environment	−20 to +60°C; 20–80% RH
Ripple / timing	100mV Vp-p max; boot delay 2s max; rise time 50ms max
Warranty	1 year

Advanced capabilities

Detailed network functions stay available here without interrupting the main selection path.

Power compatibility

Use only with a compatible 44–57V PoE source and an endpoint designed for the stated DC output. The source's load table contains a separate +12V example, so confirm the final output variant before ordering.

Protection behavior

Short-circuit and over-current protection recover after the fault is released. Over-voltage protection activates at roughly 120–150% of normal output and recovers after the condition clears.

Source wording review

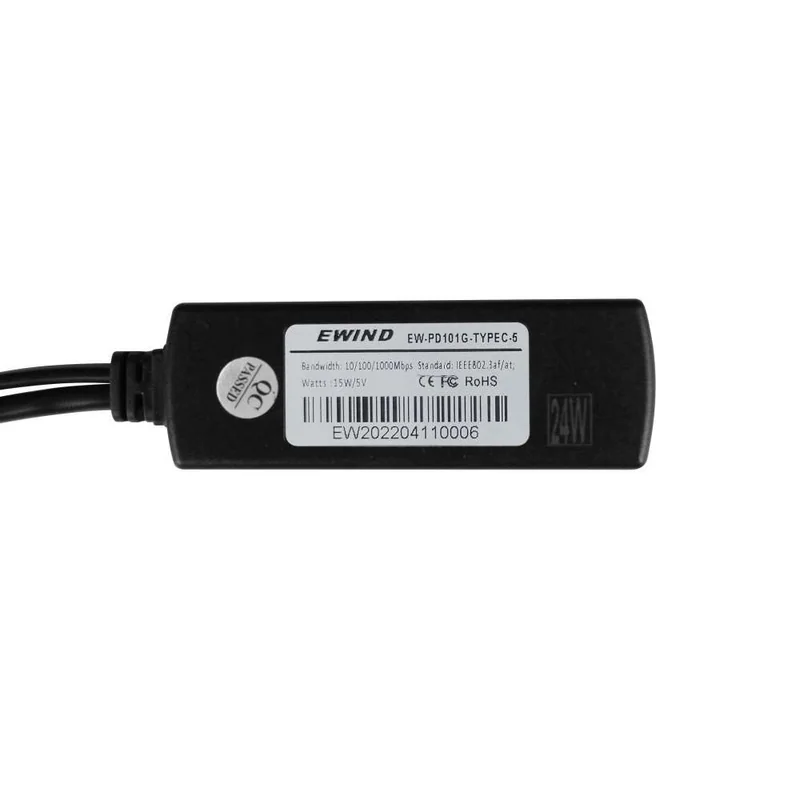

The product name identifies Type-C to RJ45, the connector field lists one RJ45 input, and the electrical table states 5V/2A and 10W. The packing-list title says 15W. These values are shown separately so the exact cable revision can be confirmed with the supplier.
