12V output
Power a compatible non-PoE device from the PoE network.
Model: EW-PD101G-AF-12
Gigabit PoE Splitter Cable with 12V DC Output
- 10/100/1000Mbps Ethernet data output
- 44–57V PoE input; fixed 12V DC output
- IEEE 802.3af; Midspan and Endspan input support
- 1500V input-to-output isolation
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview

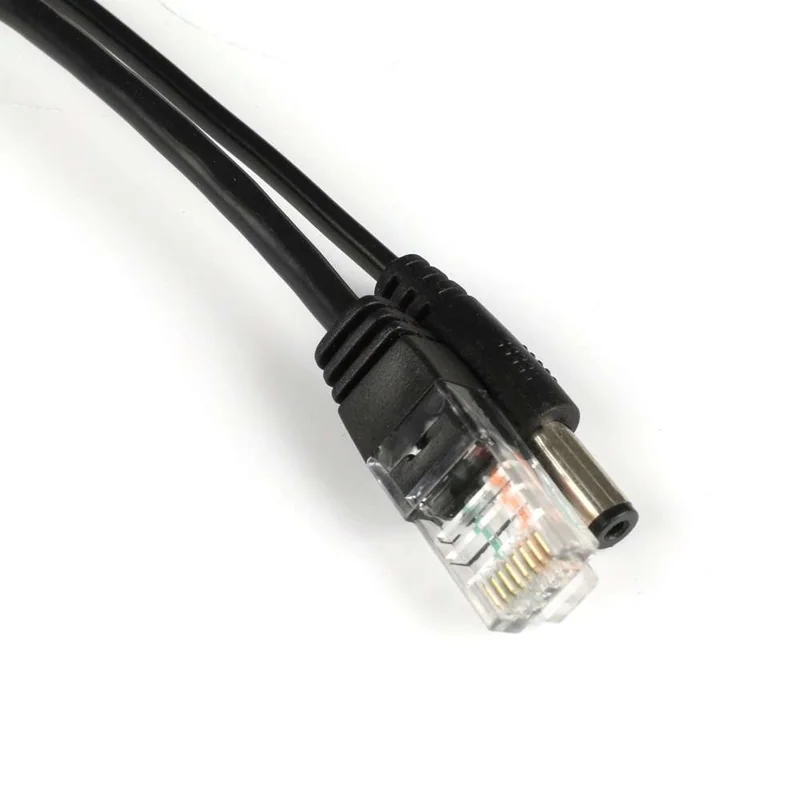

EW-PD101G-AF-12 separates a Gigabit PoE connection into Ethernet data and 12V DC power for a device without a PoE input. The 180mm cable assembly uses an RJ45 female input, RJ45 male data output and 5.5 × 2.1mm DC plug, with isolated power conversion.
Gigabit data

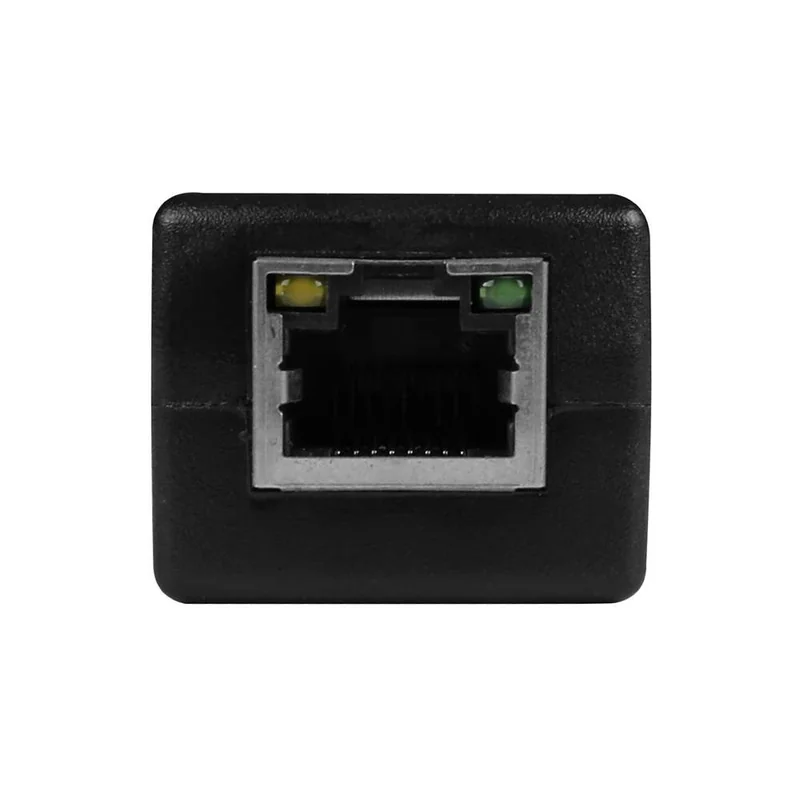

The RJ45 output preserves the Ethernet data connection.
Isolated conversion
1500V isolation separates input and output power circuitry.
180mm cable
Integrated RJ45 and DC leads simplify endpoint connections.
| Specification | Details |
|---|---|
| PoE input | 44–57V; IEEE 802.3af; Midspan or Endspan |
| DC output | 12V through a 5.5 × 2.1mm male plug |
| Ethernet rate | 10/100/1000Mbps |
| Connectors | RJ45 female PoE input; RJ45 male data output; DC male output |
| Conversion efficiency | ≥81.5% |
| Isolation | 1500V input-to-output |
| Cable length | 180mm |
| Operating environment | −20°C to +60°C; 20%–80% RH |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PD101G-AF-12 Gigabit 12V PoE splitter cable | 1 | SET |
| Warranty card | 1 | PC |
