Two independent links
Four RJ45 ports provide two data inputs and two powered Ethernet outputs.

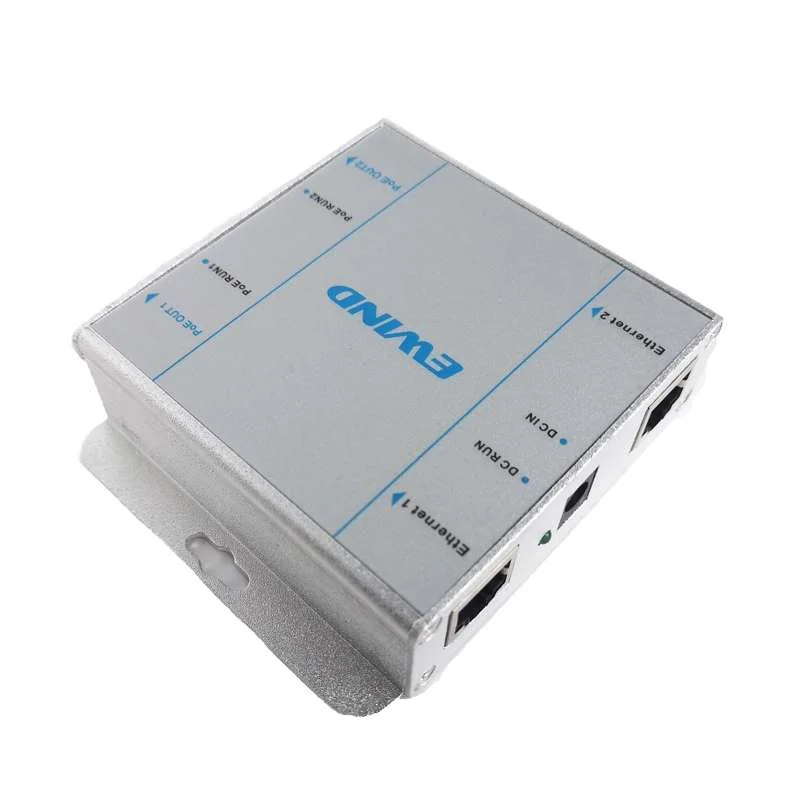

Model: EW-PSE202F-DC-AF
Dual-Port Fast Ethernet DC PoE Injector
- 2 × data inputs + 2 × PoE outputs
- 10/100Mbps Ethernet
- IEEE 802.3af; up to 15.4W per PoE port
- 12–32V DC input; 44–57V PoE output
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE202F-DC-AF adds IEEE 802.3af PoE to two 10/100Mbps Ethernet connections. Two data inputs and two PoE outputs provide separate links for compatible endpoints, using a 12–32V DC supply and a fanless desktop or wall-mounted enclosure.
DC-powered PoE
Convert a 12–32V DC source to 44–57V PoE for compatible IEEE 802.3af devices.
Compact installation
Fanless housing supports desktop or wall mounting.
| Specification | Details |
|---|---|
| Ethernet ports | 2 × RJ45 data input; 2 × RJ45 PoE output |
| Data rate | 10/100Mbps |
| PoE standard | IEEE 802.3af |
| Maximum power per PoE port | 15.4W |
| DC input voltage | 12–32V |
| PoE output voltage | 44–57V |
| Default PoE pairs | 4/5 positive; 7/8 negative |
| Operating temperature | −20 to +55°C |
| Installation | Desktop or wall; fanless |
| Warranty | 3 years |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE202F-DC-AF dual-port PoE injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-PSE202F-DC-AF Resources
PDF · Specifications · Installation · Ordering
