48V power
A 30W output supplies a compatible network endpoint.
Model: EW-PSE101G-AC
30W Single-Port AC PoE Injector with 48V Output
- 48V, 0.625A output; 30W rating
- 100–240VAC, 50–60Hz input

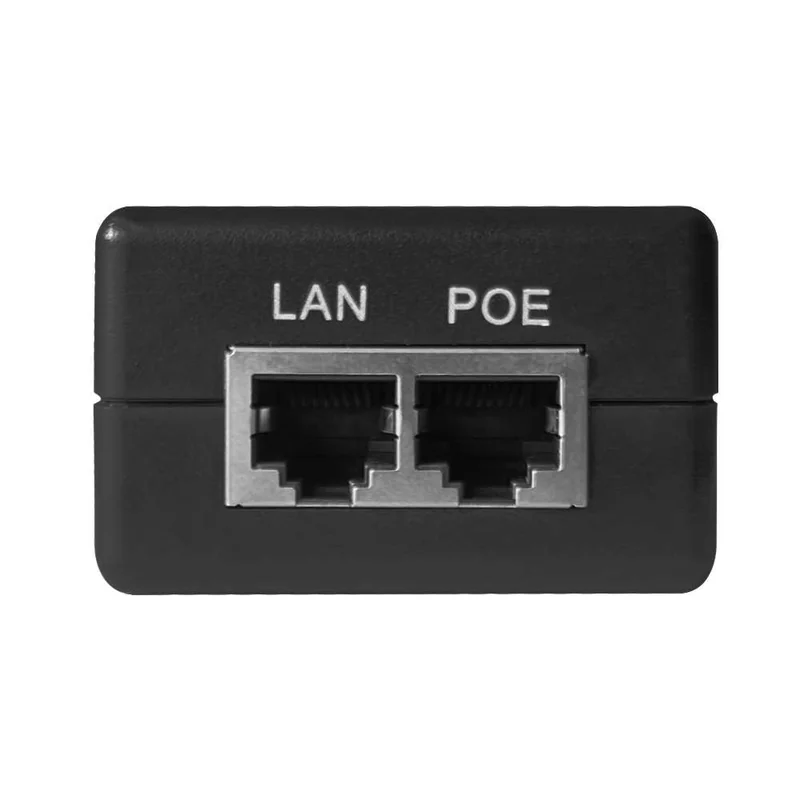

- Separate Ethernet input and powered RJ45 output
- 80 × 46 × 55mm fanless enclosure
Project inquiry
Request pricing and lead time
Tell us your model, quantity and project requirements. Our networking team will help you find the right fit.
Overview
EW-PSE101G-AC combines an Ethernet input and AC power supply into a single powered RJ45 output. It provides 48V at 0.625A for a 30W load, with a small fanless enclosure for powering compatible network devices.
Single connection
One output cable carries the Ethernet signal and power.

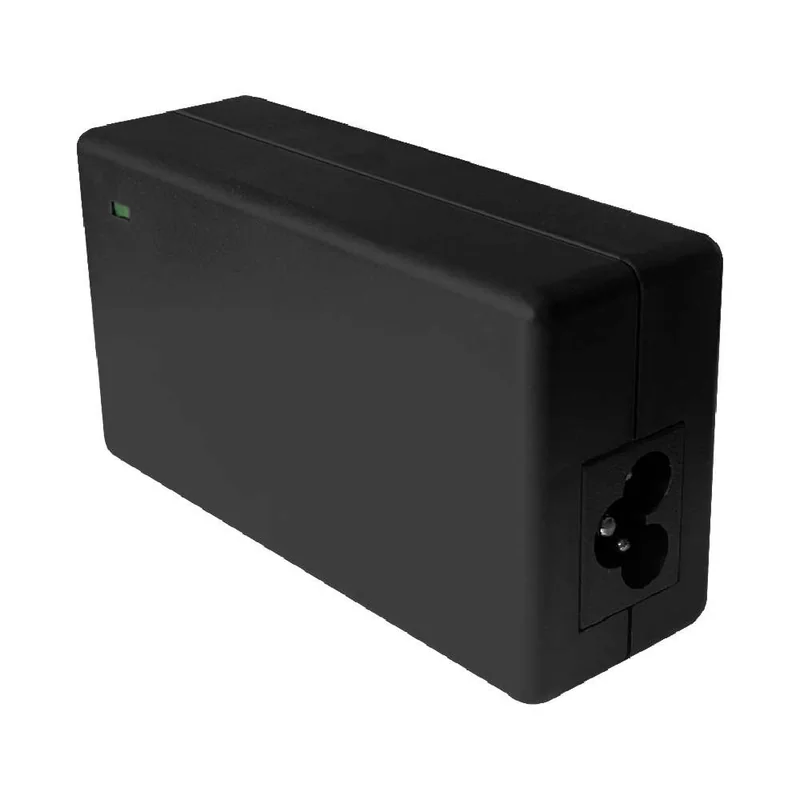

Compact size
The enclosure measures 80 × 46 × 55mm and weighs 0.154kg.
Thermal protection
A thermal cutoff and network-port ESD protection are integrated.
| Specification | Details |
|---|---|

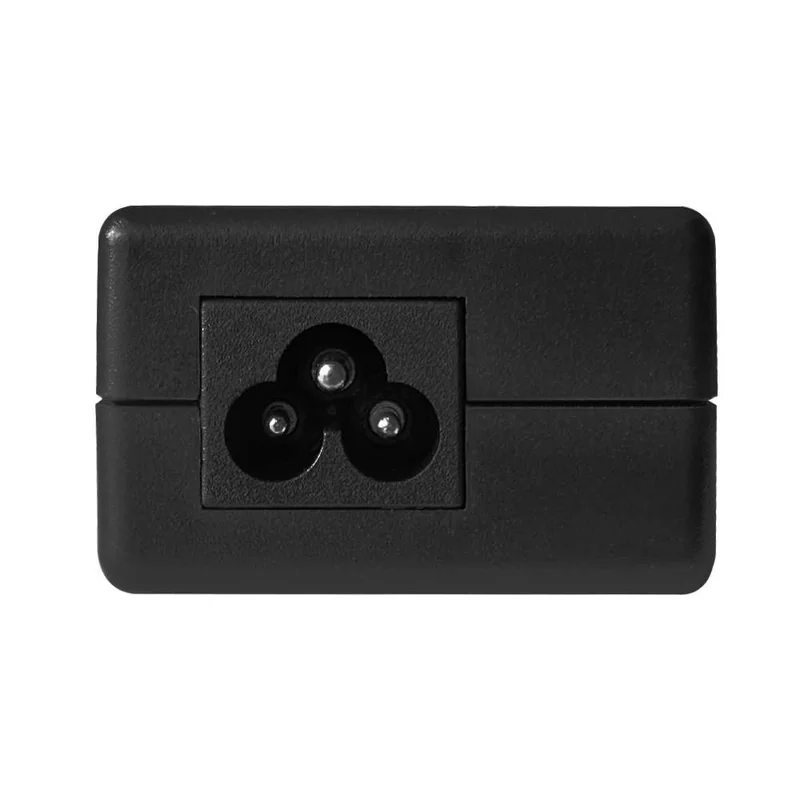

| Connections | 1 × Ethernet RJ45 input; 1 × powered RJ45 output; 1 × AC input |
| Output power | 48VDC, 0.625A; 30W |
| Power input | 100–240VAC, 50–60Hz |
| PoE compatibility | IEEE PoE standard not specified; match endpoint power requirements before selection |
| Dimensions / weight | 80 × 46 × 55mm; 0.154kg |
| Operating environment | −20°C to +55°C; 10%–90% RH, non-condensing |
| Installation | Fanless; desktop or wall mounted |
| Warranty | 1 year |
Order information
| Content | Quantity | Unit |
|---|---|---|
| EW-PSE101G-AC single-port AC PoE injector | 1 | SET |
| User guide | 1 | PC |
| Warranty card | 1 | PC |
EW-PSE101G-AC Resources
PDF · Specifications · Installation · Ordering
